QEA-R776-27TMorphibian Snake

Style#10193 6LR61 9V d.c. R6P,SUM-3, “AA”(DC 1.5V) R6P,SUM-3, “AA”(DC 1.5V) R6P,SUM-3, “AA”(DC 1.5V) transmitter Carrier frequency: 49.860 MHz, Field strength:59.7dBuV/m at 3 m transmitter Carrier frequency: 27.145 MHz, Field strength:48dBuV/m at 3 m This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The toy is to be operated in water only when fully assembled in accordance with the instructions.

27.145MHz Transmitter Block Diagram U 1 ANT

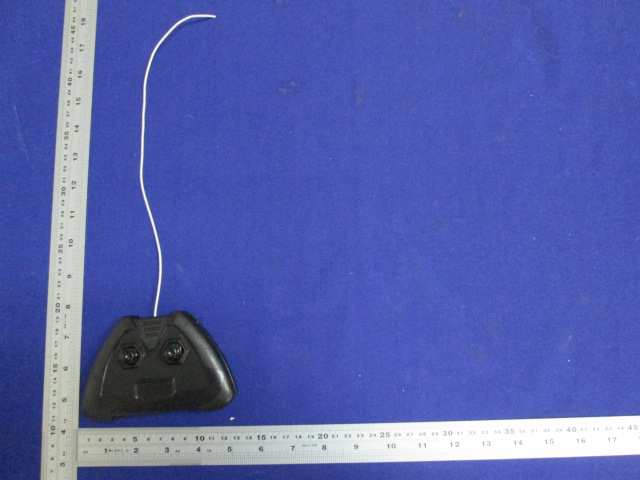

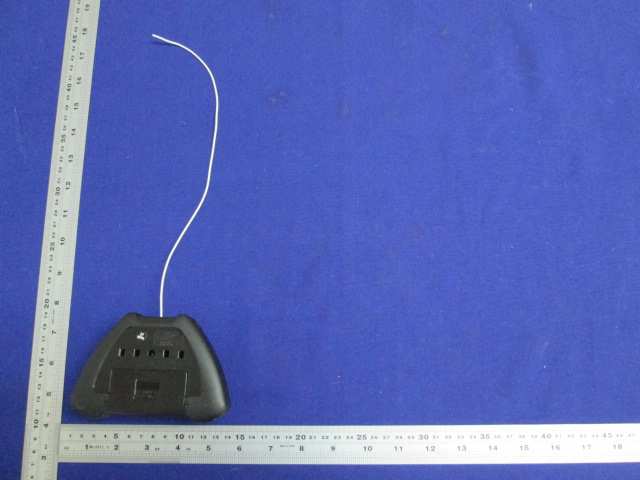

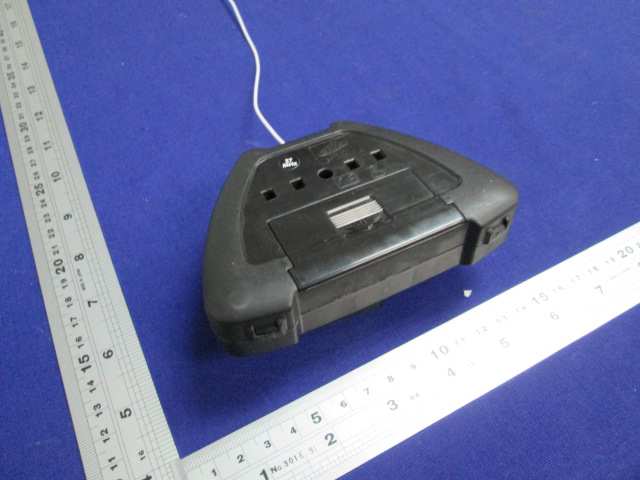

External Photos

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, L2, C1, C2, C 3 RF IC Generate code signal to modulator U1 Oscillator Generate 27.145 MHz carrier X1, Q2 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q1 Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -43.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -45.15dBm (+/- 3dB) Modulation Type: Pulse modulation

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Morphibian Snake operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -43.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -45.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 52dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -43.27dBm The ERP = EIRP – 2.15 = -45.42 dBm which is within the production variation. The maximun conducted output power specified is -40dB m =0.0001mW The source- based time-averaging conducted output power = 0.0001* Duty Cycle mW< 0.1 mW (Duty Cycle<100%) T he SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 19.3478ms Effective period of the cycle = 579.7μs x 10 + 1.5942ms x 4 = 12.1738ms DC = 12.1738ms / 19.3478ms = 0.6292 or 62.92% FCC ID: QEA-R776-27T

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 KID GALAXY INC Application For Certification FCC ID: QEA-R776-27T Morphibian Snake Additional Names: Morphibian Lobster, Morphibian Turtle, Morphibian Crocodile Model: 10193 Additional Models: 10195, 10194, 10196 Transmitter Report No.: SZHH00887822-003 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Powell Bao Engineer Andy Yan Senior Project Engineer Date: August 18, 2014 INTERTEK TESTING SERVICES Report No.: SZHH00887822-003 FCC ID: QEA-R776-27T TRF No.: FCC 15C_TX_b i GENERAL INFORMATION KID GALAXY INC MODEL: 10193 FCC ID: QEA-R776-27T Grantee: KID GALAXY INC Grantee Address: 150 Dow Street, Tower2, Unit 425B, Manchester, New Hampshire 03101 U.S.A Contact Person: Irene Ngai Tel: (800) 816-1135 114 Manufacturer: KID GALAXY INC Manufacturer Address: 150 Dow Street, Tower2, Unit 425B, Manchester, New Hampshire 03101 U.S.A Model: 10193 Type of EUT: Transmitter Description of EUT: Morphibian Snake Serial Number: N/A FCC ID : QEA-R776-27T Date of Sample Submitted: July 16, 2014 Date of Test: July 16, 2014 Report No.: SZHH00887822-002 Report Date: August 18, 2014 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZHH00887822-003 FCC ID: QEA-R776-27T TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT KID GALAXY INC MODEL: 10193 FCC ID: QEA-R776-27T TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 1 5.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 1 5.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 1 5.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 1 5.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an integral antenna, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZHH00887822-003 FCC ID: QEA-R776-27T TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description.......................................................................................1 1.1 Product Description..........................................................................................1 1.2 Related Submittal(s) Grants..............................................................................1 1.3 Test Methodology.............................................................................................1 1.4 Test Facility......................................................................................................1 2.0 System Test Configuration ............................................................................2 2.1 Justification ......................................................................................................2 2.2 EUT Exercising Software..................................................................................2 2.3 Special Accessories .........................................................…

Text truncated - open the document above for the full version.

Radiated Photos
