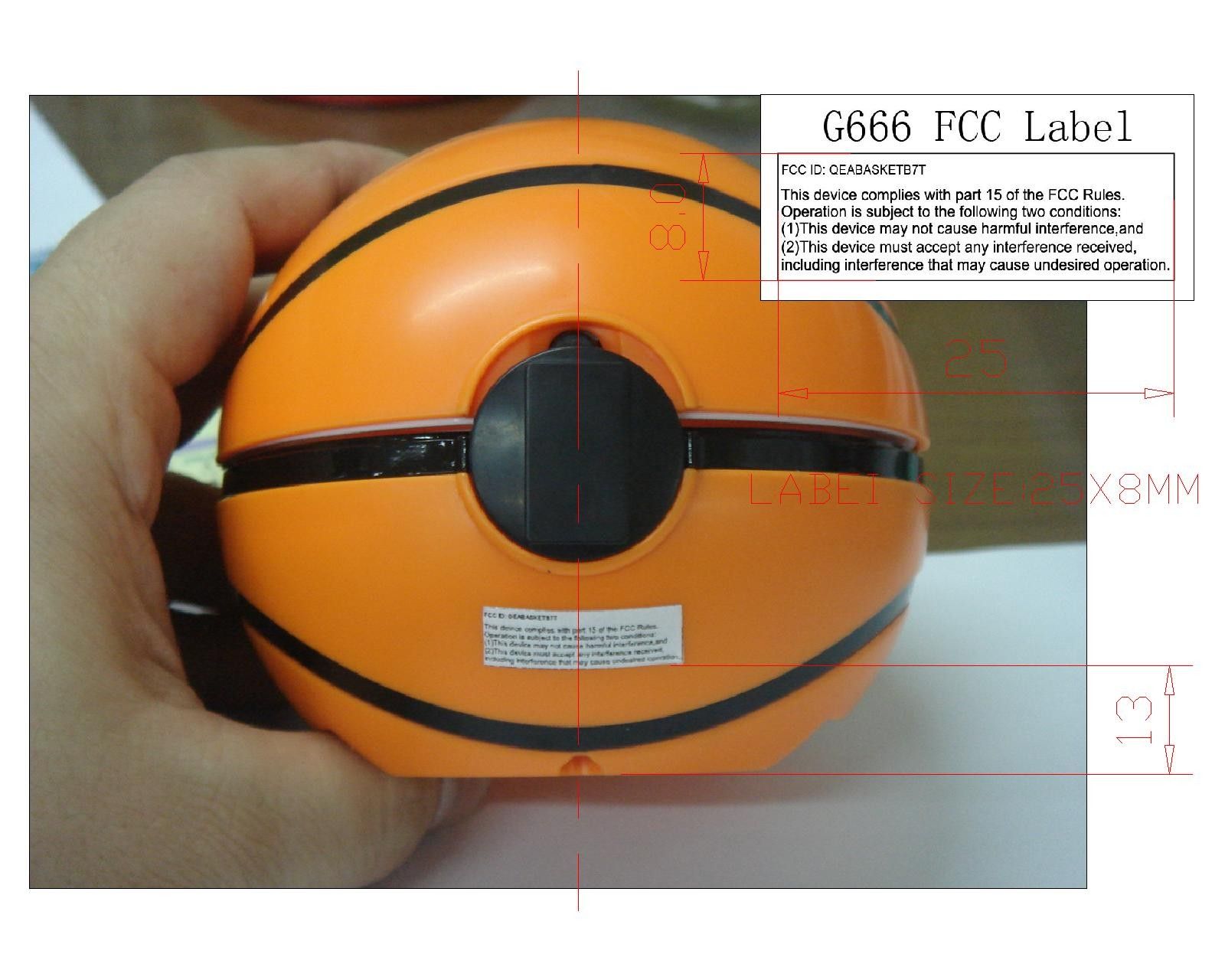

QEABASKETB7TR/C Basketball Set

1234 A B C D 4 321 D C B A LUNG CHEONG TITLE FUNCTION DWG NO DESIGNDRAWINGAPPROVEDSHEET 1 OF 1 G666 TX BLOCK DIAGRAM ANTENNA U1 9V BATTERY OSC F O R W A R D B A C K W A R D R I G H T L E F T FILTER W55RFS27T3B D1 4.3V Y1 27.145(MHZ) L1 C1 L2 C2 C3 C5 AMPLIFIER POWER SWITCH A/B CHANNEL S H O O T D2 LED G666 TX 27MHZ YEYONG PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

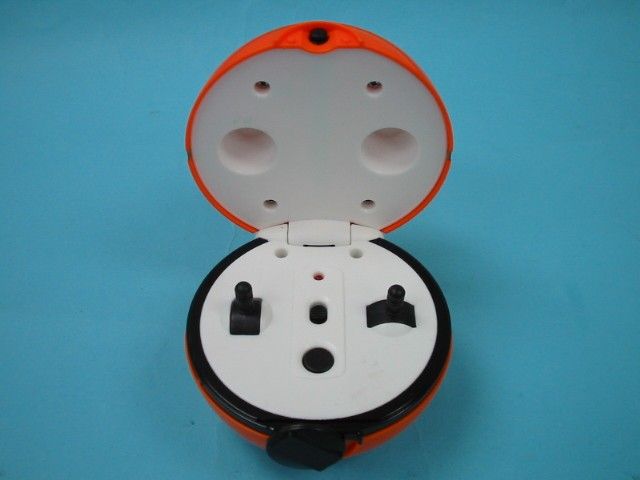

Operation Description for R/C Basket Ball Set The R/C Basket Ball Set is powered by 1 x 9V battery. The radio frequency is 27.145MHz and it has two control sticks in the middle of EUT. When the control sticks are pushed once, it will transmit different radio control signal to receiver. Referring to the transmitter circuit design, the circuit description is listed below: - U2 and associated circuit act as encoder. - Y1 and associated circuit act as oscillator.

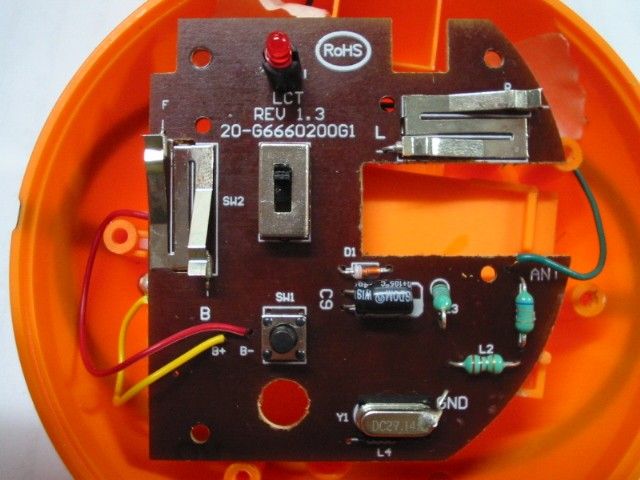

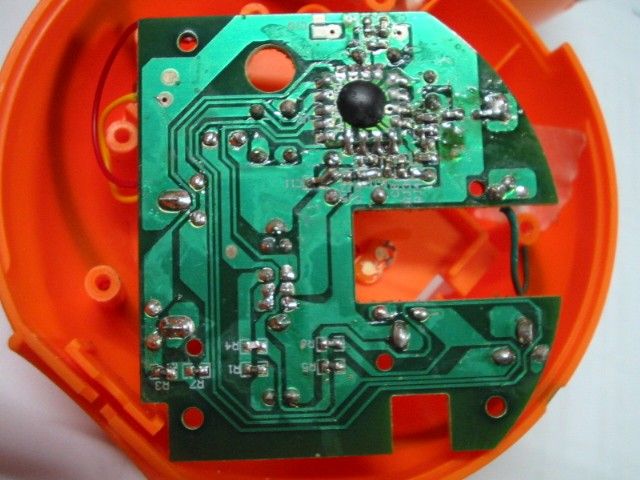

1234 A B C D 4 321 D C B A LUNG CHEONG TITLE FUNCTION DWG NO DESIGNDRAWINGAPPROVEDSHEET 1 OF 1 S3 1 S4 2 CKSEL0 3 TEST 4 CKSEL1 5 ANT 6 VSS 7 VDD 8 RESET 9 X1 10 X2 11 ID1 12 ID0 13 TXOUT 14 S1 15 S2 16 U1 W55RFS27T3B ANT L1 6.8uH L2 2.2uH L3 0.27UH C1 30PF C2 39PF C3 39PF C5 47PF C4 82PF C11 4700PF C7 33PF C6 33PF C8 104 VDD R5 4.7K R3 4.7K R6 4.7K R7 4.7K R2 20K VDD S4 F S3 R S1 B S2 L SW1 SHOOT Y1 27.145MHZ L4 NC C10 NC BATTERY SW2 D2 LED R1 1K R4 270 D1 4.3V C9 47uF VDD VDD VDD A Channel B Channel 9V G666 TX 27MHZ YEYONG SW2 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

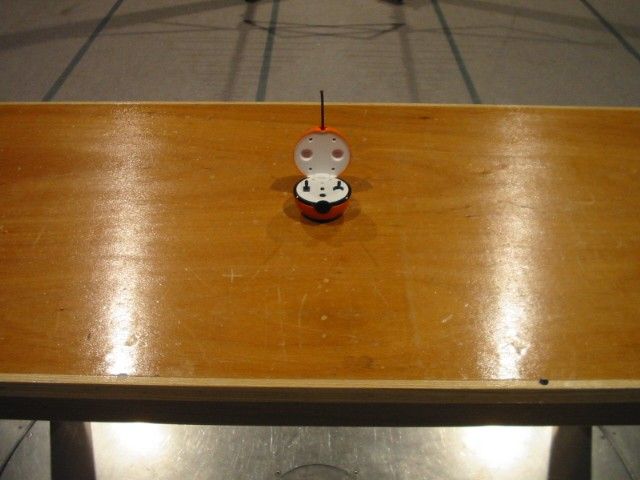

TEST REPORT Report No. : AJ009202-001 Date : 2007 May 30 Page 1 of 11 FCC ID: QEABASKETB7T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ209034(7) Client : KID GALAXY INC 150 DOW STREET, TOWER 2, UNIT 425B MANCHESTER, NH 03101 Sample Description : One(1) submitted sample(s) stated to be R/C Basketball Set of Model No. 50209 Radio Frequency : 27.145MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : piece(s) *** Date Received : 2007 April 18 Test Period : 2007 April 18 – 2007 May 02 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ009202-001 Date : 2007 May 30 Page 2 of 11 FCC ID: QEABASKETB7T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 2 Description of the radiated emission test ............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test............................................................................................... 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ........................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission....................... 9 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 9 5 Supplementary document................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty cycle .................................................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices......................................................................................................................................... 11 TEST REPORT Report No. : AJ009202-001 Date : 2007 May 30 Page 3 of 11 FCC ID: QEABASKETB7T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for R/C Basketball Set. It operates at 27.145MHz and the oscillation of radio control a crystal. The EUT is powered by 1 x 9V size battery. It has two control sticks in the middle of EUT. When the trigger keys are pressed once, it will transmit the radio control signal to receiver. The antenna is permanently attached to the main body. The brief circuit description is listed as follows: - U2 and associated circuit act as encoder. - Y1 and associated circuit act as oscillator. TEST REPORT Report No. : AJ009202-001 Date : 2007 May 30 Page 4 of 11 FCC ID: QEABASKETB7T This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedure…

Text truncated - open the document above for the full version.

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Bandwidth Plot Bandwidth 1

Job No. WF-EL-EMC-15 Edition 1 2006 April 12 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2
