E155TX-27MHZ.sch-1 - Mon Sep 13 10:05:55 2004

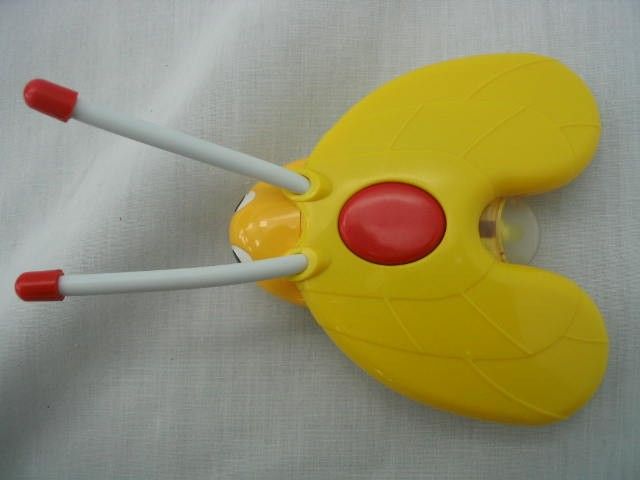

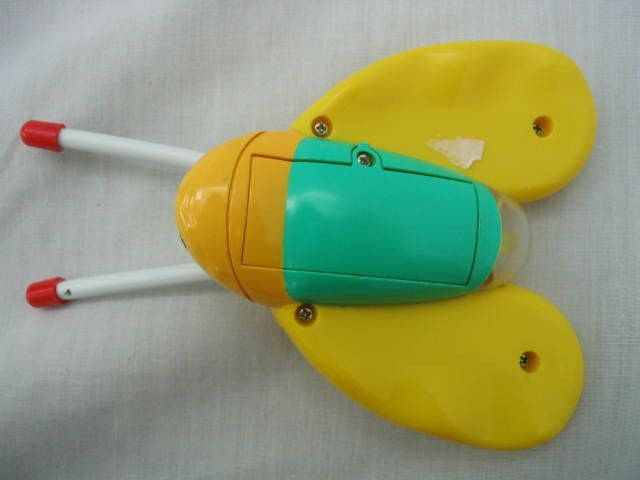

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE017293-001 Date : 2004 September 22 Application No.: LE210212(8) Applicant : Kid Galaxy Inc. One Sundial Ave, Suite 310 Manchester, NH 03103, U.S.A. Sample Description : One(1) submitted sample stated to be RC Buggies of Model No. 10404 Rating : 2 x 1.5V βAAAβ size battery No. of sample(s) : Three (3) piece(s) *** Date Received : 2004 September 07 Test Period : 2004 September 07 β 2004 September 21 Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 β Dec 2003 ANSI C63.4 β 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : QEABUGGIES27T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE017293-001 Date : 2004 September 22 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result...............................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices...............................................................................................................................11 Page 2 of 11 FCC ID : QEABUGGIES27T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE017293-001 Date : 2004 September 22 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for RC Buggies Series. Operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by 2 x 1.5V βAAAβ size battery. There are two antenna at the top of EUT and a single button in the center of EUT. When the button is pressed once, it will transmit a radio frequency for receiver go forward. The brief circuit description is listed as follows : - Y1, Q3 and associated circuit act as local oscillator. - Q2, Q4 and associated circuit act as modulation. - Q1 and associated circuit act as RF amp. - D1 and associated circuit act as battery LED. 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : QEABUGGIES27T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE017293-001 Date : 2004 September 22 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 β 2001. An Open Arβ¦
Text truncated - open the document above for the full version.
CMA Testing and Certification Laboratories P. of Job No.: J00005784 Bandwidth Plot Bandwidth 1
CMA Testing and Certification Laboratories P. of Job No.: J00005784 Duty Cycle 1 Duty Cycle 2
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 27.145 MHz - 27.145 MHz | - |
