QEADRIFTER27TRC Toy Transmitter

CAUTION! A turn left turn right

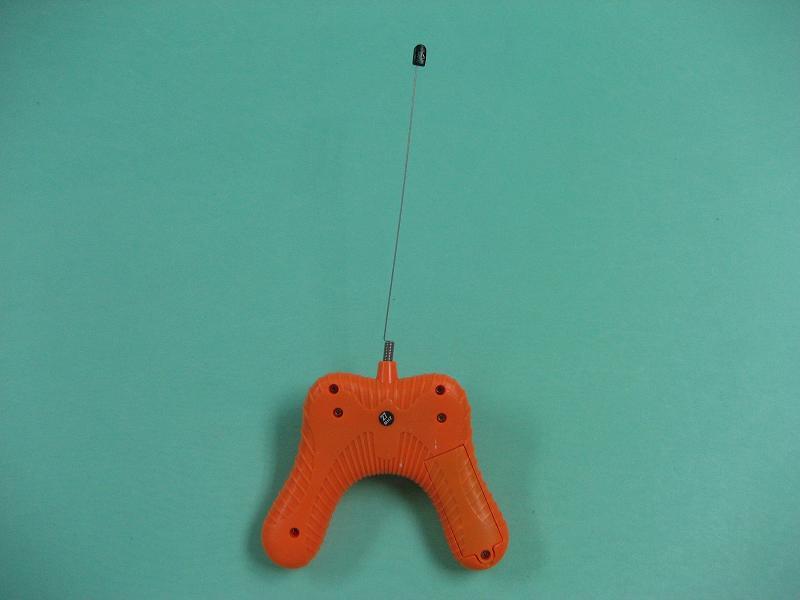

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

FCC ID: QEADRIFTER27T The antenna consists of a 17cm long Metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3.0 Volt (“AAA” size battery x 2) primary battery Antenna

Date: 2009-12-07 Page 1 of 17 No.: MH183589 Applicant (DOL003): Kid Galaxy INC 150 Dow Street, Tower2, Unit 425B Manchester, NH03101.U.S.A. Manufacturer: Dongguan Lung Cheong Toys Co., Ltd Zhou Wu Industrial District, Dong Guan City, Guang Dong Province, China Description of Sample(s): Submitted samples(s) said to be Product: Mini Slick Drifter-orange Brand Name: World of Wheels Model Number: 10170 FCC ID: QEADRIFTER27T Date Sample(s) Received: 2009-11-23 Date Tested: 2009-11-25, 2009-11-26 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2008 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): ---- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. Date: 2009-12-07 Page 2 of 17 No.: MH183589 CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Sample(s) Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-9 of 17 3.2 Bandwidth Measurement Page 10-11 of 17 Date: 2009-12-07 Page 3 of 17 No.: MH183589 Appendix A List of Measurement Equipment Page 12 of 17 Appendix B Duty Cycle Correction During 100 msec Page 13-15 of 17 Appendix C Photographs Page 16-17 of 17 Date: 2009-12-07 Page 4 of 17 No.: MH183589 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Kid Galaxy INC 150 Dow Street, Tower2, Unit 425B Manchester, NH03101.U.S.A. Manufacturer Dongguan Lung Cheong Toys Co., Ltd Zhou Wu Industrial District, Dong Guan City, Guang Dong Province, China Date: 2009-12-07 Page 5 of 17 No.: MH183589 1.3 Equipment Under Test [EUT] Description of Sample(s) Product: Mini Slick Drifter-orange Manufacturer: Dongguan Lung Cheong Toys Co., Ltd Brand Name: World of Wheels Model Number: 10170 Rating: 3Vd.c(“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Kid Galaxy INC, Mini Slick Drifter-orange. The EUT is a transmitter of radio control toy. The transmitter was operating with joystick, the EUT continues to transmit while one of the joystick is being pressed, It is pulse transmitter, Modulation by IC, and type is pulses modulation. 1.4 Date of Order 2009-11-23 1.5 Submitted Sample(s): 2 Samples 1.6 Test Duration 2009-11-25, 2009-11-26 1.7 Country of Origin China Date: 2009-12-07 Page 6 of 17 No.: MH183589 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2008 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable Date: 2009-12-07 Page 7 of 17 No.: MH183589 3.0 Test Results 3.1 Emission 3.1.1 Radiated Emissions (30 – 1000MHz) Test Requirement: FCC 47CFR 15.227 Test Method: ANSI C63.4:2003 Test Date: 2009-11-26 Mode of Operation: Tx mode Test Method: The sample was placed 0.8m above the ground plane of semi-anechoic chamber*. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *: Semi-anechoic chamber located on the STC (Dongguan) Company Ltd. 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, PRC with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 629686. Test Setup: 3m Measurement Receiver Computer EUT Turntable Ground Plane Semi-Anechoic Chamber Date: 2009-12-07 Page 8 of 17 No.: MH183589 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.227]: Frequency Range of Fundamental Field Strength of Fundamental Emission [Peak] Field Strength of Fundamental Emission [Average] [MHz] [μV/m] [μV/m] 26.96-27.28 100,000 10,000 Results of Tx mode: PASS FrequencyCorrectionLimit @3mE-Field FactorPolarity MHzdB/m 27.14547.1018.665.71,927.5100,000Vertical Field Strength of Fundamental Emissions Peak Value Measured Level @3m Field Strength Field Strength FrequencyAdjusted byCorrectionLimit @3mE-Field Duty CycleFactorPolarity MHzdBdB/m 27.14543.0-4.118.661.61,202.310,000Vertical Field Strength Field Strength of Fundamental Emissions Average Value Measured Level @3m Field Strength According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. Re…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
