QEADRIFTER49TRC Toy Transmitter

CAUTION! A turn left turn right

FCC ID: QEADRIFTER49T Antenna, Ground and Power Source The antenna consists of a 17cm long Metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3.0 Volt (“AAA” size battery x 2) primary battery. Antenna

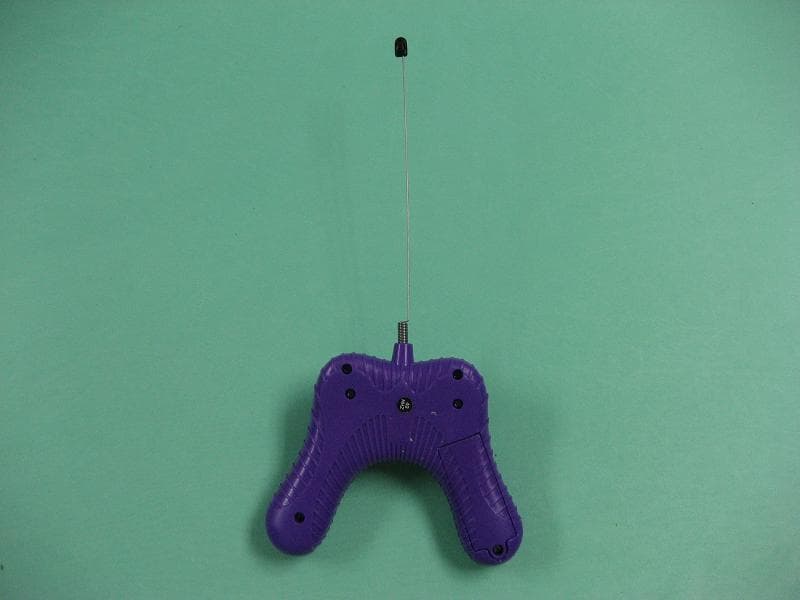

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Circuit Description The 49.86 MHz crystal oscillator drives the base of Q2 the final amplifier. The modulation provided by U1 . The output of Q1 has the matching network consisting of L2 and C4 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 17 cm long Metal antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3.0 Volt (“AAA” size battery x 2) primary battery Operation Descriptions The transmitter is a remote control toy operating at 49MHz band. The transmitter is powered by a 3.0V battery (“AAA” size battery x 2) and the transmitting frequency is crystal controlled. The operation is achieved by different combinations of form pulse modulating signal on the 49.86 MHz carrier frequency. Remarks: The transmitter is a two joystick transmitter. The EUT continues to transmit while joystick is being pressed. It is joystick transmitter, Modulation by IC; and type is Amplitude modulation.

STC Test Report Date : 2009-12-07 Page 1 of 18 No. : MH183590 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (DOL003): Kid Galaxy INC 150 Dow Street, Tower2, Unit 425B Manchester, NH03101.U.S.A. Manufacturer: Dongguan Lung Cheong Toys Co., Ltd Zhou Wu Industrial District, Dong Guan City, Guang Dong Province, China Description of Sample(s): Submitted samples(s) said to be Product: Mini Slick Drifter-Purple Brand Name: World of Wheels Model Number: 10171 FCC ID: QEADRIFTER49T Date Sample(s) Received: 2009-11-23 Date Tested: 2009-11-25, 2009-11-26 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2008 and ANSI C63.4:2003 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): ---- Dr. LEE Kam Chuen, Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2009-12-07 Page 2 of 18 No. : MH183590 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 18 Content Page 2-3 of 18 1.0 General Details 1.1 Test Laboratory Page 4 of 18 1.2 Applicant Details Page 4 of 18 Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 18 Description of EUT operation 1.4 Date of Order Page 5 of 18 1.5 Submitted Sample(s) Page 5 of 18 1.6 Test Duration Page 5 of 18 1.7 Country of Origin Page 5 of 18 2.0 Technical Details 2.1 Investigations Requested Page 6 of 18 2.2 Test Standards and Results Summary Page 6 of 18 3.0 Test Results 3.1 Emission Page 7-9 of 18 3.2 Bandwidth Measurement Page 10-11 of 18 STC Test Report Date : 2009-12-07 Page 3 of 18 No. : MH183590 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 12 of 18 Appendix B Duty Cycle Correction During 100 msec Page 13-16 of 18 Appendix C Photographs Page 17-18 of 18 STC Test Report Date : 2009-12-07 Page 4 of 18 No. : MH183590 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant Kid Galaxy INC 150 Dow Street, Tower2, Unit 425B Manchester, NH03101.U.S.A. Manufacturer Dongguan Lung Cheong Toys Co., Ltd Zhou Wu Industrial District, Dong Guan City, Guang Dong Province, China STC Test Report Date : 2009-12-07 Page 5 of 18 No. : MH183590 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample(s) Product: Mini Slick Drifter-Purple Manufacturer: Dongguan Lung Cheong Toys Co., Ltd Brand Name: World of Wheels Model Number: 10171 Input Voltage: 3Vd.c(“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Kid Galaxy INC, Mini Slick Drifter-Purple. The EUT is a radio control toy transmitter. The EUT was operated with 2 joysticks; the EUT continues to transmit while one of the joysticks is pressed. It is pulse transmitter, Modulation by IC, and type is pulses modulation. 1.4 Date of Order 2009-11-23 1.5 Submitted Sample(s): 2 Samples 1.6 Test Duration 2009-11-25, 2009-11-26 1.7 Country of Origin China STC Test Report Date : 2009-12-07 Page 6 of 18 No. : MH183590 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2008 and ANSI C63.4:2003 for FCC Certification. 2…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
