QEAHYPER27THyper Flyer

1234 A B C D 4321 D C B A LUNG CHEONG TITLE FUNCTION DWG NO DESIGNDRAWINGAPPROVEDSHEET 1 OF 1 G258-TX-27M 碰撞车 ZZZ ZZZ G258 TX BLOCK DIAGRAM-1.0 U2-ENCODE SN8P2501B OSCILLATOR Q4 (MBT3904) X1 (9.04833MHZ) D1 (1S2638) PREAMPLIFIER (Q2 Q3 MBT3904 T1 T2 7KC-72B) AMPLIFIER/FILTER Q1 (C1959Y) C1.C2.C3.L1.L2 ANT POWER SUPPLY BATTERY 9 V SW2 U1 78L05 UP DOWN L R JOYSTICKS 0% 40% 60% 80% 100% SPEED SWITCH ANGLE SELECT SW3 FUNTION DESIGNATION LED (D2 D3 D4) G258 TX 27MHZ PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Date: Sept 12, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 USA Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. as agent for KID GALAXY INC, ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of KID GALAXY INC Product name : Hyper Flyer Model : 10223 This authorization will expire one year from the date of this letter. Irene Ngai / Manager _ Signature with title ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Date: Sept 12, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 USA Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. as agent for KID GALAXY INC, ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of KID GALAXY INC Product name : Hyper Flyer Model : 10223 This authorization will expire one year from the date of this letter. Irene Ngai / Manager _ Signature with title

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Kid Galaxy Inc. Item 2. Applicant's mailing address Line 1: One Sundial Ave, Suite 310 Manchester, Line 2: P.O.Box: City: State: Country (if foreign address): United States Zip/Postal Code: NH 03103 Item 3. FCC ID: Grantee code: QEA Equipment Product Code (14 characters maximum): HYPER27T Item 4. Person at the applicant's address to receive grant or for contact: First Name: KC Mail Stop: Last Name: Lee Telephone: 852 26661807 Ext: Title: Manager E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Tai Po Industrial Estate, N.T., Hong Kong. Contact: KC Lee E-mail: [email protected] Item 6. Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) x No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DXX * Description of Product as it is Marketed: Part 15 Low Power Communication Device Transmitter (NOTE: Hyper Flyer) Item 11. * Application is for: (please mark as appropriate) x Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes x No Ο Yes x No DOC-FCC009 4/14/2005 Page 2 of 2 (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: The Hong Kong Standards & Testing Centre Ltd. Last Name: KC Telephone 26661852 Ext Fax No. 26650848 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15 27.145 WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? x Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. * Signature of A…

Text truncated - open the document above for the full version.

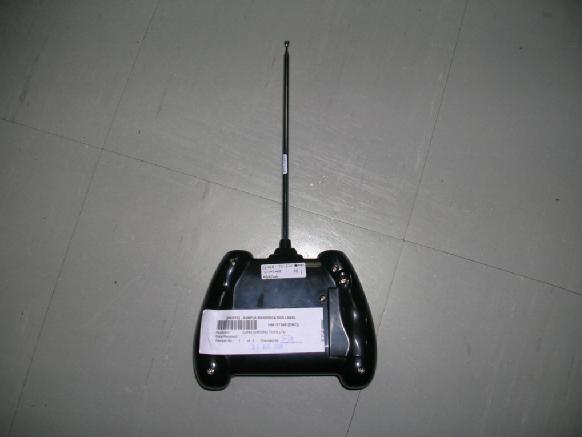

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Application No.: HM157348 Date: 2006-09-12 Circuit Description The 27.145 MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The output of Q1 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 96.5cm long Metal Antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9 Volt (“6F22” size battery x 1) primary battery. Operation Descriptions The transmitter is a remote control toy operating at 27.145MHz band. The transmitter is powered by a 9 battery (6F22) and the transmitting frequency is crystal controlled. There are 2 joystick to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 27.145MHz carrier frequency. Remarks: The transmitter is a 2 Joystick transmitter. The EUT continues to transmit while Joystick is being pressed. It is Pulse transmitter, Modulation by IC; and type is pulse modulation.

Item Number: 90-G2580342-1 TX PCB ASSY 27MHZ Quantity: 1 UOM: EA Type of Bill: REG TX PCB组装 1P<1.0% Batch-size: 1,000 Type: C Level No Component Item# Description MLI UOM Oper Weight(g)B/T Per-Batch Batch-size Gross-Qty 2....... 05-N8P2501B-2 TX BONDING IC L EACH 0.03 no 1 1 TX 邦定空白IC(裸片封装) 2....... 01-42000954-0 SMD R 20 OHM 1/10W +/-5% 0805 L EACH 0.006 no 2000 2 薄片电阻 Memo: R2.R4 2....... 01-43310156-0 SMD.R 330 OHM 1/16W +/-5% 0603L EACH 0.004 no 1000 1 薄片电阻 Memo: R1 2....... 01-46830956-0 SMD R 68K OHM 1/10W +/-5% 0603L EACH 0.004 no 1000 1 薄片电阻 4111-13685 Memo: R3 2....... 01-45130956-0 SMD R 51K OHM 1/10W +/-5% 0603L EACH 0.004 no 1000 1 薄片电阻 Memo: R5 2....... 01-48220956-0 SMD R 8.2K OHM 1/10W +/-5%0603L EACH 0.004 no 1000 1 薄片电阻 Memo: R8 2....... 01-42230956-0 SMD R 22K OHM 1/10W +/-5% 0603L EACH 0.004 no 1000 1 薄片电阻 4111-13225 Memo: R11 2....... 01-41040956-0 SMD R 100K OHM 1/10W +/-5%0603L EACH 0.004 no 2000 2 薄片电阻 4111-14105 Memo: R10.R6 2....... 01-43030934-0 SMD R 30K OHM 1/10W +/-1% 0805L EACH 0.006 no 1000 1 薄片电阻 Memo: R9 2....... 01-46810956-0 SMD R 680 OHM 1/10W +/-5% 0603L EACH 0.004 no 4000 4 薄片电阻 Memo: R15.R16.R17.R7 2....... 02-18206214-0 C.CAP 50V 82PF +/-5% NPO SMD L EACH 0.013 no 1000 1 瓷片电容(贴片) 0603 Memo: C1 2....... 02-14706214-0 C.CAP 50V 47PF +/-5% NPO SMD L EACH 0.013 no 1000 1 瓷片电容(贴片) 0603 Memo: C3 2....... 02-11006214-0 C.CAP 50V 10PF +/-5% NPO SMD I EACH 0.013 no 1000 1 瓷片电容(贴片) 4112-10335 0603 Memo: C11 2....... 02-11506214-0 C.CAP 50V 15PF +/-5% NPO SMD L EACH 0.017 no 2000 2 瓷片电容(贴片) 0603 Memo: C8 2....... 02-13906214-0 C.CAP 50V 39PF +/-5% NPO SMD L EACH 0.004 no 1000 1 瓷片电容(贴片) 0603 Memo: C14 2....... 02-11216214-0 C.CAP 50V 120PF +/-5% NPO SMD L EACH 0.013 no 1000 1 瓷片电容（贴片）0603 Memo: C12 2....... 02-11516214-0 C.CAP 50V 150PF+/-5% NPO SMD I EACH 0.013 no 1000 1 瓷片电容(贴片) 0603 Memo: C13 2....... 02-12236334-0 C.CAP 50V 22000PF +/-10% X7R L EACH 0.013 no 2000 2 瓷片电容(贴片) SMD 0603 Memo: C6.C9 2....... 02-11043404-0 C.CAP 16V 0.1uF +/-20% SMD L EACH 0.04 no 5000 5 瓷片电容（贴片）0603 Memo: C4.17.18.20.15 2....... 03-MBT39041-3 TRANSISTOR MMBT3904 NPN SMD L EACH 0.05 no 3000 3 三极管(贴片) 耗散功率<1W Memo: Q2.3.4 1......... 01-10000281-0 TEST PIN 16TS TPA L EACH 0.11 no 2000 2 电阻 4121-40161 Memo: Z1.Z2 1......... 01-21000331-0 M.F.R 10 OHM 1/4W +/-1% A I EACH 0.18 no 1000 1 金属膜电阻 Memo: R13 1......... 02-21063412-0 E.CAP 16V 10UF +/-20% 4X7 L EACH 0.35 no 2000 2 铝电解电容 1P<1.0% Memo: C5.21 1......... 02-21073412-0 E.CAP 16V 100UF +/-20% D6.3X5 L EACH 0.339 no 2000 2 铝电解电容 1P<1.0% Memo: C16.C19 1......... 03-C195900Y-1 TRANSISTOR C1959Y NPN L EACH 0.22 no 1000 1 三极管 耗散功率<1W Memo: Q1 1......... 04-31S26380-0 DIODE VARICAP 1S2638 50V DIP I EACH 0.14 no 1000 1 变容二极管 Memo: D1 1......... 05-LM78L050-0 IC LM78L05 TO-92 L EACH 0.03 no 1000 1 集成块/单片非数字 3PIN 稳压 Memo: U1 1......... 06-39048333-0 CRYSTAL 9.0483M +/-15PPM 49U L EACH 0.90 no 1000 1 晶体(JYUAF1.5C5-20-9.0483) Memo: X1 1......... 07-20722220-0 COIL 7KC-72BA0.72UH+/-10%50MINL EACH 2.00 no 2000 2 中周 Memo: T1.T2 1......... 09-12300030-0 SWITCH SS23E050EG5 L EACH 1.90 no 1000 1 滑动开关 Memo: SW2 1......... 16-10101703-0 INDUCTOR 1.0uH +/-5% Q>100 D3 L EACH 0.20 no 1000 1 电感 Memo: L2 1......... 16-11001503-0 INDUCTOR 10UH +/-5% Q>80 D3 L EACH 0.40 no 1000 1 电感 Memo: L4 1......... 16-10391503-0 INDUCTOR 3.9UH +/-5% Q>=80 D3 L EACH 0.20 no 1000 1 电感 Memo: L5 1......... 16-10561703-0 INDUCTOR 5.6UH +/-5% Q>100 L EACH 0.40 no 1000 1 色环电感 Memo: L1 1......... 12-11250000-0 LED ROUND D5.0 RED DIP L EACH 0.25 no 1000 1 插件发红光二极管 Memo: D4 1......... 12-11750001-0 LED ROUND D5.0 YELLOW DIP L EACH 0.25 no 1000 1 插件发黄光二极管 Memo: D3 1......... 12-13350000-0 LED ROUND GREEN D5.0 333GD DIPL EACH 0.25 no 1000 1 插件发绿光二极管 Memo: D2 1......... 08-50150505-0 JUMPER WIRE 5X15X5 D0.5 m EACH no 1000 1 跳线 1......... 08-50080505-0 JUMPER WIRE 5X8X5 D0.4 L EACH 0.03 no 3000 3 跳线 Memo: JMP1.JMP2.JMP3

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

1234 A B C D 4321 D C B A LUNG CHEONG TITLE FUNCTION DWG NO DESIGN DRAWING APPROVED SHEET REV ANT L1 5.6UH L2 1UH L4 10UH C1 82P C2 15P C3 47pB C E Q1 1959 B C E Q2 3904 B C E Q3 3904 B C E Q4 3904 C4 104 C6 223 R1 330 R2 20 1 2 3 4 5 T1 7KC-72B 1 2 3 4 5 T2 7KC-72B C7 R3 68k C8 15P C10 C9 223 R4 20 R5 51K R7 680 R6 100K C11 10p C12 120P C13 150P X1 9.04833MHZ L5 3.9UH R8 8.2K R10 100K R9 30K R11 22K C15 104 D1 2638 IN G N D OUT U178L05 C18 104 C17 104 C16 100U C19 100U C5 10UF BAT 9V VCC D A T A I N L3 P2.5 P0.0 P2.4 P2.3 P2.0 P2.1 P2.2 P5.4 R15 680 D4 R 40% 60% 85% P2.0 P2.1 DATA OUT RIGHT C14 39P +C21 10U LEFT DOWN UP R13 10R C20 104 C? CAP VCC U2 SN8P2501B G258TX TX 27.145Mhz G258-1.0 1.0 D3 Y D2 G R16 680 R17 680 SPEED1 2 3 1 SW1 SPEED2 SPEED3 0% 100% P2.2 邦定 UP DOWN P2.5 P0.0 12 10 13 14 3 2 1 8 4 11 +5V +5V SW2 C22 104 P1.0VSS 9 PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

STC Test Report Date : 2006-09-12 Page 1 of 17 No. : HM157348 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: KID GALAXY INC ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A Description of Samples: Model name: Hyper Flyer Model no.: 10223 Brand name: RC Flying Toys FCC ID: QEAHYPER27T Date Samples Received: 2006-08-31 Date Tested: 2006-09-08 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- TSANG Chi Ho, Steven, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-09-12 Page 2 of 17 No. : HM157348 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2006-09-12 Page 3 of 17 No. : HM157348 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2006-09-12 Page 4 of 17 No. : HM157348 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant KID GALAXY INC ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Manufacturer Lung Cheong Toys Ltd. Lung Cheong Building, 1 Lok Yip Road On Lok Tsuen, Fanling N.T. Hong Kong STC Test Report Date : 2006-09-12 Page 5 of 17 No. : HM157348 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Hyper Flyer Manufacturer: Lung Cheong Toys Ltd. Brand Name: RC Flying Toys Model Number: 10223 Rating: 9Vd.c (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a KID GALAXY INC., Hyper Flyer. The transmitter is a 2 joystick transmitter. The EUT continues to transmit while joystick is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2006-08-31 1.5 Submitted Sample(s): 2 Samples 1.6 Test Duration 2006-09-08 1.7 Country of Origin China STC Test Report Date : 2006-09-12 Page 6 of 17 No. : HM157348 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2006…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
