QEAMDM49TMDM Patriot Flames (Model: 10704)

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Kid Galaxy Inc. Item 2. Applicant's mailing address Line 1: One Sundial Ave, Suite 310 Manchester, Line 2: P.O.Box: City: State: Country (if foreign address): United States Zip/Postal Code: NH 03103 Item 3. FCC ID: Grantee code: QEA Equipment Product Code (14 characters maximum): MDM49T Item 4. Person at the applicant's address to receive grant or for contact: First Name: KC Mail Stop: Last Name: Lee Telephone: 852 26661807 Ext: Title: Manager E-mail: [email protected] Fax No: Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Tai Po Industrial Estate, N.T., Hong Kong. Contact: KC Lee E-mail: [email protected] Item 6. Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: The Hong Kong Standards and Testing Centre Ltd. Telephone: 852 26661807 Ext: Fax No: 852 2665 0848 First Name: KC Middle Initial: Last Name: Lee Address Line 1: 10 Dai Wang Street, P.O.Box: Address Line 2: Tai Po Industrial Estate City: Country (if foreign address):Hong Kong Zip/Postal Code: E-mail: [email protected] Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) x No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DXX * Description of Product as it is Marketed: Part 15 Low Power Communication Device Transmitter (NOTE: MDM Patriot Flames) Item 11. * Application is for: (please mark as appropriate) x Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes x No Ο Yes x No DOC-FCC009 4/14/2005 Page 2 of 2 (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: The Hong Kong Standards & Testing Centre Ltd. Last Name: KC Telephone 26661852 Ext Fax No. 26650848 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15 49.85 WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? x Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. * Signature …

Text truncated - open the document above for the full version.

ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Date: July 21, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 USA Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. as agent for KID GALAXY INC, ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of KID GALAXY INC Product name : MDM Patriot Flames Model : 10704 This authorization will expire one year from the date of this letter. Irene Ngai / Manager_ Signature with title

ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Date: July 21, 2006 The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn.: Mr. Patrick Wong Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, Irene Ngai / Manager_ Signature with Title.

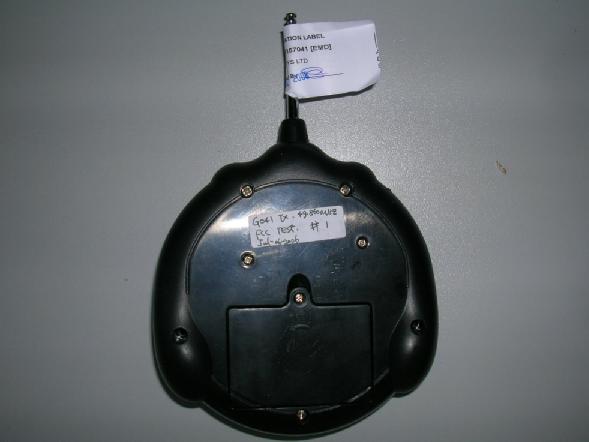

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Application No.: HM157041 Date: 2006-07-25 FCC ID: QEAMDM49T Circuit Description The 49.85 MHz crystal oscillator drives the base of Q1 the final/buffer amplifier. The modulation provided by IC. The output of Q1 has the matching network consisting of L1 and C1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 24.5cm long Metal Antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 4.5 Volt (“AAA” size battery x 3) primary battery. Operation Descriptions The transmitter is a remote control toy operating at 49.85MHz band. The transmitter is powered by a 3 x 1.5V battery (AAA) and the transmitting frequency is crystal controlled. There are 2 joystick to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 49.85.MHz carrier frequency. Remarks: The transmitter is a 2 Joystick transmitter. The EUT continues to transmit while Joystick is being pressed. It is Pulse transmitter, Modulation by IC; and type is Pulse modulation.

2....... 01-41020956-0 SMD.R 1K OHM 1/10W +/-5% 0603 L EACH 03TS 0.004 no 1000 1 薄片电阻 Memo: R1 2....... 01-41010956-0 SMD.R 100 OHM 1/10W +/-5% 0603L EACH 03TS 0.004 no 1000 1 薄片电阻 Memo: R2 2....... 01-45130956-0 SMD R 51K OHM 1/10W +/-5% 0603L EACH 03TS 0.004 no 1000 1 薄片电阻 Memo: R3 2....... 01-42730956-0 SMD R 27K OHM 1/10W +/-5% 0603L EACH 03TS 0.004 no 1000 1 薄片电阻 Memo: R6 2....... 01-41530956-0 SMD R 15K OHM 1/10W +/-5% 0603L EACH 03TS 0.004 no 1000 1 薄片电阻 Memo: R7 2....... 01-44700956-0 SMD R 47 OHM+/-5% 1/10W 0603 L EACH 03TS 0.004 no 1000 1 薄片电阻 4111-10475 Memo: R4 2....... 01-41040956-0 SMD R 100K OHM 1/10W +/-5%0603L EACH 03TS 0.004 no 2000 2 薄片电阻 4111-14105 Memo: R11 R5 2....... 02-12006214-0 C.CAP 50V 20PF +/-5% NPO SMD L EACH 03TS 0.013 no 1000 1 瓷片电容(贴片) 0603 Memo: C8 2....... 02-13006214-0 C.CAP 50V 30PF +/-5% NPO SMD L EACH 03TS 0.013 no 1000 1 瓷片电容(贴片) 0603 Memo: C7 2....... 02-13306214-0 C.CAP 50V 33PF +/-5% NPO SMD I EACH 03TS 0.013 no 1000 1 瓷片电容(贴片) 4112-10335 0603 Memo: C1 2....... 02-12006214-0 C.CAP 50V 20PF+/-5% NPO SMD I EACH 03TS 0.013 no 1000 1 瓷片电容(贴片) 0603 4112-10475 Memo: C3 2....... 02-16806214-0 C.CAP 50V 68PF+/-5%NPO SMD0603L EACH 03TS 0.013 no 2000 2 瓷片电容(贴片) 4112-10685 Memo: C5 C2 2....... 02-11036304-0 C.CAP 50V 10000PF +/-10% SMD L EACH 03TS 0.013 no 2000 2 瓷片电容(贴片)0603 4112-13106 Memo: C9.C6 2....... 02-11043404-0 C.CAP 16V 0.1uF +/-20% SMD L EACH 03TS 0.04 no 3000 3 瓷片电容（贴片）0603 Memo: C14.C10.C13 2....... 03-2SC2712Y-3 TRANSISTOR 2SC2712Y TO-236 SMDL EACH 03TS 0.01 no 2000 2 G042 TX 49MHz part list 三极管(贴片) 耗散功率<1W Memo: Q1.Q2 2....... 05-RC11A019-2 BONDING IC GPRC11A-019 L EACH 02 0.10 no 1000 1 单片非数字 TX 21PIN(FB9AEB) Memo: U1 2....... 20-G0410300-1 FR4 0.80MM D/S G/P L EACH 02 0.30 no 1000 1 TX.BONDING PCB板 1......... 04-4BZX3V31-0 DIODE ZENER BZX55C3.3V0.5W DIPL EACH 03T 0.132 no 1000 1 稳压二极管 Memo: ZD1 1......... 02-21072412-0 E.CAP 10V 100UF +/-20% 5X7 I EACH 03T 0.339 no 2000 2 铝电解电容 1P<1.0% Memo: C11.C12 1......... 06-34986001-0 CRYSTAL 49.860MHZ H-49U/S L EACH 03T 0.80 no 1000 1 晶振 插件2脚 Memo: Y1 1......... 16-A0221703-0 INDUCTOR 2.2uH +/-5% Q>100 D3L EACH 03T 0.80 no 1000 1 电感 (3P<0.1%) Memo: L1 1......... 16-A0061703-8 INDUCTOR 0.68uH +/-5% Q>100 D3L EACH 03T 0.80 no 1000 1 电感 (3P<0.1%) Memo: L2 1......... 16-A0101703-0 INDUCTOR 1.0uH +/-5% Q>100 D3 L EACH 03T 0.20 no 2000 2 电感 3P<0.1% Memo: L3.L4 1......... 12-11230000-0 LED RED 3MM DIP I EACH 03T 0.22 no 1000 1 插件发红光二极管 Memo: D1 1......... 09-A2300042-0 SLIDE SWITCH 2P3T SK-23D07G3-BL EACH 03T no 1000 1 滑动开关 3P<1.0 %

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

12345678 A B C D 87654321 D C B A LUNG CHEONG TITLE FUNCTION DWG NO DESIGNDRAWINGAPPROVEDSHEET 1 OF 1 Q2 2712 R4 47 C8 20P Y1 49.860 R6 27K L4 1UH C7 30P Q1 2712 C5 68P C3 20P L3 1.0UH C2 68P L2 0.68UH C1 33P L1 2.2UH ANT C6 103 1432567891011 1312141516222120191817 U1 GPRC11-019 FLRB C9 103 R7 15K VDD R3 51K VDD R5 100K R11 100K C14 104 R2 100 C13 104 C12 100UF VDD G042/G043 TX.SCH-49.86MHZ R1 1K D1 LED 1.5V*3 C11 100UF C10 104 R8 NC D0D1D6D7C7C6C2C1VDDNCROSC TEST R E S E T AUDVSS O U T 2 IN2 O U T 1 EN1ENVDDNC ZD1 3.3V SW1 G042/G043 TX 49MHZ 碰撞车 G041TX27M.SCH-01 ZZZ ZZZ PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

STC Test Report Date : 2006-07-24 Page 1 of 17 No. : HM157041 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: KID GALAXY INC ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Description of Samples: Model name: MDM Patriot Flames Model no.: 10704 Brand name: Mad Dog Motor FCC ID: QEAMDM49T Date Samples Received: 2006-07-14 Date Tested: 2006-07-20 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- TSANG Chi Ho, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-07-24 Page 2 of 17 No. : HM157041 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2006-07-24 Page 3 of 17 No. : HM157041 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2006-07-24 Page 4 of 17 No. : HM157041 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant KID GALAXY INC ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Manufacturer Lung Cheong Toys Ltd. Lung Cheong Building, 1 Lok Yip Road On Lok Tsuen, Fanling N.T. Hong Kong STC Test Report Date : 2006-07-24 Page 5 of 17 No. : HM157041 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: MDM Patriot Flames Manufacturer: Lung Cheong Toys Ltd. Brand Name: Mad Dog Motor Model Number: 10704 Input Voltage: 4.5Vd.c. (“AAA” size battery x 3) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a KID GALAXY INC, MDM Patriot Flames. The transmitter is a 2 Joystick transmitter. The EUT continues to transmit while joystick is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2006-07-14 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2006-07-20 1.7 Country of Origin China STC Test Report Date : 2006-07-24 Page 6 of 17 No. : HM157041 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2006-…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
