QEARCGOGO49TRC Soft & Squeezable Vehicle-Tow Truck

TM 16.33”

Block Diagram Filter RF power amplifier and Modulator Oscillator 49.860MHz Encoder Control key 49.860 MHz ANT Q1&Q2

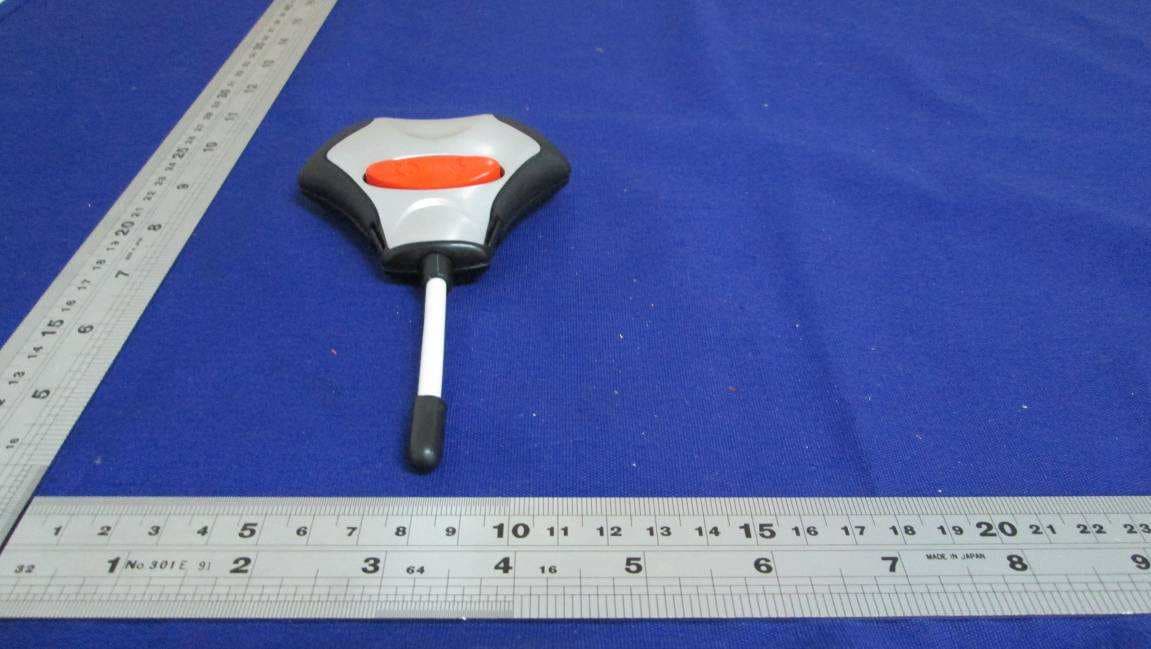

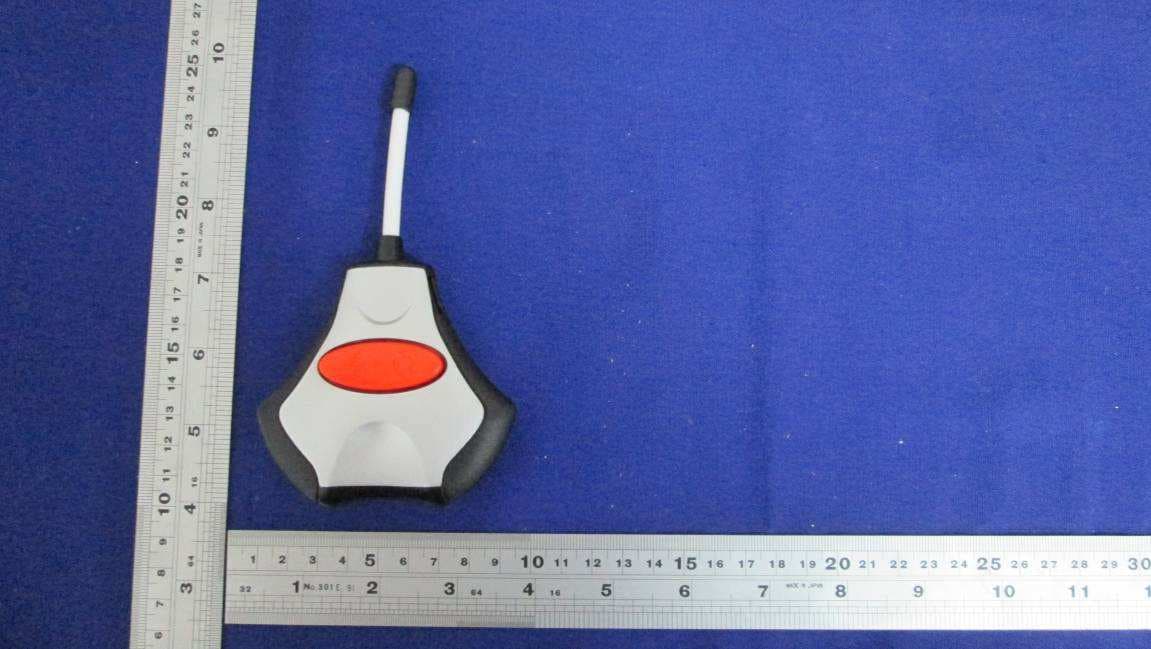

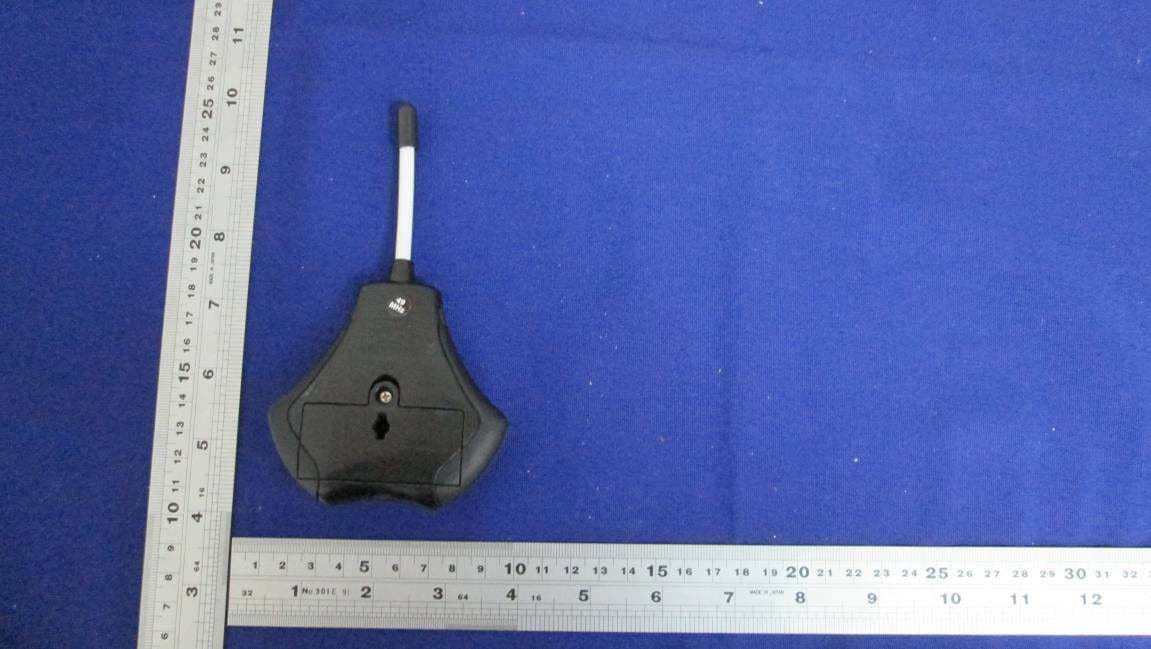

External Photos

Label Artwork and Location Label Size: 25mm(W) x 11mm(H)

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L3, L4, C10, C12, C13 RF generator Generate signal to modulator Q1&Q2 Oscillator Generate 49.860 MHz carrier X1, Q3 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q4 Antenna Type: Integral Antenna Antenna Gain: 0dBi The nominal conducted output power specified: -39dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -41.15dBm (+/- 3dB) Modulation Type: Pulse modulation

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a RC Soft & Squeezable Vehicle-Tow Truck operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AAA size batteries.For more detail information pls. refer to the user manual. Antenna Type: Integral Antenna Antenna Gain: 0dBi The nominal conducted output power specified: -39dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -41.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 55.3dBμV/m at 3m in the frequency 49.860MHz The EIRP = [(FS*D) ^2 / 30] mW = -39.93dBm The ERP = EIRP – 2.15 = -42.08 dBm which is within the production variation. The maximum conducted output power specified is -36dB m = 0.0003mW The source- based time-averaging conducted output power = 0.0003* Duty Cycle mW< 0.1 mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 =308.6mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duration of one cycle = 3.0ms Effective period of the cycle = 1.50ms DC = 1.5ms / 3.0ms = 0.5 or 50% FCC ID: QEARCGOGO49T

20-R4980200G1 49M TX.sch-1 - Wed May 07 10:50:51 2014

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6 F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 KID GALAXY INC. Application For Certification FCC ID: QEARCGOGO49T RC Soft & Squeezable Vehicle-Tow Truck M odel: 10908 Transmitter Report No.: SZHH00864680-001 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] P repared and Checked by: Approved by: Sign on file Chris Chen Senior Engineer Andy Yan Project Engineer Date: June 20, 2014 INTERTEK TESTING SERVICES Report No.: SZHH00864680-001 FCC ID: QEARCGOGO49T TRF No.: FCC 15C_TX_b i G ENERAL INFORMATION KID GALAXY INC. MODEL: 10908 FCC ID: QEARCGOGO49T G rantee: KID GALAXY INC. Grantee Address: 150 Dow Street Unit 425B Manchester, NH 03011 United States Contact Person: Irene Ngai Tel: (800) 816-1135 114 Manufacturer: KID GALAXY INC. Manufacturer Address: 150 Dow Street Unit 425B Manchester, NH 03011 United States Model: 10908 Type of EUT: Transmitter Description of EUT: RC Soft & Squeezable Vehicle-Tow Truck Serial Number: N/A FCC ID : QEARCGOGO49T Date of Sample Submitted: April 29, 2014 Date of Test: June 20, 2014 Report No.: SZHH00864680-001 Report Date: June 20, 2014 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: SZHH00864680-001 FCC ID: QEARCGOGO49T TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT K ID GALAXY INC. MODEL: 10908 FCC ID: QEARCGOGO49T TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Co ntrol) 15 .231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 92 8MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses an Integral antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: SZHH00864680-001 FCC ID: QEARCGOGO49T TRF No.: FCC 15C_TX_b iii Ta ble of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software .................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification ..........…

Text truncated - open the document above for the full version.

Radiated Photos
