QEASUVPLANE49DRV - SUV & PLANE W/LIGHT Model: 10222

SUV & Plane User Manual -1- Introduction DRV SUV & Plane is an unique radio controlled vehicle. With a single radio control handset you can control the vehicle and launch the plane. Double the fun. Double the adventure. Operating Instructions SUV 1. Unscrew the battery cover on the bottom of the truck with a Philips screw driver . 2. Install 4 AA alkaline batteries with polarities as shown inside the battery compartment. 3. Replace the battery cover and replace the screw. Note: It is strongly NOT recommend using rechargeable battery for SUV as plane CANNOT BE FULLY CHARGED. Handset 1. Unscrew the battery cover on the bottom of the handset with a Philips screw driver . 2. Install a 9v battery with polarities as shown inside the battery compartment. 3. Replace the battery cover and replace the screw. Operation Tips If your vehicle pulls to the right or left while driving forward, you can adjust the steering with the calibrator. The calibrator is located on the bottom of the vehicle. Make slight adjustments until you have the correct forward motion. -2- How to operate the SUV & Plane SUV 1. Turn the switch located at the bottom of the vehicle to the ON position. 2. Turn the switch located on the hand set to the ON position. 3. Refer to the illustrations to operate the truck. Plane 1. Press the launching rod into the SUV and flip up the hook. 2. Place the hook of the launcher into the square opening located on the bottom of the plane. Lower the tail of the plane onto the roof until it makes contact with the contact plate. 3. Turn the switch located on the hand set to the ON position. 4. Drive the SUV 15 to 22 seconds to charge the plane. The plane cannot be launched if it is not fully charged 5. Press on the RED button located on the hand set to launch the plane. 6. The plane flies better if launching against the wind. Note: Be sure to fly the plane in a grassy, wide-open ar ea fr ee of tr ees, overhead wires and other obstructions. This will ensure soft landings, and will thus help extend the life of your plane. If your plane gets caught in a tr ee or other object, NEVER climb up to get it yourself. Call an adult for help To Lef t To Lef t To Right Forwar d Backwar d To Right Press the launching rod backward -3- Launch ON OFF Launch Press the RED button to launch the plane 15~22sec0" Fly out Hook of launcher must be placed into the square opening on the bottom of the plane Charging time Contact point for charging Flip up the hook Wind Direction -4- illustration #2illustration #1 Flying Tips The plane performs best & with the longest flying time when it flies in a pattern with big left turning circle. In case the plane does not follow this flying pattern, trim the plane with the label(s) included per instructions. Notes: - Apply one label at a time. - Using bigger size label for sharper turning. - The more labels (or bigger size label) you applied the sharper turning pattern you will get. A. If plane does not fly with a left turning pattern, apply label(s) at the tip of the left wing (see illustration #1) B. If plane flies with a sharp left turning pattern, apply label(s) at the tip of the right wing (see illustration #2) C. If plane does not climb up, apply the small size label(s) on both stabilizers horizontally (see illustration #3). The more labels you used the bigger climbing angle you will have. The plane will fly in a wavy (up & down) pattern if too many labels are used. Applied Label Applied Label -5- CAUTION: Plane contains a rechargeable cell. If fluid leaks from plane, avoid contact with eyes and dispose of plane. ONLY USE CHARGER SUPPLIED WITH DRV. DO NOT USE ANY OTHER SOURCE TO CHARGE THE PLANE . illustration #3 Applied the small size labels on both stabilizers I f t oo many labels are applied, the plane may drop easily. CRUSH DOWN -6- Warning: Changes or modifications to this unit not expressly approved by operator the party responsible for compliance could void the user authority to the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Classs B digital de vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable p rotestion a gainst h armful i nterfenence i n a r esidential i nstalllation. This e quipment generates uses and can radiate radio frequency energ y and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Helpful Hints Use fresh batteries. The use of weak batteries may cause your vehicle to have slow response times. Do not mix old and new batteries. Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd) batteries. Your vehicles will not run if the batteries are installed incorrectly, please refer to the illustration located inside the battery compartment. Sometimes the vehicle is driven beyond the radio signal range causing loss of control. Range in your vehicle is approximately 30' to 50'. Running times may very, alkaline batteries generally last between 25 to 40 minutes. Sometimes loss vehicle control is due to being in an area near interfering sources. CB radios, microwave transmitters, cordless telephones, wireless communications, security systems, high voltage transformer or even certain buildings can cause interference. Avoid driving in damp or wet areas. Toll Free Kid Galaxy Hot Line:800-816-1135 Copyri…

Text truncated - open the document above for the full version.

MET TCB SERVICE AGREEMENT DOCJ-TCB002 11/24/04 Page 1 of 3 THIS AGREEMENT is made at Baltimore, Maryland this day of , 20 , by and between MET LABORATORIES, INC. (hereinafter referred to as MET) and the following: Applicant: Kid Galaxy Inc. (Hereinafter referred to as the "Responsible Party") Address: One Sundial Ave, Suite 310Manchester, NH 03103, U.S.A. Manufacturer: Lung Cheong Toys Ltd. (required for Part 68 only - (Hereinafter referred to as the "Manufacturer") Address: Lung Cheong Building, 1 Lok Yip Road On Lok Tsuen, Fanling, N.T., Hong Kong Only the product(s) designed and engineered by the Applicant/Responsible Party and manufactured by the Manufacturer at the Manufacturer's facility at the above address, which have been certified by MET are covered by this service Agreement. NOW, THEREFORE, in consideration of the premises set forth in this agreement, the above mentioned parties agree that; Upon successful evaluation, MET will issue the Applicant/Responsible Party a Grant of Equipment Authorization Certificate, granting the Applicant/Responsible Party permission to market the certified product(s). At a minimum the product's identification plate or label will include the FCC ID Number or the Registration/Certification Number as well as any other information as might be required bystatute. The FCC requires that MET perform random post-certification surveillance. Surveillance for continued certification compliance can be accomplished by the Applicant/Responsible Party providing production models of the product to MET at MET’s request or to other locations as approved by MET for the purpose of compliance testing. The Manufacturer agrees to allow free and unrestricted access to the Manufacturer's facility during normal working hours for the purpose of permitting supervision. The Applicant/Responsible Party or Manufacturer agrees to provide and deliver to MET or locations approved by MET models of the certified product at MET’s request. All costs associated with testing of the device will be borne by the Applicant/Responsible Party or the Manufacturer and paid within 30 days of notice. If required the Applicant/Responsible Party agrees to provide to MET for MET review certain identified technical documents or quality documents that provide for a review of product update and compliance. Acceptable Markings are found in 47 CFR 2.925, 2.926, 15.19, and part 68.300. Only products visually bearing the appropriate FCC identification label and identified as to model and type will be acknowledged as being an authorized product. The Applicant/Responsible Party is responsible for applying the label to the product in accordance with current FCC requirements. An Applicant/Responsible Party is required to submit to MET a sample of the label or plate showing the FCC ID Number or the Registration/Certification Number for approval prior to applying to the product. The Applicant/Responsible Party is required to submit to MET a label location drawing or photograph showing the location of the mark on the product. Any reference to MET certification shall not be permitted on any non-eligible product(s), packaging, or literature. If the Applicant/Responsible Party or the Manufacturer applies the FCC identification label to unauthorized products, then the Applicant/Responsible Party and the Manufacturer shall save, indemnify, and hold harmless MET LABORATORIES, INC. from any and all claims which may arise out of said unauthorized action. The label and/or references to MET are permitted on promotional, advertising, and packaging of Certified Product(s) provided that misrepresentation of results of the marking process and/or this agreement do not occur. Final judgment in the suitability of use of the label or the MET Laboratories name is reserved by MET. (continued, next page) MET TCB SERVICE AGREEMENT DOCJ-TCB002 11/24/04 Page 2 of 3 The Applicant/Responsible Party shall maintain or require the manufacturer to maintain a record of all complaints made known to them relating to the product's compliance with the requirements of the relevant standard and agrees to make these records available to MET when requested. The Aplicant/Responsible Party agrees to take appropriate action, or have the manufacturer take appropriate action with respect of such complaints and/or any deficiencies found in products or services that affect compliance with the requirements for certification. Compliance with all requirements and stipulations of the Certification Program and this agreement between MET and the Applicant/Responsible Party is required for program compliance. Non-compliance with all or part of this agreement may result in termination of the agreement and the notification to the FCC to withdraw certification of the product. The Applicant/Responsible Party assumes responsibility for complying with the requirements of the product's certification and this agreement regarding the application of the FCC identification label. The Applicant/Responsible Party understands that any violation of the requirements of this agreement can immediately, at MET's discretion, terminate this agreement. Upon notification by MET, the Applicant/Responsible Party shall immediately take action to correct non-conformance that may have been found during surveillance or during modification to the product by the Applicant/Responsible Party. The Applicant/Responsible Party understands that corrective actions must be immediate. The Applicant/Responsible Party also understands that MET is required to report to the FCC any noted non-compliance. MET will also report corrective actions taken and the status of corrective action. The FCC will determine if any certificate or grants will be withdrawn. Upon termination of this agreement, the Applicant/Responsible Party agrees to remove any references to MET Laboratories from all literature, stationary, packaging, or other promotional media as may have been used by the Applicant/Responsible Party. Additional…

Text truncated - open the document above for the full version.

ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Date: July 25, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 USA Dear Sirs, Re.: Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. as agent for KID GALAXY INC, ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of KID GALAXY INC Product name : DRV - SUV & Plane W/Light Model : 10222 This authorization will expire one year from the date of this letter. Irene Ngai / Manager_ Signature with title

ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Date: July 25, 2006 The Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Attn.: Mr. Patrick Wong Dear Sir, Re. : Letter of Attestation This equipment has been tested in accordance with the requirements contained in the appropriate Commission Regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, as defined in the Commission’s regulations, will conform to the samples tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made by the Hong Kong Standards and Testing Centre Ltd., 10 Dai Wang Street, Taipo Industrial Estate, Taipo, N.T., Hong Kong. Yours sincerely, Irene Ngai / Manager_ Signature with Title.

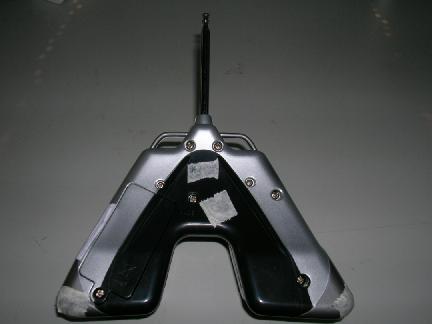

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Application No.: HM157114 Date: 2006-07-26 FCC ID: QEASUVPLANE49 Circuit Description The 49.86 MHz crystal oscillator drives the base of U1 the final/buffer amplifier. The modulation provided by U1. The output of U1 has the matching network consisting of C6, C7, C8 and L3, L4 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 29.5 long Metal Antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 9.0 Volt (“6F22” size battery x 1) primary battery. Operation Descriptions The transmitter is a remote control toy operating at 49.861MHz band. The transmitter is powered by a 9Vd.c. battery (6F22) and the transmitting frequency is crystal controlled. There are 2 joysticks to control the forward reverse motor and director of movement. The operation is achieved by different combinations of form pulse modulating signal on the 49.86MHz carrier frequency. Remarks: The transmitter is a 2 Joystick transmitter. The EUT continues to transmit while Joystick is being pressed. It is Pulse transmitter, Modulation by IC; and type is Pulse modulation.

LUNG CHEONG TOYS LIMITED Page: 0 Multi-Level Item Explosion (E/C) As-of-date: 08/04/06 14:04 ---------------------------------------------------------------------------------------------------------------------- Item Number: 90-G4270242-1 TX PCB ASSY 49MZH Quantity: 1 UOM: EA Type of Bill: REG TX PCB郪蚾49MHZ 1P<1.0% Batch-size: 1,000 Type: C Effective: 07/19/06 Expiration: 12/31/49 Revision ID: Drawing ID: -------------------------------------------------------------------------------------------------------------------- Level No Component Item# Description MLI UOM Oper Weight(g)B/T Per-Batch Batch-size Gross-Qty 2....... 01-42200956-0 SMD.R 22 OHM 1/10W +/-5% 0603 L EACH 03TS 0.004 no 1000 1 情萇郯 Memo: R4 2....... 01-41010956-0 SMD.R 100 OHM 1/10W +/-5% 0603L EACH 03TS 0.004 no 1000 1 情萇郯 Memo: R1 2....... 01-41020956-0 SMD.R 1K OHM 1/10W +/-5% 0603 L EACH 03TS 0.004 no 6000 6 情萇郯 Memo: R2.R6-10 2....... 01-42040956-0 SMD R 200K OHM 1/10W +/-5%0603L EACH 03TS 0.004 no 1000 1 情萇郯 Memo: R3 2....... 01-42250956-0 SMD R 2.2M OHM 1/10W +/-5%0603L EACH 03TS 0.004 no 1000 1 情萇郯 Memo: R5 2....... 02-13006214-0 C.CAP 50V 30PF +/-5% NPO SMD L EACH 03TS 0.013 no 4000 4 棟萇(泂) 0603 Memo: C3.C8.C10.C9 2....... 02-14706214-0 C.CAP 50V 47PF+/-5% NPO SMD I EACH 03TS 0.013 no 1000 1 棟萇(泂) 0603 4112-10475 Memo: C6 2....... 02-13906214-0 C.CAP 50V 39PF +/-5% NPO SMD L EACH 03TS 0.004 no 1000 1 棟萇(泂) 0603 Memo: C7 2....... 02-11043404-0 C.CAP 16V 0.1uF +/-20% SMD L EACH 03TS 0.04 no 3000 3 棟萇ㄗ泂ㄘ0603 Memo: C2.C5.C11 2....... 05-PRC205A1-2 TX BONDING IC GPRC205A1 12PIN L EACH 02 0.01 no 1 1 等摩傖萇繚(準杅趼宒)楷扞IC 1......... 02-22272512-0 E.CAP 10V 220UF +80%/-20% 6X8 L EACH 03T 0.464 no 1000 1 臏萇賤萇 1P<1.0% Memo: C1 1......... 16-10101703-0 INDUCTOR 1.0uH +/-5% Q>100 D3 L EACH 03T 0.20 no 1000 1 萇覜 Memo: L4 1......... 16-10221703-0 INDUCTOR 2.2UH +/-5% Q>100 D3 L EACH 03T 0.20 no 1000 1 萇覜 Memo: L2 1......... 16-11001703-0 INDUCTOR 10UH +/-5% Q>=100 D3 L EACH 03T 0.20 no 1000 1 萇覜 Memo: L1 1......... 16-10061703-8 INDUCTOR 0.68uH +/-5% Q>100 D3L EACH 03T 0.80 no 1000 1 萇覜 Memo: L3 1......... 06-34986037-1 CRYSTAL 49.860MHZ HC-49U I EACH 03T 1.00 no 1000 1 儒淥(沺褲儒极D6.5)脣璃2褐 Memo: X1 1......... 04-4BZX4V31-0 DIODE ZENER BZX55C 4.3V DIP L EACH 03T 0.14 no 1000 1 恛揤媼憤奪 Memo: D1

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

STC Test Report Date : 2006-07-28 Page 1 of 17 No. : HM157114 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: KID GALAXY INC ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Description of Samples: Model name: DRV – SUV & PLANE W/LIGHT Model no.: 10222 Brand name: DRV FCC ID: QEASUVPLANE49 Date Samples Received: 2006-07-22 Date Tested: 2006-07-26 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- TSANG Chi Ho, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2006-07-28 Page 2 of 17 No. : HM157114 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 17 Content Page 2-3 of 17 1.0 General Details 1.1 Test Laboratory Page 4 of 17 1.2 Applicant Details Page 4 of 17 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 17 Description of EUT operation 1.4 Date of Order Page 5 of 17 1.5 Submitted Samples Page 5 of 17 1.6 Test Duration Page 5 of 17 1.7 Country of Origin Page 5 of 17 2.0 Technical Details 2.1 Investigations Requested Page 6 of 17 2.2 Test Standards and Results Summary Page 6 of 17 3.0 Test Results 3.1 Emission Page 7-10 of 17 3.2 Bandwidth Measurement Page 11-12 of 17 STC Test Report Date : 2006-07-28 Page 3 of 17 No. : HM157114 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 13 of 17 Appendix B Duty Cycle Correction During 100 msec Page 14-15 of 17 Appendix C Photographs Page 16-17 of 17 STC Test Report Date : 2006-07-28 Page 4 of 17 No. : HM157114 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong 1.2 Applicant Details Applicant KID GALAXY INC ONE SUNDIAL AVE, SUITE 310 MANCHESTER, NH 03103, U.S.A. Manufacturer Lung Cheong Toys Ltd. Lung Cheong Building, 1 Lok Yip Road On Lok Tsuen, Fanling N.T. Hong Kong STC Test Report Date : 2006-07-28 Page 5 of 17 No. : HM157114 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Model Name: DRV – SUV & PLANE W/LIGHT Manufacturer: Lung Cheong Toys Ltd. Brand Name: DRV Model Number: 10222 Input Voltage: 9Vd.c. (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a KID GALAXY INC, DRV – SUV & PLANE W/LIGHT. The transmitter is a 2 Joystick transmitter. The EUT continues to transmit while joystick is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2006-07-22 1.5 Submitted Sample(s): 2 Samples per model 1.6 Test Duration 2006-07-26 1.7 Country of Origin China STC Test Report Date : 2006-07-28 Page 6 of 17 No. : HM157114 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.235 ANSI C63.4:2003 N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209 ANSI C63.4:2003 N/A Conducted Emissions on AC, 0.15MHz to 30MHz FCC 47CFR 15.207 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC Test Report Date : 2…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
