QEATRUCKATV9TDRV-Truck&ATV

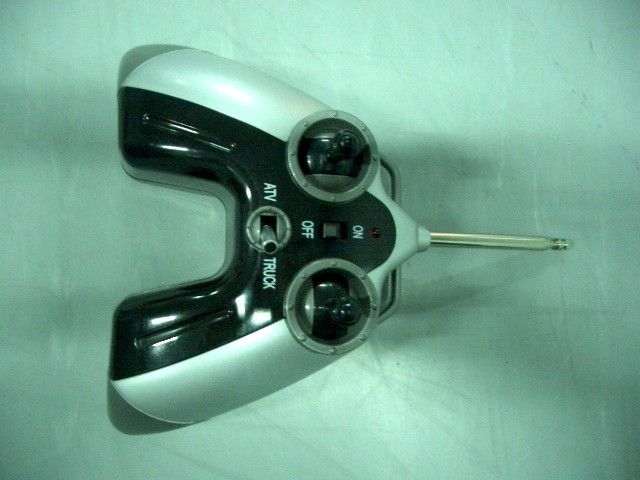

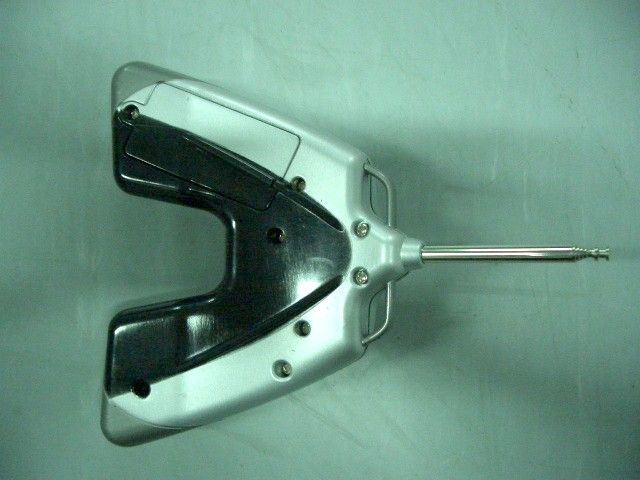

Operation Description The transmitter of TRUCK/ATV car is powered by 1*9.0V battery, it has radio frequency 49.860MHz. While push the left controller sticks forward, it will transmitted a modulation signal for receiver to go forward. On the other hand , the receiver will move backward. When push both of the left and the right controller, the receiver will turn clockwise or counter-clockwise. the push switch push down is control ATV car. Refer to the transmitter circuit design, the circuit description is listed as below :

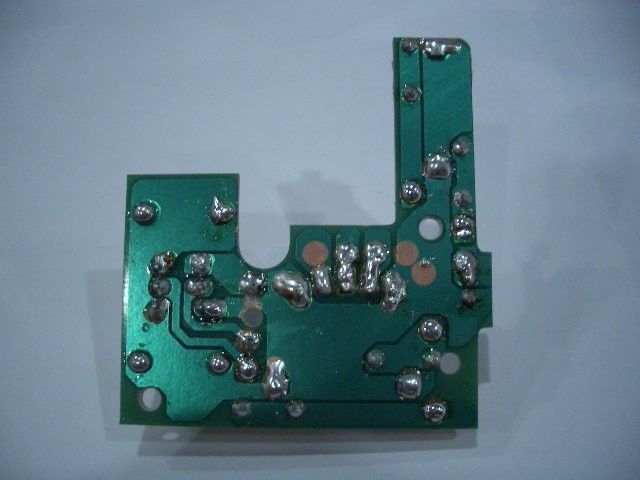

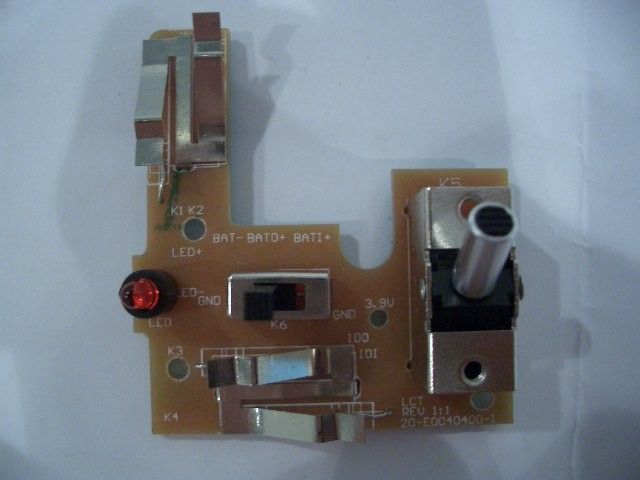

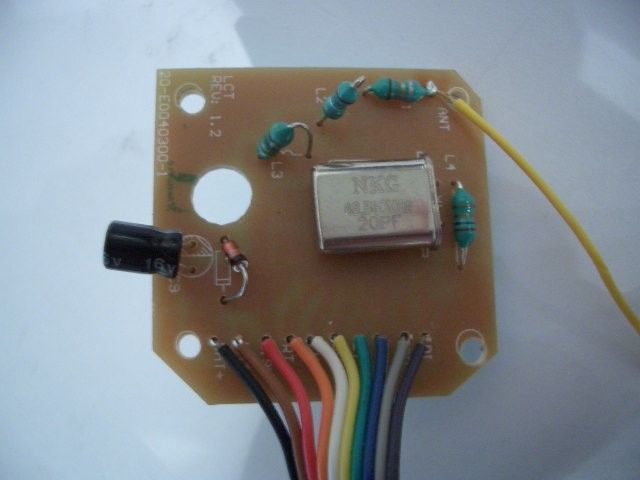

 Y1, R2 and associate components are acted as local oscillator for modulation.
 L1,L2,C1,C2 and associate components are acted as RF loading matching.

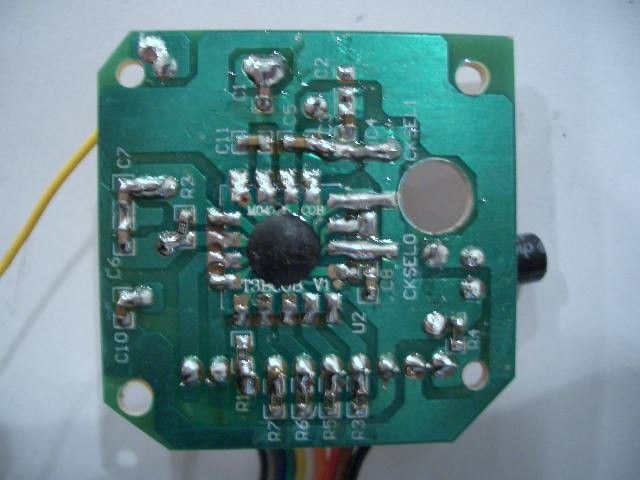

 U2 MF-T3B and associate components are acted as control signal encoder.

E004-49TX.sch-1 - Tue Apr 19 14:36:17 2005

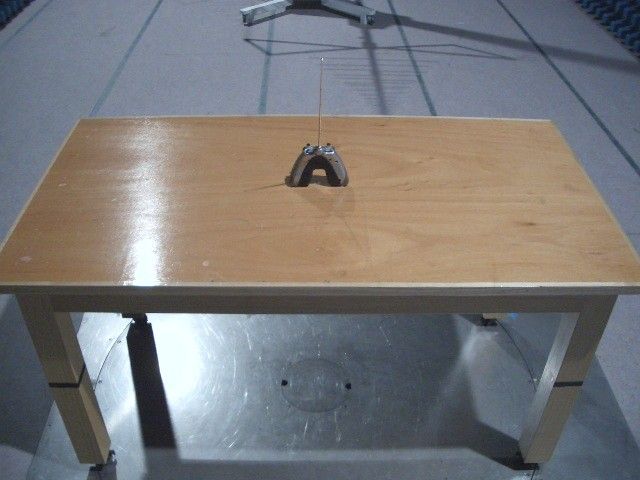

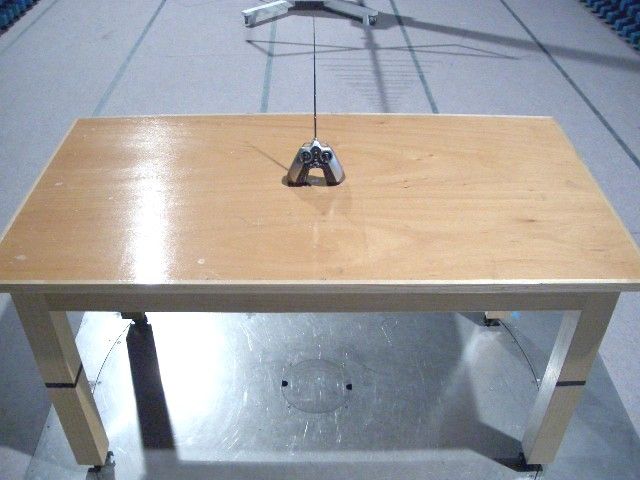

TEST REPORT Report No. : AF009011-001 Date : 2005 April 29 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : QEATRUCKATV9T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF205025(3) Applicant : Kid Galaxy Inc. One Sundial Ave, Suite 310 Manchester, NH 03103, U.S.A. Sample Description : One(1) submitted sample stated to be DRV - Truck & ATV of Model No. 10117 Rating : 1 x 9V battery No. of submitted sample : Two (2) piece(s)*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 April 18 2005 April 18 – 2005 April 27 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 11. The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AF009011-001 Date : 2005 April 29 Page 2 of 11 FCC ID : QEATRUCKATV9T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ............................................................................................................... 3 1.2 Location of the test site.......................................................................................................... 4 1.3 List of measuring equipment ................................................................................................. 5 2 Description of the radiated emission test ..................................................................................... 6 2.1 Test Procedure ....................................................................................................................... 6 2.2 Test Result ............................................................................................................................. 6 2.3 Radiated Emission Measurement Data.................................................................................. 7 3 Description of the Line-conducted Test .......................................................................................8 3.1 Test Procedure ....................................................................................................................... 8 3.2 Test Result ............................................................................................................................. 8 3.3 Graph and Table of Conducted Emission Measurement Data .............................................. 8 4 Photograph ................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ................ 9 4.2 Photographs of the External and Internal Configurations of the EUT .................................. 9 5 Supplementary document ............................................................................................................ 10 5.1 Bandwidth............................................................................................................................ 10 5.2 Duty Cycle ........................................................................................................................... 10 6 Appendices ................................................................................................................................. 11 TEST REPORT Report No. : AF009011-001 Date : 2005 April 29 Page 3 of 11 FCC ID : QEATRUCKATV9T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for DRV - Truck & ATV. Operating at 49.860MHz which is controlled by a crystal. The EUT is powered by a 9V size battery. While push the left controller stick forward, it will transmitted a modulation signal for receiver to go forward. On the other hand, the receiver will move backward. When push both of the left and right controller, the receiver will turn clockwise or counter – clockwise. The push switch push down is control ATV car. The brief circuit description is listed as follows : - Y1, R2 and associated circuit act as local oscillator. - L1, L2, C1, C2 and associated circuit act as RF loading matching. - U2 MF-T3B and associated circuit act as control signal encoder. TEST REPORT Report No. : AF009011-001 Date : 2005 April 29 Page 4 of 11 FCC ID : QEATRUCKATV9T This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2003. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at : Ground Floor, Yan Hing Centre, 9…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Job No.: J00024889 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Job No.: J00024889 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 CMA Testing and Certification Laboratories Job No.: J00024889 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 3
