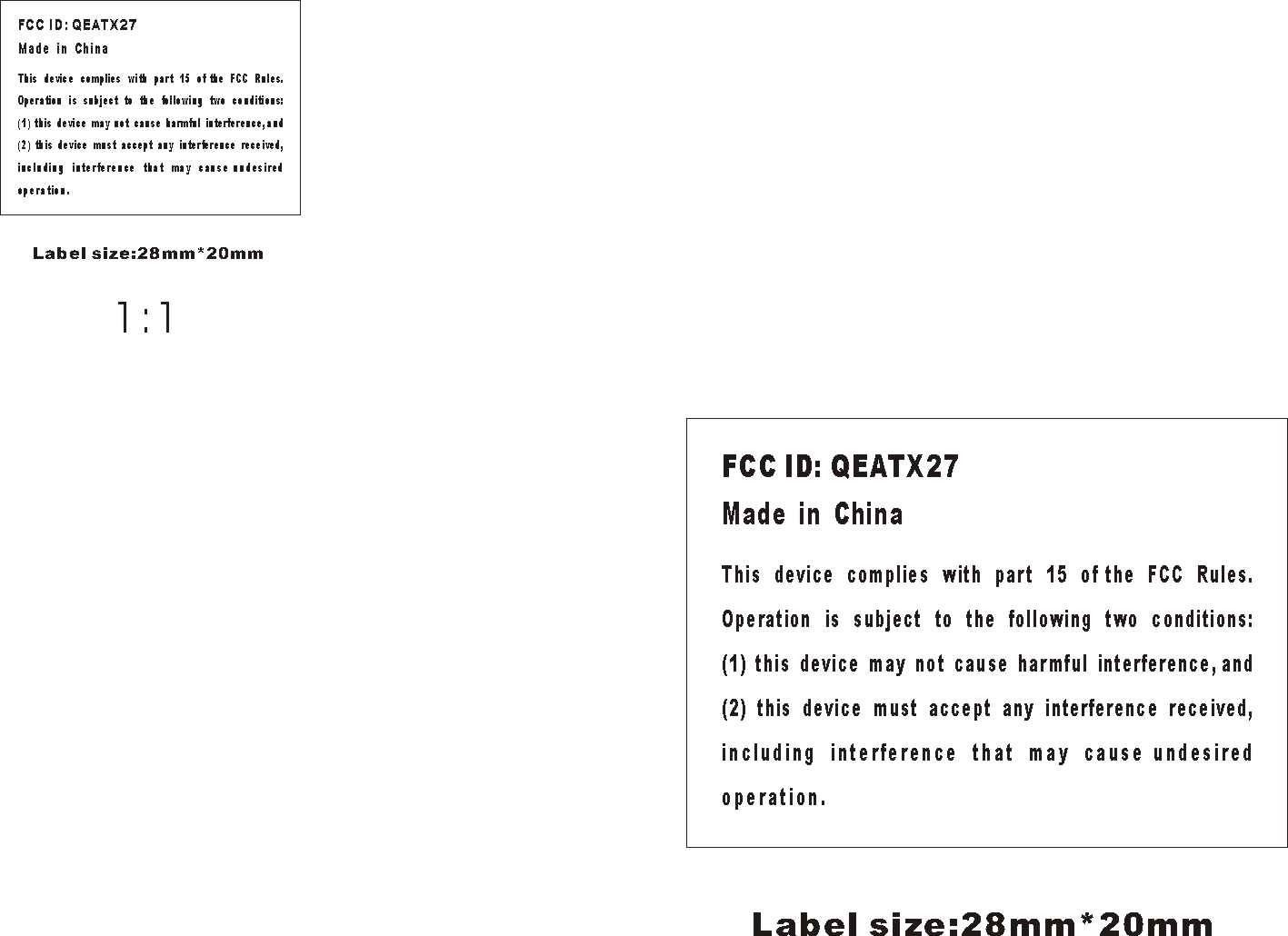

QEATX27My First RC

Block Diagram of 27MHz Tx My First RC Encoding Modulation Amplification Oscillation

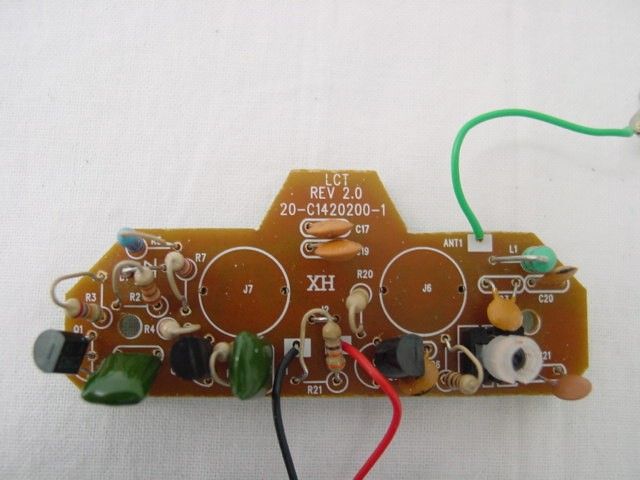

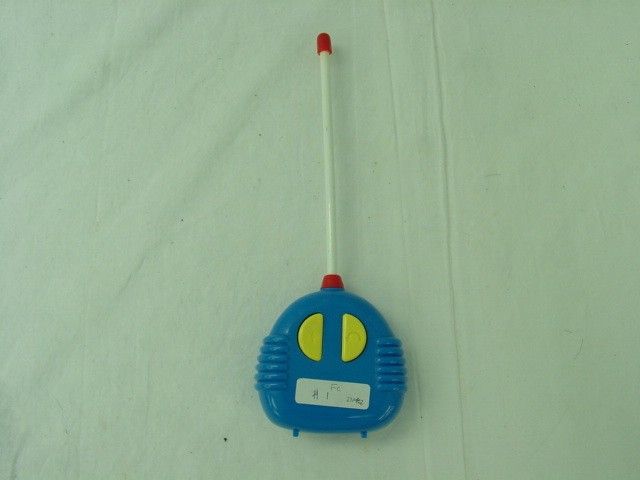

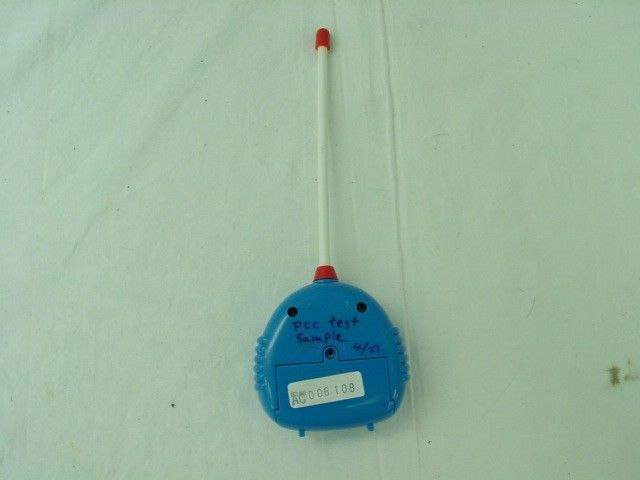

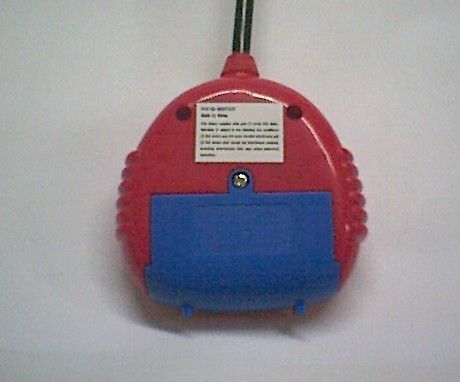

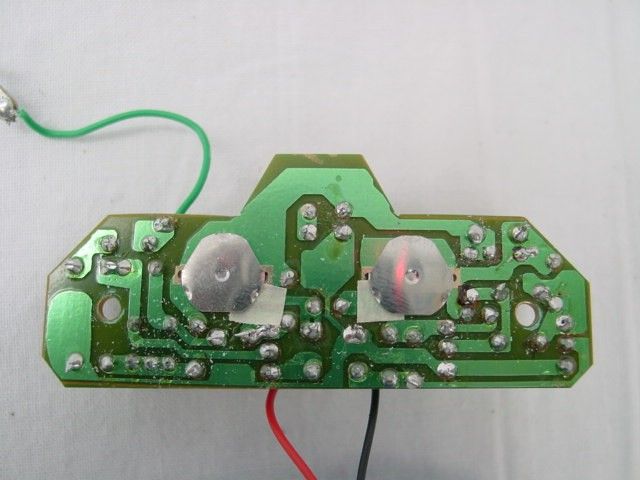

Operation Description of transmitter for My First RC The transmitter for My First RC operates at 27.145 MHz which is controlled by a LC circuit. It is powered a 9V size battery. It has two main buttons to control forward and spin movement. The brief circuit description is listed as follows : - Q1, Q2 and associated circuit act as encoding - C18, C23, L3, Q3 and associated circuit act as oscillation - Q3 and associated circuit act as modulation and amplification




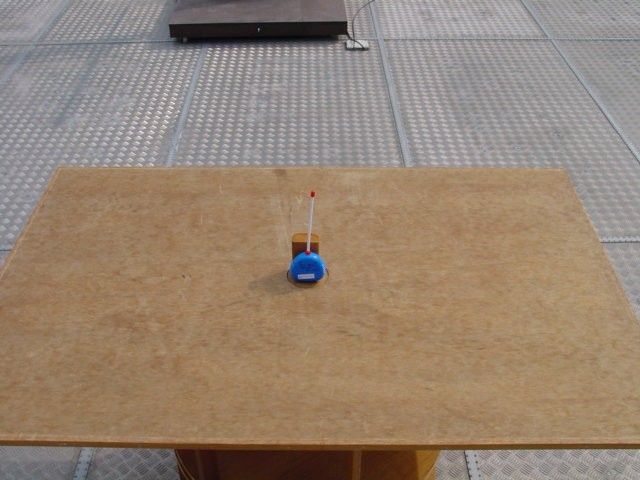

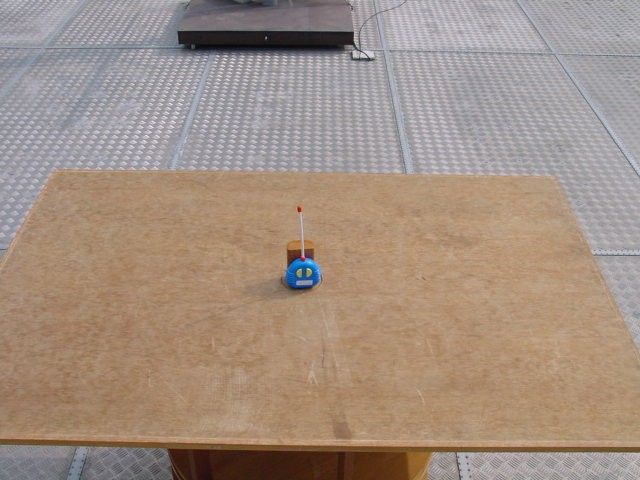

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC006108 Date : 2002 June 08 Client : Kid Galaxy Inc. One Sundial Ave, Suite 310 Manchester, NH 03103, U.S.A. Sample Description : Sample stated to be : Item Name Item No. My First RC – Airplane 5500 My Firs RC – Racing Car 5501 My First RC – Dump Truck 5502 Rating : 1 x 9V size battery No. of sample(s) : One(1) piece *** Date Received : 2002 May 02. Test Period : 2002 May 02 – 2002 May 29. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2001 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 10. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All 703, 9248 and 9248B models are the same in circuitry and components; and therefore model 702 was chosen to be the representative of the test sample. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 10 Danny Chui EMC Engineer - EL. Division FCC ID : QEATX27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC006108 Date : 2002 June 08 Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ................................................................................................................ 3 1.2 Related Submittal Grants ........................................................................................................ 3 1.3 Location of the test site ........................................................................................................... 4 1.4 List of measuring equipment .................................................................................................. 5 2 Description of the radiated emission test ..................................................................................... 6 2.1 Test Procedure ........................................................................................................................ 6 2.2 Test Result .............................................................................................................................. 6 2.3 Radiated Emission Measurement Data ................................................................................... 7 3 Description of the Line-conducted Test .......................................................................................8 3.1 Test Procedure ........................................................................................................................ 8 3.2 Test Result .............................................................................................................................. 8 3.3 Graph and Table of Conducted Emission Measurement Data................................................ 8 4 Photograph.................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ................. 9 4.2 Photographs of the External and Internal Configurations of the EUT.................................... 9 5 Supplementary document .............................................................................................................. 9 5.1 Bandwidth............................................................................................................................... 9 6 Appendices .................................................................................................................................. 10 Page 2 of 10 FCC ID : QEATX27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC006108 Date : 2002 June 08 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for My First RC – Airplane, model : 5500, operating at 27.145 MHz which is controlled by a LC circuit. The EUT is powered a 9V size battery. The EUT has two main buttons to control forward and spin movement. The brief circuit description is listed as follows : - Q1, Q2 and associated circuit act as encoding - C18, C23, L3, Q3 and associated circuit act as oscillation - Q3 and associated circuit act as modulation and amplification The model(s) 5501, 5502 are the same as model 5500 in Transmitter part. The difference in model numbers serves different outlook of receivers. 1.2 Related Submittal Grants The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 10 FCC ID : QEATX27 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AC006108 Date : 2002 June 08 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures o…
