QEWDCM-15STLCD TV

LCD TV User ’ s Manual ENGLISH Safety Instructions To reduce the risk of fire, electrical shock and other injuries, keep these safety precautions in mindwhen installing, using and maintaining your TV. Warning : If you manipulate against the notice, it may cause serious injury or death to user. Caution : If you manipulate against the notice, it may cause slight injury to user or appliance. To preserve the Environment do not rubbish. Notes & Descriptions 3 ENGLISH EN 2 15” TFT-LCD TV FCC InformationThis equipment has been tested and found to comply with limits for aclass B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment can generates, uses, and radiate radio frequencyenergy and, if not installed and used in accordance with theinstructions, may cause harmful inteference to radio Communications.However, there is no guarantee that interference will not occur in aparticular installation.If this equipment does cause unacceptable interference to radio andtelevision reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures. Reorient or relocate the receiving antenna. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority tooperate the equipment. Ver 1.00NE When moving it, do not apply any forces on the set.Do not attempt to disassemble, repair or change the product.Whenever you need to repair, adjust or check it, refer servicing to qualifiedservice personnel. Do not directly spray water or rub it with inflammable substances (thinner orbenzene) when cleaning it. Do not wet or penetrate water over/into the set.When cleaning the LCD surface, disconnect the power and use a piece ofsmooth cloth against any scratches on it. Never use wet cloth. Caution Make sure to pull out the power cord when cleaning or removing the product.Ventilation should be always open and the set should be installed in a well-ventilated and wide enough place (a minimum distance away from a wall 10cmor more). Do not install the set in a place directly exposed to sunlight. 5 ENGLISH Warning Disconnect the power cable and signal cable connected to the product in caseof thunder or lightning. Do not attempt to touch its power cord with wet hands. If any electric pin is wet or dusty, remove the moisture or dust first before use. It is recommended to pull out the power cord unless you use it for a long time. Damaged power cord, plug or unfitted outlet may be very dangerous.Do not install the set close to any heating sources.Do not place heavy articles on it or step on the product. The product should be installed on a clean and dry place.When you detect any smog, unusual noise or smell, just disconnect the electricpower and refer servicing to qualified service personnel.Do not place any bowl with water, beverage, can or other liquid products on it. Do not use or place any combustible sprayer or inflammable substances closeto the product. Do not arrange the power cord close to any heating devices/sources.Install the outdoor antenna for the set far away from high voltage cables. EN 4 15” TFT-LCD TV 7 ENGLISH Operating Temperature 0~40 ̊CStorage Temperature -10~50 ̊COperating Humidity 10~60% RH Storage Humidity 10~90% RH For dot defect [dead pixel] of LCD ;TFT-LCD produced by using high-end semiconductor technology with precision of 99.9% above isused for this TV (2,359,296 pixels). However the pixels of R.G.B. & White color seem to be right sometimes or some of black pixelscould be seen on the LCD. This is not from bad quality or functional problem and you can use itwithout any problem.When used as a PC monitor ;Optimal Resolution: 1024 768 @ 60Hz. Max. Resolution: 1024 768 @ 75Hz. Available Temperature & Humidity EN 6 15” TFT-LCD TV CHAPTER 4. Using Menus of Picture, Sound and Others4-1. Setting Picture Mode 42 4-2. Setting Sound Mode 44 4-3. Setting Option 45 CHAPTER 5. Using PC MENU5-1. Auto Adjustment 48 5-2. Setting Picture 49 5-3. Setting Sound 50 5-4. Setting Option 51 5-5. Setting Color Temperature 52 CHAPTER 6. Specifications6-1. Dimensions 54 6-2. Specifications 55 CHAPTER 7. Services & Others7-1. Troubleshooting 58 7-2. Concerning Services 60 9 ENGLISH Contents CHAPTER 1. Before Use1-1. Accessories 12 1-2. Panels 13 1-3. Remote Control 16 1-4. Menu Configuration 18 1-5. Jog Shuttle Button 20 1-6. Inserting the Batteries in the Remote Control 21 CHAPTER 2. Connection2-1. Connecting Power 24 2-2. Connecting TV Antenna 24 2-3. Connecting PC 25 2-4. Connecting DTV 25 2-5. Connecting DVD 26 2-6. Connecting VIDEO / S-VIDEO 27 2-7. Connecting Headphone (Speaker) 28 CHAPTER 3. Using TV Menus3-1. Watching TV 30 3-2. Channel Search 33 3-3. Fine Tune 34 3-4. Add/Remove Channel 35 3-5. Channel Swap 36 3-6. Change TV Channel Mode 37 3-7. Closed Caption 38 3-8. V-chip Function 39 EN 8 15” TFT-LCD TV 11 ENGLISH CHAPTER 1 Before use1-1. Accessories1-2. Panels1-3. Remote Control1-4. Menu Configuration1-5. Jog Shuttle Button1-6. Inserting the Batteries in the Remote Control EN 10 15” TFT-LCD TV 1-2. Panels 1) Front Panels Power/Menu - Power-On/Off Channel Button - AUTO / Move above Menu Sound Cont. / Menu Set - SOURCE / Move under Menu Remote Control Sensor - Exit Menu LED - Load Menu AUTO button searches automatically TV channels if set as TV, and it adjusts automatically for PC mode. Power button is jog shuttle type button and it operates different functions by pushing it to Up/Down/Left/Right. 13 ENGLISH 1-1. AccessoriesPlease make sure the following items are included with your LCD TV.If any items are missing, contact your dealer. EN 12 15” TFT-LCD TV - - - - - Remote Control AA-type battery( 2) DC Adaptor Power Cord User’s Manual RF Cable 3) Side Panels DVD Audio Input (L R)DVD …

Text truncated - open the document above for the full version.

Appendix E. Block Diagram E05.0627.FCC.370N / Page E1 of E1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0

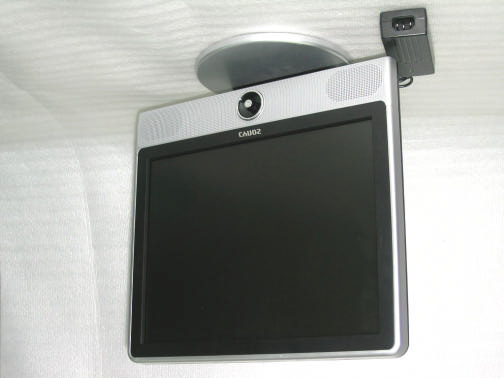

Appendix C. External Photographs E05.0627.FCC.370N / Page C1 of C1 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Front View of EUT Rear View of EUT

Appendix A. FCC ID Label and Location E05.0627.FCC.370N / Page A1 of A2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel: 82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Product label sample with FCC label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID label and compliance statement are marked in the product label. Digital Cynos Co., Ltd. LCD TV FCC ID : QEWDCM-15ST Model No. : DCM-15ST POWER : Adaptor Input – AC 100-240 V, 50-60 Hz Output – DC 12 V, 3.3 A Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Digital Cynos Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location E05.0627.FCC.370N / Page A2 of A2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel: 82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs E05.0627.FCC.370N / Page D1 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of Inside Appendix D. Internal Photographs E05.0627.FCC.370N / Page D2 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of Main board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D3 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Solder side view of Main board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D4 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of tuner board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D5 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of tuner board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D6 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Solder side view of tuner board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D7 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of inverter board Solder side view of inverter board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D8 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of OSD board Solder side view of OSD board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D9 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side view of sub board Solder side view of sub board Appendix D. Internal Photographs E05.0627.FCC.370N / Page D10 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of LCD panel View of LCD panel label Appendix D. Internal Photographs E05.0627.FCC.370N / Page D11 of D11 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of adaptor label

Operational description Elegant & Multi Function TV Monitor High-End Image & High Resolution with TV Slim & Smart Elgant Design Rich Sound Speaker Multi Connection(TV, PC, Componet(DTV, DVD), SCART(Full, Video, Audio) Multi Languages OSD XGA(1024 x 768) HDTV Specification LCD Panel : Type – Amorphous Silicon TFT-LCD Size – 15” (diagonal length) Pixel Pitch – 0.297 mm x 0.297 mm Contrast Ratio 350 : 1 (Typ.) Brightness – Max. 300 cd/m Actual Display Size – 304.1 mm (H) x 228.1 mm (V) Viewing Angle – L/R: 120 U/D: 100 Interface - LVDS TV Broadcasting System : NTSC-M Type Audio Output : MAX 3 W x 2 / Stereo PC Monitor : Horizontal Frequency 30 – 61 kHz Vertical Frequency 60 – 75 Hz Colors – 16M colors (6bit with FRC) Max. Resolution – XGA: 1024 (H) x 768 (V) Power : Adaptor input AC 100 V - 240 V, 50 -60 Hz Adaptor output DC 12 V / 3.3 A Power Consumption : In-Operation - <40 W Power-Saving Mode/OFF - <5 W Energy Saving Mode : VESA DPMS

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This LCD TV, Model DCM-15ST has been tested in accordance with the measurement procedures specified in ANSI C63.4-2001 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 15 Subpart B: I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : LCD TV MODEL/TYPE NO : DCM-15ST FCC ID : QEWDCM-15ST APPLICANT : Digital Cynos Co., Ltd. 3-906, DaeRyung Technotown, 448, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Attn.: Jong Hyun, Lee / Assistant Manager FCC CLASSIFICATION : Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : Digital Cynos TEST REPORT No. : E05.0627.FCC.370N DATES OF TEST : June 14 – June 25, 2005 DATES OF ISSUE : June 27, 2005 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 FCC TEST REPORT E05.0627.FCC.370N / Page 2 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual FCC TEST REPORT E05.0627.FCC.370N / Page 3 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : LCD TV l Model Number : DCM-15ST l FCC ID : QEWDCM-15ST l S/N : N/A l FCC Rule Part(s) : FCC Part 15 Subpart B l Test Procedure : ANSI C63.4-2001 l FCC Classification : Class B personal computers and peripherals l Dates of Tests : June 14 – June 25, 2005 l Place of Tests : ETL Inc. EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E05.0627.FCC.370N Applicant Name : Digital Cynos Co., Ltd. Address : 3-906, DaeRyung Technotown, 448, Gasan-dong, Guumcheon-gu, Seoul, 153-803, Korea Attention : Jong Hyun, Lee / Assistant Manager FCC TEST REPORT E05.0627.FCC.370N / Page 4 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 1. INTRODUCTION The measurement for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The open area test site is constructed in conformance with the requirements of the ANSI C63.4-2001 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2001 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American national standard for method of measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz (ANSI C.63.4-2001) was used in determining radiated and conducted emissions from the Digital Cynos Co., Ltd. Model: DCM-15ST FCC TEST REPORT E05.0627.FCC.370N / Page 5 of 15 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2. PRODUCT INFORMATION 2.1 General Remark 2.2 Equipment Description The Equipment Under Test (EUT) is the Digital Cynos Co., Ltd., LCD TV, DCM-15ST 2.3 General Specification Chassis Type : Plastic List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-Tal: 14.318 MHz LCD Panel : Type – Amorphous Silicon TFT-LCD Size – 15” (diagonal length) Pixel Pitch – 0.297 mm x 0.297 mm Contrast Ratio 350 : 1 (Typ.) Brightness – Max. 300 cd/m Actual Display Size – 304.1 mm (H) x 228.1 mm…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs E05.0627.FCC.370N / Page B1 of B2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs E05.0627.FCC.370N / Page B2 of B2 Head Office: # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab: #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Radiated Emission Test Setup
