QEWDCM-26WT26" LCD TV

26” WIDE TFT-LCD TV User ’ s Manual ENGLISH Safety Instructions To reduce the risk of fire, electrical shock and other injuries, keep these safety precautions in mindwhen installing, using and maintaining your TV. Warning : If you manipulate against the notice, it may cause serious injury or death to user. Caution : If you manipulate against the notice, it may cause slight injury to user or appliance. Notes & Descriptions 3 ENGLISH EN 2 26” WIDE TFT-LCD TV FCC InformationThis equipment has been tested and found to comply with limits for a class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation.This equipment can generates, uses, and radiate radio frequency energy and, if not installed andused in accordance with the instructions, may cause harmful inteference to radio Communications.However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause unacceptable interference to radio and television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures. Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected. Consult the dealer or an experienced Radio/ TV technician for help. Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate theequipment. Ver 1.00NE When moving it, do not apply any forces on the set.Do not attempt to disassemble, repair or change the product. Whenever you need to repair, adjust or check it, refer servicing to qualified service personnel. Do not directly spray water or rub it with inflammable substances (thinner orbenzene) when cleaning it. Do not wet or penetrate water over/into the set.When cleaning the LCD surface, disconnect the power and use a piece ofsmooth cloth against any scratches on it. Never use wet cloth. Caution Make sure to pull out the power cord when cleaning or removing the product.Ventilation should be always open and the set should be installed in a well-ventilated and wide enough place (a minimum distance away from a wall 10cmor more). Do not install the set in a place directly exposed to sunlight. 5 ENGLISH Warning Disconnect the power cable and signal cable connected to the product in caseof thunder or lightning. Do not attempt to touch its power cord with wet hands. If any electric pin is wet or dusty, remove the moisture or dust first before use. It is recommended to pull out the power cord unless you use it for a long time. Damaged power cord, plug or unfitted outlet may be very dangerous.Do not install the set close to any heating sources.Do not place heavy articles on it or step on the product. The product should be installed on a clean and dry place.When you detect any smog, unusual noise or smell, just disconnect the electricpower and refer servicing to qualified service personnel.Do not place any bowl with water, beverage, can or other liquid products on it. Do not use or place any combustible sprayer or inflammable substances closeto the product. Do not arrange the power cord close to any heating devices/sources.Install the outdoor antenna for the set far away from high voltage cables. EN 4 26” WIDE TFT-LCD TV Watching TV in a still image for an excessive time may seriously harm the LCD panel. Note that anytroubles from the reckless use are not guaranteed and please be cautious of the use. 1. Digital broadcast is delivered in wide screen standard (16:9) DTV, so if the existingbroadcasting program made in general screensize (4:3) is on the TV, both sides may not becompletely displayed. Any different brightness, in case limits to left/right sides are fixed, may leave image ghost of thelimits on the LCD penal, if you watch it for a longtime. 2. When you watch panorama broadcasting in a general display, it may show the central imagewith up/down parts removed. Any different brightness, in case limits to top/bottom sides are fixed, may leave imageghost of the limits on the LCD penal, if you watchit for a long time. 3. Watching the screen in a still image for a long time may leave image ghost on the LCD panel. Precautions for Image Ghost 7 ENGLISH Operating Temperature 0~35 ̊CStorage Temperature -10~50 ̊COperating Humidity 10~90% RHStorage Humidity 10~90% RH For dot defect [dead pixel] of LCD ;TFT-LCD produced by using high-end semiconductor technology with precision of 99.9% above isused for this TV (2,949,120 pixels). However the pixels of R.G.B. & White color seem to be right sometimes or some of black pixelscould be seen on the LCD. This is not from bad quality or functional problem and you can use itwithout any problem.Precautions when used as a PC monitor ;Since the LCD TV is not designed for a PC monitor, it may not support very high resolutions thatare supported in a PC. When you use it for the purpose, refer to the supportable resolution levelsas follows. When used as a PC monitor ;Optimal Resolution: 1024 768 @ 60Hz Max. Resolution: 1024 768 @ 85Hz. Available Temperature & Humidity EN 6 26” WIDE TFT-LCD TV CHAPTER 3. Using TV Menus3-1. Watching TV 32 3-2. Auto On/Off Timer 35 3-3. Change TV Channel Mode 37 3-4. Channel Search & Fine Tune 38 3-5. Add/Remove Channel 40 3-6. Channel Swap 41 3-7. Password 42 3-8. Channel Lock 43 3-9. Caption 45 3-10. V-chip Funetion 46 3-11. DTV Field 48 3-12. Stereo 49 3-13. Bilingual (Multi-Language Broadcasting) 49 CHAPTER 4. Using Menus of Picture, Sound and Others4-1. Setting Display Mode 52 4-2. Setting Scale Mode 54 4-3. Setting Picture Mode 55 4-4. Setting Simultaneous Picture Mode 58 4-5. Setting Screen MENU by Simultaneous Picture 61…

Text truncated - open the document above for the full version.

LGDT1502 IMAGE PROCESSOR (U12) VPC3230D VIDEO DECODER AD9888 A/D CONVERTER Sil161B TMDS RECEIVER YUV 4:2:2 (PORT2) 16 INVERTER DVI CN17 CN18 RGB 4:4:4 (PORT1) 24 TDA7266D SOUND AMP J11 J1~J5 J6~J10 J12 ANALOG RGB LINE IN YPbPr (1080i, 720p, 480p) YPbPr (480i) SPDIF CN14 /CN15 DC12V /DC24V CN7CN9 24V/12V 12V 9V5V 3.3V2.5V LVDS TX (U9) CN6 CN1 CN2 CN3 CN4 CN5 J1~J3 J4~J6 J7 JP1 VIDEO OUT LINE OUT S-VHS IN VIDEO IN MCU (U11) F/W DOWNLOAD GROUND MATCHING FOR HD-TUNER OSD INPUT SERIAL CONTROL /PDP INTERFACE ANALOG RGB LVDS CN11 HD Tuner /TV2 Tuner JP2 MODE setting 27MHz 20MHz 20.250 MHz FQ1236/F TV_TUNER (NTSC) Z86229V-CHIP SDA5550M TELETEXT SRAM MSP3420G SOUND PROCESSOR TV CVBS Output V-chip image Output Sound in (Component, DVD,CVBS, Line in) Headphone Amp Sound out ( to TDA7266D) Sound out (to Line out) V-chip data input 12V 8V 5V 3.3V Power From Main B/D FQ1216/I TV_TUNER (PAL) MSP3410G SOUND PROCESSOR TV CVBS Output TTX image Output Sound in (Component, SCART, CVBS, Line in) Headphone Amp Sound out ( to TDA7266D) Sound out (to Line out) TTX data input 12V 8V 5V 3.3V Power From Main B/D EPROM 2.5V NTSC RF signal PAL RF signal NTSC Tuner B/D PAL Tuner B/D 18.432 MHz

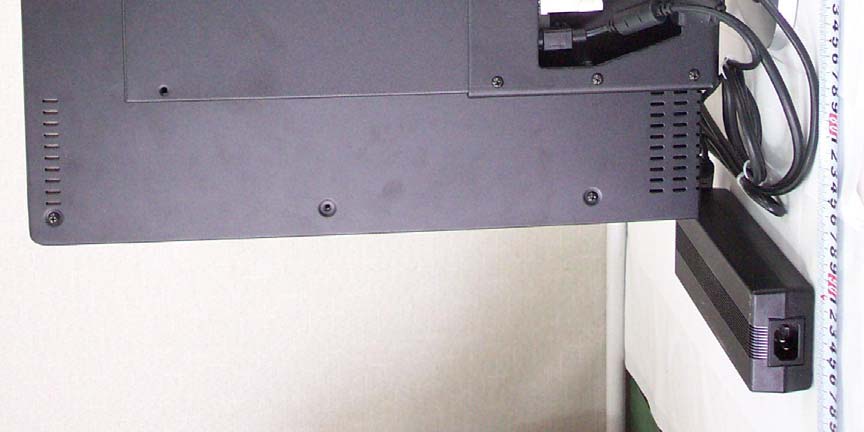

Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 28 of 60 APPENDIX C – EUT PHOTOGRAPHS ● Front View of EUT Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 29 of 60 ● Rear View of EUT

Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 24 of 60 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. z FCC ID Location of EUT Labelling Requirements

Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 30 of 60 ● Inside View of EUT Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 31 of 60 ● Front View of LCD Panel Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 32 of 60 ● Rear View of LCD Panel Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 33 of 60 ● Front View of Main Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 34 of 60 ● Rear View of Main Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 35 of 60 ● Front View of LCD Panel Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 36 of 60 ● Rear View of LCD Panel Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 37 of 60 ● Front View of Inverter Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 38 of 60 ● Rear View of Inverter Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 39 of 60 ● Front View of OSD Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 40 of 60 ● Rear View of OSD Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 41 of 60 ● Front View of TV Tuner Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 42 of 60 ● Rear View of TV Tuner Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 43 of 60 ● Front View of TV Tuner Sub Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 44 of 60 ● Rear View of TV Tuner Sub Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 45 of 60 ● Front View of TV Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 46 of 60 ● Rear View of TV Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 47 of 60 ● Front View of Side IO Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 48 of 60 ● Rear View of Side IO Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 49 of 60 ● Front View of Rear IO Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 50 of 60 ● Rear View of Rear IO Board Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 51 of 60 ● Front View of Adaptor Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 52 of 60 ● Rear View of Adaptor

Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 1 of 60 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Digital Cynos Co., Ltd. Dates of Issue : October 04, 2004 3-906, Daeryung Technotown, 448, Test Report No. : NK2EE657 Gasan-Dong, Geumcheon-Gu, Seoul, Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. H. C. Choi EMC site, Korea MODEL Brand Name CONTACT PERSON Applied Standard: Part 15 & 2 Classification : FCC Class B Device EUT Type: 26” LCD TV The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2001. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : C. S. Choi Reviewed By : H.H. Kim Senior Engineer Manager & Chief Engineer QEWDCM-26WT CYNOS, Sliding, Grandin, CSE, HYUNDAI, DK Digital, solé Digital Cynos Co., Ltd. 3-906, Daeryung Technotown, 448, Gasan-Dong, Geumcheon-Gu, Seoul, Korea. Mr. H. C. Choi Telephone No. : +82 2 2107 3450 Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 2 of 60 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS & EUT INFORMATION SUMMARY OF TEST RESULTS RECOMMANDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) DESCRIPTION OF TEST (Antenna-conducted Power Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) TEST DATA (Antenna-conducted Power Measurements) PLOT OF EMISSIONS (Conducted Emissions Diagram) ACCURACY OF MEASUREMENT TEST EQUIPMENT APPENDIX A – SAMPLE LABEL APPENDIX B – PHOTOGRAPHS OF TEST SET-UP APPENDIX C – EUT PHOTOGRAPHS APPENDIX D – PHOTOGRAPHS OF MODIFICATION FOR EMI SUPPRESSION APPENDIX E – BLOCK DIAGRAM APPENDIX F – USER’S MANUAL APPENDIX G – SCHEMATIC DIAGRAMS 3 4 5 7 7 7 8 9 10 11 12 14 18 22 23 24 25 28 53 58 59 60 Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 3 of 60 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Digital Cynos Co., Ltd. Mr. H. C. Choi Digital Cynos Co., Ltd. 3-906, Daeryung Technotown, 448, Gasan-Dong, Geumcheon-Gu, Seoul, Korea. Tel No.: +82 2 2107 3450 z FCC ID : QEWDCM-26WT z Basic Model : DCM-26WT z Alternate Model : SL-26KT04, 26LCDN04, CLT-260W, HLT-2630B, HLT-2630S, LCD-266, SLTV26MS3 z Brand Name : CYNOS, Sliding, Grandin, CSE, HYUNDAI, DK Digital, sol é z EUT Type : 26” LCD TV z Voltage rate : Adaptor Input : AC 100V – 240V, 50/60Hz Adaptor Output : DC 15V z Test Voltage : AC120V, 60Hz z Port/Connector : DVI In, D-Sub Analog In, PC Audio Input, DTV In (Y, Pb, Pr, L, R), DVD In (Y, Pb, Pr, L, R), TV Antenna In x 2EA, Audio/Video In, S-Video In, Headphone Out, Audio/Video Out, Upgrade Port z Classification : z Rule Part(s) : z Test Procedure(s) : z Dates of Test : z Place of Tests : z Test Report No. : FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (2001) September 03, 2004 to September 08, 2004 Nemko Korea Co., Ltd. EMC Site NK2EE657 Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 4 of 60 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2001) was used in determining radiated and conducted emissions emanating from Digital Cynos Co., Ltd. MODEL : QEWDCM-26WT, 26” LCD TV. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on June 06, 2001. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 5 of 60 TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was connected to PC and displayed “H” pattern on the screen. A sinusoidal signal of 1kHz from the hard disk played continuously The EUT was set to 1024 x 768 video resolution, with 60Hz vertical refresh rate and tested DVI & analog mode. Antenna-conducted power measurements was performed with the EUT antenna terminal connected directly to a spectrum analyzer. Support Equipment 26” LCD TV (EUT) Digital Cynos Co., Ltd., FCC ID:QEWDCM-26WT 1.5m Shielded D-Sub cable 1.5m Shielded DVI cable S/N : N/A Adaptor…

Text truncated - open the document above for the full version.

Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 25 of 60 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 26 of 60 z Radiated Test Picture(Front) z Radiated Test Picture(Rear) Test Report No.: NK2EE657 FCC Certification Digital Cynos Co., Ltd. FCC ID :QEWDCM-26WT Page 27 of 60 z Antenna Terminal Test Picture
