QGNTGU020USB Drive

Appendix F. Users Manual ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020

Appendix E. Block Diagram ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020

Appendix C. External Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 3 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 6, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 Appendix C. External Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 3 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 6, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 Appendix C. External Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 3 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 6, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020

Appendix A. FCC ID Label and Location ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier(FCC ID : QMACASPERALFA) and compliance statement are marked in the product label. TAB Global Co., Ltd. Product: USB DRIVE Model: TGU020 FCC ID: QGNTGU020 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925)

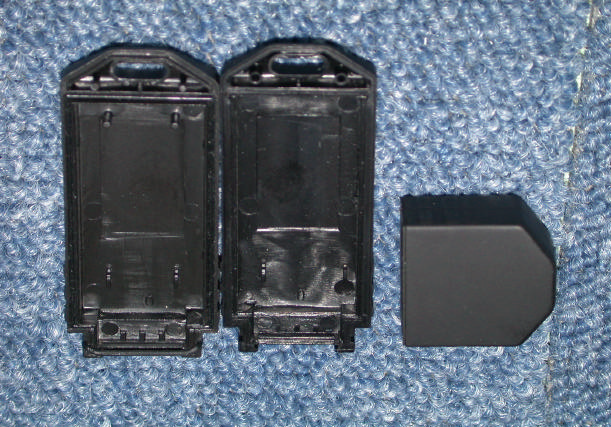

Appendix D. Internal Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 3 TAB Global Co., Ltd. USB DRIVE Model : TGU020 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 Inside view of USB DRIVE Front side view of USB DRIVE Appendix D. Internal Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 3 TAB Global Co., Ltd. USB DRIVE Model : TGU020 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 Rear side view of USB DRIVE Component side view of main board Appendix D. Internal Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 3 TAB Global Co., Ltd. USB DRIVE Model : TGU020 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 Component side view of Main board

ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 16 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 2.1 Equipment Description The Equipment Under Test(EUT) is the USB DRIVE from TAB Global Co., Ltd. Please refer to Users manual 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 12.0MHz l Chipset Brand & Part No. : 0238MF59H01-11 – GL814, K9K1G08UOM YCBO – SAMSUNG l Number of Layers : Main board – 6Layers, Memory – 6 Layers l USB DRIVE Specifications : USB DRIVE 16MB - 1GB l Interface : USB compatible with USB 2.0 spec l Capacity MB : 16 / 32 / 64 / 128 / 256 / 512 / 1024 l Data Retention : up to 10 years l Data Access Rate : 4MB / sec (read), 1MB / sec (write) l Power supply : USB BUS-Powered (4.5V ~ 5.5V) l OS Support : Windows 98 / SE / Me / 2000 / XP Mac OS 8.6 ~ 10.1, Linux 2.4.X

www.ETL.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This USB DRIVE, Model TGU020 has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : Unintentional Radiators. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Yo han, park Title : Chief Engineer & Lab.Manager E-RAE Testing Laboratory Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : USB DRIVE MODEL/TYPE NO : TGU020 FCC ID : QGNTGU020 APPLICANT : TAB Global Co., Ltd. 2F, 1359-10, Seocho-Dong, Seocho-Gu, Seoul, Korea Attn. : Jong-Hyun Kim / Executive Director FCC CLASSIFICATION : Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : N/A TEST REPORT No. : E02.1105. FCC.741N DATES OF TEST : November 1 ~ 4, 2002 DATES OF ISSUE : November 5, 2002 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 16 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Appendix G. Schematics ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 16 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : USB DRIVE l Model Number : TGU020 l FCC Identifier : QGNTGU020 l S/N : N/A l Modulation : N/A l FCC Rule Part(s) : Part 15 Subpart B Unintentional Radiators l Test Procedure : ANSI C63.4-1992 l FCC Classification : Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) l Dates of Tests : November 1 ~ 4, 2002 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E02.1105.FCC.741N Applicant Name : TAB Global Co., Ltd. Address : 2F, 1359-10, Seocho-Dong, Seocho-Gu, Seoul, Korea Attention : Jong-Hyun Kim / Executive Director ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 16 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the TAB Global Co., Ltd, Model : TGU020 ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 16 FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 2.1 Equipment Description The Equipment Under Test(EUT) is the USB DRIVE from TAB Global Co., Ltd. Please refer to Users manual 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 12.0MHz l Chipset Brand & Part No. : 0238MF59H01-11 – GL814, K9K1G08UOM YCBO – SAMSUNG l Number of Layers : Main board – 6Layers, Memory – 6 Layers l USB DRIVE Specifications : USB DRIVE 16MB - 1GB l Interface : USB compatible with USB 2.0 spec l Capacity MB : 16 / 32 / 64 / 128 / 256 / 512 / 1024 l Data Retention : up to 10 years l Data Access Rate : 4MB / sec (read), 1MB / sec (write) l Power supply : USB BUS-Powered (4.5V ~ 5.5V) l OS Support : Windows 98 / SE / M…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, FCC ID : QGNTGU020 Report No:E02.1105.FCC.741N Date of Test : November 5, 2002 TAB Global Co., Ltd. USB DRIVE Model : TGU020 Conducted Emission Test Setup
