QH5P379VHF & UHF Television Broadcast Processor

P-379 Processor 1 P-379 PROCESSOR P-379 Processor 2 TABLE OF CONTENTS 1.0 SAFEGUARDS................................................................................................................... 3 General Safeguards ..............................................................................................................3 Safety and First Aid............................................................................................................... 4 2.0 WARRANTY....................................................................................................................... 5 3.0 DESCRIPTION AND SPECIFICATIONS................................................................................... 6 General Description .............................................................................................................. 6 Specifications ........................................................................................................................ 7 Block Diagram....................................................................................................................... 9 4.0 INSTALLATION................................................................................................................. 10 Building Recommendations ................................................................................................ 10 Heating and Cooling Requirements .................................................................................... 10 Electrical Service Recommendations.................................................................................. 11 Antenna and Tower Recommendations.............................................................................. 12 Shelter Security................................................................................................................... 12 Unpacking and Inspection................................................................................................... 13 Location and Function of Controls and Connectors ............................................................ 14 5.0 OPERATING PROCEDURE................................................................................................ 16 Preliminary Hook-up............................................................................................................16 Setup and Operation ........................................................................................................... 16 Transmitter Hookup.............................................................................................................20 6.0 PROBLEM TROUBLESHOOTING GUIDE............................................................................. 21 7.0 BILL OF MATERIALS, SCHEMATICS, AND PCB OVERLAYS................................................ 22 Agile Logic Board Bill of Materials....................................................................................... 22 Agile Output Amplifier Bill of Materials ................................................................................ 26 Agile Up converter Bill of Materials ..................................................................................... 28 750 MHz Down Converter Bill of Materials ......................................................................... 33 Power Supply Bill of Materials............................................................................................. 38 Tuner Processor Board Bill of Materials.............................................................................. 41 P-379 Processor 3 1.0 SAFEGUARDS General Safeguards This section is written as a general guide for those having previous knowledge and experience with these kinds of equipment. It is not intended to contain a complete statement of all safety precautions, which should be observed by personnel using this or other electronic equipment. To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture. Do not open the cabinet. Refer servicing to qualified personnel. 1. READ INSTRUCTIONS - All safety, installation, and operating instructions should be read before the equipment is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference. 3. FOLLOW INSTRUCTIONS - All safety, installation, and operating instructions should be followed. 4. GROUNDING AND POLARIZATION - The P-379 Processor is equipped with a three prong grounded power plug. Do not remove the ground prong from the plug. Do not use an AC receptacle where the plug blades cannot be fully inserted. 5. SERVICING - Do not attempt to service this equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards and will void the warranty. Refer all servicing to qualified service personnel. 6. DAMAGE REQUIRING SERVICE - Unplug this equipment and refer servicing to qualified service personnel under the following conditions: • If the power cord or plug is damaged. • If liquid has been spilled or objects have fallen into the equipment. • If the equipment has been exposed to rain or water. • If the equipment does not operate normally by following the operating instructions. Adjust only those controls covered by the operating instructions. An improper adjustment may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation. • If the equipment has been dropped or the cabinet has been damaged. • If the equipment exhibits a distinct change in performance. P-379 Processor 4 Safety and First Aid Personnel engaged in the installation, operation, maintenance, or servicing of electronic equipment are exposed to the hazard of high voltage. It is imperative that all safety regulations and precautions are consistently observed. Knowledge of first aid procedures is recommended. The following information is presented as a reference only. DANGEROUS V…

Text truncated - open the document above for the full version.

Technalogix – the company that can! June 26, 2007 Attestation Statement: P-379 Tests were conducted on production models of the equipment on location at Technalogix: #4, 8021 Edgar Industrial Place Red Deer, Alberta Canada T4P 3R3 403.347.5400 ph 403.347.7444 fx All tests were carried out on representative channels in the VHF and UHF bands in accordance with FCC Part 73 and Part 74. The results in the submitted documentation show that the equipment meets or exceeds the required specifications. Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

P-379 Block Diagram Pre-Amp IN RF Loop Pre-Amp Out RF In IF Carrier RF Output Tuner PCB Display and Control Board Up converter Down converter Output Amplifier

Technalogix – the company that can! June 26, 2007 Cover Letter: P-379 This report is in support of an application by Technalogix Ltd. for certification of transmitting equipment used for VHF and UHF television systems (54-806 MHz). Specifically, Technalogix is requesting certification of the Technalogix P-379 frequency agile television processor. The P-379 accepts RF signal on any of the VHF (2 through 13) and UHF (14 through 69) channels and outputs a modulated +15 dBm peak video signal in addition to 10% aural power on any of the VHF (2 through 13) and UHF (14 through 69) channels. All tests were carried out on representative channels in the VHF and UHF bands in accordance with FCC Part 73 and Part 74. The results in the attached documentation show that the equipment meets or exceeds the required specifications. The emission designators based on FCC Part 74 transmitters are 5M75C3F (for visual) and 250KF3E (for aural). Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

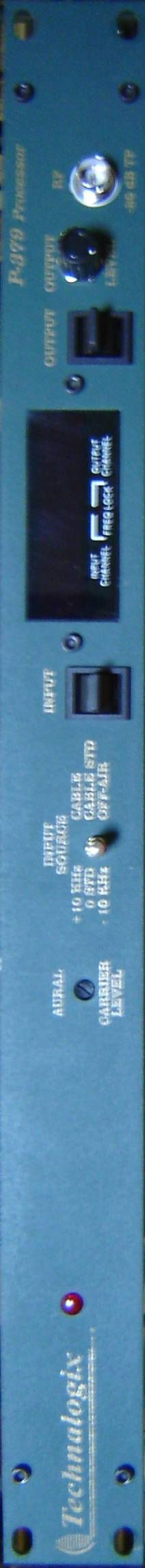

Technalogix – the company that can! EXTERNAL CONSTRUCTION Front View: #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca Technalogix – the company that can! Back View:

Technalogix – the company that can! ID Label: #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca Model Serial Freq. FCC IC www.technalogix.ca MADE IN CANADA 3803A-P379 QH5P379 P-379 Technalogix – the company that can! ID Label Location: Model Serial Freq. FCC IC www.technalogix.ca MADE IN CANADA 3803A-P379 QH5P379 P-379

Technalogix – the company that can! P-379 CONSTRUCTION PHOTOGRAPHS Internal View: #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca Technalogix – the company that can! Internal view of Upconverter and Downconverter PCB: Solder Side of Main Tuner PCB:

5.0 OPERATING PROCEDURE Preliminary Hook-up 1. Position the Technalogix P-379 agile processor in its installation mount or rack. 2. Locate the antenna lead or cable drop that will provide the input signal for the P- 379 agile processor. 3. Ensure that the input signal provides an adequate signal. The recommended input level for best performance from the Technalogix P-379 Processor is 0 to +10dBmV (+60dBuV to +70dBuV). Setup and Operation 1. Connect the input-source cable drop or antenna lead to the F connector On the rear panel of the P-379 marked “RF INPUT”. NOTE: If you have a P-379T, also connect the T- or return-channel input source cable to the F-connector on the rear panel of the P-379 marked “T-INPUT”. 2. Connect the output of the P-379 to a 50 Ohms load via an RF cable connected to the F-connector marked “RF OUTPUT” on the rear panel of the P-379. 3. Connect the Technalogix P-379 to a proper AC electrical source. The correct electrical input type for the unit is marked on the rear panel, directly under the entrance of the power cord into the unit. Exercise care in handling equipment during inspection to prevent Damage due to rough or careless handling. Technalogix power supplies are designed so that, under certain power line or heat buildup conditions, the unit shuts off. An indication is no RF output, although the POWER LED on the front panel remains illuminated. If this occurs, unplug the power cord and wait at least two (2) minutes before reapplying power. Upon reapplying power, you should again have RF output. If the unit fails to provide RF output again, or should the unit return to shutdown mode, telephone your distributor for assistance or call Technalogix direct at 403-347-5400. Remember: Technalogix recommends a 1.75” air circulation space between each piece of rack- mounted equipment. 4. Input channel selection. Select the desired input source type and channel using the front panel controls. Because the built-in input offset feature automatically removes any input offset, no calculations or adjustments are required. The Technalogix P-379 Agile Processor has a built-in delay in the input- and output- channel tuning circuits. In order to change channels, hold the channel select switch in the up- or down-position for at least three seconds. When the circuit is defeated, channel selection will proceed normally. Channels can be changed one at a time by raising/lowering the channel select switch one channel at a time; or channels can be scanned rapidly by raising/lowering the channel select switch and holding it while the unit rapidly moves through the channels. However, once the channel select switch is released for more than one second, the delay-tuning circuit reactivates. Until an active input channel is selected, the input channel display will flash. Once the input channel is selected, the input channel display will stop flashing as long as the input signal level is within the required capture range. If the input channel display continues to flash after a known, active input channel is selected, check the level of the input signal to ensure it is at adequate levels for detection (from –5dBmV to +10dBmV) and not too low or too high. The FREQUENCY LOCK LED on the front panel display may also blink during input-channel tuning. This is because, when the unit is being tuned, an RF- output muting circuit is enabled to ensure that moving RF carriers do not interfere with any existing channels on the cable system. T-Channel Input Option. To use the T-Channel Input Option, if the unit is so equipped, ensure that that a T-channel input source is attached to the F- connector marked “T-Channel IN” on the rear panel. Position the T-Channel switch on the rear panel of the P-379 to the “ON” position. If your P-379 has green LED’s on the front panel, above the channel select switch, the LED marked “T-channel” will illuminate when a channel in that range is selected. If your P-379 does not have green LED’s, but does have a three- number channel display, the selected T-channel will be indicated by a “-“ (minus) sign preceding the number of the T-channel selected. When in T-channel operation, only the T-channels will be selected. 5. Select the desired output channel. Unless otherwise specified, the unit is factory set for cable standard channel frequencies and the microprocessor automatically selects the proper FCC offset for the output channels, requiring no calculations or adjustments. NOTE: For HRC output channels, see the section in this manual entitled HRC Output Frequency Set. During output-channel tuning, the FREQUENCY LOCK LED on the front panel display may also blink during input-channel tuning. This is because, when the unit is being tuned, an RF-output muting circuit is enabled to ensure that moving RF carriers do not interfere with any existing channels on the cable system. 6. Connect a spectrum analyzer (recommended) or a field strength meter to the F- connector marked “RF OUTPUT” on the rear panel of the P-379 agile processor. If the unit is already connected to another device, disconnect that device from the unit. 7. using the front panel control marked “OUTPUT LEVEL,” adjust the RF output of the unit. The recommended output level is between +55dBmV and +60dBmV (+115dBuV and +120dBuV). Setting the RF output level below +55dBmV may adversely affect the parameters of the modulating signal; setting the RF output level above +60dBmV will adversely affect the quality of performance of the P-379. Ensure that the RF output level is checked each time an output channel is selected, particularly when the selected channel is a return or “T” channel or when the channel selected is in a different band from the previous channel. NOTE: Ensure that you do not overdrive the power amplifier. Please see the power amplifier manual for recommended levels. 8. While the RF OUTPUT signal is still connected to the spectrum analyzer or field strength meter, observe the aural carrier level. The differ…

Text truncated - open the document above for the full version.

Technalogix – the company that can! June 26, 2007 To Whom it May Concern, This letter certifies that there is no internal tuning that needs to be completed in the Technalogix P-379. All adjustments are made from the front panel. Should require any further information, do not hesitate to contact us: Aaron Sivacoe Technical Director [email protected] Bob Gullon President and CEO [email protected] Best regards, Aaron Sivacoe #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! June 25, 2007 Parts List Statement: P-379 The parts list for the P-379 is found within the User’s Manual. Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! June 26, 2007 To Whom it May Concern, This letter certifies that there was no measurable cabinet radiation from the P-379, even at 0.5 meters. Measurements were conducted as per FCC Part 74.736. All measurements were well below 60dBc including those of harmonics and all other spurious emissions. Aaron Sivacoe, P.ENG Technical Director [email protected] Bob Gullon President and CEO [email protected] Best regards, Aaron Sivacoe #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! June 25, 2007 Schematics Statement: P-379 The schematics for the P-379 are found within the User’s Manual. Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

P-379 TEST REPORT S/N:P7898                           Preparedby:AaronSivacoe,P.ENG RainierKong Date: June25,2007  2 Contents Contents____________________________________________________________________ 2 Test Equipment______________________________________________________________ 3 Performance Specifications ____________________________________________________ 4 Visual Power Output Rating ___________________________________________________ 4 Visual Power Adjustment Capability ____________________________________________ 5 Aural Power Output Rating____________________________________________________ 6 Carrier Frequency Tolerance___________________________________________________ 8 Visual Frequency Response __________________________________________________ 11 Intermodulation Distortion ___________________________________________________ 14 Spurious Emissions _________________________________________________________ 16 Modulation _______________________________________________________________ 18 Chrominance-Luminance Gain Inequality _______________________________________ 19 Chrominance-Luminance Delay Inequality ______________________________________ 20 Differential Gain Distortion __________________________________________________ 21 Differential Phase Distortion__________________________________________________ 22 Group Delay Response ______________________________________________________ 23 Horizontal Timing__________________________________________________________ 24 Audio Amplitude Frequency Response__________________________________________ 25 Automatic Gain Control Performance___________________________________________ 25 Visual to Aural Cross-Modulation _____________________________________________ 25 Aural to visual Cross-Modulation______________________________________________ 30      3 Test Equipment Equipment Manufacturer Model Number Serial Number Test Signal Generator Tektronix TSG95 B025497 Test Signal Generator Tektronix 1910 B022706 Spectrum Analyzer Advantest R3162 110301419 Spectrum Analyzer Tektronix 2710 B021677 Waveform Analyzer/Monitor Tektronix VM700A B020283 Radiation Meter Narda Network Analyzer Agilent 8753ET US39170436 Frequency Counter HP 5343A 2428A01747 Audio Generator HP 209A 1045A06481 Noise and Distortion Meter HP 334A 1551U00970 Coaxial Attenuator (30 dB) Bird 8329-310 258 Coaxial Attenuator (30 dB) Bird 8323 2221 Coaxial Attenuator (6 dB) Weinschel 58-6-43 RF Wattmeter Bird 4304A 0811 RF Wattmeter Coaxial Dynamics 81060A 1034 RF Load (1200 W) Microwave Devices 611.11 RF Load (600W) Bird 8402 1595 Directional Coupler HP 778D Variable Autotransformer Staco Energy Products 3PN1010 122-0003 8645 True RMS clamp on meter Tenma 72-6131 96082691 Digital Multi-meter Hung Chang HC-5010EC 15003374 Oscilloscope (150 MHz) Tektronix 2445 B021074 Television Demodulator Rhode and Schwarz EFA83 832495/006 Tunable Down Converter Tektronix TDC-10 BO10435 Television Demodulator MSI MSI-320 D-022 Digital Camera Sony DSC-P73 7412902 4 Performance Specifications Visual Power Output Rating Definition:The visual power output rating of the television transmitting equipment shall be the peak envelope power. This is also theaverage power measuredduringasynchronizingpulse.  Requirement:Specifiedbythemanufactureras +15 dBmpeak. Method:Thevisualcarrierismodulatedwithasyncandblankingsignal.Theaural carrier is not present. An average reading RF wattmeter is placed between the transmitter output (directly on the directional coupler’s N connectoronthebackpanel)andthe507dummyload.Thepeakvisual poweristhemeasuredaveragepowermultipliedbyafactorof1.68.  DuetothelowleveloftheRFOutputsignal,aspectrumanalyzerwas usedtomeasurethevisualoutputrating.  Measurement:Theratedvisualoutputpoweris +15 dBmpeak. 5 Visual Power Adjustment Capability Definition:The peak output power adjustment capability is the manual range by which the peak visual output power can be maintained within predeterminedlimits. Requirement:IndustryCanada–Theequipmentshallbecapableofbeingadjustedto deliver the rated visual output power when the AC input voltage is 5% aboveorbelowratedvalue.Poweroutputadjustmentoftheequipment shallpermitoperationtoatleast3dBbelowratedpoweroutput[BETSA4, section6.1].  FCC–Thetransmittershallbeadjustableto80%,100%,and110%of peak visual power simply for the calibration ofmeters [section 73.663]. Exceptasoperatedinareducedpoweroperation,thevisualoutputpower of a TV transmitter or translator must be maintained as near as practicable to the authorized transmitter output power and may not be less than 80% nor more than 110% of authorized power [section 73.1560(c)]  Method:Thevisualcarrierismodulatedwithasyncandblankingsignal.Theaural carrier is not present. An average reading RF wattmeter is placed between the transmitter output (directly on the directional coupler’s N connectoronthebackpanel)andthe507dummyload.Thepeakvisual power is the measured average power multiplied by a factor of 1.68. While observing the external wattmeter, the outputpower is varied to ensurethatisadjustableovertheproperranges.  Measurement:Upperlimitofvisualoutputpoweradjustment110 % Lowerlimitofvisualoutputpoweradjustment0 %  6 Aural Power Output Rating Definition:The aural carrier power output is the power of the aural transmission section available at the output terminals of the equipment when connectedtothestandardtestload. Requirement:Industry Canada –Themeasured aural carrieroutputshall not be less than 10% nor more t…
