QH5TAV100LVHF TELEVISION BROADCAST

TAV-100 POWER AMPLIFIER NEW ADVENTURES IN BROADCASTING Technalogix You’ve already unpacked it, haven’t you? You’ve unpacked it and plugged it in and turned it on and fiddled with the knobs. No? Okay, good. Please take a few minutes to read the manual and familiarize yourself with your new Technalogix power amplifier. We believe that this manual, and of course our equipment, should be everything you need to get on the air with superb broadcast quality video. We understand that a capable and confident user will get the most out of our product and we have made every attempt to educate readers of all technical levels. If there is something that is not clear, or you require further information, please do not hesitate to contact us and we’ll be glad to help out. Technalogix Ltd. #4, 8021 Edgar Industrial Place Red Deer, Alberta, Canada T4P 3R3 Phone: 403.347.5400 Fax: 403.347.7444 URL: www.technalogix.ca Email: [email protected] [email protected] We truly appreciate that you have chosen us as your television broadcast system supplier. Happy viewing. Table of Contents SECTION I- SAFEGUARDS..............................................................................................I-1 SAFETY AND FIRST AID.....................................................................................................I-2 OPERATING SAFEGUARDS................................................................................................I-3 SECTION II - WARRANTY.............................................................................................II-1 SECTION III - OVERVIEW...............................................................................................III-1 STANDARD FEATURES.....................................................................................................III-1 PRINCIPLE OF OPERATION...............................................................................................III-2 BLOCK DIAGRAM..............................................................................................................III-3 SPECIFICATIONS...............................................................................................................III-5 SECTION IV - RF COMPONENTS................................................................................IV-1 AMPLIFIER PALLETS.......................................................................................................IV-1 SPLITTER/COMBINER.....................................................................................................IV-4 DIRECTIONAL COUPLER.................................................................................................IV-4 FILTER............................................................................................................................IV-4 SECTION V - POWER SUPPLY SECTION......................................................................V-1 SECTION VI - MONITOR AND CONTROL SYSTEM.......................................................VI-1 CONTROL BOARD OVERVIEW (SERIES II-H).................................................................VI-1 POWER SUPPLY COMPONENTS.....................................................................................VI-1 INTERFACE COMPONENTS.............................................................................................VI-2 SIGNAL CONDITIONING COMPONENTS..........................................................................VI-3 DISPLAY COMPONENTS.................................................................................................VI-4 MICROCONTROLLER COMPONENTS...............................................................................VI-5 FAULT SHUTDOWN.........................................................................................................VI-6 REMOTE PORT...............................................................................................................VI-7 BILL OF MATERIALS.......................................................................................................VI-8 SCHEMATICS................................................................................................................VI-10 SECTION VII - MECHANICAL SECTION.......................................................................VII-1 SECTION VIII - INSTALLATION...................................................................................VIII-1 BUILDING RECOMMENDATIONS.....................................................................................VIII-1 HEATING AND COOLING REQUIREMENTS.....................................................................VIII-2 ELECTRICAL SERVICE RECOMMENDATIONS.................................................................VIII-3 ANTENNA AND TOWER RECOMMENDATIONS................................................................VIII-4 SHELTER SECURITY......................................................................................................VIII-5 UNPACKING AND INSPECTION.......................................................................................VIII-6 LOCATION AND FUNCTION OF CONTROLS AND CONNECTORS (TAV-100 POWER AMPLIFIERS)..................................................................................................................VIII-7 INITIAL HOOK UP.........................................................................................................VIII-11 SECTION IX - OPERATING PROCEDURE.....................................................................IX-1 SECTION X - MAINTENANCE AND TROUBLESHOOTING...............................................X-1 TROUBLESHOOTING........................................................................................................X-2 I-1 Section I - Safeguards General Safeguards This section is written as a general guide to keep all 5 fingers on your hand and is intended for those having previous knowledge and experience with these kinds of equipment. It is not intended to conta…

Text truncated - open the document above for the full version.

Technalogix – the company that can! Attestation Statement: Tests were conducted on production models of the equipment on location at Technalogix: #4, 8021 Edgar Industrial Place Red Deer, Alberta Canada T4P 3R3 403.347.5400 ph 403.347.7444 fx All tests were carried out on representative channels in the VHF bands in accordance with FCC Part 73 and Part 74 and Industry Canada BESP-100 and BETS-4. The results in the submitted documentation show that the equipment meets or exceeds the required specifications. Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon, President and CEO [email protected] Aaron Sivacoe, P.ENG, Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

III-3 Block Diagram The RF signal enters through the RF Input connector on the power amplifier enclosure from the modulator or processor. It then passes through an RF attenuator to limit the output power level of the power amplifier and to help buffer any transients that may come into the power amplifier. After attenuation, the signal is amplified through the PA25-VHF driver and through the P200 final amplifier. The signal then passes through a bandpass filter. Finally, the amplified signal passes through a dual directional coupler for monitoring purposes. After the directional coupler, the signal exits the power amplifier enclosure before heading out to an antenna for broadcast. A=-0.05dB typ. A=40dB typ. low band VHF A=34dB typ. high band VHF TO WATTMETER AND ANTENNA P200-VHF RF OUT PA25-VHF RF INPUT V V COUPLER DIRECTIONAL FILTER ATTENUATION TAV-100 Block Diagram Date: May 23, 2005Page: 1 of 1 RevID

Technalogix – the company that can! March 31, 2006 This report is in support of an application by Technalogix Ltd. for certification of transmitting equipment used for VHF Low Band television systems (174-216 MHz or channels 2 through 6). Specifically, Technalogix is requesting certification of the Technalogix TAV-100L VHF Low Band television transmitter. The TAV-100L supplies a 100-watt peak video signal in addition to 10% aural power on any of the VHF television channels 2 through 6. Additionally, the control system allows the user to run 110% of rated power (110-watts peak) before the overdrive monitor shuts the system down. The video and audio are amplified with a common amplifier chain. The emission designators based on FCC Part 74 transmitters are 5M75C3F (for visual) and 250KF3E (for aural). Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon, President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

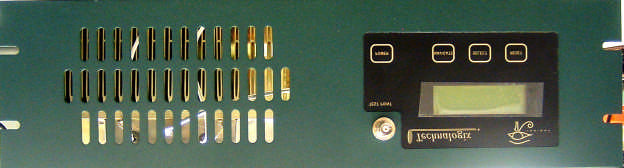

Technalogix – the company that can! EXTERNAL CONSTRUCTION Front View: Back View: #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! ID Label: #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca TECHNALOGIX LTD. Made in Red Deer, AB Canada FCC ID:QH5TAV100L I.C. :tbd Model No:TAV-100L Serial No: Actual Size: 2" x 3 1/4" Technalogix – the company that can! ID Label Location: TECHNALOGIX LTD. Made in Red Deer, AB Canada FCC ID:QH5TAV100L I.C. :tbd Model No:TAV-100L Serial No:

Technalogix – the company that can! TAV-100L CONSTRUCTION POTOGRAPHS Amplifier Pallet Construction: PA25-VHF-L (component side with all components): PA25-VHF-L (no components get soldered to solder side): #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca Technalogix – the company that can! P200-VHF-L (component side with all components – no components or tracks on bottom): Internal Construction:

III-2 Principle of Operation The TAV-100 power amplifier supplies a 100-watt peak video signal with an aural carrier level 10 to 13 dB below visual carrier (dBc) on any of the VHF television channels 2 through 13. Please note that channel selection must be made at time of order, as the transmitter or translator is calibrated and tested to the channel requested and is not field tuneable. The TAV-100 power amplifier is a modular solid-state 100-watt broadcast amplifier utilizing readily available RF components wherever possible, thus enhancing the serviceability of the equipment. The TAV-100 is comprised of a PA25-VHF-L pallet for low-band VHF frequencies or PA25-VHF-H pallet for high-band VHF frequencies and P200-VHF-L final amplifier for low-band VHF frequencies or P200- VHF-H for high-band VHF frequencies. The TAV-100 features ultra linear amplification and individual channel RF output bandpass filtering. The amplifier modules are stable for high reliability and long service life. III-3 Block Diagram The RF signal enters through the RF Input connector on the power amplifier enclosure from the modulator or processor. It then passes through an RF attenuator to limit the output power level of the power amplifier and to help buffer any transients that may come into the power amplifier. After attenuation, the signal is amplified through the PA25-VHF driver and through the P200 final amplifier. The signal then passes through a bandpass filter. Finally, the amplified signal passes through a dual directional coupler for monitoring purposes. After the directional coupler, the signal exits the power amplifier enclosure before heading out to an antenna for broadcast. A=-0.05dB typ. A=40dB typ. low band VHF A=34dB typ. high band VHF TO WATTMETER AND ANTENNA P200-VHF RF OUT PA25-VHF RF INPUT V V COUPLER DIRECTIONAL FILTER ATTENUATION TAV-100 Block Diagram Date: May 23, 2005Page: 1 of 1 RevID III-4 Specifications The following specifications were taken with a Technalogix modulator/processor. Should a different modulator or processor be used, specifications could vary. For this reason, we recommend that any different modulator/processor be shipped to Technalogix so the system can be matched and set up optimally. In addition, the audio/video ratio the input to the power amplifier needs to be –10 dB in order for the software and LCD readout to be accurate. RF Characteristics Frequency range any specified VHF Channel 2 to 13 Frequency Response (one channel) ±0.5 dB Frequency Stability ±250 Hz Selectivity 60 dB (adjacent channel) Minimum Input Level +10 dBm Rated Visual Output Power 100 Watts Rated Aural Output Power 10% of peak visual power IF Output Level +35 dBmV nominal Input Impedance 75 Ohms Output Impedance 50 Ohms Harmonics > 60 dB below rated power Predominant Intermodulation Distortion dBc = decibels below visual carrier + 920 kHz > -53 dBc - 920 kHz > -53 dBc + 2.66 MHz > -53 dBc - 2.66 MHz > -53 dBc + 5.42 MHz > -53 dBc + 7.16 MHz > -53 dBc 3 rd Order Intermodulation Distortion + 4.5 MHz > -60 dBc + 9.0 MHz > -60 dBc All others > -60 dBc Spurious Emissions > -60 dBc NTSC Video Characteristics Input Level to modulator (for 87.5% modulation) 1.0 V PP Differential Phase (at 87.5% modulation) ±2 Degrees Differential Gain (at 87.5% modulation) 2% Group Delay < ±40 nS Video Group Delay Pre-emphasis Conforms to IC/FCC specifications K-Factor 1.9% for 2T Pulse Hum and Noise > 60 dB below rated power III-5 Aural Characteristics Input Level for 25 kHz Deviation 0.3 V PP Frequency Response (Standard Pre-emphasis) ±1 dB Harmonic Distortion (25 kHz Deviation) < 1% 50 Hz to 15 kHz Amplitude Modulation Noise > 50 dB Frequency Modulation Noise > 60 dB Intercarrier Stability ±250 Hz Physical Characteristics Power Requirements 100-130,210-230 vac, 50/60 Hz Operating Temperature 0 - 50°C Dimensions (power amplifier only) W-19”,D -21 ¼”, H-5 ¼”, 3U-high IV-1 Section IV – RF Components Amplifier Pallets The PA25-VHF pallet is a two stage ultra linear class-A linear pallet. The PA25-VHF-L has a typical gain of 40dB and draws no more than 3.25Adc total drain current (the exact bias and drain currents of your system are found in the spec sheet supplied with each manual). The PA25-VHF-H (channels 7 through 13) has a typical gain of 34 dB and draws no more than 3.25A total drain current. The quiescent and drain currents can be measured on the PA25-VHF pallet by measuring the voltage drop across the current sense resistor found directly at the DC power supply lead input to the pallet. This resistance is 0.01-ohms, providing a 10mV per ampere ratio. The final amplifier stage is comprised of a P200-VHF-L or P200-VHF-H amplifier pallet and are characterized with typical gains of 18 dB (low band) or 16 dB (high band) and maximum drain currents of 11 A (low-band) or 14 A (high-band). Each of the amplifier pallets is connectorized. All amplifier pallets must have the transistor drain voltages reach at least 26Vdc before the RF drive is applied. IV-3 Filter The passive bandpass filter rejects spurious and harmonic output products and passes the VHF channel RF output. The cavity resonator uses aperture coupling and is a linear resonator design. Typical insertion loss is 0.6 dB to 1.0 dB depending on channel frequency. Average roll off is –33 dBc at a point 4.5 MHz below the peak visual carrier frequency and –30 dBc 9.0 MHz above the peak visual carrier frequency. The filter is DC grounded on both the input and output for additional lightning protection. Directional Coupler The Technalogix dual directional couplers provide DC voltages proportional to forward and reflected RF power monitoring. These analog voltages are converted for processing using analog-to-digital converters and provide the control system with valuable data for monitoring purposes. The directional couplers installed in the power amplifier and filter enclosures have peak detection circuits on the forward RF power side of the coupler and average detection circui…

Text truncated - open the document above for the full version.

Technalogix – the company that can! August 22, 2005 To Whom it May Concern, This letter certifies that there is no internal tuning that needs to be completed in the Technalogix line of power amplifiers. Should require any further information, do not hesitate to contact us: Aaron Sivacoe Engineering Manager [email protected] Bob Gullon President and CEO [email protected] Best regards, Aaron Sivacoe #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Series II - Bill of Materials I 21-Jun-05 ItemQtyComponentsDescriptionTolerancePackageEquivalency 11 BZ101 BUZZER, magnetic, 5V, single toneSMD CT-1205C CUI CT-1205C 22 C101, C105 CAPACITOR, electrolytic, 100uF, 63V<=20%SMT (Panasonic VS "G" size) Panasonic ECE-V1JA101P, NIC NACEW101M63V10x10.5 32 C102, C106 CAPACITOR, electrolytic, 330uF, 35V<=20%SMT (Panasonic VS "G" size) Panasonic ECE-V1VA331P, NIC NACEW331M35V10x10.5 421 C103, C104, C107, C112, C113, C115, C116, C118, C119, C120, C121, C123, C124, C125, C126, C128, C129, C130, C131, C133, C134 CAPACITOR, ceramic, 0.01uF, 63V <=20% SMT 0805 Digikey C0805C103K5RACTU 57 C108, C111, C140, C143, C144, C145, C146CAPACITOR, ceramic, 0.1uF, 25V<=20% SMT 1206Utech GMC31X7R104K50NT 62 C109, C110 CAPACITOR, electrolytic, 100uF, 25V<=20%SMT (Panasonic VS "E" size)Panasonic ECE-V1EA101UP 77 C114, C117, C122, C127, C132, C135, C147CAPACITOR, tantalum, 1uF, 16V<=20% SMT 3216 Sprague 293D105X9035B2T 81 CR101 CLOCK, ceramic resonator, 4.000 MHz, w/caps f <= 0.5% C <= 20% Through hole, 3-position, 0.1" spacing ECS Inc. ZTT-4.00MG 91D101 TV Power Amplifier: DIODE, TVS, 600 watts, Vwm=30V, Vbr min=33.3SMBCrydom SMBJ30A; GI SMBJ30A 101D101 FM Power Amplifier: DIODE, TVS, 600 watts, Vwm=48V, Vbr min=53.3SMBCrydom SMBJ48A; GI SMBJ48A 112 D102,D103 DIODE, schottky, If=3A, Vr=60VSMCInternational Rectifier 30BQ060 121 D104 DIODE, rectifier, If=1A, Vr=200VSMA Diodes Inc S1D-13 132 D108, D109 DIODE, TVS, 600 watts, Vwm=5.0V, Vbr min=6.4 SMBCrydom SMBJ5.0A; GI SMBJ5.0A 141 D110 DIODE, LED, RED, clear or diffusedSMT 1206Lumex SML-LX1206IW 151 F101 FUSE, resettable, Ihold=0.75A, Itrip=1.5A, Vmax=72V 0.23" lead spacing, 20AWG leads Raychem RXE075; Bourns MF-R075 163 F105, F106, F107 FUSE, resettable, Ihold=0.14A, Itrip=0.34A, Vmax=60V miniSMDRaychem miniSMDC014-2 171 J101 CONNECTOR, 4-position plug, 180 degree wire entry, 90 degree screw access, 5.08mm 0.2" spacing Wieland 25.340.3453, Weco 10.808.104 181 J101 CONNECTOR, 4-position header, pluggable, vertical, closed, 5.08mm Through hole, 0.2" spacing Wieland 25.350.3453, Weco 20.806.128 192 J102, J106 CONNECTOR, breakaway header strip, 3- position, 0.1", square post Through hole, 0.1" spacing Molex 22-28-4300; Samtec TSW-130-05-T-S 201 J105 CONNECTOR, breakaway header strip, 2- position, 0.1", square post Through hole, 0.1" spacing Molex 22-28-4300; Samtec TSW-130-05-T-S 213 J102, J105, J106CONNECTOR, 2-position post shunts 0.1" spacing AMP 382811-6; Samtec SNT-100-BK-T 221 J103 CONNECTOR, 5-position plug, 180 degree wire entry, 90 degree screw access, 5.08mm 0.2" spacingWieland 25.340.3553.0 231 J103 CONNECTOR, 5-position header, 0.1", vertical Through hole 0.2" spacing Wieland 25.350.3553.0 242 J107, J108 CONNECTOR, 3-position plug, 180 degree wire entry, 90 degree screw access, 5.08mm 0.2" spacing Wieland 25.340.3353, Weco 10.808.103 252 J107, J108 CONNECTOR, 3-position header, pluggable, vertical, closed, 5.08mm Through hole, 0.2" spacing Wieland 25.350.3353, Weco 20.806.127 261 J109 CONNECTOR, terminal strip, 16-positionThrough hole, 0.1" spacingSamtec TSW-116-18-T-S 271 J109 CONNECTOR, socket strip, 16-positionThrough hole, 0.1" spacingSamtec SSW-116-03-T-S 281 K101 RELAY, DPDT, 5V, 2Adc contact, SMDRelay - Aromat - TX SAAromat TX2SA-5V 291 L101 INDUCTOR, 680uH, Irms=0.4A, DCR=2.02 ohms SMTJW Miller 3316-681M 3010 L102, L105, L106, L107, L108, L109, L110, L111, L112, L113 INDUCTOR, 0.01uH, Imax=0.45A, DCR=0.13 omhs +/- 10%SMT 1210KOA KL32TE010K 311 L103 INDUCTOR, 680uH, Irms=1.3A, DCR=0.2 ohms SMT (Talema S5)Talema SWS-0.85-680 321 LCD101 20 X 4 character liquid crystal display, LED backlit 4-40 pem mount (4)Varitronix 20464K 331 PCB101 Series II, revision H printed circuit board, soldermask, silkscreen, FR4 Alberta Printed Circuits, MPC, GRM, Enigma, ... 342 Q101, Q102 TRANSISTOR, NPN, Ic=1A, Vce=40VSMT SOT-23 Fairchild MMBT2222A; Zetex FMMT2222A; Diodes Inc MMBT2222A-7 351 R101RESISTOR, 4.7 ohm, 1/2 watt, carbon film 5%SMT 2010Panasonic ERJ-12ZYJ4R7U 361 R102 RESISTOR, 15.0 ohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF15R0V 371 R103 RESISTOR, 75.0 ohm, 1/10 watt, thick film 1%SMD 0805Digikey MCR10EZHF1001, Panasonic ERJ-6ENF75R0V 3811 R104, R105, R106, R109, R110, R111, R112, R115, R116, R132, R134 RESISTOR, 1.00 kohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF1001V 394 R107, R108, R113, R114 RESISTOR, 10.0 kohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF1002V revision: date: Optional part depending on power level of TV or FM Series II - Bill of Materials I 21-Jun-05 401 R117 RESISTOR, 4.99 kohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF4991V 411 R124RESISTOR, 13 kohm, 1/8 watt 1%SMD 0805Rohm MCR10EZHF1302 424 R125, R127, R126, R128RESISTOR, 1 kohm, 1/8 watt 1%SMD 0805Rohm MCR10EZHF1001 431 R129RESISTOR, 121 kohm, 1/8 watt 1%SMD 0805Rohm MCR10EZHF1213 441 R130 RES, 2.15 kohm, 1/10 watt, thick film1%SMD 0805Rohm MCR10EZHF2151 451 R131 RES, 120 ohm, 1/10 watt, thick film1%SMD 0805Panasonic ERJ-6ENF1200V 462U101, U102 TV Power Amplifier: REGULATOR, switching, 5Vdc, 3A, fosc=52kHzSMD TO-263-5National LM2576S-5.0 472U101, U102 FM Power Amplifier: REGULATOR, switching, 5Vdc, 3A, fosc=52kHzSMD TO-263-5National LM2576HVS-5.0 481 U104 REGULATOR, inverter, 100mASMD SOIC-8 National LM2660M; Analog Devices ADM8660, Maxxim MAX660 492 U105, U106OPTOISOLATOR, dual, Viso=5300Vac SMD DIP8Fairchild MCT6S 501 U108OP AMP, quad, low voltage SMD SOIC-14National LMV324M 511 U109 REFERENCE, 2.50V (for TV PA >= 250Wpk) +/-0.2%SMD SOT-23 National LM4040BIM3-2.5 521 U110ADC, 10-bit, 10-channel SMD SOIC-20Analog Devices AD7812YR 532 U111, U112LOGIC, 8-bit shift register with latches SMD SOIC-16 Fairchild MM74HC595M; On Semi MC74HC595AD; Phillips 74HC595D 541 U113 SUPERVISOR, n-channel, open drain, internal pullup resistor SMD SOT-23 MCP130T-450I 551 U114 MICROCONTROLLER, OTP, 4k, 22 I/O lines Through hole DIP-28 Microchip PIC16C63A-04/SP 561 J111 Connector, socket, 28-position, DIP, 0.3" spacing Th…

Text truncated - open the document above for the full version.

Technalogix – the company that can! March 31, 2006 To Whom it May Concern, This letter certifies that there was no measurable cabinet radiation from the TAV-100L – even at 0.5 meters. Measurements were conducted as per Industry Canada BETS-4, section 6.6 and FCC Part 74.736. All measurements were well below 60dBc including those of intermodulation products, harmonics (up to the tenth harmonic), and all other spurious emissions. Aaron Sivacoe, P.ENG Technical Director [email protected] Bob Gullon President and CEO [email protected] Best regards, Aaron Sivacoe #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Series II - Bill of Materials I 21-Jun-05 ItemQtyComponentsDescriptionTolerancePackageEquivalency 11 BZ101 BUZZER, magnetic, 5V, single toneSMD CT-1205C CUI CT-1205C 22 C101, C105 CAPACITOR, electrolytic, 100uF, 63V<=20%SMT (Panasonic VS "G" size) Panasonic ECE-V1JA101P, NIC NACEW101M63V10x10.5 32 C102, C106 CAPACITOR, electrolytic, 330uF, 35V<=20%SMT (Panasonic VS "G" size) Panasonic ECE-V1VA331P, NIC NACEW331M35V10x10.5 421 C103, C104, C107, C112, C113, C115, C116, C118, C119, C120, C121, C123, C124, C125, C126, C128, C129, C130, C131, C133, C134 CAPACITOR, ceramic, 0.01uF, 63V <=20% SMT 0805 Digikey C0805C103K5RACTU 57 C108, C111, C140, C143, C144, C145, C146CAPACITOR, ceramic, 0.1uF, 25V<=20% SMT 1206Utech GMC31X7R104K50NT 62 C109, C110 CAPACITOR, electrolytic, 100uF, 25V<=20%SMT (Panasonic VS "E" size)Panasonic ECE-V1EA101UP 77 C114, C117, C122, C127, C132, C135, C147CAPACITOR, tantalum, 1uF, 16V<=20% SMT 3216 Sprague 293D105X9035B2T 81 CR101 CLOCK, ceramic resonator, 4.000 MHz, w/caps f <= 0.5% C <= 20% Through hole, 3-position, 0.1" spacing ECS Inc. ZTT-4.00MG 91D101 TV Power Amplifier: DIODE, TVS, 600 watts, Vwm=30V, Vbr min=33.3SMBCrydom SMBJ30A; GI SMBJ30A 101D101 FM Power Amplifier: DIODE, TVS, 600 watts, Vwm=48V, Vbr min=53.3SMBCrydom SMBJ48A; GI SMBJ48A 112 D102,D103 DIODE, schottky, If=3A, Vr=60VSMCInternational Rectifier 30BQ060 121 D104 DIODE, rectifier, If=1A, Vr=200VSMA Diodes Inc S1D-13 132 D108, D109 DIODE, TVS, 600 watts, Vwm=5.0V, Vbr min=6.4 SMBCrydom SMBJ5.0A; GI SMBJ5.0A 141 D110 DIODE, LED, RED, clear or diffusedSMT 1206Lumex SML-LX1206IW 151 F101 FUSE, resettable, Ihold=0.75A, Itrip=1.5A, Vmax=72V 0.23" lead spacing, 20AWG leads Raychem RXE075; Bourns MF-R075 163 F105, F106, F107 FUSE, resettable, Ihold=0.14A, Itrip=0.34A, Vmax=60V miniSMDRaychem miniSMDC014-2 171 J101 CONNECTOR, 4-position plug, 180 degree wire entry, 90 degree screw access, 5.08mm 0.2" spacing Wieland 25.340.3453, Weco 10.808.104 181 J101 CONNECTOR, 4-position header, pluggable, vertical, closed, 5.08mm Through hole, 0.2" spacing Wieland 25.350.3453, Weco 20.806.128 192 J102, J106 CONNECTOR, breakaway header strip, 3- position, 0.1", square post Through hole, 0.1" spacing Molex 22-28-4300; Samtec TSW-130-05-T-S 201 J105 CONNECTOR, breakaway header strip, 2- position, 0.1", square post Through hole, 0.1" spacing Molex 22-28-4300; Samtec TSW-130-05-T-S 213 J102, J105, J106CONNECTOR, 2-position post shunts 0.1" spacing AMP 382811-6; Samtec SNT-100-BK-T 221 J103 CONNECTOR, 5-position plug, 180 degree wire entry, 90 degree screw access, 5.08mm 0.2" spacingWieland 25.340.3553.0 231 J103 CONNECTOR, 5-position header, 0.1", vertical Through hole 0.2" spacing Wieland 25.350.3553.0 242 J107, J108 CONNECTOR, 3-position plug, 180 degree wire entry, 90 degree screw access, 5.08mm 0.2" spacing Wieland 25.340.3353, Weco 10.808.103 252 J107, J108 CONNECTOR, 3-position header, pluggable, vertical, closed, 5.08mm Through hole, 0.2" spacing Wieland 25.350.3353, Weco 20.806.127 261 J109 CONNECTOR, terminal strip, 16-positionThrough hole, 0.1" spacingSamtec TSW-116-18-T-S 271 J109 CONNECTOR, socket strip, 16-positionThrough hole, 0.1" spacingSamtec SSW-116-03-T-S 281 K101 RELAY, DPDT, 5V, 2Adc contact, SMDRelay - Aromat - TX SAAromat TX2SA-5V 291 L101 INDUCTOR, 680uH, Irms=0.4A, DCR=2.02 ohms SMTJW Miller 3316-681M 3010 L102, L105, L106, L107, L108, L109, L110, L111, L112, L113 INDUCTOR, 0.01uH, Imax=0.45A, DCR=0.13 omhs +/- 10%SMT 1210KOA KL32TE010K 311 L103 INDUCTOR, 680uH, Irms=1.3A, DCR=0.2 ohms SMT (Talema S5)Talema SWS-0.85-680 321 LCD101 20 X 4 character liquid crystal display, LED backlit 4-40 pem mount (4)Varitronix 20464K 331 PCB101 Series II, revision H printed circuit board, soldermask, silkscreen, FR4 Alberta Printed Circuits, MPC, GRM, Enigma, ... 342 Q101, Q102 TRANSISTOR, NPN, Ic=1A, Vce=40VSMT SOT-23 Fairchild MMBT2222A; Zetex FMMT2222A; Diodes Inc MMBT2222A-7 351 R101RESISTOR, 4.7 ohm, 1/2 watt, carbon film 5%SMT 2010Panasonic ERJ-12ZYJ4R7U 361 R102 RESISTOR, 15.0 ohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF15R0V 371 R103 RESISTOR, 75.0 ohm, 1/10 watt, thick film 1%SMD 0805Digikey MCR10EZHF1001, Panasonic ERJ-6ENF75R0V 3811 R104, R105, R106, R109, R110, R111, R112, R115, R116, R132, R134 RESISTOR, 1.00 kohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF1001V 394 R107, R108, R113, R114 RESISTOR, 10.0 kohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF1002V revision: date: Optional part depending on power level of TV or FM Series II - Bill of Materials I 21-Jun-05 401 R117 RESISTOR, 4.99 kohm, 1/10 watt, thick film 1%SMD 0805Panasonic ERJ-6ENF4991V 411 R124RESISTOR, 13 kohm, 1/8 watt 1%SMD 0805Rohm MCR10EZHF1302 424 R125, R127, R126, R128RESISTOR, 1 kohm, 1/8 watt 1%SMD 0805Rohm MCR10EZHF1001 431 R129RESISTOR, 121 kohm, 1/8 watt 1%SMD 0805Rohm MCR10EZHF1213 441 R130 RES, 2.15 kohm, 1/10 watt, thick film1%SMD 0805Rohm MCR10EZHF2151 451 R131 RES, 120 ohm, 1/10 watt, thick film1%SMD 0805Panasonic ERJ-6ENF1200V 462U101, U102 TV Power Amplifier: REGULATOR, switching, 5Vdc, 3A, fosc=52kHzSMD TO-263-5National LM2576S-5.0 472U101, U102 FM Power Amplifier: REGULATOR, switching, 5Vdc, 3A, fosc=52kHzSMD TO-263-5National LM2576HVS-5.0 481 U104 REGULATOR, inverter, 100mASMD SOIC-8 National LM2660M; Analog Devices ADM8660, Maxxim MAX660 492 U105, U106OPTOISOLATOR, dual, Viso=5300Vac SMD DIP8Fairchild MCT6S 501 U108OP AMP, quad, low voltage SMD SOIC-14National LMV324M 511 U109 REFERENCE, 2.50V (for TV PA >= 250Wpk) +/-0.2%SMD SOT-23 National LM4040BIM3-2.5 521 U110ADC, 10-bit, 10-channel SMD SOIC-20Analog Devices AD7812YR 532 U111, U112LOGIC, 8-bit shift register with latches SMD SOIC-16 Fairchild MM74HC595M; On Semi MC74HC595AD; Phillips 74HC595D 541 U113 SUPERVISOR, n-channel, open drain, internal pullup resistor SMD SOT-23 MCP130T-450I 551 U114 MICROCONTROLLER, OTP, 4k, 22 I/O lines Through hole DIP-28 Microchip PIC16C63A-04/SP 561 J111 Connector, socket, 28-position, DIP, 0.3" spacing Th…

Text truncated - open the document above for the full version.

TAV-100L TEST REPORT S/N: 03080496 Prepared by: Aaron Sivacoe Date: March 31, 2006 2 Contents Contents____________________________________________________________________2 Test Equipment______________________________________________________________3 Performance Specifications____________________________________________________4 Visual Power Output Rating___________________________________________________4 Visual Power Adjustment Capability____________________________________________5 Aural Power Output Rating___________________________________________________6 Carrier Frequency Tolerance__________________________________________________7 Visual Frequency Response__________________________________________________10 Intermodulation Distortion_____________________…
