TAV-2000 BROADCAST TRANSMITTER OPERATING MANUAL You’ve already unpacked it, haven’t you? You’ve unpacked it and plugged it in and turned it on and fiddled with the knobs. No? Okay, good. Please take a few minutes to read the manual and familiarize yourself with your new Technalogix power amplifier. We believe that this manual, and of course our equipment, should be everything you need to get on the air with superb broadcast quality video. We understand that a capable and confident user will get the most out of our product and we have made every attempt to educate readers of all technical levels. If there is something that is not clear, or you require further information, please do not hesitate to contact us and we’ll be glad to help out. Technalogix Ltd. #4, 8021 Edgar Industrial Place Red Deer, Alberta, Canada T4P 3R3 Phone: 403.347.5400 Fax: 403.347.7444 URL: www.technalogix.ca Email: [email protected] [email protected] We truly appreciate that you have chosen us as your television broadcast system supplier. Happy viewing. Table of Contents SECTION I- SAFEGUARDS............................................................................................................................. I-1 S AFETY AND FIRST AID................................................................................................................................ I-2 OPERATING SAFEGUARDS............................................................................................................................ I-3 SECTION II - WARRANTY............................................................................................................................ II-1 SECTION III - OVERVIEW.......................................................................................................................... III-1 S TANDARD FEATURES............................................................................................................................... III-1 PRINCIPLE OF OPERATION........................................................................................................................ III-2 BLOCK DIAGRAM (TAV-2000)................................................................................................................... III-3 RF SIGNAL PATH....................................................................................................................................... III-4 B LOCK DIAGRAM (TAV-1000)................................................................................................................... III-3 SPECIFICATIONS........................................................................................................................................ III-5 S ECTION IV - RF COMPONENTS................................................................................................................ IV-1 AMPLIFIER PALLETS................................................................................................................................. IV-1 SPLITTER/COMBINER................................................................................................................................ IV-4 D IRECTIONAL COUPLER............................................................................................................................ IV-4 ISOLATOR................................................................................................................................................... IV-4 FILTER....................................................................................................................................................... IV-4 S ECTION V - POWER SUPPLY SECTION........................................................................................................ V-1 S ECTION VI - MONITOR AND CONTROL SYSTEM....................................................................................... VI-1 CONTROL BOARD OVERVIEW (INSIGHT) ................................................................................................... VI-1 USER INTERFACE MODULE........................................................................................................................ VI-2 C OUPLER CONDITIOING MODULE.............................................................................................................. VI-3 RF CONDITIONING MODULE..................................................................................................................... VI-3 TEMPERATURE SENSOR MODULE.............................................................................................................. VI-3 T XNET MODULE........................................................................................................................................ VI-3 REMOTE PORT........................................................................................................................................... VI-4 FAULT SHUTDOWN.................................................................................................................................... VI-5 B ILL OF MATERIALS................................................................................................................................. VI-6 S CHEMATICS............................................................................................................................................ VI-12 S ECTION VII - MECHANICAL SECTION.....................................................................................................VII-1 S ECTION VIII - INSTALLATION............................................................................................................... VIII-1 B UILDING RECOMMENDATIONS............................................................................................................. VIII-1 HEATING AND COOLING REQUIREMENTS............................................................................................... VIII-2 ELECTRICAL SERVICE …

Text truncated - open the document above for the full version.

Technalogix – the company that can! June 29, 2007 Attestation Statement: TAV-2000L Tests were conducted on production models of the equipment on location at Technalogix: #4, 8021 Edgar Industrial Place Red Deer, Alberta Canada T4P 3R3 403.347.5400 ph 403.347.7444 fx All tests were carried out on representative channels in the VHF bands in accordance with FCC Part 73 and Part 74 and Industry Canada BESP-100 and BETS-4. The results in the submitted documentation show that the equipment meets or exceeds the required specifications. Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

June 29, 2007 Block Diagram Statement: TAV-2000L The amplification of the TAV-2000L is comprised of (2) TAV-1000L 1000-watt power amplifiers. Firstly, the output of the modulator or processor gets split into (2) RF signals of equal amplitude. Each output of the 2-way power divider is then fed into a TAV-1000L Power Amplifier. Finally, the outputs of each TAV-1000L are combined to generate 2000-watts of peak visual power in addition to an aural carrier. #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca TAV-2000L BLOCK DIAGRAM TAV-1000 AMPLIFIER TAV-1000 AMPLIFIER MODULATOR/PROCESSOR COMBINER AND FILTER TO WATTMETER AND ANTENNA RF OUT SPLITTER Inside each 1000-watt power amplifier, is a VHFTV-25L and a VHFTV-200L driver stages, the signal gets split into (2) signals for final amplification using a 4-way Richardson power divider. The final amplification stage is comprised of (4) VHFTV-400L final amplifiers. The outputs of the (4) final amplifier pallets are combined with a 4-way Wilkinson combiner and pass through a dual directional coupler for protection and monitoring purposes, as illustrated in the following TAV-1000L block diagram. TAV-1000L BLOCK DIAGRAM RF IN VHFTV-25L A=36dB Typ. VHFTV-200L A=15dB Typ. 4-way Splitter A=-0.15dB Typ. (4) VHFTV-400L A=18dB Typ. 4-way Combiner A=-0.30dB Typ. DIRECTIONAL COUPLER A=-0.05dB RF OUT GAIN COMPENSATION 4-way Combiner A=-0.30dB Typ. After amplification, the signal exits the power amplifier enclosure and goes into the combiner/filter enclosure, where the signals from each 1000-watt amplifier are combined. After combining, the amplified signals are filtered with a bandpass filter and monitored again with another directional coupler before heading out to an antenna for broadcast, as depicted in the following combiner/filter block diagram. Technalogix – the company that can! COMBINER/FILTER BOX BLOCK DIAGRAM PA1 OUT PA2 OUT 2-WAY COMBINER A=-0.15dB Typ. FILTER A=-0.6dB to -1.0dB DIRECTIONAL COUPLER A=-0.05 dB RF OUT TO WATTMETR AND ANTENNA

Technalogix – the company that can! June 29, 2007 Cover Letter: TAV-2000L This report is in support of an application by Technalogix Ltd. for certification of transmitting equipment used for VHF Band I television systems (54-88 MHz or channels 2 through 6). Specifically, Technalogix is requesting certification of the Technalogix TAV-2000L VHF Band I television transmitter. The TAV-2000L Band I supplies a 2000-watt peak video signal in addition to 10% of aural power on any of the VHF television channels 2 through 6. Additionally, the control system allows the user to run 110% of rated power (2200-watts peak) before the overdrive monitor shuts the system down. The video and audio are amplified with a common amplifier chain. The emission designators based on FCC Part 74 transmitters are 5M75C3F (for visual) and 250KF3E (for aural). Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

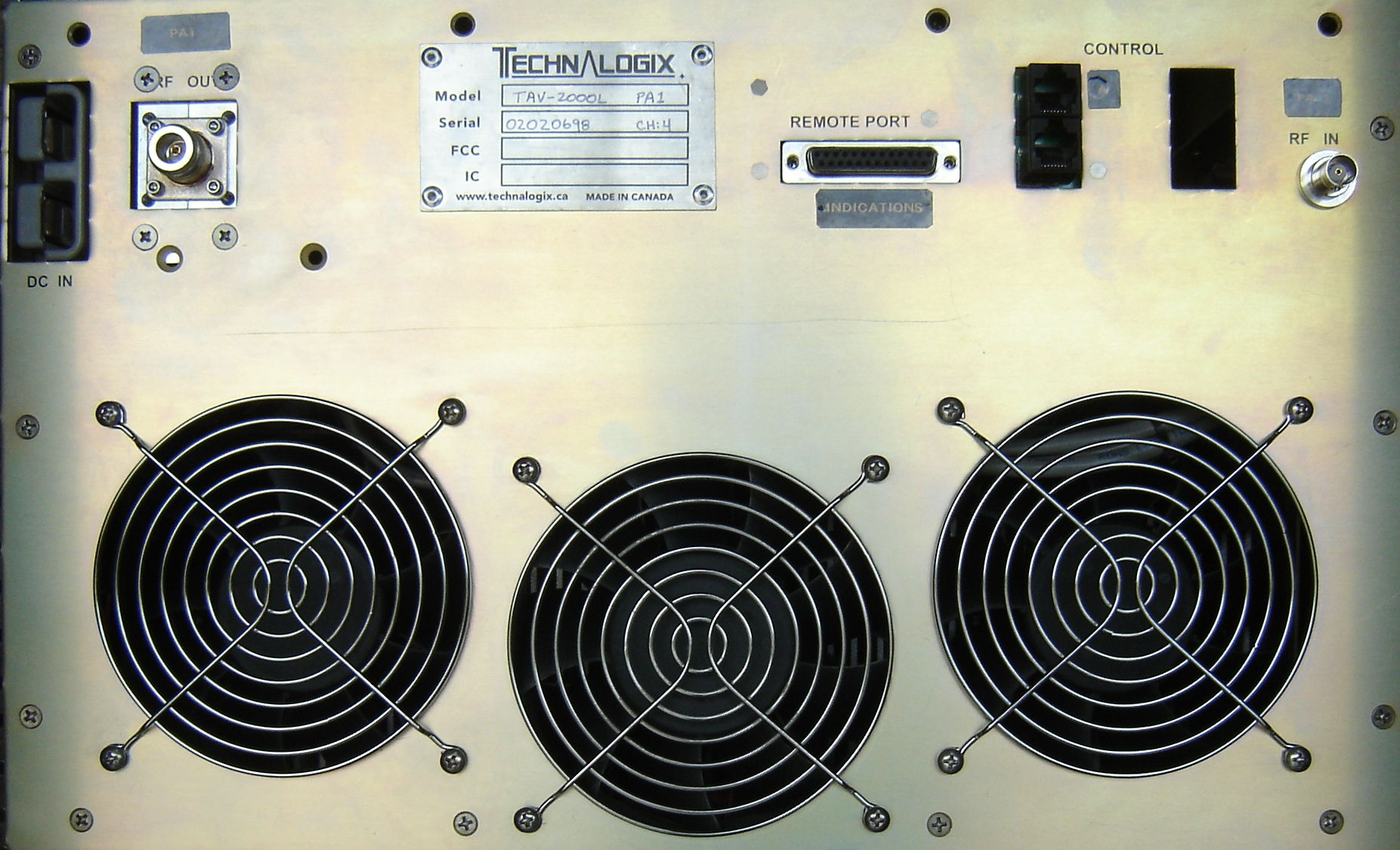

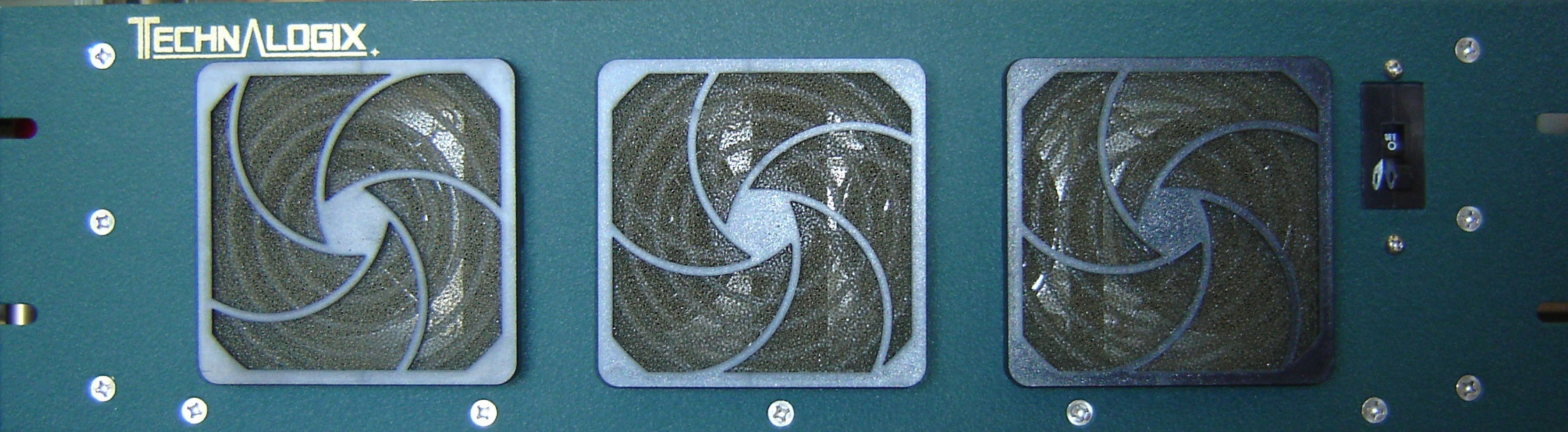

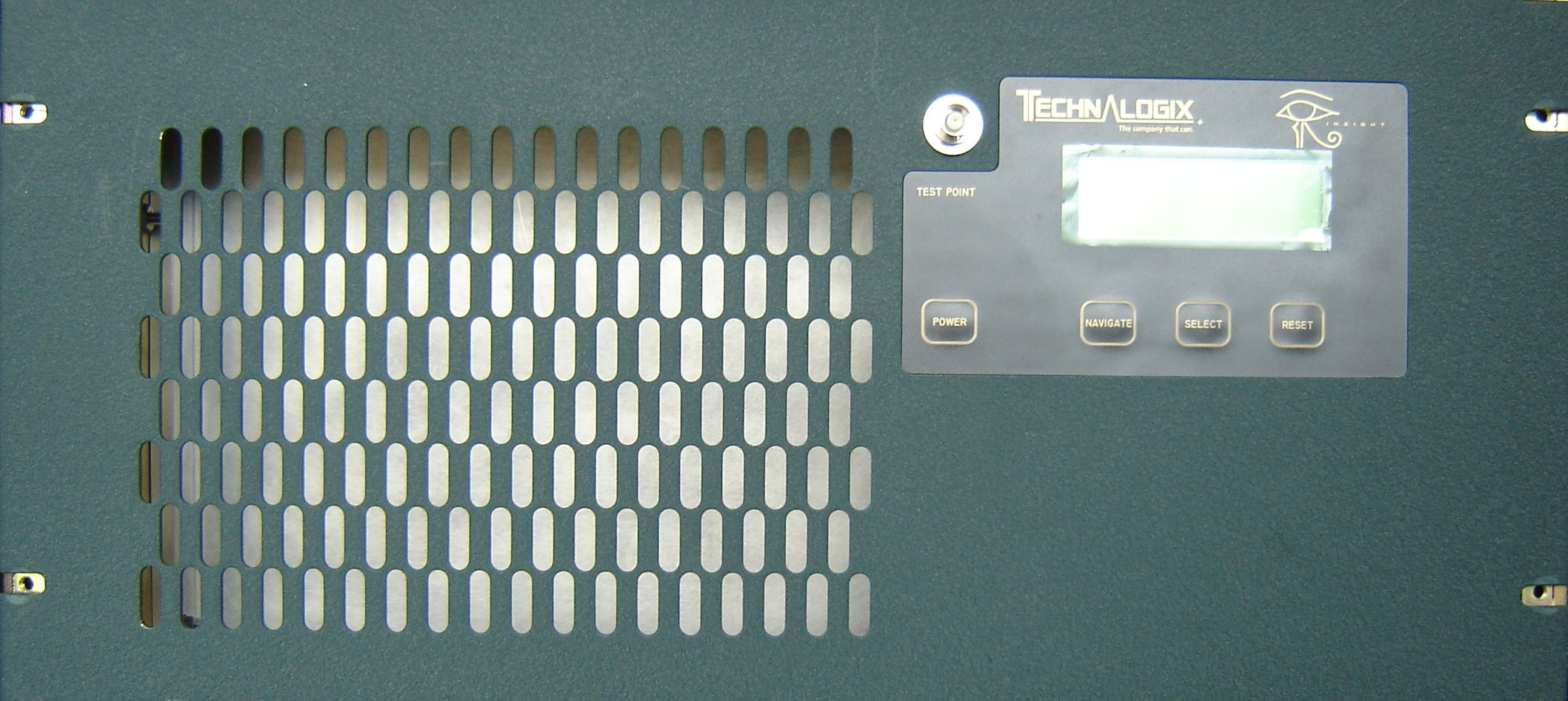

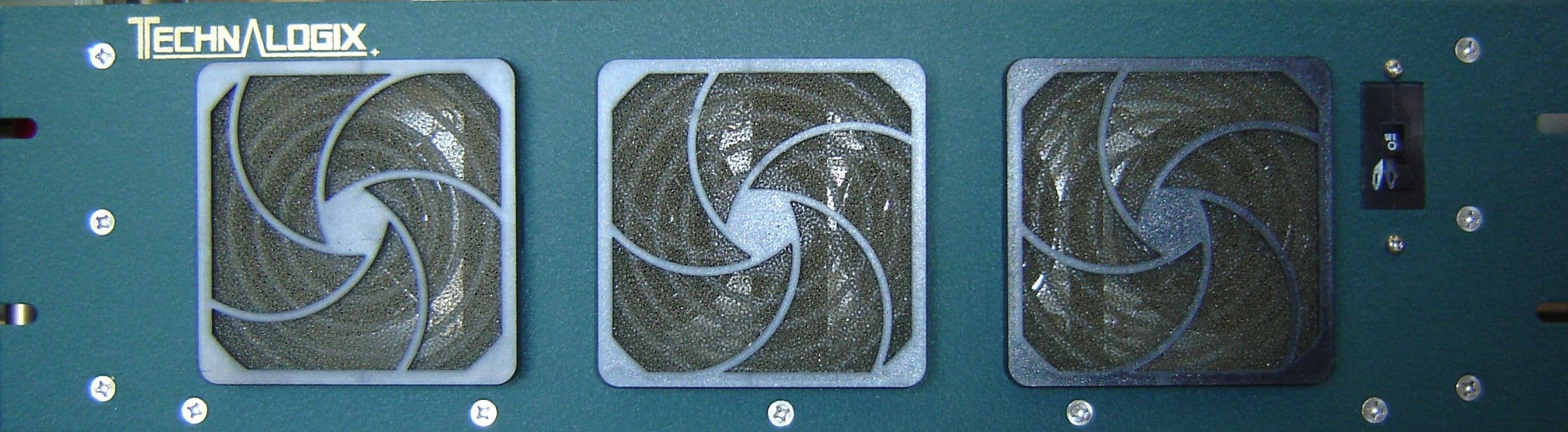

Technalogix – the company that can! TAV-2000L EXTERNAL CONSTRUCTION Front View: Power Amplifier 1 Power Amplifier 2 Filter and Combiner Power Supply #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca Technalogix – the company that can! Back View: Power Amplifier 1 Power Amplifier 2 Filter and Combiner Power Supply

Technalogix – the company that can! ID Label: Actual Size: 2” x 3 ¼” #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca Model Serial Freq. FCC IC TAV-2000L 02020698 67.25 MHz QH5TAV2000L 3803A-TAV2000L Technalogix – the company that can! ID Label Location: Note: The ID labels are located at the back plate of the filter box, the power amplifier boxes, and on the modulator lid. Model Serial Freq. FCC IC TAV-2000L 02020698 67.25 MHz QH5TAV2000L 3803A-TAV2000L

Technalogix – the company that can! TAV-2000L CONSTRUCTION POTOGRAPHS Amplifier Pallet Construction: VHFTV-25L (component side with all components): VHFTV-25L (no components get soldered to solder side): #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca Technalogix – the company that can! VHFTV-200L (component side with all components): There are no components or tracks on solder side Technalogix – the company that can! VHFTV-400L (component side with all components): VHFTV-400L (no components get soldered to solder side): Technalogix – the company that can! PA1 Internal Construction: PA2 Internal Construction: Technalogix – the company that can! Combiner/Filter Box Internal Construction: Power Supply Internal Construction:

Technalogix – the company that can! June 29, 2007 Operational Description: TAV-2000L The TAV-2000L power amplifier supplies a 2000-watt peak video signal with an aural carrier level of 13db below visual carrier (dBc) on any of the VHF television channels 2 through 6. Please note that channel selection must be made at time of order, as the transmitter or translator is calibrated and tested to the channel requested and is not field tunable. The TAV- 2000L power amplifier is a modular solid-state 2000-watt broadcast amplifier utilizing readily available RF components wherever possible, thus enhancing the serviceability of the equipment. The TAV-2000L features ultra linear amplification and individual channel RF output bandpass filtering. The amplifier modules are stable for high reliability and long service life. The amplification of the TAV-2000L is comprised of (2) TAV-1000L 1000-watt power amplifiers. Firstly, the output of the modulator or processor gets split into (2) RF signals of equal amplitude. Each output of the 2-way power divider is then fed into a TAV-1000L Power Amplifier. Inside the TAV-1000L, the signal is amplified by a 25-watt and a 200-watt driver stages. The output of which is then divided equally before going into (4) 400-watt final amplifiers, the 4 outputs are combined again producing 1000 Watts of output power. Finally, the outputs of each TAV-1000L are combined to generate 2000-watts of peak visual power in addition to an aural carrier. #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! June 29, 2007 To Whom it May Concern, This letter certifies that there is no internal tuning that needs to be completed in the Technalogix TAV-2000L. Should require any further information, do not hesitate to contact us: Aaron Sivacoe Technical Director [email protected] Bob Gullon President and CEO [email protected] Best regards, Aaron Sivacoe #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! June 29, 2007 Parts List Statement: TAV-2000L The parts list for the TAV-2000L is found within the User’s Manual. Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! June 29, 2007 To Whom it May Concern, This letter certifies that there was no measurable cabinet radiation from the TAV-2000L, even at 0.5 meters. Measurements were conducted as per Industry Canada BETS-4, section 6.6 and FCC Part 74.736. All measurements were well below 60dBc including those of intermodulation products, harmonics (up to the tenth harmonic), and all other spurious emissions. Aaron Sivacoe, P.ENG Technical Director [email protected] Bob Gullon President and CEO [email protected] Best regards, Aaron Sivacoe #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

Technalogix – the company that can! June 29, 2007 Schematics Statement: TAV-2000L The schematics for the TAV-2000L are found within the User’s Manual. Should you have any questions, please do not hesitate to contact Technalogix: Bob Gullon President and CEO [email protected] Aaron Sivacoe, P.ENG Technical Director [email protected] #4 – 8021 Edgar Ind. Place, Red Deer, AB T4P 3R3 Ph: (403) 347-5400 [email protected] Fax: (403) 347-7444 www.technalogix.ca

TAV-2000L TEST REPORT S/N:02020698                             Preparedby: AaronSivacoe,P.ENG    RainierKong Date:   June29,2007    2 Contents Contents____________________________________________________________________ 2 Test Equipment______________________________________________________________ 3 Performance Specifications ____________________________________________________ 4 Visual Power Output Rating ___________________________________________________ 4 Visual Power Adjustment Capability ____________________________________________ 5 Aural Power Output Rating____________________________________________________ 7 Carrier Frequency Tolerance___________________________________________________ 9 Visual Frequency Response __________________________________________________ 12 Intermodulation Distortion ___________________________________________________ 15 Spurious Emissions _________________________________________________________ 17 Modulation _______________________________________________________________ 19 K Pulse to Bar (Kpb) Rating __________________________________________________ 20 2T Pulse K (K2T) Rating ____________________________________________________ 21 Chrominance-Luminance Gain Inequality _______________________________________ 22 Chrominance-Luminance Delay Inequality ______________________________________ 23 Differential Gain Distortion __________________________________________________ 24 Differential Phase Distortion__________________________________________________ 25 Group Delay Response ______________________________________________________ 26 Horizontal Timing__________________________________________________________ 27 Audio Amplitude Frequency Response__________________________________________ 28      3 Test Equipment Equipment Manufacturer Model Number Serial Number Test Signal Generator Tektronix TSG95 B025497 Test Signal Generator Tektronix 1910 B022706 Spectrum Analyzer Advantest R3162 110301419 Spectrum Analyzer Tektronix 2710 B021677 Waveform Analyzer/Monitor Tektronix VM700A B020283 Radiation Meter Narda 8616 20046 Network Analyzer Agilent 8753ET US39170436 Frequency Counter HP 5343A 2428A01747 Audio Generator HP 209A 1045A06481 Noise and Distortion Meter HP 334A 1551U00970 Coaxial Attenuator (30 dB) Bird 8329-310 258 Coaxial Attenuator (30 dB) Bird 8323 2221 Coaxial Attenuator (6 dB) Weinschel 58-6-43 RF Wattmeter Bird 4304A 0811 RF Wattmeter Bird 4527 500 RF Wattmeter Coaxial Dynamics 81060A 1034 RF Load (10,000 W) Bird 8636-115 231 RF Load (1,200 W) Microwave Devices 611.11 RF Load (600W) Bird 8402 1595 Directional Coupler HP 778D Variable Autotransformer Staco Energy Products 3PN1010 122-0003 8645 Variable Autotransformer General Radio W50HG3 True RMS clamp on meter Tenma 72-6131 96082691 Digital Multi-meter Fluke 189 88800035 Oscilloscope (150 MHz) Tektronix 2445 B021074 Television Demodulator Rhode and Schwarz EFA83 832495/006 Tunable Down Converter Tektronix TDC-10 BO10435 Television Demodulator MSI MSI-320 D-022 Digital Camera Sony DSC-P73 7412902 4 Performance Specifications Visual Power Output Rating Definition:Thevisualpoweroutputratingofthetelevisiontransmittingequipment shall be the peak envelope power. This is also theaverage power measuredduringasynchronizingpulse.  Requirement:Specifiedbythemanufactureras 2000 wattspeak. Method:Thevisualcarrierismodulatedwithasyncandblankingsignal.Theaural carrier is not present. An average reading RF wattmeter is placed between the transmitter output (directly on the directional coupler’s N connectoronthebackpanel)andthe505dummyload.Thepeakvisual poweristhemeasuredaveragepowermultipliedbyafactorof1.68.  DuetothelowleveloftheRFOutputsignal,aspectrumanalyzerwas usedtomeasurethevisualoutputrating.  Measurement:Theratedvisualoutputpoweris2000 wattspeak.  5 6 Visual Power Adjustment Capability Definition:The peak output power adjustment capability is the manual range by which the peak visual output power can be maintained within predeterminedlimits. Requirement:IndustryCanada–Theequipmentshallbecapableofbeingadjustedto delivertheratedvisualoutputpowerwhentheACinputvoltageis5% aboveorbelowratedvalue.Poweroutputadjustmentoftheequipment shallpermitoperationtoatleast3dBbelowratedpoweroutput[BETS@4, section6.1].  FCC–Thetransmittershallbeadjustableto80%,100%,and110%of peakvisualpowersimplyforthecalibrationofmeters[section73.663]. Exceptasoperatedinareducedpoweroperation,thevisualoutputpower of a TV transmitter or translator must be maintained as near as practicabletotheauthorizedtransmitteroutputpowerandmaynotbe less than 80% nor more than 110% of authorized power [section 73.1560(c)]  Method:Thevisualcarrierismodulatedwithasyncandblankingsignal.Theaural carrier is not present. An average reading RF wattmeter is placed between the transmitter output (directly on the directional coupler’s N connectoronthebackpanel)andthe505dummyload.Thepeakvisual power is the measured average power multiplied by a factor of 1.68. While observing the external wattmeter, the outputpower is varied to ensurethatisadjustableovertheproperranges.  Measurement:Upperlimitofvisualoutputpoweradjustment 110 % Lowerlimitofvisualoutputpoweradjustment 0 %  7 Aural Power Output Rating Definition:The aural carrier power output is the power of the aural transmission section available at the output terminals of the equipment when connectedtothestandardtestload. Requirement:IndustryCanada–Themeasuredauralcarrieroutputshallnotbeless than…
