QHXCS0170-9rfCUE 99

CUE, spol. s r.o. Na Dolinách 6 147 00 Praha 4 Czech Republic phone: +420 241 433 555 fax: +420 241 432 446 www.cuesystem.com e-mail: [email protected] User Manual rfCUE 99 Version 02 User Manual rfCUE 99 UM010_02, Version 02, 11.11.2002 Copyright © CUE, spol. s r.o. Praha, Czech Republic 1990 - 2002. All rights reserved. Specifications are subject to change without prior notice. Caution Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. User Manual rfCUE www.cuesystem.com Page 3 of 16 Table of Contents 1. Introduction....................................................................................................................................... 4 1.1. Overview.............................................................................................................................................. 4 1.2. Models ................................................................................................................................................. 4 1.3. Features .............................................................................................................................................. 4 2. Using and Connecting ..................................................................................................................... 5 3. Charging............................................................................................................................................ 6 4. Operational Description................................................................................................................... 7 4.1. Back-light in active and sleeping mode............................................................................................... 7 4.2. Transmit / Receive Indication .............................................................................................................. 7 4.3. Operation of the Feedback Indication .................................................................................................. 7 5. Addressing and Button Codes........................................................................................................ 8 6. Modify Mode...................................................................................................................................... 9 6.1. Overview.............................................................................................................................................. 9 6.2. How to Display the Address................................................................................................................. 9 6.3. How to Modify the Address .................................................................................................................10 7. Button Labeling .............................................................................................................................. 11 7.1. Overview.............................................................................................................................................11 7.2. The Foil Shape...................................................................................................................................11 7.3. The Foil Replacement.........................................................................................................................11 8. Troubleshooting ............................................................................................................................. 12 9. Specifications ................................................................................................................................. 13 10. Mechanical Drawings..................................................................................................................... 14 11. The Equipment Label ..................................................................................................................... 15 User Manual rfCUE www.cuesystem.com Page 4 of 16 1. Introduction 1.1. Overview.................................................................... The rfCUE 99 is a RF operating hand held wireless control panel that is prepared for two way communication with the rfbaseCUE. The unit rfbaseCUE provides connection via CUEwire (RS-485) to the rest of the control system. 1.2. Models ....................................................................... Model Product code Description rfCUE 99 CS0170-x4 Wireless RF remote hand-held control panel, 433.92 MHz rfCUE 99 CS0170-x8 Wireless RF remote hand-held control panel, 869.85 MHz rfCUE 99 CS0170-x9 Wireless RF remote hand-held control panel, 914.5 MHz Note: x in Product code means type of the wood enclosure (birch, mahogany, oak, white birch) 1.3. Features.............................................................…

Text truncated - open the document above for the full version.

CUE spol. s r.o. Na Dolinách 6 147 00 Praha 4 Czech Republic phone: +420 241 433 555 fax: +420 241 432 446 www.cuesystem.com e-mail: [email protected] Zapsána v obchodním rejstříku Krajského obchodního soudu v Praze, v oddílu C, vložka 4534 Entered into Commercial register of the Direct Commercial Court in Prague, section C,attachment 4534 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. date/datum: 02.12.2002 CONFIDENTIALITY REQUEST Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Cue s.r.o. would like the following documents regarding this submission for FCC ID: QHXCS0170-9 to be kept confidential. 1. Document "schematics rfCUE.pdf". 2. Document "operation description rfCUE.pdf" 3. Document "block diagram rfCUE.pdf" The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Karel Cvrk.

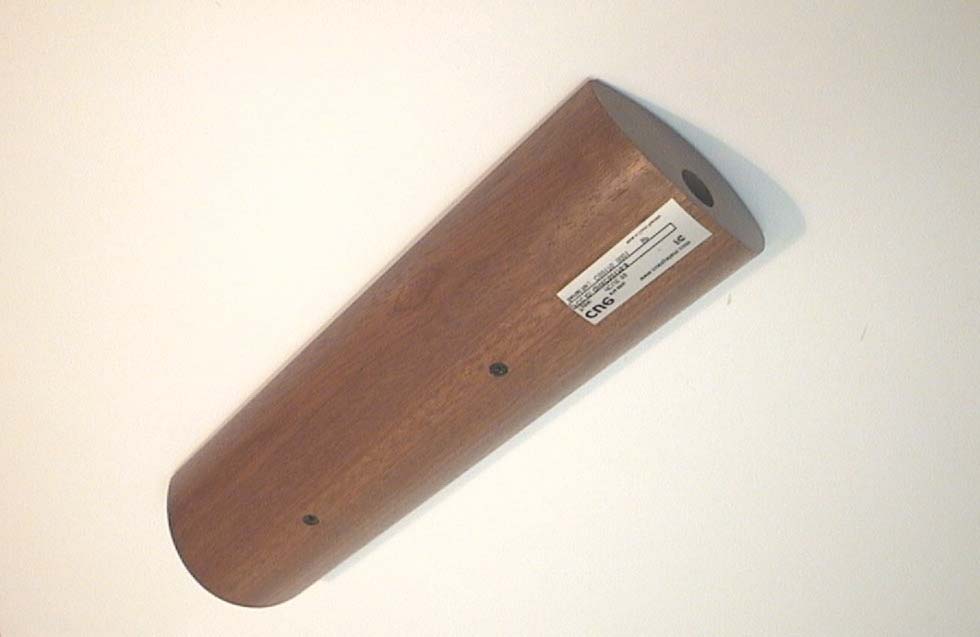

CS0170 rfCUE 99, external view CS0170 rfCUE 99, external bottom view

CS0170 rfCUE ID label According to FCC §15.19 (5) only small simple label with FCC identifier is placed on wooden enclosure: Detail of ID Label (actual size 42x15 mm): Full format of ID label is printed in User Manual: CS0170 rfCUE 914.5MHz FCC ID: QHXCS0170-9 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

CS0170 rfCUE, configuration of both PCBs CS0170 rfCUE 99, top sides of the PCBs CS0170 rfCUE 99, bottom sides of the PCBs

EMC Test Report No.: 02-041 FCC ID: QHXCS0170-9 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-02-041-V01.00 Page 2 of 28 Manufacturer:CUE spol. s r.o. Na Dolinách 147 00 Praha 4 Czech Republic Test Location:Lucent Technologies Network Systems GmbH European Compliance Laboratory (ECL) Thurn-und-Taxis-Strasse 10 D-90411 Nürnberg Germany Tel.: +49 911 526 1422 Fax: +49 911 526 2391 General: The purpose of this report is to show compliance to the FCC regulations for unlicensed devices operating under section 15.249 of the Code of Federal Regulations title 47. This report informs about the results of the EMC tests, it only refers to the equipment under test. No part of this report may be reproduced in any form, without written permission. EMC Test Report No.: 02-041 FCC ID: QHXCS0170-9 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-02-041-V01.00 Page 3 of 28 Table of contents 1TEST RESULTS SUMMERY.........................................................................................................4 2CS0170 RFCUE 99......................................................................................................................5 3DESCRIPTION OF EMC TEST CENTRE.......................................................................................7 3.1REGISTRATIONS.......................................................................................................................7 3.2SEMI ANECHOIC CHAMBER (SAC) WITH MAXIMUM 10M MEASUREMENT DISTANCE...............................8 3.3FULLY ANECHOIC CHAMBER (FAC) WITH MAXIMUM 5M MEASUREMENT DISTANCE................................8 3.4SHIELDED TEST CABINS.............................................................................................................9 3.5INSTRUMENT ROOM................................................................................................................10 3.6MEASUREMENT UNCERTAINTY.................................................................................................11 3.7GROUND PLAN.......................................................................................................................12 4ANTENNA REQUIREMENT........................................................................................................13 4.1REGULATION.........................................................................................................................13 4.2RESULT................................................................................................................................13 5RADIATED EMISSIONS TEST....................................................................................................14 5.1REGULATION.........................................................................................................................14 5.2RADIATED EMISSIONS TEST, 9 KHZ TO 10 GHZ..........................................................................15 5.2.1TEST EQUIPMENT USED:...................................................................................................15 5.2.2TEST PROCEDURES.........................................................................................................15 5.2.3CALCULATION OF FIELD STRENGTH LIMITS..........................................................................16 5.2.4CALCULATION OF AVERAGE CORRECTION FACTOR...............................................................16 5.2.5FIELD STRENGTH CALCULATION........................................................................................16 5.2.6TEST RESULTS...............................................................................................................18 6CALIBRATION LIST...................................................................................................................23 7ACCREDITATION CERTIFICATE...............................................................................................27 8LIST OF ANNEXES....................................................................................................................28 EMC Test Report No.: 02-041 FCC ID: QHXCS0170-9 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-02-041-V01.00 Page 4 of 28 1 Test Results Summery Summary of Test Results CS0170 rfCUE 99 RequirementCFR SectionReport SectionTest Result Antenna requirement15.2034Pass Conducted emissions15.2076* Field Strength Limits (Fundamental and Harmonics)15.2495Pass Radiated Spurious Emissions15.209, 15.2495Pass * Not required, the EUT is battery powered and there is no provision for connection to the mains. The client has made the determination that EUT Condition, Characterization, and Mode of Operation are representative of production units, and meet the requirements of the specifications referenced herein. Consistent with industry practice, measurement and test equipment not directly involved in obtaining measurement results but having an impact on measurements (such as cable loss, antenna factors, etc.) are factored into the “Correction Factor” documented in certain test results. Instrumentation employed for testing meets tolerances consistent with known Industry Standards and Regulations. The measurements contained in this report were made in accordance with the procedure ANSI C63.4- 1992 and all applicable Public Notices received prior to the date of testing. All emissions from the device were found to be within the limits outlined in this report. The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in this report. EMC Test Report No.: 02-041 FCC ID: QHXCS0170-9 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-02-041-V01.00 Page 5 of 28 2 CS0170 rfCUE 99 RX/TX mode description The …

Text truncated - open the document above for the full version.

EMC Test Report No.: 02-041-Annex-1 FCC ID: QHXCS0170-9 FCC Registration Number: 96997 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-02-041-V01.00 Page 2 of 4 Photographs of the test set-ups Fig. 1:Basic set-up for radiated emission; 9 kHz - 30 MHz EMC Test Report No.: 02-041-Annex-1 FCC ID: QHXCS0170-9 FCC Registration Number: 96997 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-02-041-V01.00 Page 3 of 4 Fig. 2:Basic set-up for radiated and spurious emission; 30 MHz - 1 GHz EMC Test Report No.: 02-041-Annex-1 FCC ID: QHXCS0170-9 FCC Registration Number: 96997 The test report shall not be reproduced except in full without the written approval of the testing laboratory. ECL-EMC-TR-02-041-V01.00 Page 4 of 4 Fig. 3:Basic set-up for radiated emission test above 1 GHz
