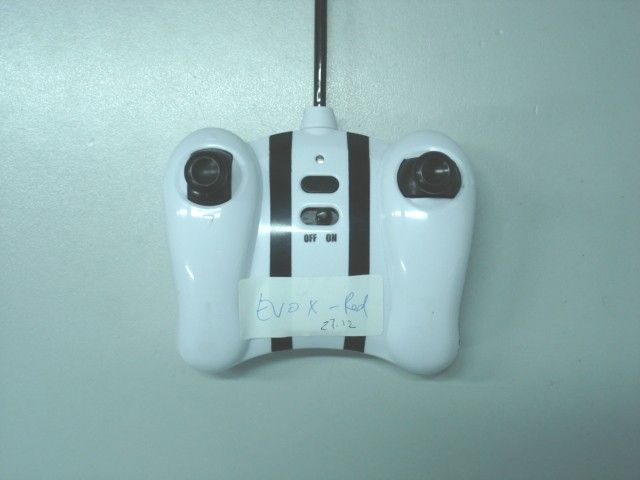

QI7RCC27B0127 MHz Remote Control Transmitter

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Flowchart Template Subject: R/C racer block Author/Team: Raymond/ E.E. Date: July 4, 02 Phone Number: 852 2413 0983 Oscillator Encoding Circuit Antenna circuit Transmitter Block Oscillator Receiver Timing Generator Amp Counter Decoding Circuit LatchMotor Control Receiver Block

FCC ID Label Sample for TX Part FCC ID:QI7 RCC27B01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The operational description as the following: Transmitter section, Tr2, Tr3, R3, R4, R6, R7, C1 & C2 are the tone generator circuit, it's change the RC timing to generate 1KHz and 250Hz pulse by pressing the SW1 or SW2. The 27MHz oscillator circuit is a standard LC 3 point osc. circuit, the Tr1 DC bias is fed by R9 and emitter resistor R5 connected to the tone generator Tr3 collector to produce the carrier oscillation voltage. The carrier frequency are transmit to air by T1 primary coil and L1.

Report No.: 02.06.0631E-1 Page: 1 of 6 FCC ID: QI7RCC27B01 Authorized Signature: Jerry Chen EMC Laboratory SGS-CSTC Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Laboratory Division 7435 Oakland Mills Road Columiba,MD 21046 May 31,2002 Registration number:282399  FCC TEST REPORT Application No.: 02.06.0631E-1 Applicant: UNI-FORTUNE TOYS IND LTD FCC ID: QI7RCC27B01 Equipment under Test (EUT): Name: R/C RACE Model No. : 54001, 54002, 54003, 54004, 54005, 54006, 54007, 54008, 54009, 54010, 54011, 54012, 54013, 54014, 54015. 04001, 04002, 04003, 04004, 04005, 04006, 04007, 04008, 04009, 04010, 04011, 04012, 04013, 04014, 04015 ♣ ♣ Please refer to section 3.1 of this report which indicates which model was actually tested and which models are electrically identical Standards: FCC PART 15, SUBPART C : 2000 Date of Receipt: 25 June 2002 Date of Test: 16 July 2002 Date of Issue: 18 July 2002 Test Result :PASS * * In the configuration tested, the EUT complied with the standards specified above. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation.. . FCC ID: QI7RCC27B01  Report No.:02.06.0631E-1 Page:2 of 6 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1COVER PAGE.........................................................................................................................................................1 2CONTENTS .............................................................................................................................................................. 2 3GENERAL INFORMATION.................................................................................................................................. 3 3.1C LIENT I NFORMATION ............................................................................................................................................ 3 3.2D ETAILS OF E.U.T. ................................................................................................................................................. 3 3.3D ESCRIPTION OF S UPPORT U NITS ........................................................................................................................... 3 3.4T EST L OCATION ...................................................................................................................................................... 3 3.5O THER I NFORMATION R EQUESTED BY THE C USTOMER .......................................................................................... 3 4TEST RESULTS....................................................................................................................................................... 4 4.1T EST I NSTRUMENTS ................................................................................................................................................ 4 4.2E.U.T. O PERATION ................................................................................................................................................. 4 4.3T EST P ROCEDURE & M EASUREMENT D ATA ........................................................................................................... 5 4.3.1Radiated Emissions ...................................................................................................................................... 5 4.3.2Occupied Bandwidth .................................................................................................................................... 6 FCC ID: QI7RCC27B01  Report No.:02.06.0631E-1 Page:3 of 6 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant:UNI-FORTUNE TOYS IND LTD Address of Applicant:FLAT A-C, 21/F CHENG HING SHING CTR, 21-27 SHA TSUI ROAD, TSUEN WAN, N.T., KOWLOON. Name:R/C RACE Item No.: 54001, 54002, 54003, 54004, 54005, 54006, 54007, 54008, 54009, 54010, 54011, 54012, 54013, 54014, 54015. 04001, 04002, 04003, 04004, 04005, 04006, 04007, 04008, 04009, 04010, 04011,04012, 04013, 04014, 04015 ♣ ♣Only one item was tested since the above 30 Items were electrically identical. They are the same samples with different item no. and description only. Please refer to the fax mail from Kevin Lee of UNI- FORTUNE TOYS IND LTD., dated 17 July 2002 for further details 3.2 Details of E.U.T. Power Supply:9V DC (1 x ‘6F22’ Batteries) Power Cord:N/A- 3.3 Description of Support Units The EUT was tested as an independent unit. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzh…
