QI7RCFF27B04PLASTIC R/C VEHICLE (27MHz)

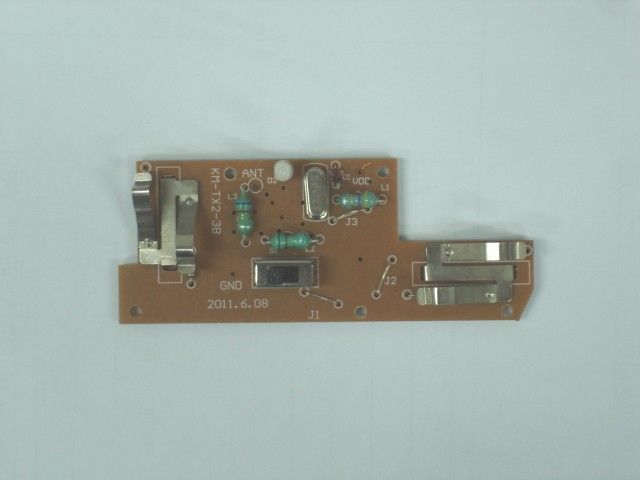

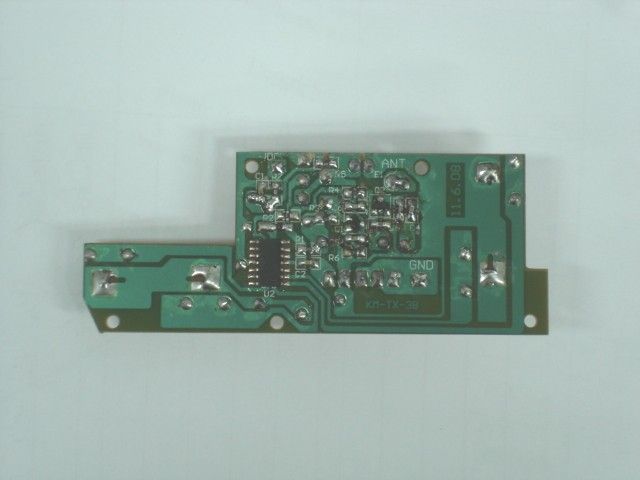

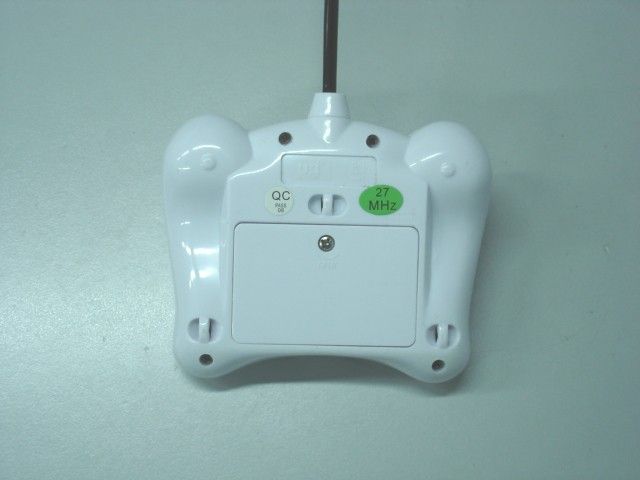

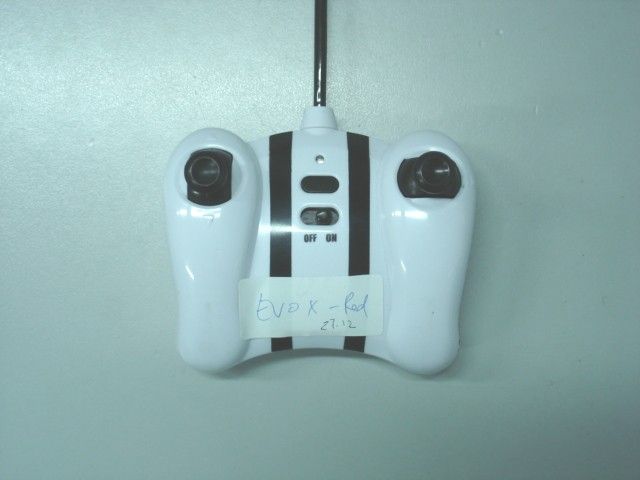

裕 豐 玩 具 實 業 有 限 公 司 Uni-Fortune Toys Industrial Limited 香港九龍荃灣沙咀道21-27號昌興盛中心21樓A-C室 FLAT A-C, 21/F., CHEUNG HING SHING CENTRE, TEL: (852) 2413 0983 21-27 SHA TSUI ROAD, TSUEN WAN, FAX: (852) 2414 4183 N.T., HONG KONG E-mail: [email protected] Project Name: PLASTIC R/C VEHICLE Model No.: 23854, 23864, 23874, 23884, 24184, 24194, 24204, 24214, 24224, 24234, 24244, 24254, 25954, 25964, 25974, 25984, 25994, 26004, 26014, 26034 Contact: Ricky Lui Date: 14-07-2011 Description: Introduction R/C transmitter: Operation: 9V battery; Drawing Ref.: 1:24 Radio Control TX; U1 is a 5 functional remote encoders IC, it is work with transistor Q1, Q2 and other components is unified takes the RF transmitter circuit. IC Pin 3, 5, 2 and 1 control left, right, back, forward and encoding signal output respectively. The encoding data output from Pin 13 and modulate with 27.145MHz oscillator that achieved by Q1, Y1, R3, R6, C5 and L1. The RF power amplifier Q2, L2, C6, C7 are use to expansion transmission scope, the output frequency through LC filter C3, C4 and L3, elimination harmonic frequency that the signal which transmits by aerial E1. R/C receiver: Operation: 4.5V AA Size battery x 3pcs; Drawing Ref.: 1:24 Radio Control (RX); Super-regenerative receiver use a special type of detector, in a straight regenerative circuit, input signal couples to the detector, and some of the output signal feedback to its input, in phase. This repeatedly amplifies the input signal. The result is very high gain in a single stage. Q13 provides RF gain and helps prevent the receiver from radiating its signal out the antenna. The data signal obtained by detector then couples to Video Amplifier U1 (RX2C) pin 14 through the LPF circuit (R13, C7). The IC provides two high effective amplifiers and enhances signal input recognition capacity to enhance remote control distance. The data signal obtained by the U1 then couples to decoder IC U2 (RX2-3A) and The signal input to the decoding circuit by pin4, the control function through the pin 7, 6, 2, 3 to driving the motor circuit. 裕 豐 玩 具 實 業 有 限 公 司 Uni-Fortune Toys Industrial Limited 香港九龍荃灣沙咀道21-27號昌興盛中心21樓A-C室 FLAT A-C, 21/F., CHEUNG HING SHING CENTRE, TEL: (852) 2413 0983 21-27 SHA TSUI ROAD, TSUEN WAN, FAX: (852) 2414 4183 N.T., HONG KONG E-mail: [email protected] Specification of RC Vehicle Model No: 23854, 23864, 23874, 23884, 24184, 24194, 24204, 24214, 24224, 24234, 24244, 24254, 25954, 25964, 25974, 25984, 25994, 26004, 26014, 26034 Description: (Front, Back, Left, Right, Stop) Full function radio control car Radio Freq.: 27.145MHz ±30PPM at 25°C Control Range: Over 15m control radius from R/C transmitter at open site Transmitter: 9V (6F22 battery) Power Supply Receiver: 4.5V (R6P/ SIZE AA x 3 battery) Transmitter: 7V Min. operation voltage: Receiver: 3.6V Standby- 270mW approx. Transmitter: Operating- 410mW approx. Standby- 135mW approx. Power consumption at rate voltage: Receiver: Operating- 6.75W approx.

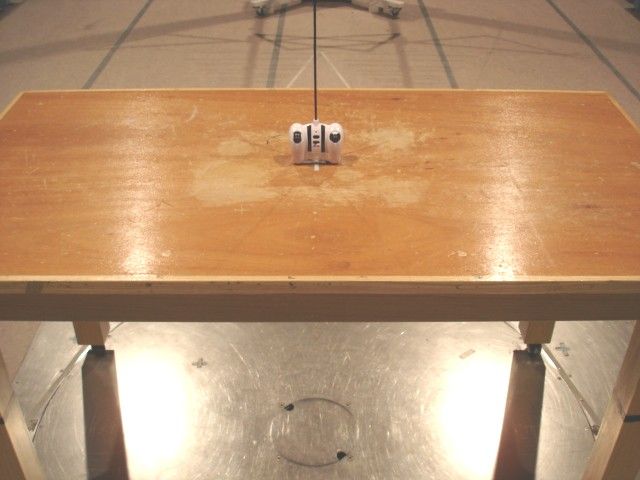

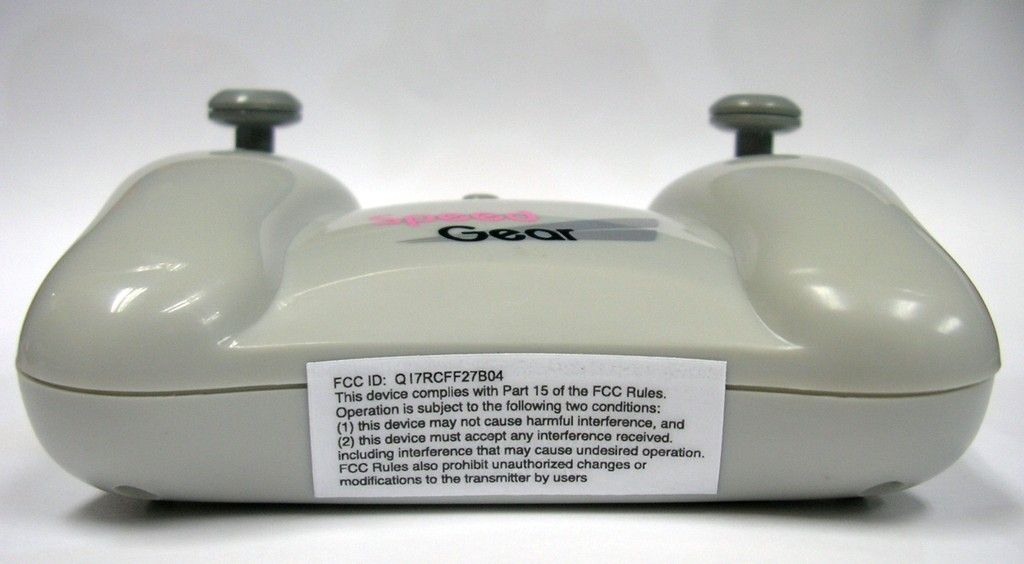

TEST REPORT Report No. : AN0039192(2) Date : 20 Jul 2011 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: QI7RCFF27B04 Application No. : LN019577(7) Applicant : Uni-Fortune Toys Ind. Ltd. Flat A-C, 21/F., Cheung Hing Shing Centre, 21-27 Sha Tsui Road, Tsuen Wan, N.T., Hong Kong. Sample Description : One(1) item of submitted sample stated to be: Sample Description Model no. Plastic R/C Vehicle (27MHz) 23854, 23864, 23874, 23884, 24184, 24194, 24204, 24214, 24224, 24234, 24244, 24254, 25954, 25964, 25974, 25984, 25994, 26004, 26014, 26034 Radio Frequency : 27.145MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : Four (4) piece (s) Date Received : 28 Jun 2011. Test Period : 05 Jul 2011 to 08 Jul 2011. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. Remark : All twenty models are the same in circuitry, components and construction. Therefore, model 23854 was chosen to be the representative of the test sample. The difference between the tested model and the declared models are the model number with different color on the car case. TEST REPORT Report No. : AN0039192(2) Date : 20 Jul 2011 Page 2 of 11 FCC ID: QI7RCFF27B04 Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 5 2 Description of the radiated emission test ................................................................................................... 6 2.1 Test Procedure .................................................................................................................................... 6 2.2 Test Result .......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................... 7 3 Description of the Line-conducted Test ..................................................................................................... 8 3.1 Test Procedure .................................................................................................................................... 8 3.2 Test Result .......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................ 8 4 Photograph ................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................... 9 4.2 Photographs of the External and Internal Configurations of the EUT................................................ 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ......................................................................................................................................... 10 5.2 Duty cycle ......................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................. 10 6 Appendices...............................................................................................................................................11 TEST REPORT Report No. : AN0039192(2) Date : 20 Jul 2011 Page 3 of 11 FCC ID: QI7RCFF27B04 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for Plastic R/C Vehicle (27MHz). It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 1 x 9V size battery. There are two control sticks on the EUT. When the control stick is triggered, the EUT will transmit radio control signal to the receiver. The antenna is using unique connector and the radio output power is unable to adjust. The brief circuit description is listed as follows: - U1 and its associated circuit act as an encoder. - D1 and its associated circuit act as a voltage regulator. - Q1, Y1 and its associated circuit act as an oscillator. - Q2 and its associated circuit act as a RF amplifier. TEST REPORT Report No. : AN0039192(2) Date : 20 Jul 2011 Page 4 of 11 FCC ID: QI7RCFF27B04 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is locat…

Text truncated - open the document above for the full version.

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Bandwidth Plot Bandwidth 1 Bandwidth 2

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle Duty Cycle 1 Duty Cycle 2 Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle 3 Duty Cycle 4 Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R
Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Duty Cycle 5
