QIF-A009Bluetooth Selfie Remote

Model:A009 FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Modifications to this product will void the user’s authority to operate this equipment.

My Music Group Limited Room2026 , Global Logistics Service Center, China South City, Pinghu Town, Long Gang Distric,Shenzhen,China TEL: +86-755-25839603 FAX: +86-755-25829320 April 10, 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Subject: Explanation of differences between product types FCC ID : QIF-A009 Model Number: A009,A003 To Whom It May Concern: We, My Music Group Limited, hereby declare that the model : A003 is identical with the model : A009, except the model name and colour. Except for the different above, no other modification is performed. Sincerely, My Music Group Limited Signature: Company Officer: Oversea Sales Manager Telephone Number: +86-755-25839603 Email: [email protected]

My Music Group Limited Room2026 , Global Logistics Service Center, China South City, Pinghu Town, Long Gang Distric,Shenzhen,China TEL: +86-755-25839603 FAX: +86-755-25829320 Date (09/04/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: QIF-A009 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, My Music Group Limited hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Oversea Sales Manager Telephone Number: +86-755-25839603 Email: [email protected]

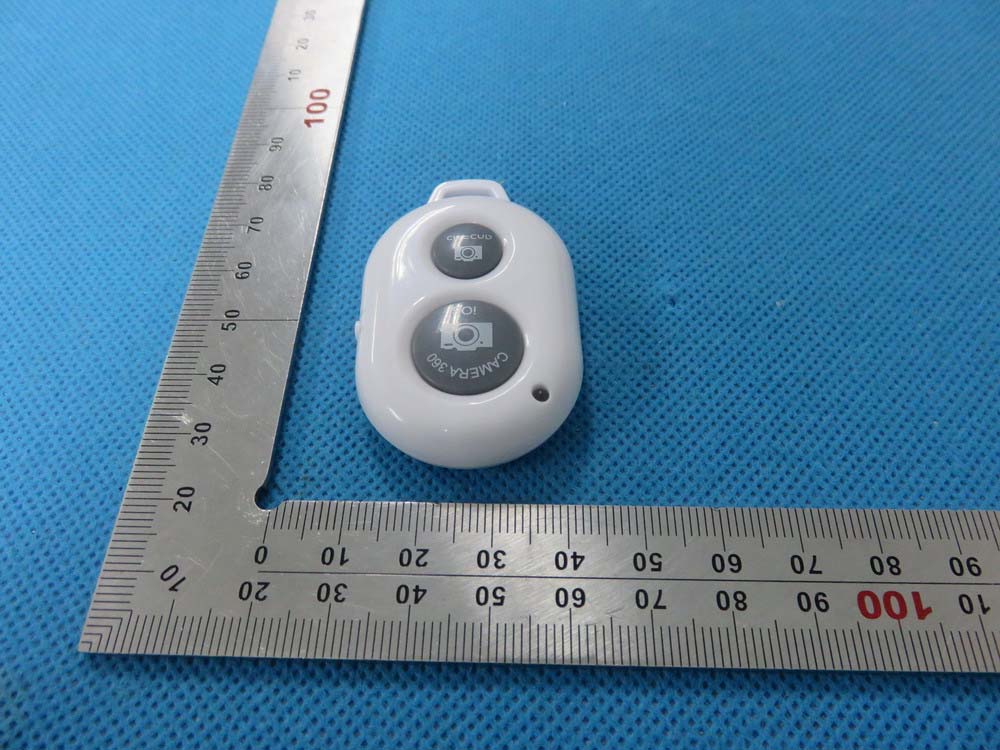

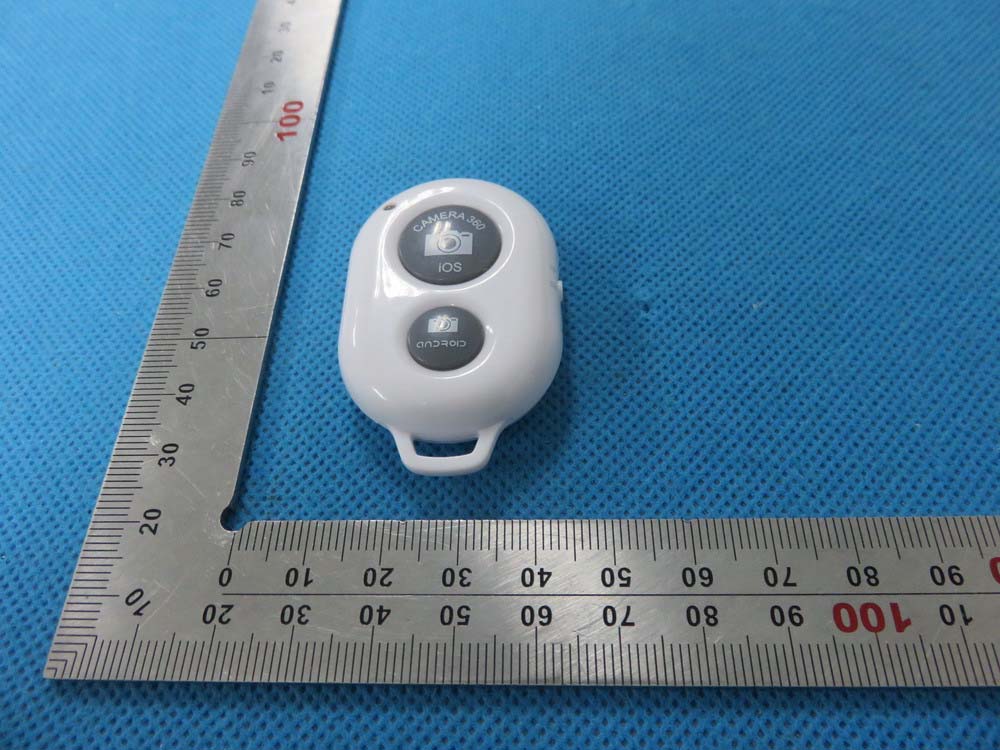

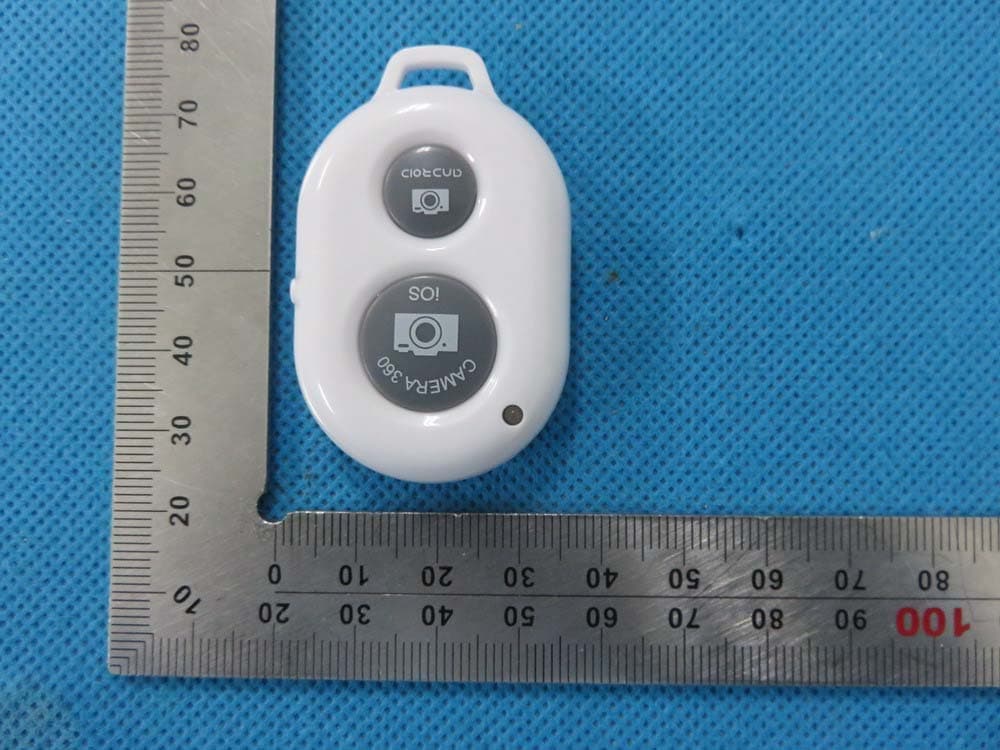

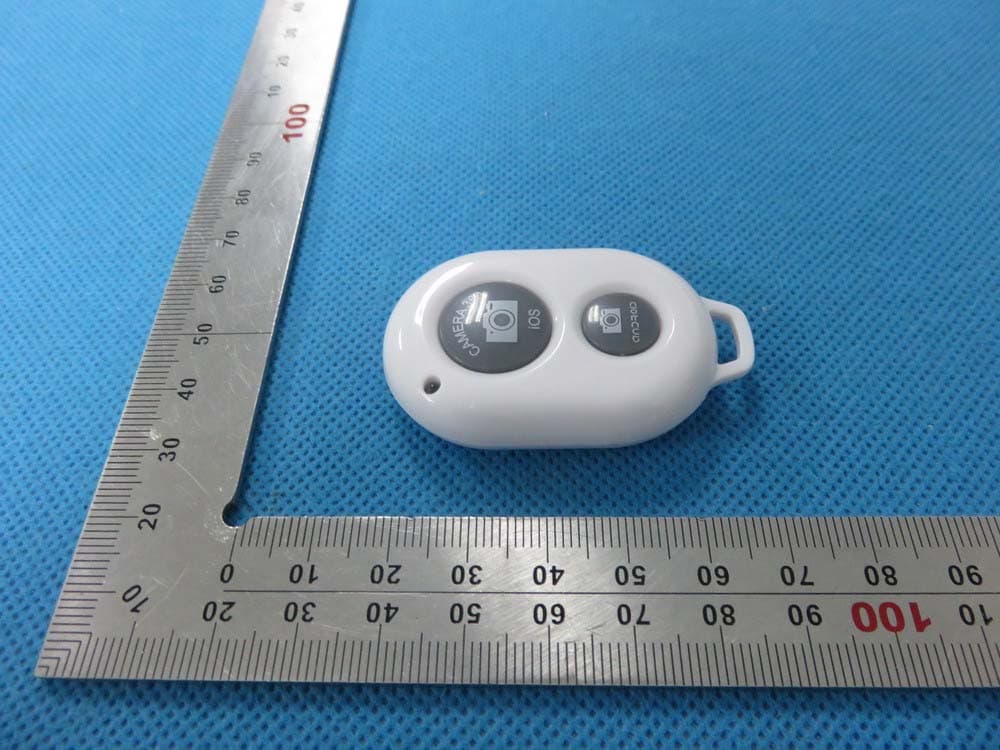

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: QIF-A009

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

SAR Evaluation Exemption Compliance Information The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)]·[√f(GHz)] ≤ 3.0 The maximum tune-up limit power is 2.28mW @ 2.480GHz For the head and body SAR, use 50mm as the conservative minimum test separation distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] = 0.072 ≤ 3.0 So standalone SAR measurements are not required for both head and body.

Page 1 of 39 FCC Test Report Report No.: AGC00924150303FE03 FCC ID : QIF‐A009 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Selfie remote BRAND NAME : My Music MODEL NAME : A009, A003 CLIENT : My Music Group Limited DATE OF ISSUE : Apr.03,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00924150303FE03 Page 2 of 39 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.03,2015 Valid Original Report Report No.: AGC00924150303FE03 Page 3 of 39 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 6 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 6 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 32 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 32 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................ 32 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 33 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 33 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ...................................................... 33 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 34 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 35 Report No.: AGC00924150303FE03 Page 4 of 39 1. VERIFICATION OF CONFORMITY Applicant My Music Group Limited Address Room2026, Global Logistics Service Center, China South City, Pinghu Town, Long Gang District, Shenzhen 518111, China Manufacturer Dongguan Fulun Electronic Co.,Limited Address 4F, Building A, Huangjinye Industrial park, No.216Shaxin Road, Keyuan City,Tangxia, Dongguan.CN Product Designation Bluetooth Selfie remote Brand Name My Music Test Model A009 Date of test Apr.01,2015 to Apr.02,2015 Different Description All the same except for the model and color. Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Shenzhen STS Test Services Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.03,2015 Checked By Forrest Lei Apr.03,2015 Authorized By Solger Zhang Apr.03,2015 Report No.: AGC00924150303FE03 Page 5 of 39 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 GHz to 2.480GHz RF Output Power 3.58dBm(Max) Bluetooth Version V3.0 Modulation GFSK Number of channels 79 Hardware Version V1.0 Software Version V1.0 Antenna Designation PCB Antenna (Met 15.203 Antenna requirement) Antenna Gain 0dBi Power Supply DC3V 2.2. TABLE OF CARRIER FREQUENCYS Frequency Band Channel Number Frequen…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC RADIATED EMISSION TEST SETUP
