QIFAF-MCB08Bluetooth Speaker

Bluetooth Speaker Model: AF-MCB08 Brand: My Music FCC ID: QIFAF-MCB08 Microphone ON/OFF Back Bottom USB Main Function: 1. Bluetooth music playing function 2. MIC function for hands-free talking(distance:30-50cm) Operate Instructions (Note: The device, called AF-MCB08, pair Code: 0000) „ Bluetooth function and MIC function for hands-free talking (Let us take mobile phone for example) a. Making switch to Bluetooth, after 3 seconds, hear the Beep twice, then Bluetooth indicator will flash quickly and it means that it has entered Bluetooth pairing status. b. Starting up the Bluetooth function of mobile phone to search for Bluetooth device. When the mobile finds the Bluetooth device (AF-MCB08), select it and it will be prompted for a password (Note: some mobile phone can be connected directly without entering pairing code, and if the mobile phone had already been paired before, it is also unnecessary to enter pairing code), enter “0000” number, press “Yes” to connect the Bluetooth device (AF-MCB08). c. The mobile phone will show the sign of success after it connects to Bluetooth. d. Set up the play mode to Bluetooth output of your device and play music. Music volume can be increased or decreased by adjusting the volume of phone. e. During you listening music, if there somebody call you, the music will be interrupted automatically. Anwser the calling and you can talk and hear clearly from the speaker directly, instead of from mobile phone. The effective distance between the bluetooth speaker and your mouth is 30-50cm. f. After hung up, it will turn into playing music program automatically. „ Plug mini 5P USB cable into the Line in/5Vsocket, the signal light keeps on when charging, after fully charged the signal light turn off.(The signal light keeps off when the speaker turn off) „ Body can be separated from Base stands, can be rotate with 360 degrees when they are combined. „ Low power Warning When the battery is running low, it will beep every 30 seconds. Please recharge it in time to protect battery. „ Product Specification: 1. SNR: ≥95±2dB 2. Speakers: D36mm(20HZ-20KHZ) 3. Lithium polymer battery input: 400MHA (DC5V) 4. Dimension: D72.26* H104.8 (MM), single weight: 136g 5. Material： ABS case+Metal Net-cover 6,Charging time: 2.5-3 hours playing time: 4-6 hours IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Dec.3, 2012 Federal Communication Commission Authorization and Evaluation Division FCC ID: QIFAF-MCB08 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, My Music Group Limited Contact Person: Smile Zhang

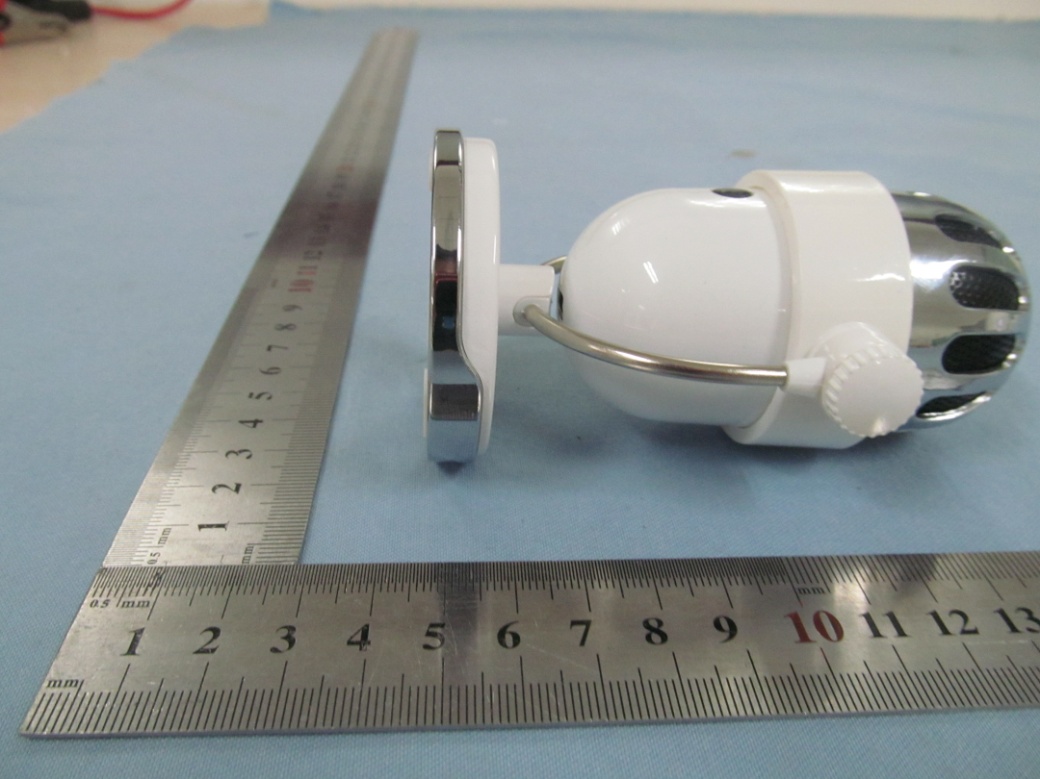

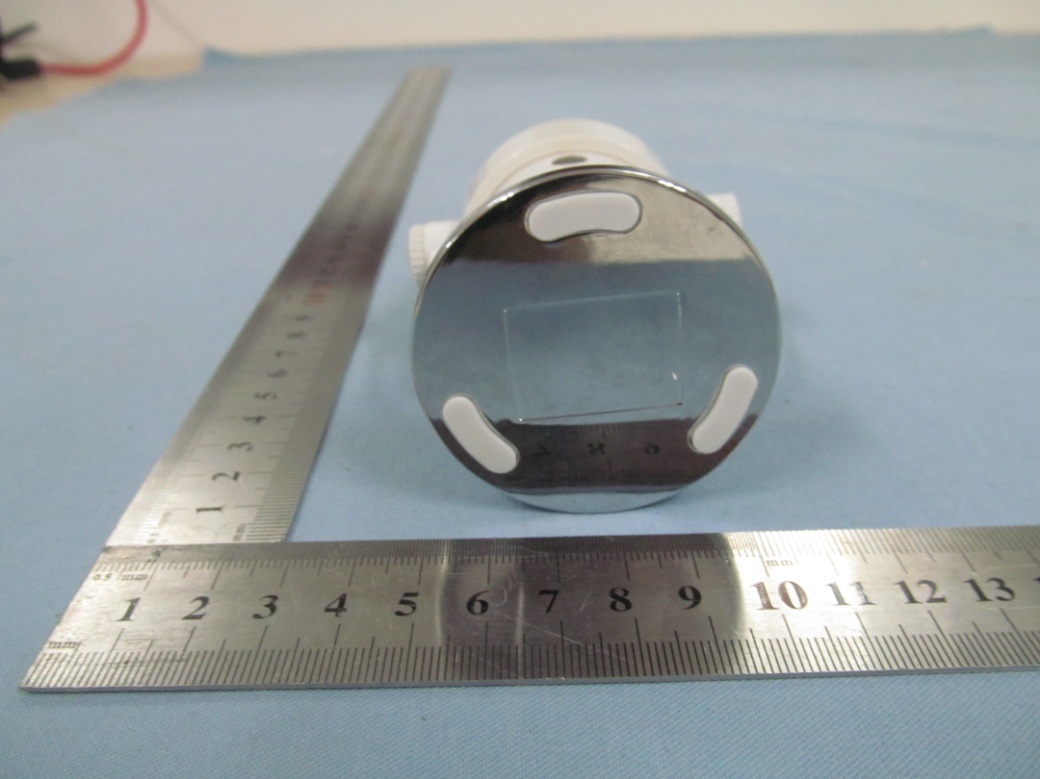

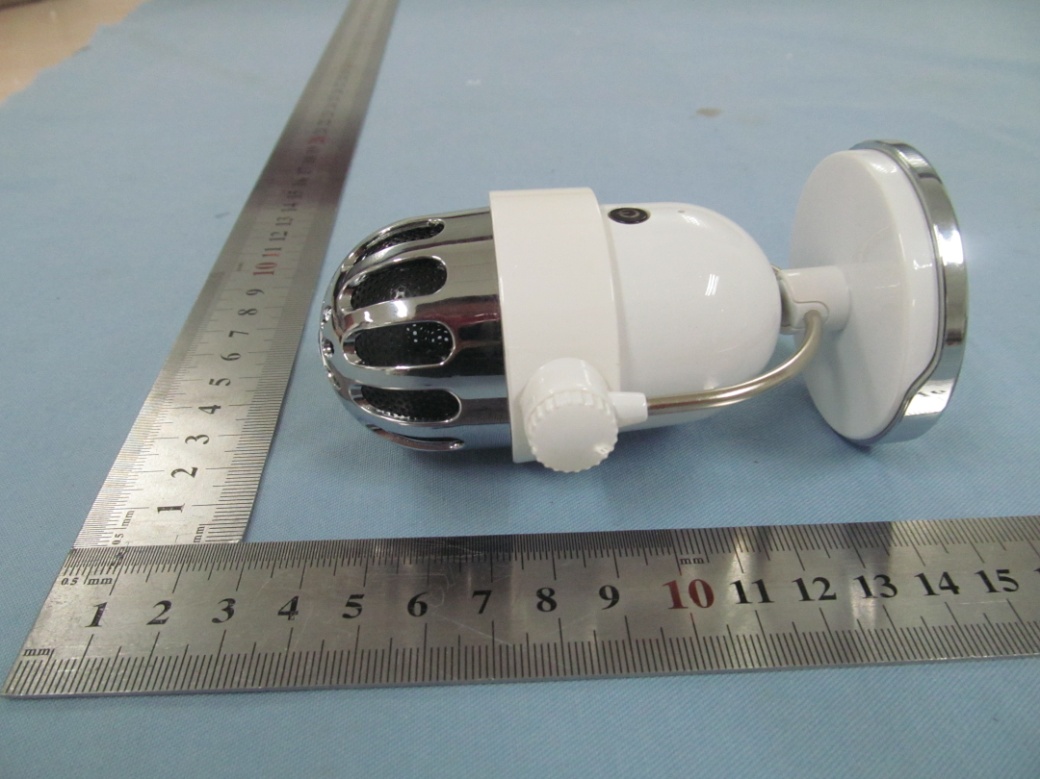

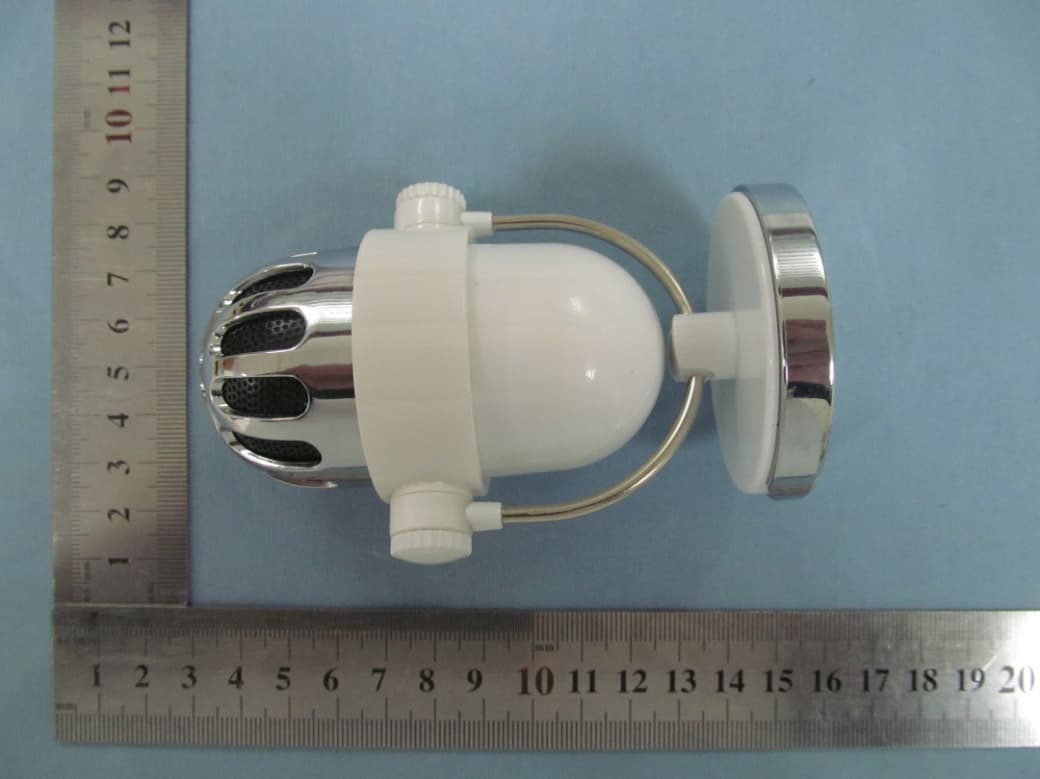

PHOTOGRAPHS OF THE EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT RRONT VIEW OF EUT BOTTOM VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC Label Location Bluetooth Speaker Brand: My Music Model: AF-MCB08 FCC ID:QIFAF-MCB08

OPEN VIEW OF EUT1 OPEN VIEW OF EUT2 OPEN VIEW OF EUT3 FRONT VIEW OF PCB Bluetooth Antenna BACK VIEW OF PCB

Report No.: AGC06F121001-2F2 Page 1 of 48 FCC Test Report Report No.: AGC06F121001‐2F2 FCC ID : QIFAF‐MCB08 PRODUCT DESIGNATION : Bluetooth Speaker BRAND NAME : My Music MODEL NAME : AF‐MCB08 CLIENT : My Music Group Limited DATE OF ISSUE : Nov.30,2012 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC06F121001-2F2 Page 2 of 48 VERIFICATION OF COMPLIANCE Applicant My Music Group Limited Room No.7063, Building East, Cheng shi TianDi Plaza, Jia Bin Road, Luo Hu District, Shenzhen, Guangdong, China, 518001 Manufacturer Affluent International Co., Ltd 3F, No. 10, Yituan Road, Bantian Town, Shenzhen, Guangdong, China,518129 Product Designation Bluetooth Speaker Brand Name My Music Test Model AF-MCB08 FCC ID QIFAF-MCB08 Report Number AGC06F121001-2F2 Date of Test Nov.22,2012 to Nov.30,2012 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. Tested By: Jane Wu Nov.30,2012 Reviewed By: Forrest Lei Nov.30,2012 Approved By: Solger Zhang Nov.30,2012 Report No.: AGC06F121001-2F2 Page 3 of 48 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION .............................................................................................................................................. 5 1.2 TABLE OF CARRIER FREQUENCYS .......................................................................................................................... 5 1.3 RECEIVER INPUT BANDWIDTH ................................................................................................................................... 6 1.4 EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................................................ 7 1.5 EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ....................................................................... 7 1.6 RELATED SUBMITTAL(S) / GRANT (S) ...................................................................................................................... 7 1.7 TEST METHODOLOGY ................................................................................................................................................... 7 1.8 MEASUREMENT UNCERTAINTY ................................................................................................................................. 7 1.9 TEST FACILITY ................................................................................................................................................................. 8 1.10 SPECIAL ACCESSORIES ............................................................................................................................................ 8 1.11 EQUIPMENT MODIFICATIONS ................................................................................................................................... 8 2. SYSTEM TEST CONFIGURATION ...................................................................................................................................... 9 2.1 CONFIGURATION OF TESTED SYSTEM .................................................................................................................... 9 2.2 EQUIPMENT USED IN EUT SYSTEM .......................................................................................................................... 9 3. SUMMARY OF TEST RESULTS ......................................................................................................................................... 10 4. DESCRIPTION OF TEST MODES ..................................................................................................................................... 10 5. PEAK OUTPUT POWER ..................................................................................................................................................... 11 5.1 MEASUREMENT PROCEDURE .................................................................................................................................. 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................... 11 5.3 MEASUREMENT EQUIPMENT USED ........................................................................................................................ 12 5.4 LIMITS AND MEASUREMENT RESULT .................................................................................................................... 12 6. 20 DB BANDWIDTH ............................................................................................................................................................. 13 6.1 MEASUREMENT PROCEDURE .................................................................................................................................. 13 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................................... 13 6.3 MEASUREMENT EQUIPMENT USED ........................................................................................................................ 13 6.4 LIMITS AND MEASUREMENT RESULTS .................................................................................................................. 13 7. CONDUCTED SPURIOUS EMISSION ....................................................................…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF THE TEST SETUP CONDUCTED EMISSION RATIATED EMISSION
