QIFAF-MCB27Bluetooth Speaker

60mm 55mm AUX USB ON OFF User Manual 1. Bluetooth Speaker 2. Line-in cable 3. USB cable for charging 4. User manual What in box Bluetooth Instruction(Note: The Bluetooth code is AF-MCB27 , pair code: 0000) 2. Starting up the Bluetooth function of mobile phone to search for Bluetooth device.AF-MCB27, select it and it will be prompted for a password (Note: some mobile phone can be connected directly without entering pairing code), enter “0000”, press “Yes” to connect 1. Switch the button to “ON” , hear the prompt sound and the blue indicator flash, it means it has entered Bluetooth paring status. disconnected. After the phone back to the effective range (≤10M), you have to reconnect phone and Bluetooth to make it work again. b. When Bluetooth power is cut off, re-switch to the Bluetooth status, select Bluetooth to connect. Line-in function: Connect it to any device with a 3.5mm interface to play music and the led light will be blue and always on. Charging the Battery Plug the provided USB charging cable into the speaker and an active computer USB port or a USB AC adapter that is plugged into an active wall outlet. Charging time: 2-2.5hours 3. The Bluetooth speaker is ready for use. 4. Bluetooth re-connection a. When the phone and Bluetooth communication beyond the effective range (≥10M), it will be Line Cable USB Cable Specifications: 1. Speaker: D40mm (180HZ-20KHZ) Bluetooth mini speaker FCC ID:QIFAF-MCB27 2. Single weight: 75g 3. SNR: ≥85±2dB 4. 5. Bluetooth effective range: up to 10meters 6. Polymer battery: 400mAh 7. Playing time: 4-5hours 8. Charging voltage: DC5V 9. Product size: L57*W57*H45mm Bluetooth version: 2.1 +EDR This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Oct.09, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: QIFAF-MCB27 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, My Music Group Limited Contact person: Smile Zhang Title: Sales Manager

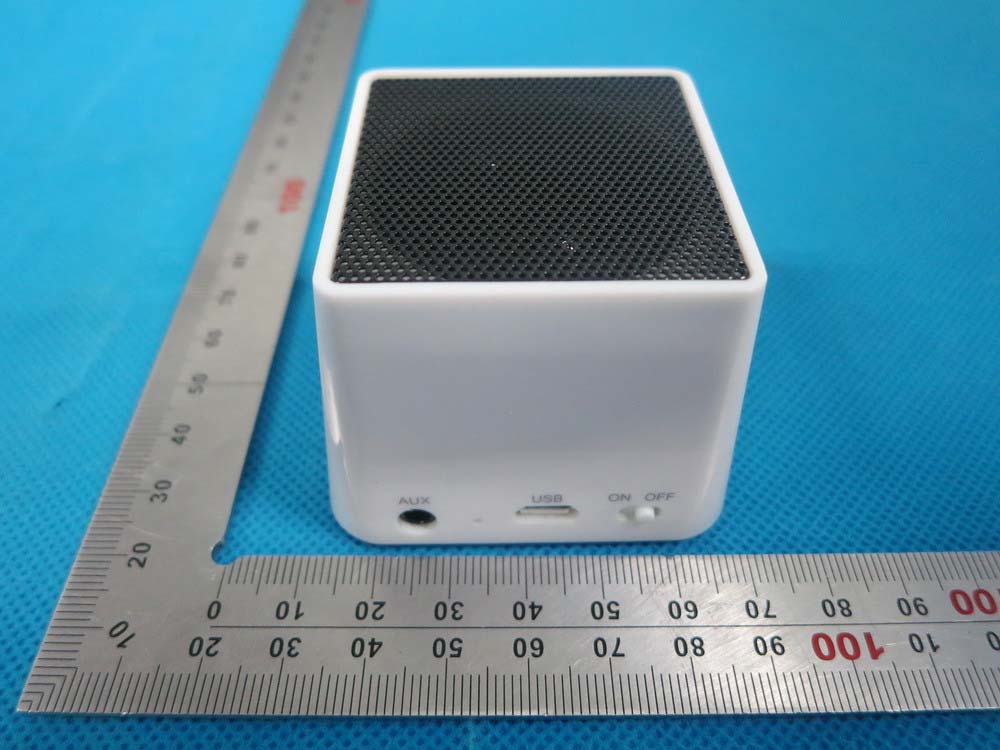

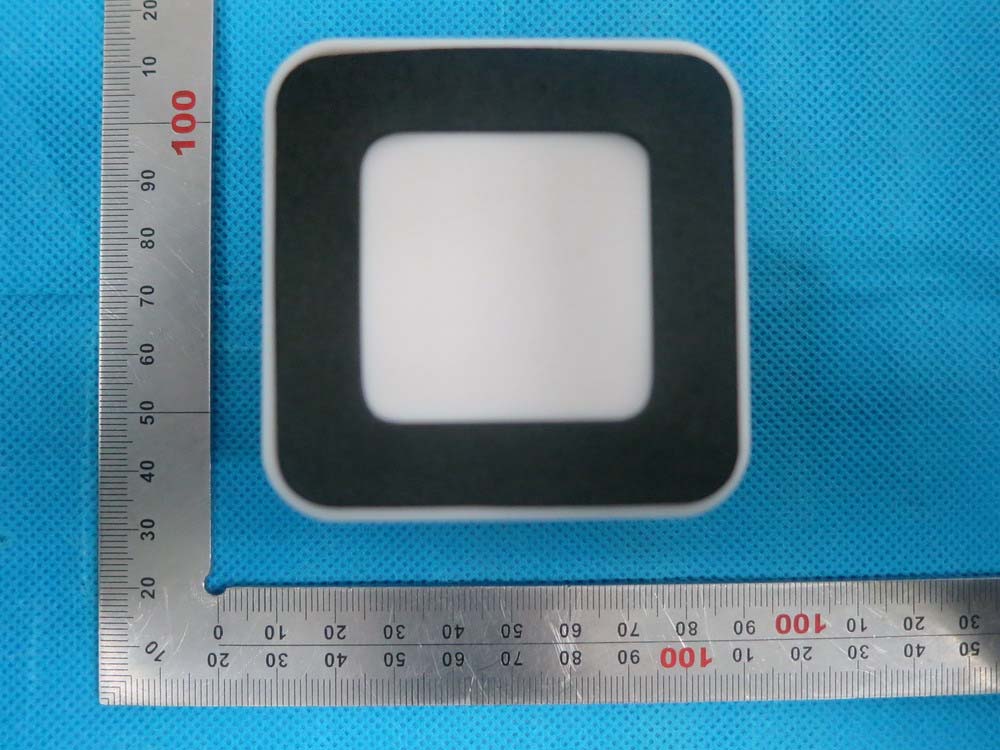

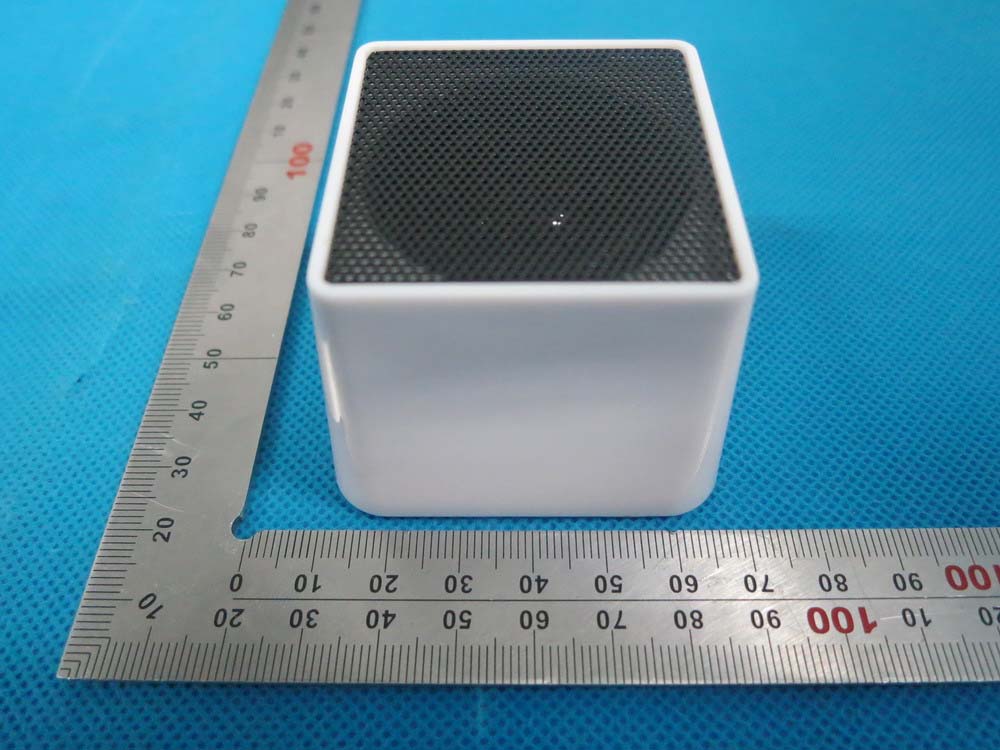

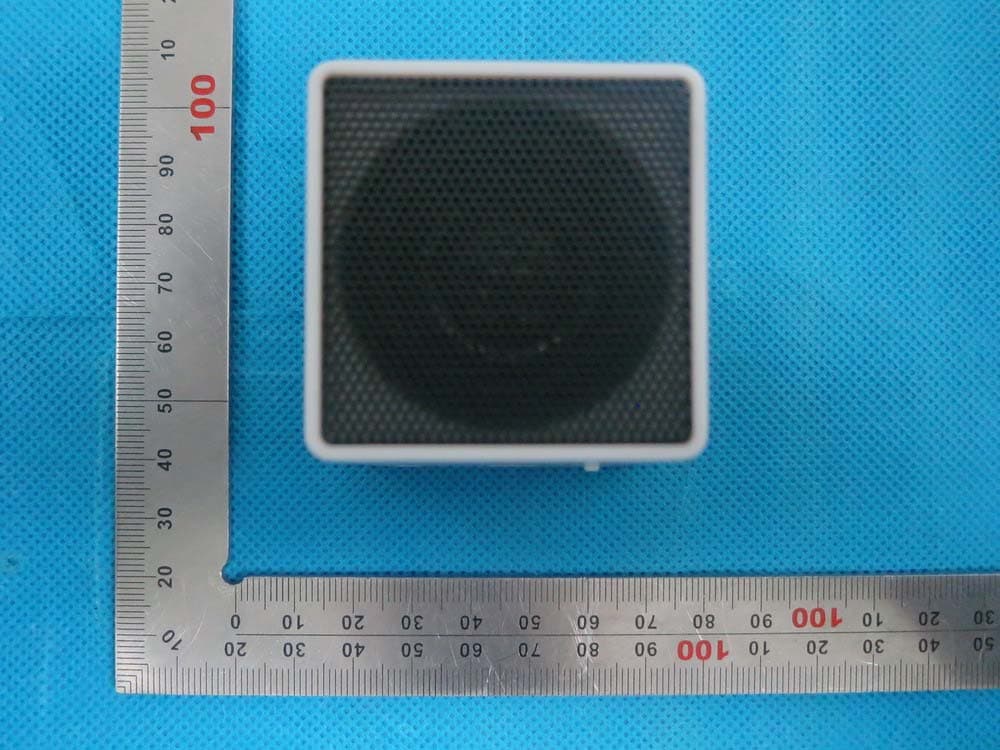

External Photos All VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: QIFAF-MCB27

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Page 1 of 67 FCC Test Report Report No.: AGC00924140605FE03 FCC ID : QIFAF‐MCB27 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Speaker BRAND NAME : My Music MODEL NAME : AF‐MCB27 CLIENT : My Music Group Limited. DATE OF ISSUE : Sep.30,2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00924140605FE03 Page 2 of 67 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Sep.30,2014 Valid Original Report Report No.: AGC00924140605FE03 Page 3 of 67 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH ................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ........................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ............................................ 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 8 2.7. TEST METHODOLOGY................................................................................................................ 8 2.8. SPECIAL ACCESSORIES ............................................................................................................ 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................... 8 3. MEASUREMENT UNCERTAINTY........................................................................................ 9 4. DESCRIPTION OF TEST MODES ........................................................................................ 9 5. SYSTEM TEST CONFIGURATION .................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ........................................................................................ 10 5.2. EQUIPMENT USED IN EUT SYSTEM ....................................................................................... 10 5.3. SUMMARY OF TEST RESULTS ................................................................................................ 10 6. TEST FACILITY .................................................................................................................. 11 7. PEAK OUTPUT POWER .................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ................................................................................................ 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................... 13 8. 20DB BANDWIDTH ............................................................................................................ 19 8.1. MEASUREMENT PROCEDURE ................................................................................................ 19 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 19 8.3. LIMITS AND MEASUREMENT RESULTS .................................................................................. 19 9. CONDUCTED SPURIOUS EMISSION ............................................................................... 26 9.1. MEASUREMENT PROCEDURE ................................................................................................ 26 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................... 26 9.3. MEASUREMENT EQUIPMENT USED ....................................................................................... 26 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................... 26 10. RADIATED EMISSION ..................................................................................................... 30 10.1. MEASUREMENT PROCEDURE .............................................................................................. 30 10.2. TEST SETUP ............................................................................................................................ 32 10.3. TEST RESULT .......................................................................................................................... 32 Report No.: AGC00924140605FE03 Page 4 of 67 11. BAND EDGE EMISSION .................................................................................................. 39 11.1. MEASUREMENT PROCEDURE .............................................................................................. 45 11.2. TEST SET-UP ........................................................................................................................... 45 11.3. TEST RESULT .......................................................................................................................... 46 12. NUMBER OF HOPPING FREQUENCY ............................................................................ 50 12.1. MEASUREMENT PROCEDURE .............................................................................................. 50 12.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) ....................…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
