QIRFX-N310Navigation

FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 ATTACHMENT E. - USER’S MANUAL - FIDELIX User Guide 2 Digital Audio Broadcasting HDAB-100 FIDELIX User Guide 3 Safety precautions For product safety and correct operation, the following information must be given to the operator/user and shall be read before the installation and operation. y Make sure that it is installed tightly to prevent the stand from coming off or moving during the operation. It might cause an accident. y The GPS receiver might not normally function in some cars that are UV coated, tinned and anti- electromagnetic wave. In this case, please contac t our sales representative to buy external GPS antenna which is sold as optional item. y Do not use it where it is hot and humid. Install an d keep the product where direct rays of the sun are not reached to prevent it from being damaged due to overheating. y Do not install the product in a location which obst ructs driving. It might cause an accident. Do not install it in a location that obstructs the operation of the air bag. y Use the navigation only for the purpose of reference and do not place too much reliance on it. y Note that the map on the navigation might be er roneous for good reasons on the part of the map provider or failure in upgrading. y If the cigar jack is taken off when the product is in use, it might cause an accident. y GPS signals might not be received under express wa ys, in tunnels, in blocked areas and in places where many buildings are concentrated due to feeble electric waves. y Bad weather conditions such as rain or fog might hinder the GPS from receiving signals. FIDELIX User Guide 4 y The GPS receiver operates optimally at 0 °C to 40 °C . If the temperature inside of the car is too low or too high, the product might not function normally. Make sure that the optimal temperature is maintained. y If the driver manipulates the product or watch TV while driving, it might cause an accident. Make sure to stop the car in a safe place to manipulate the product. y Adjust volume so that the driver can hear sound fr om the outside of the vehicle. It might cause an accident. y Do not touch the product with wet hands. It might cause an electric shock or damage. y If the windshield mount is attached to the glass of the vehicle for a long time, it might come off due to reduced adhesiveness. y Make sure that water and beverages do not get into th e inside of the product. It might cause a fire or an electric shock. y Do not disassemble or drop the product. It might cause damage or a mechanical breakdown. y Touch the LCD by using fingers or obtuse devices. If a sharp drill or a nail is used, it might cause damage. y Do not press the button forcibly during manipulation. y Make sure to use the adaptor that comes in with the product. y Do not apply too much force or give an impact. It might cause damage. y Do not disassemble the product. It might cause a mechanical breakdown. y If the product does not function normally, stop using it and contact the sales representative. FIDELIX User Guide 5 Contents Safety precautions 3 Contents 5 SURE-PATH Features 9 Package 10 Mechanical Features 11 Front 11 Right/Back/Bottom 13 Install 15 Navigation 18 Overview 18 Map view options.................................................................................19 Guidance Screen options........................................................................20 Guidance Mode ...................................................................................21 Cruise Mode .......................................................................................23 FIDELIX User Guide 6 Explore Mode .....................................................................................24 POI Details.........................................................................................25 Navigate to an Address 26 Navigate to a Street Intersection 28 Navigate to a Point of Interest (POI) 30 Find a Location on the Map 32 Plan a Simple Route 33 Save a Location as a Favorite 35 Find a Favorite Location 36 Configure Map Options 37 Configure Route Options 38 Configure Guidance Options 39 Select a Language 40 Select a Voice 41 Select POIs to Display on Map 42 Set Your Home Location 43 Set the Time Zone 44 Select Measurement Units 45 Set Application Volume 46 Configure Display Setup 47 View Installed Map Regions 48 FIDELIX User Guide 7 Set Max Speed Alert 49 Set Auto Speed Alert 50 POKETMAP INSTALL 51 Install PocketMap Naviagator Data Loader Program. 51 Install PocketMap Naviagator Map Data 53 UnInstall PocketMap Naviagator Map Data 54 Using SURE-PATH 57 MAIN SCREEN 57 Main screen .......................................................................................58 MUSIC PLAYER 59 File open...........................................................................................61 PHOTO VIEWER 62 Menu ...............................................................................................63 Full Screen ........................................................................................64 UTILITY 65 Text Viewer .......................................................................................66 Quick Memo .......................................................................................67 FIDELIX User Guide 8 Calculator .........................................................................................69 Calendar ...........................................................................................69 Setup 70 Setup ...............................................................................................71 Power Management ..............................................................................73 Touch Pad.........................................................................…

Text truncated - open the document above for the full version.

FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 ATTACHMENT C. - BLOCK DIAGRAM - MCU S3C2410 ARM9 MMU USB LCD SD Reset Clock Mode SDRAM 32MByte 2ea (Up to 128MByte) Nand flash 32MByte 1ea 128MByte 1ea (Up to 256MByte) GPS Module Input 5V (DC/DC8V~35V) or Battery 4.2V Output Power Block DAC KEY INPUT LCD Module 320 x 240 TFT 16.7M color LED Backlight With touch panel TFT DRV LED VCC (3.3V) RXD TXD Backup(3.0V) Von/Voff Vgate[n] VD[23:0] Ctrl[n] Vcom Vback LED-Right(2) LED-Left(2) SD SCLK LRCK CDCLK SCL SDA K_Power K_up K_down K_Mode CORE(1.8V) IO(3.3V) GPS(3.0V,3.3V) RXD TXD RSVD[n] CLE ALE nCE nRE nWE R/nB I/O[7:0] D+ D- V+ nSCS0 nSRAS nSCAS nWE SCLK SCKE DQM[3:0] A[25:24] A;14:2] D[31:0] MEMORY 2006. 11. 01 Fidelix R&D DISPLAY AD_VEXT nCS[1:0] nOE RS-232C USB Device USB Host COMMUNICATION D+ D- Power Up Down Mode SD memory card SDCLK SDCMD SDDATA0 SDDATA1 SDDATA2 SDDATA3 SD Detect SD WP Audio Lithium ion battery 1130mAh VBB Main Crystal : 12Mhz

FIDELIX CO., LTD. Date:2006.11.13 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize < HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.>, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by < HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.> on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing < HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.> as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, 06.11.13 SANG-WOO MA ASSISTANT MANAGER FIDELIX CO., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

1 Helen Zhao Subject: FW: Fidelix Co., Ltd., FCC ID: QIRFX-N310, Assessment NO.: AN06T6310, Notice#1 QIRFX-N310.zip From: cgy Sent: Wednesday, November 15, 2006 6:38 PM Subject: Re: Fidelix Co., Ltd., FCC ID: QIRFX-N310, Assessment NO.: AN06T6310, Notice#1 Dear Helen, Thank you for your help. I've attached new the attachments and test report. Please check and contact me if it has a problem. Thank you & Best Regards CHA --- EMC Part > > -----Original Message----- > Sent: Wednesday, November 15, 2006 1:22 PM > Subject: Fidelix Co., Ltd., FCC ID: QIRFX-N310, Assessment NO.: > AN06T6310, Notice#1 > > > Question #1: Based upon 2.925(A)(1), "The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line..." The entire filing shows FCC ID: QIRFx-N310 instead of FCC ID: QIRFX-N310. Lower case "x" is not allowed. Please update the all the relevant documents. > > Best Regards, > Helen Zhao > > > The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. > >

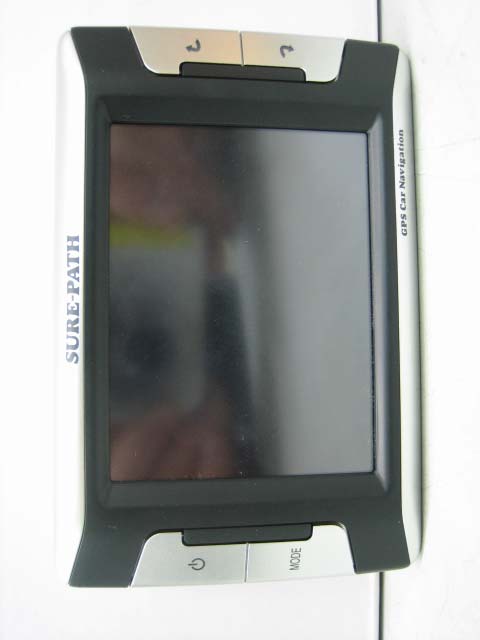

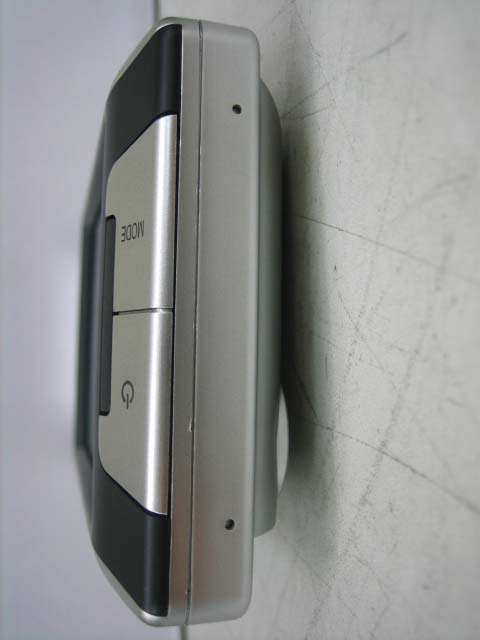

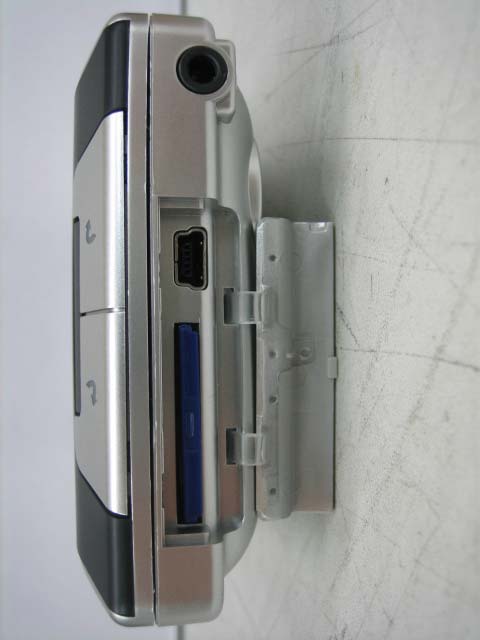

FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 1/5 ATTACHMENT B. - EXTERNAL PHOTOS - FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 2/5 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 3/5 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 4/5 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 5/5

FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 1/3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 3.1 PRODUCT LABEL Model No : Fx-N310 FCC ID : QIRFX-N310 EUT Type : Navigation POWER : DC 12 V,3 A Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. “ Product complies with DHHS Rules-21 CFR subchapter J-applicable at date of manufacture Fidelix Co., Ltd. 3F, SC First Bank Bidg., 6-8, Sunae-dong, Bundang-gu, Seongnam-si, Kyunggi-do, Korea MADE IN KOREA FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 3/3 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) LABEL LOCATION

FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 1/8 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 2/8 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 3/8 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 4/8 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 5/8 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 6/8 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 7/8 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 8/8

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. Product Compliance Division, EMC Team SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA TEL : +82 31 639 8517 FAX : +82 31 639 8525 TEST REPORT Rule Part(s): Equipment Class: Standard(s): EUT Type: Model(s): This equipment has been shown to be in compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. ▷▷ HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. ◁◁◁ 1/ 19 Report prepared by : Gyeong Seon KIM Test engineer of EMC Tech.Part Approved by : Sang Jun LEE Manager of EMC Tech.Part Navigation QIRFX-N310 Fx-N310 Manufacture; Fidelix Co., Ltd. 3F, SC First Bank Bidg., 6-8, Sunae-dong, Bundang-gu, Seongnam-si, Kyunggi-do, Korea Fidelix FRN : 007420102 Date of Issue : October 26, 2006 Test Report No.: HCT-F06-1002 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. HCT FRN : 0005-8664-21 EUT TYPE: FCC ID: MODEL : Part 15 & 2 Digital Device FCC Class B: 2003 Navigation Fx-N310 FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 2/19 TABLE OF CONTENTS PAGE REPORT COVER 1 TABLE OF CONTENTS 2 1.1 SCOPE 3 2.1 INTRODUCTION (SITE DESCRIPTION) 4 3.1 PRODUCTION INFORMATION 5 4.1 DESCRIPTION OF TESTS (CONDUCTED) 7 4.3 DESCRIPTION OF TESTS (RADIATED) 8 5.1 LIST OF SUPPORT EQUIPMENT 9 6.1 CONDUCTED TEST DATA 10 7.1 TEST DATA (RADIATED) 15 10.1 TEST SOFTWARE USED 18 11.1 CONCLUSION 19 ATTACHMENT A: FCC ID LABEL & LOCATION ATTACHMENT B: EXTERNAL PHOTOGRAPHS ATTACHMENT C: BLOCK DIAGRAM ATTACHMENT D: TEST SETUP PHOTOGRAPHS ATTACHMENT E: USER’S MANUAL ATTACHMENT F: INTERNAL PHOTOGRAPHS FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 3/19 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. • Model : Fx-N310 • Equipment Class: FCC Class B Digital Device • EUT Type: Navigation • Power Cord: Unshielded • Rule Part(s): FCC Part 15 Subpart B • Test Procedure(s): ANSI C63.4 (2003) • Dates of Tests: October 23, 2006 • Place of Tests: 254-1,MAEKOK-RI,HOBUP-MYUN,ICHON-SI,KYOUNGKI-DO,467-701,KOREA Applicant Name: Address: Fidelix Co., Ltd. 3F, SC First Bank Bidg., 6-8, Sunae-dong, Bundang-gu, Seongnam-si, Kyunggi-do, Korea FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 4/19 2.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSIC63.4-2003) was used in determining radiated and conducted emissions emanating from Fidelix Co., Ltd. Navigation, Model: Fx-N310 The open area test site and conducted measurement facility used to collect the radiateddata are located at the 254-1, MAEKOK-RI,HOBUP-MYUN,ICHON-SI,KYOUNGKI-DO, 467-701,KOREA. The site is constructed in conformance with the requirements of ANSI C63.4and CISPR Publication 22. Detailed description of test facility was submitted to the Commissionand accepted dated July 06, 2006 (Confirmation Number: 90661) FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 5/19 3.1 PRODUCT INFORMATION 3.2 Equipment Description Equipment Under Test (EUT) is the Fidelix Co., Ltd. Navigation, Model: Fx-N310 Model: Fx-N310 S/W: OS: Window CE 5.0 Core H/W: Display: 3.5 Inch TFT Color, 320 x 240 pixels, 64K Colors Memory: RAM: 64MB SDRAM I/O Port USB 1.1 Slave, SD Card Slot, External GPS Antenna Hook Up Audio In/Out Speaker Output: Max. 1.2W x 2, Earphone Output: 20mW Battery: Lithium Ion 1,130mAh Power Supply 5V Cigar Jack Vehicle Adaptor Power Operating/Storage Temperature: 0 °C~ 40 °C / -20 °C~+70 °C External Size(Device) 117mm x 77mm x 25mm (30mm on GPS) Weight (Device): 180g (Can be changed) GPS: GPS: 16CH / Sirf III MAP: Original Source : NAVTEQ Application Supplier : Space Machine Map Coverage : USA 50 States and DC + Canada 13 Provinces EMI Suppression Devices: Modifications were made to the device. Please refer to the next page. FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 6/19 1. 1. Attach a gasket FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 7/19 4.1 Description of Tests(Conducted & Radiated) 4.2 Powerline Conducted Emission (150kHz- 30MHz) The power line conducted RFI measurements were performed according to CISPR 22. The EUT was placed on a non-conducting 1.0 by 1.5 meter table which is 0.8 meters in height and 0.40 meters awa…

Text truncated - open the document above for the full version.

FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 1/4 ATTACHMENT D. - TEST SETUP PHOTOS - FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 2/4 1.CONDUCTED AND RADIATED MEASUREMENT PHOTOS [CONDUCTED MEASUREMENT PHOTO] FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 3/4 [RADIATED MEASUREMENT PHOTO] FCC ID : QIRFX-N310 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCT-F06-1002 4/4
