QJ4AS-CF125-RRemote Control for Ceiling Fan (315MHz Rx)

GENERAL INFORMATION Model:AS-CF125N FCC ID : QJ4AS-CF125-R for Receiver FCC ID : QJ4AS-CF125-T for Transmitter This remote control is designed to separately control your ceiling fan speed and light brightness. There are two buttons (fan and light) to control the fan speed and light. The fan button will control fan speeds (Hi、Med、Low) The light dimmer button will control the light. INSTALLATION AND OPERATING INSTRUCTIONS Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ! QUALIFIED PERSON ONLY CARRIES OUT INSTALLATION. ONLY INSTALL TO CONCRETE CEILING 1. SETTING THE CODE The unit has 16 different code combinations to set the codes. Perform these steps: A. Setting the codes on the transmitter. a. Remove battery cover. Press firmly below arrow and slide battery cover off. b. Slide code switches to your choice of up or down position.(Factory setting is all up).Do not use the position use a small screwdriver or ball point pen to slide firmly up or down (Figure 1). c. Replace battery cover on transmitter. B. Setting code on the receiver. a. Slide code switches to the same positions as set on your transmitter (Figure 2). 2. INSTALLING RECEVIER IN CEILING FAN A. Safety precautions: WARNING:HIGH VOLTAGE! Please use a qualified and licensed electrician. Household electrical power can cause serious injury or death. Disconnect source of electrical power to the ceiling fan by removing fuse or switching off circuit breaker. Do not use with solid state ceiling fans. Electrical wiring must meet all local and National Electrical Code requirements. Electrical source and fan must be 115/120 volts,60HZ.Maximum fan motor amps: 1.0 and maximum light watts:300 incandescent only. B. Installing receiver in fan: MOTOR AC -L LIGHT AC-N COM ANTENNA . 3. OPERATING TRANSMITTER: A. Install 9 volt battery (not included). To prevent damage to transmitter ,remove the battery if not used for long periods. CODE TRANSMITTER RECEIVER CODE Figure 2 Figure 1 a. Remove ceiling fan canopy from the mounting bracket. b. Disconnect existing wiring between ceiling fan and supply at electrical unction box c. Lay the back antenna wire on top of the receiver and put the receiver in the mounting bracket. d. Make wiring connections as follows :using the wire nuts supplied CONNECT TO Black receiver wire (ACN)---------------- AC Supply N White receiver wire (ACL)--------------- -AC Supply L White receiver wire (COM )---------------Output COM L Black receiver wire (FAN)----------------- Fan N Blue receiver wire (LIGHT)--------------- Light N e. Push all connected wire up into junction box. f. Reinstall the canopy on the mounting bracket. g. Make sure the black antenna is visible after canopy has been installed. h. Restore electrical power. i. Figure 3 install receiver ceiling fan chart B. Store the transmitter away from excess heat or humidity. C. This remote control unit is equipped with 16 code combinations to prevent possible interference from or to other remote units such as garage door openers .car alarm or security system. If you find that your fan and light kit go on and off without using your remote control simply change the combination code in your transmitter and receive. D. Operation buttons on the panel of the transmitter. The fan button will control the fan speeds (Hi、Med、Low、Off ) The light button will control the light brightness The light function is controlled by pressing the light button. Hold button down to increase or decrease light .Tap button quickly to turn. Light off or on .if you press the button in excess of 0.7 second it become a dimmer . The light key has auto resume so will stay at the same brightness as the last time it is turned off. YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT 4 TROUBLESHOOTING GUIDE NOTICE: 1. Fails to operate. Your ceiling fan and light kit assembly must meet a. Power to the receiver? the following requirements. b. Receiver wired correctly? 1. Do not use with solid state fans. c. Fan manual speed control in highest position? 2. Electrical rating: 120V/60HZ,3.5A d. Light kit switch turned on? MAX. motor amps:1.0 e. Good battery in the transmitter? MAX. light watts:300 f. Code set at exact same position in both transmitter and receiver? (incandescent only) 2. Won’t operate at distance: If transmitter operate fan and light kit when up close, but not at 40 feet away, Try to replace the battery and make sure black antenna wire is visible. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1234 A B C D 4321 D C B A Title NumberRevisionSize A Date:14-Apr-2007Sheet of File:C:\Documents and Settings\zhang\桌面\AS-056 方框图.DDBDrawn By: BT137 BT136 BT136 BT136 78P156EP High Frequency Amplifier Q1 Frequency Down-Concert & Detect Q2 Signal Amplifier U1 DELAYRESET C1 R3 D1 D2 ZD1 Sample Signal Y1 6MHz VOLTAGE REGULATOR US(2) VOLTAGE REGULATOR US(1) 120VAC 60Hz -5V -5V CONTROL LIGHT DIMMER CONTROL FAN LOW CONTROL FAN MEDIUM CONTROL FAN HIGH Rectangular Waveform Output Receiver Remote Control Technical Diagram

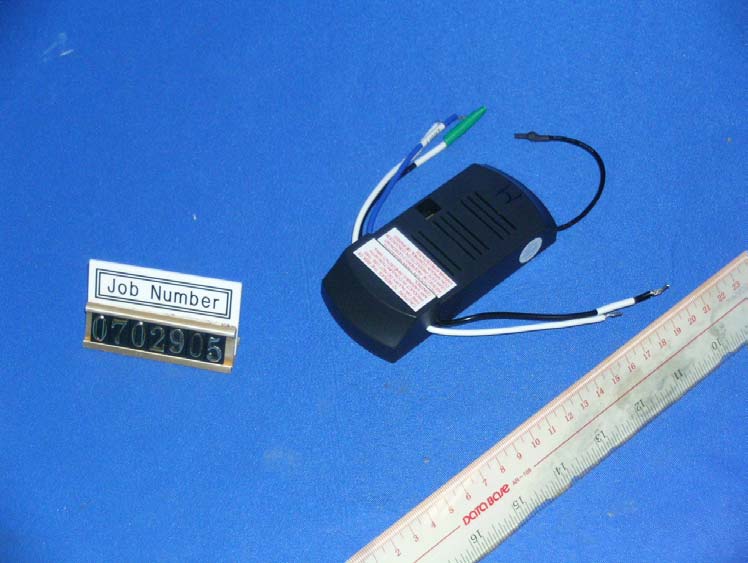

External Photo FCC ID : QJ4AS-CF125-R External Photo - front External Photo - rear

A S - 0 5 6 - R 1 - 0 4 底 贴 （ 威 禾 ） 无 线 电 接 收 器 E G - 0 3 2 0 0 6 . 1 2 . 2 7 尺 寸 U N I T S . 核 准 A P P . B Y 图 號 F i l e N o . D e s c r i p t i o n & N a m e . 零 件 规 格 名 稱 比 例 S C A L E . 處 理 N E G O . 審 核 C K D . B Y D W N . B Y 制 圖 材 質 M A T . X X 1 : 1 X X X M M A s i a B r i g h t i n d u s t r i a l c o m p a n y l i m i t e d 2 1 3 D E S C R I P T I O N D A T E R E V . 日 期 修 改 記 錄 尺 寸 范 圍 未 注 公 差 等 級 ( m m ) ± 0 . 3 5 ± 0 . 2 0 ± 0 . 8 0 ± 0 . 4 5 ± 0 . 2 5 ± 0 . 1 5 ± 0 . 3 5 ± 0 . 5 0 ± 0 . 3 5 ± 0 . 6 5 ± 0 . 5 0 ± 0 . 2 0 版 次 ± 1 . 5 0 ± 1 . 0 0 ± 1 . 2 0 ± 0 . 6 5 ± 0 . 8 0 ± 1 . 0 0 ± 0 . 1 5 ± 0 . 1 0 ± 0 . 1 0 ± 0 . 0 5 ± 0 . 2 5 ± 0 . 3 0 ± 0 . 1 5 ± 0 . 2 0 8 ~ 2 5 0 ~ 8 5 0 ~ 1 0 0 2 5 ~ 5 0 ± 0 . 4 5 ± 0 . 3 5 2 0 0 ~ ± 0 . 3 5 ± 0 . 3 0 1 0 0 ~ 2 0 0 ( m m ) G H J K M （ 2 ） 一 般 孔 用 正 的 极 限 偏 差 值 , 軸 用 負 的 极 限 偏 差 值 , 長 度 的 偏 差 按 表 中 選 用 . 1 . 0 N O T E : ( 1 ) 修 改 變 更 的 尺 寸 用 三 角 符 號 " " 標 示 . 重 點 尺 寸 用 " . . . . . . " 標 示 且 須 標 注 公 差 , 所 有 重 點 尺 寸 皆 須 進 行 尺 寸 檢 測 . U S E I N C E I L I N G O R P A D D L E F A N O N L Y S O L I D - S T A T E F A N S P E E D C O N T R O L W I R I N G I N S T R U C T I O N A S - C F 1 2 5 N / F C C I D : Q J 4 A S - C F 1 2 5 - R P O W E R : A C 1 2 0 V / 6 0 H Z 2 W , R A T I N G : 3 A F O R F A N A N D 3 0 0 W F O R L I G H T K I T . T H E C O D E O N R E C E I V E R A N D T R A N S M I T T E R M U S T B E T H E S A M E . T E R M I N A L B L O C K S : F O R U S E W I T H C O P P E R C O N D U C T O R S O N L Y , 1 4 - 2 2 A W G , T I G H T E N I N G T O R Q U E 2 - 1 8 I N - 1 B . A S I A B R I G H T I N D U S T R I A L ( H K ) C O . , L T D . 1 2 3 4 LN A C P O W E R I N P U T CANOPY SWITCH CUP ( D I M M E R ) ( T U N G S T E N O N L Y ) F A N M O T O R L I G H T 3 6 K Y E 3 0 3 3 8 2 YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT(IF ANY)TO ON POSITION BEFORE OPERATING REMOTE CONTROLLER 比 例 : 1 : 1 白 底 黑 字 白 底 红 字 RECEIVER

Internal Photo FCC ID : QJ4AS-CF125-R Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : QJ4AS-CF125-R Internal Photo - 3 Internal Photo - 4 Internal Photo FCC ID : QJ4AS-CF125-R Internal Photo - 5 Internal Photo - 6

ASIA BRIGHT IND.(HK) CO.,LTD Technical Description ReceiverModel:AS-CF125N-RComponent Part Number Description U1B/A, IC LM358 Operational amplifier U2 IC ATMEL642 EROM U1 MCU EM78P156ELP Microprocessor Q1 Transistor 2SC4226 RF Amplifier Q2 Transistor 2SC4226 Demodulator and RF Amplifier Oscillator Y1 6MHz Crystal SCR1 Triac BT137 on-off element SCR2-4 Triac BT136 on-off element U3(1) Voltage Regulator 1N4734 5.6V Regulator U4(2) Voltage Regulator 1N4734 5.6V Regulator

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:18-Apr-2007Sheet of File:C:\Documents and Settings\zhang\桌面\PCB 原理图\新建文件夹\AS-056 方框图.BkpDrawn By: AC-N 1 2 DNR1 AC-L C1 2.5uF/250V R3 220K R4 22R/2W D11N4004 D2 ZD1 5.6V 5.6V C4 470uF/25V C7 104 R5 10R C13 16V100uF 1 23 U379L05 1 23 U479L05 C7 104 C9 100uF/16V +5V0 1 2 3 4 5 6 7 8 910 11 12 13 14 15 16 17 18 U1 78P156E 1234 5678 S1 1 2 3 45 6 7 8 U2 24C02 C11 1uF/50V R8 10K DATA R6 1M 12 Y1 6M C1520pF C16 20pF C17 104 SCR4 BD136 SCR3 BD136 SCR2 BD136 SCR1 BD137 LAMP 12 DNR2 10D271K C3 6uF250V C2 5uF/250V R19 220K R20 220K FAN R17 1K R13 750 R18 1K R14 750 R15 390 R16 1K R11 1K R12 390 COM AS-056-R 120V AC 10D271IN4004 R7 10K GND1 GND2 R10 10K R9 10K +5V0 L2 5.1R/2W L3 5.1R/2W TC-291M-1A-5026-045V-L25-5 1M 0.33uF/275VAC 1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:16-Apr-2007Sheet of File:\\192.168.1.124\工程部-张\AS-056 方框图.DDBDrawn By: R9 200K R16 4.7M R12 10K R10 150K R3 3.9K R14 47K R2 3.9K R13 10K R8 200K R5 620R R4 120K R15 27K R7 6.2K R6 150R R1 47K C9 104 C10 474 C2 474 C11 2 PF C3 472 C8 360 PF C6 3 PF C5 47 PF C4 2 PF C7 2 PF C12 2.2 PF C1 5 PF Q2 2SC4226 Q1 2SC4226 L1 0.58uH L2 1.1uH L3 0.1uH +5V0+5V0 2 3 1 4 8 U1A LM358 6 5 7 U1B LM358 DATA +5V0 +5V0 A1 DBY-R04A原理图 +5V0

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Asia Bright Industrial (Hong Kong) Co., Ltd. Application For Certification (FCC ID: QJ4AS-CF125-R) Superregenerative Receiver 0702905 BH/ Sandy Lee May 02, 2007 INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-R ii MEASUREMENT/TECHNICAL REPORT Asia Bright Industrial (Hong Kong) Co., Ltd. - MODEL: AS-CF125N-R FCC ID: QJ4AS-CF125-R This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-R iii Table of Contents 1.0 General Description ........................................................................................ 2 1.1 Product Description ........................................................................................... 2 1.2 Related Submittal(s) Grants............................................................................... 2 1.3 Test Methodology.............................................................................................. 3 1.4 Test Facility ....................................................................................................... 3 2.0 System Test Configuration ............................................................................. 5 2.1 Justification ....................................................................................................... 5 2.2 EUT Exercising Software................................................................................... 5 2.3 Special Accessories .......................................................................................... 5 2.4 Equipment Modification ..................................................................................... 6 2.5 Measurement Uncertainty.................................................................................. 6 2.6 Support Equipment List and Description ............................................................ 6 3.0 Emission Results ............................................................................................ 8 3.1 Field Strength Calculation.................................................................................. 9 3.2 Radiated Emission Configuration Photograph.................................................. 10 3.3 Radiated Emission Data .................................................................................. 11 3.4 Conducted Emission Configuration Photograph............................................... 13 3.5 Conducted Emission Data ............................................................................... 14 4.0 Equipment Photographs ............................................................................... 16 5.0 Product Labelling .......................................................................................... 18 6.0 Technical Specifications............................................................................... 20 7.0 Instruction Manual........................................................................................ 22 8.0 Miscellaneous Information ........................................................................... 24 8.1 Stabilization Waveform.................................................................................... 25 8.2 Discussion of Pulse Desensitization................................................................. 26 8.3 Calculation of Average Factor.......................................................................... 27 8.4 Emissions Test Procedures ............................................................................. 28 INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Stabilization Waveform superreg.pdf INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: Q…

Text truncated - open the document above for the full version.

Report No.: 0702905 On mode AC mains ‘L’ Ctrl No.: N/A PAGE 1 Tested By:Hong Report :0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.: 0702905 On mode AC mains ‘L’ Ctrl No.: N/A Tested By:Hong, Report No.:0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 53.9 66.0 0.21000 44.0 63.2 0.39000 42.4 58.0 0.48000 42.3 56.4 0.56500 41.3 56.0 1.07500 39.8 56.0 1.10000 39.8 56.0 1.55000 36.7 56.0 2.13000 33.5 56.0 3.02500 28.6 56.0 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit Report No.: 0702905 On mode AC mains ‘N’ Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 0702905 On mode AC mains ‘N’ Ctrl No.: N/A Tested By:Hong, Report No.:0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 56.0 66.0 0.21000 49.9 63.2 0.29500 45.9 60.3 0.41500 43.0 57.6 0.58500 38.8 56.0 1.09000 38.8 56.0 1.18000 39.2 56.0 1.52500 37.1 56.0 2.14000 33.4 56.0 3.05000 29.3 56.0 4.15500 26.6 56.0 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit

Test Setup FCC ID : QJ4AS-CF125-R Radiated - front Radiated - rear RADIATED Model No.: AS-CF125N-R Job No.: 0702905 RADIATED Model No.: AS-CF125N-R Job No.: 0702905

Test Setup FCCID : QJ4AS-CF125-R Conduct Photo - 1 Conduct Photo - 2 Test Setup FCCID : QJ4AS-CF125-R Conduct Photo - 3
