QJ4AS-CF125-TRemote Control for Ceiling Fan (315MHz Tx)

GENERAL INFORMATION Model:AS-CF125N FCC ID : QJ4AS-CF125-R for Receiver FCC ID : QJ4AS-CF125-T for Transmitter This remote control is designed to separately control your ceiling fan speed and light brightness. There are two buttons (fan and light) to control the fan speed and light. The fan button will control fan speeds (Hi、Med、Low) The light dimmer button will control the light. INSTALLATION AND OPERATING INSTRUCTIONS Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ! QUALIFIED PERSON ONLY CARRIES OUT INSTALLATION. ONLY INSTALL TO CONCRETE CEILING 1. SETTING THE CODE The unit has 16 different code combinations to set the codes. Perform these steps: A. Setting the codes on the transmitter. a. Remove battery cover. Press firmly below arrow and slide battery cover off. b. Slide code switches to your choice of up or down position.(Factory setting is all up).Do not use the position use a small screwdriver or ball point pen to slide firmly up or down (Figure 1). c. Replace battery cover on transmitter. B. Setting code on the receiver. a. Slide code switches to the same positions as set on your transmitter (Figure 2). 2. INSTALLING RECEVIER IN CEILING FAN A. Safety precautions: WARNING:HIGH VOLTAGE! Please use a qualified and licensed electrician. Household electrical power can cause serious injury or death. Disconnect source of electrical power to the ceiling fan by removing fuse or switching off circuit breaker. Do not use with solid state ceiling fans. Electrical wiring must meet all local and National Electrical Code requirements. Electrical source and fan must be 115/120 volts,60HZ.Maximum fan motor amps: 1.0 and maximum light watts:300 incandescent only. B. Installing receiver in fan: MOTOR AC -L LIGHT AC-N COM ANTENNA . 3. OPERATING TRANSMITTER: A. Install 9 volt battery (not included). To prevent damage to transmitter ,remove the battery if not used for long periods. CODE TRANSMITTER RECEIVER CODE Figure 2 Figure 1 a. Remove ceiling fan canopy from the mounting bracket. b. Disconnect existing wiring between ceiling fan and supply at electrical unction box c. Lay the back antenna wire on top of the receiver and put the receiver in the mounting bracket. d. Make wiring connections as follows :using the wire nuts supplied CONNECT TO Black receiver wire (ACN)---------------- AC Supply N White receiver wire (ACL)--------------- -AC Supply L White receiver wire (COM )---------------Output COM L Black receiver wire (FAN)----------------- Fan N Blue receiver wire (LIGHT)--------------- Light N e. Push all connected wire up into junction box. f. Reinstall the canopy on the mounting bracket. g. Make sure the black antenna is visible after canopy has been installed. h. Restore electrical power. i. Figure 3 install receiver ceiling fan chart B. Store the transmitter away from excess heat or humidity. C. This remote control unit is equipped with 16 code combinations to prevent possible interference from or to other remote units such as garage door openers .car alarm or security system. If you find that your fan and light kit go on and off without using your remote control simply change the combination code in your transmitter and receive. D. Operation buttons on the panel of the transmitter. The fan button will control the fan speeds (Hi、Med、Low、Off ) The light button will control the light brightness The light function is controlled by pressing the light button. Hold button down to increase or decrease light .Tap button quickly to turn. Light off or on .if you press the button in excess of 0.7 second it become a dimmer . The light key has auto resume so will stay at the same brightness as the last time it is turned off. YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT 4 TROUBLESHOOTING GUIDE NOTICE: 1. Fails to operate. Your ceiling fan and light kit assembly must meet a. Power to the receiver? the following requirements. b. Receiver wired correctly? 1. Do not use with solid state fans. c. Fan manual speed control in highest position? 2. Electrical rating: 120V/60HZ,3.5A d. Light kit switch turned on? MAX. motor amps:1.0 e. Good battery in the transmitter? MAX. light watts:300 f. Code set at exact same position in both transmitter and receiver? (incandescent only) 2. Won’t operate at distance: If transmitter operate fan and light kit when up close, but not at 40 feet away, Try to replace the battery and make sure black antenna wire is visible. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:18-Apr-2007Sheet of File:E:\工程部资料库\AS-056\AS-056 方框图.DDBDrawn By: 9V 78P153P DELAY Q4,Q6 FILTER +5V HI MED LOW OFF LIGHT VOLTAGE REGULATOR US High Frequency Modulator Transmitter Remote Control Technical Diagram Batteries

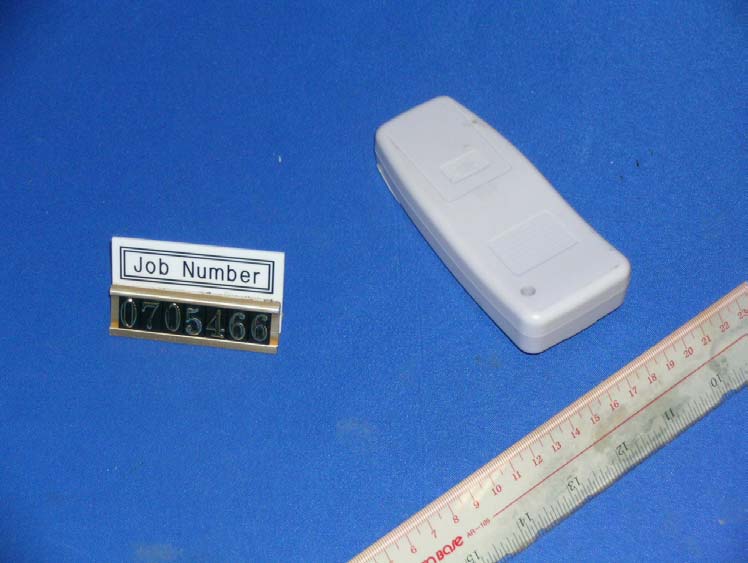

External Photo FCC ID : QJ4AS-CF125-T External Photo - front External Photo - rear

( 威 禾 ） 无 线 电 A B S N O T E : ( 1 ) 修 改 變 更 的 尺 寸 用 三 角 符 號 " " 標 示 . 重 點 尺 寸 用 " . . . . . . " 標 示 且 須 標 注 公 差 , 所 有 重 點 尺 寸 皆 須 進 行 尺 寸 檢 測 . 1 . 0 （ 2 ） 一 般 孔 用 正 的 极 限 偏 差 值 , 軸 用 負 的 极 限 偏 差 值 , 長 度 的 偏 差 按 表 中 選 用 . M K J H G ( m m ) 1 0 0 ~ 2 0 0 ± 0 . 3 0 ± 0 . 3 5 2 0 0 ~ ± 0 . 3 5 ± 0 . 4 5 2 5 ~ 5 0 5 0 ~ 1 0 0 0 ~ 8 8 ~ 2 5 ± 0 . 2 0 ± 0 . 1 5 ± 0 . 3 0 ± 0 . 2 5 ± 0 . 0 5 ± 0 . 1 0 ± 0 . 1 0 ± 0 . 1 5 ± 1 . 0 0 ± 0 . 8 0 ± 0 . 6 5 ± 1 . 2 0 ± 1 . 0 0 ± 1 . 5 0 版 次 ± 0 . 2 0 ± 0 . 5 0 ± 0 . 6 5 ± 0 . 3 5 ± 0 . 5 0 ± 0 . 3 5 ± 0 . 1 5 ± 0 . 2 5 ± 0 . 4 5 ± 0 . 8 0 ± 0 . 2 0 ± 0 . 3 5 未 注 公 差 等 級 ( m m ) 尺 寸 范 圍 修 改 記 錄 日 期 R E V . D A T E D E S C R I P T I O N 3 1 2 A s i a B r i g h t i n d u s t r i a l c o m p a n y l i m i t e d M M X X X 1 : 1 . 5 M A T . 材 質 制 圖 D W N . B Y C K D . B Y 審 核 N E G O . 處 理 S C A L E . 比 例 零 件 规 格 名 稱 D e s c r i p t i o n & N a m e . F i l e N o . 图 號 A P P . B Y 核 准 U N I T S . 尺 寸 2 0 0 6 . 1 2 . 2 7 表 格 编 号 ： E G - 0 3 A A S - 0 5 6 - T 1 - 0 2 发 射 器 底 壳 ( 蚀 字 内 容 ) 比 例 : 1 : 1 比 例 : 2 : 1 ( 蚀 字 内 容 ) 2 . 0 2 0 0 7 . 5 . 3 内 容 增 加 " a n d " 字 样 ；

Internal Photo FCC ID : QJ4AS-CF125-T Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : QJ4AS-CF125-T Internal Photo - 3 Internal Photo - 4 Internal Photo FCC ID : QJ4AS-CF125-T Internal Photo – 5 Internal Photo – 6

4 3 2 1 2 3 4 版本: of E 1 名称: 日期: 审核: 核准: 绘图: ASIA BRIGHT IND.CO.,LTD 庞继浩 页数: ABC D E D C B A DIM ON/OFF 无线电发射器原理图 2006*01*17 A0 11 R29 10K R30 10K R31 4.7K R2810K R27 10K R34 150R R35 1K E B C Q2 S8050 1 4 10 5 2 7 6 14 13 12 11 9 8 3 U6 78P153 FAN-OFF SP-2 SP-3 SLAMP SP-1 1 1234 8765 U1 SWDIP4 ZD1 5.1V R2610K K1 3 2 1 Q1 R33 4.7K R32 6.8K LED1 R3 105 E B C Q3 2SC3585 Y1 315MHz R2 10K R1 47R 2 1 C4 0.5 PF 2 1 C1 152 2 1 C3 10 PF 2 1 C2 6.2 PF L1 1uH L2 2uH BEAD MCI-201209-R82KT +9V +9V

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Asia Bright Industrial (Hong Kong) Co., Ltd. Application For Certification (FCC ID: QJ4AS-CF125-T) Transmitter 0705466 BH/ Sandy Lee May 02, 2007 INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-T i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-T ii MEASUREMENT/TECHNICAL REPORT Asia Bright Industrial (Hong Kong) Co., Ltd. - MODEL: AS-CF125N-T FCC ID: QJ4AS-CF125-T May 02, 2007 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8505 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-T iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 4.0 Equipment Photographs ................................................................................... 14 5.0 Product Labelling.............................................................................................. 16 6.0 Technical Specifications................................................................................... 18 7.0 Instruction Manual ............................................................................................ 20 8.0 Miscellaneous Information ............................................................................... 22 8.1 Measured Bandwidth........................................................................................ 23 8.2 Discussion of Pulse Desensitization.................................................................. 24 8.3 Calculation of Average Factor........................................................................... 25 8.4 Emissions Test Procedures .............................................................................. 26 INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-T iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-T 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-T 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 315MHz. The EUT is powered by 9V d.c. (1 x 9V “1604A 9V” alkaline battery). It is a remote control. During normal use, it transmit control signa…

Text truncated - open the document above for the full version.

Test Setup FCC ID : QJ4AS-CF125-T Radiated - front Radiated - rear
