QJKEBETUS0207Energy Saving Lamp

Page 1 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 EXHIBIT 5 User’s Manual Page 2 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 USER MANUAL OF ENERGY SAVING LAMP Self-ballasted fluorescent (electronic energy saving lamp) is a new kind of lighting style that uses trip-phospher tube with electronic ballast. It is characterized of energy saving, long life and flicker-free, and is widely used for restaurants, hotels, shops, homes lighting. 1. Specifications: ETU-11W, 15W, 20W, 24W AC 120V 60Hz ETUS-11W, 15W, 20W, 24W AC 120V 60Hz 2. Working environment temperature: -18~ 40. 3. Precautions: z Use only on 120 volt, 60 hertz; z Never disassemble of modify the lamp---any changes could void the user’s authority to operate this device; z Not for use in totally enclosed fixture; z Risk of electric shock---do not use where directly exposed to water; z This device is not intended for use with emergency exit fixtures or emergency exit lights; z To prevent burns, do not touch the bulb or cap during operation or immediately after switching off; z Handle the plastic enclosure when replacement; z Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. z This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or plug the lamp or the compliance into a different outlet. Page 3 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 z To prevent risk of fire, never install this device in the following fixtures: a. Fixture on dimming circuits. b. Emergency exit lights powered by direct current (DC). 4. COMPLIANCE INFORMATION STATEMENT Product Name: Energy Saving Lamp Model No.: ETU-11W, 15W, 20W, 24W; ETUS-11W, 15W, 20W, 24W This device complies with part 18 of FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference. 2) This device must accept any interference received, including interference that may cause undesired operation. ****** FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

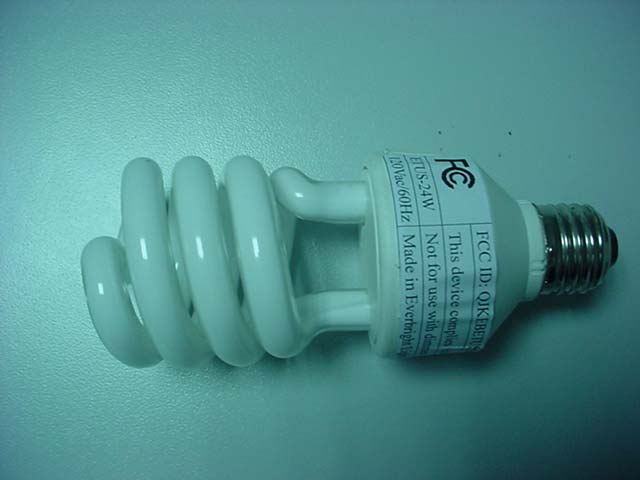

EXHIBIT 1 Product Photograghs Figure 1 M/N: ETU Series General Appearance Figure 2 M/N: ETUS Series General Appearance Label Location Label Location

EXHIBIT 1 Product Photograghs Figure 1 M/N: ETU Series General Appearance Figure 2 M/N: ETUS Series General Appearance Label Location Label Location

Page 1 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 ID Label Location Page 2 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 Figure 1 M/N: ETU-11W/15W/20W/24W General Appearance Figure 2 M/N: ETUS-11W/15W/20W/24W General Appearance Label Location Label Location

Page 1 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 ID Label Page 2 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 Label: FCCID: QJKEBETUS0207 This device complies with part 18 of FCC Rules. Not for use with dimmers. Made in Everbright Lighting Limited.

EXHIBIT 1 Product Photograghs Figure 3 M/N: ETU Series Main Board, Component Side Figure 4 M/N: ETU Series Main Board, Component Side Figure 5 M/N: ETUS Series Main Board, Component Side Figure 6 M/N: ETUS Series Main Board, Component Side

Page 3 FCC 10: QJKEBETUSO207 Everbright Lighting Ltd. Energy Saving Lamp The EUT -11 W, EUT -15W, EUT -20W, EUT -24 W, EUTS-I1 W, EUTS-24W, are the same, except the following component list different: EUTS-l SW, EUTS-20W, Components/ rating Models Tube I.R4/R71 cs C6C1 C2 Fuse Ll u ~ Tt EE16. llW, L8 >4 0, 0.23 lOa EUT-IIW 473 332 222lOuF 17SOmA 220T, .88mH 13003 2T: 4T: 4T 3U EEI6, 19ST, .82mH L8 >40, 0.23 15W, 3U 100 EUT-15W 473 j 332 I 222 IOuF '75OmA 1300312T: 4T: 4T EEI9, 160T, .38mH L9>t2, 0.31 20W, 3U 1,0 EUT -20W 104 , 222682 22uF IA 130052T: 3T: 3TI EE19, L9>42, 0.31 24W, ..,0 EUT -24W 10422268222uF lAI SOT, 1.22mH 13005 2T: 31': 3T 3U EE16, 220T, .88mH L8 >40t 0.23 IIW, 100 EUTS-II W 473332 I 222IOuF '750mA 13003 12T: 4T: 4T Spiral EE16, 15W, Spiral L8 >4 0, 0.23 100 EUTS-15W 473 , 332 I 222lOuF I 750mA1 13003 I80T, .80mH 2T: 4T: 4T EE19, 160T, .38mH L9>42, 0.31 20W, 15 a EUTS-20W 104 122268222uF lA 13005 2T: 3T: 3T Spiral EEI9, 24W, Spiral L9>42, 0.31 IS 0 EUTS-24W 10422268222uF lAI SOT, .22mH 13005 !2T: 3T: 3T

Circuit Diagram

Page 1 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 APPLICATION FOR CERTIFICATION On behalf of Everbright Lighting Ltd. Energy Saving Lamp Model No. : ETU-11W, ETU-15W, ETU-20W, ETU-24W ETUS-11W, ETUS-15W, ETUS-20W, ETUS-24W FCC ID : QJKEBETUS0207 Application No. : SUTF020701 Date of Report : July 1-15, 2002 Page 2 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 APPLICATION FOR FCC CERTIFICATION Applicant : Everbright Lighting Ltd. 13/F., Universal Industrial Centre,19-21Shan Mei Street, Fo Tan, Shatin, Hong Kong Manufacturer : City Bright Lighting (Shenzhen) Co., Ltd. Fu Cheng Ao Village, Pinghu Town, Longgang Region, Shenzhen, Guangdong, P.R China Equipment : Energy Saving Lamp Model No. : EUT-11W, EUT-15W, EUT-20W, EUT-24W EUTS-11W, EUTS-15W, EUTS-20W, EUTS-24W FCC ID. : QJKEBETUS0207 EMC Report No. : SUTF020701 Documents List : EXHIBIT 1...... ... ..................................................................... 3 Photographs........................................................................4 EXHIBIT 2...... ... ..................................................................... 7 Description of EUT................................................................8 Block Diagram.....................................................................9 Bill of Difference..................................................................10 Circuit Diagram....................................................................11 PCB Layout........................................................................ 12 EXHIBIT 3...... .......................................................................... 13 Test Report.......................................................................... 14 EXHIBIT 4...... .......................................................................... 32 Technical Manual................................................................ 33 EXHIBIT 5...... .......................................................................... 34 User’s Manual...................................................................... 35 Page 3 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 EUT Configuration Description of EUT Applicant : Everbright Lighting Ltd. 13/F., Universal Industrial Centre, 19-21 Shan Mei Street, Fo Tan, Shatin, Hong Kong Manufacturer : City Bright Lighting (Shenzhen) CO., Ltd Fu Cheng Ao Village, Pinghu Town, Longgang Region, Shenzhen, Guangdong, P.R China Product Name : Energy Saving Lamps Model No. : ETU-11W, ETU-15W, ETU-20W, ETU-24W; ETUS-11W, ETUS-15W, ETUS-20W, ETUS-24W. FCC ID : QJKEBETUS0207 EMC Report No. : SUTF020701 Page 4 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 APPLICATION FOR CERTIFICATION On Behalf of Everbright Lighting Ltd. Energy Saving Lamp Model Number : ETU-11W, ETU-15W, ETU-20W, ETU-24W ETUS-11W, ETUS-15W, ETUS-20W, ETUS-24W Prepared for : Everbright Lighting Ltd. 13/F., Universal Industrial Centre, 19-21 Shan Mei Street, Fo Tan, Shatin, Hong Kong Prepared by : Shenzhen Unitech Technology Co., Ltd. Rm.906, Daxin Building, Road Nanxin, Nanshan District, Shenzhen, Guangdong, P.R China Telephone : (0755) 26085878~9 Report No. : SUTF020701 Date of Test : July 1-15, 2002 Date of Report : July 15-20, 2002 Page 5 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 TABLE OF CONTENTS Description Page Test Report Declaration Applicant .....................................................................................................................................................2 Applicant..................................................................................................................................................3 1. GENERAL INFORMATION................................................................................ 7 1.1 Description of Device (EUT)......................................................................................................7 1.2 Test Facility ........................................................................................................................................8 1.3 Test Uncertainty ................................................................................................................................8 2. POWER LINE CONDUCTED EMISSION TEST.................................. 9 2.1 Test Equipment...............................................................................................................................9 2.2 Block Diagram of Test Setup...................................................................................................9 2.3 Power Line Conducted Emission Test Limits .................................................................9 2.4 Configuration of EUT on Test.................................................................................................9 2.5 Operating Condition of EUT.................................................................................................10 2.6 Test Procedure...............................................................................................................................10 2.7 Power Line Conducted Emission Test Results.............................................................10 3. MODIFICATION TO TEST SPECIFICATIONS ................................................................. 11 Appendix I: Power Line Conduction Emission Test Data Page 6 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 Page 7 Everbright Lighting Ltd. Energy Saving Lamp FCC ID: QJKEBETUS0207 1. GENERAL INFORMATION 1.1 Description of Device (EUT) Description :Energy Saving Lamp Model Number :ETU-11W, ETU-15W, ETU-20W, ETU-24W ETUS-11W, ETUS-15W, ETUS-20W, ETUS-24W Applicant :Everbright Lighting Ltd. 13/F., Universal Industrial Centre, 19-21 Shan Mei Street, Fo Tan,Shatin, Hong Kong Manufacturer :City Bright Lighting (Shenzhen) Co., Ltd Fuchengao Village, Pinghu Town, Longgang Region, Shenzhen, Guangd…

Text truncated - open the document above for the full version.

4. PHOTOGRAPH 4.1 Photo of Power Line Conducted Emission Test
