QJVJP-200MP3 Player

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUD ING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC RF INTERFERENCE STATEMENT Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequenc y energy and, if not installed and used in accordance with the instructions, may cause ha rmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause ha rmful interference to radio or television reception, which can be determined by turning the equipmen t off and on, the user is encouraged to try to correct the interferen ce by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation betw een the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experi enced radio/TV technician for help. WARNING Do not change or modify the product without pe rmission or authority of manufacturer. It may cause undesirable operations, permanen t damages or harmful interferences.

MCU MCU USB GDS30C6001 USB GDS30C6001 Flash Memory 32MB DSP PROM 1Mbit SRAM 8*32KB SRAM 8*32KB SRAM 8*32KB Flash Memory 32MB ADCDAC UDA 1341TS ALL VOL JAZZ CLASSIC POP ROCK MHz VOICE MUSIC REC FM LCD Driver BU9729K Sample data Sample data Decoded audio data Decoded audio data AUDIO MICFM Encoded Data Data for Decoding Encoded Data Data for Decoding Control FM Control FM Control DAC PC Program Upload Download DC/DC Converter MAX1705 POWER 1*AA 3V 3V ‰ BLOCK DIAGRAM

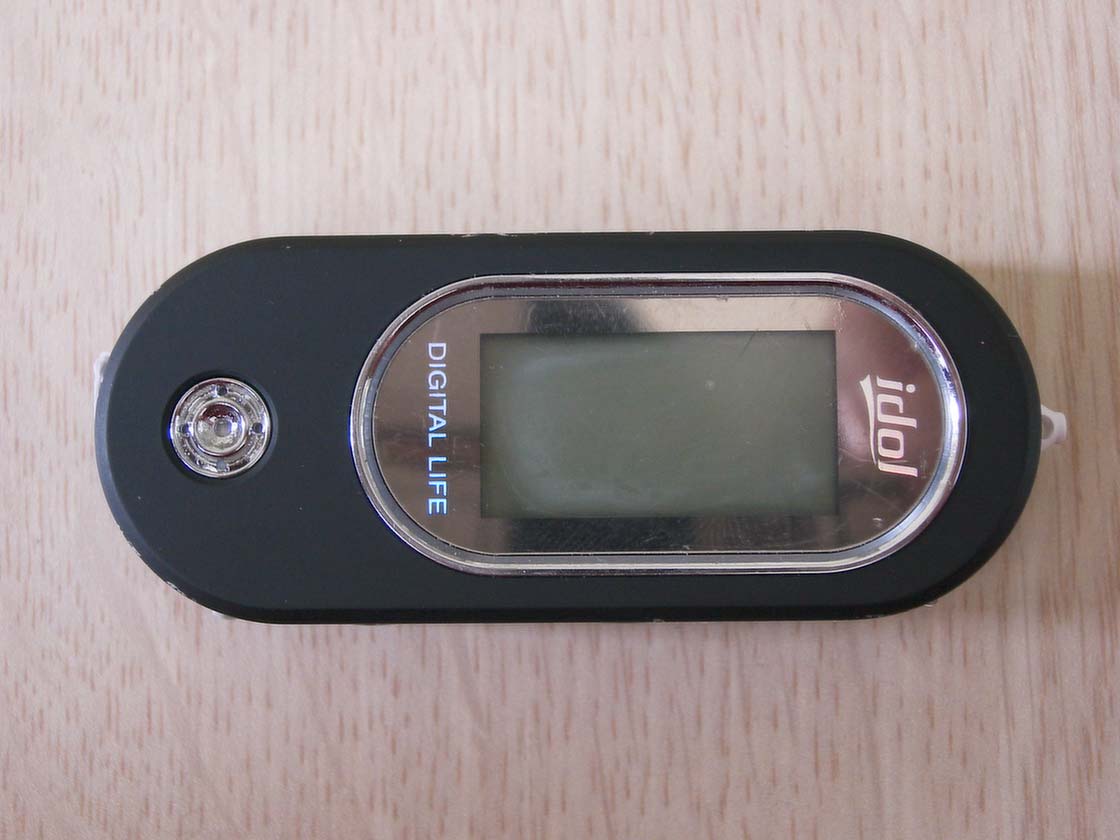

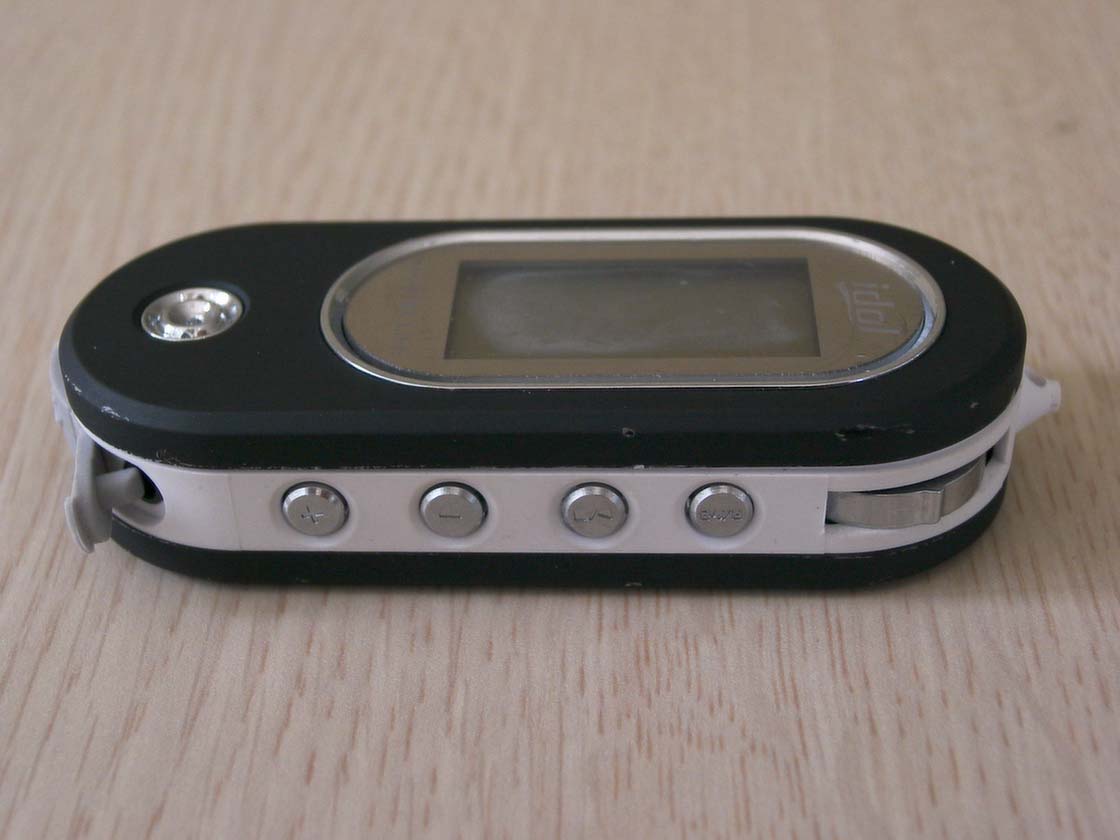

IST Co., Ltd. External Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278 IST Co., Ltd. External Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278 IST Co., Ltd. External Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278 IST Co., Ltd. External Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278 IST Co., Ltd. External Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278 IST Co., Ltd. External Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278

IST Co., Ltd. FCC ID & Label Information of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278 FCC ID : QJVJP-200

IST Co., Ltd. Internal Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278 IST Co., Ltd. Internal Photos of JP-200 EMC LABORATORY Ref . TEST REPORT NO. : 03-IST-278

IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-278 1 of 17 Certification of Compliance CFR 47 Part 15 Subpart B / PC peripherals Test Report File No. 03-IST-278 Date of Issue Nov. 7, 2003 Model JP-200 Kind of Product MP3 Player Applicant Arthur Technology Co., Ltd. Address Rm402, KCS Bldg., 228-13, Yongdap_dong, Seongdong-Ku, Seoul, Korea Manufacturer Arthur Technology Address Rm402, KCS Bldg., 228-13, Yongdap_dong, Seongdong-Ku, Seoul, Korea Test Result (*)Positive ( ) Negative Reviewed By Approved By J.H. Lee / General Manager of EMCG. Chung / Chief - Investigations requested : Measurement to the relevant clauses of F.C.C rules and regulations Part 15 Subpart B – PC Peripherals - The test report with appendix consists of 17 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 1992. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-278 2 of 17 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental condition, Power used 3 Description of test Conducted Emission 4 Radiated Emission 5 Summary 6 Test conditions and data Conducted emissions 0.15 MHz – 30 MHz Applicable Test equipment 7 Data and plots 8-10 Radiated emissions 30 MHz – 1 GHz Applicable Test equipment 11 Data 12-13 Appendix A. The DUT Photos 14-15 B. The Test Setup Photos 16-17 IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-278 3 of 17 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (Yongin Lab., Filed to FCC) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 EMC LABORATORY of IST Co., Ltd. (Yangji Lab., Filed to FCC) 80, Jeil-RI, Yangji-Myun, Yongin-City Kyonggi-Do, 449-825, Korea TEL : +82 31 323 3012 FAX : +82 31 323 3014 ENVIRONMENTAL CONDITIONS Temperature 21 °C Humidity 48 % Atmospheric pressure 1003 mbar POWER SUPPLY SYSTEM USED Power supply system 120Vac 60Hz Product Information Memory Capacity Internal 64MB/128MB(Tested)/256MB/512MB Voltage 1.5V DC Battery AAA(General) LCD LCD Numerals(4 Line 128x64 Full Dot Matrix) EL Back Lighting Dimension/Weight 30 x 73 x 15 mm / 35g (excluding battery) Case ABS File Transfer Rate 4.8Mbps Voice Recording MPEG I,III Layer-3, VAD,TVF,SYNC,SILENCE,BR Noise 90dB Earphone Output 10nW Find product information in User’s manual. IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-278 4 of 17 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within an bandwidth of 10KHz or for "quasi-peak" within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located in a shielded room. The wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The LISNs are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the powered LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cutting power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the appropriate LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was re-measured using Quasi-Peak detector and average detector by manual measurement or final measurement program of R&S, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. 215 >150 >40 80 Receiver DUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Front side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 IST Co., Ltd. EMC LABORATORY TEST REPORT NO. : 03-IST-278 5 of 17 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turn-table azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30MHz to 230MHz using bi-conical antenna and 230 to 1000MHz using log-periodic antenna. Above 1GHz, linearly polarized double ridge horn antennas were used. Final measurements were made at open site with 3 or 10 meters test distance using Bi-log antenna, Bi- conical antenna, Log-periodic antenna or horn antenna. The OATS have…
