QKGRDX-U1UHF mobile transceiver

OPERATION The RDX series RF modules are designed for integration into various radio systems products. The module has no user controls as such and is designed for use in applications such as low power control stations and mobile relay /mobile repeater stations, where other 3rd party circuitry will provide for user interface and controls. The modules are based on Motorola ASTRO XTS3000 series poratble radios. The modules interface connector provides standard input/output audio interfaces, logic indication of squelch conditions, and logic level selection of the pre-programmed channels/personality modes, in addition to serial bus control. Various parameters including RF Power is programmable via a Motorola XTS3000 Radios Service Software (RSS) from 1-3Watts on 800MHz models, 1-4watts on UHF modules and 1-5 watts on VHF models. NOTE: RF Power output MUST be set so as to not exceed the permissable FCC regulatory level prior to the units deployment. The module is designed to connect to a unity gain 1/4 wave antenna. Other antennas may only be used providing they ensure the installation continues to comply with FCC licensing requirements. DC POWER: The RDX series modules are designed for operation from a nominal 7.5VDC source. The unit will operate within specification over a voltage range from 6.0 to 8.4Volts DC. Current consumption for the module is 120mA on standby. Installation: The RDX modules must be installed using best RF engineering practice. The units are shielded to minimize RF interference from other co-located transceivers but attention should be made to frequency planning to ensureunwanted interfernce, intermodulation or Receiver desensitization occurs. There small compact size, low current consumption make them ideal for incorporation into emergency battery powered portable repeaters, temporary remote rf Control station and other relation mobile applications. Product of New Zealand /Motorola XTS3000 radios Made in USA ASTRO & XTS3000 are trademarks of Motorola Inc. RDX Series RF Module User Guide SECURE / ENCRYPTION OPERATION ( Optional) RDX RF modules may optionally fitted with Motorola ASTRO XTS3000 encryption modules. Encrypted mode should be slaved to the 16 programmable modes. Only one encryption key is available. Keys can be entered using a standard Motorola Key Loader and an appriate interface cable . General Safety. NEVER hold the antenna when theRF Module is “IN USE”. Keep all parts of the body at least 8inches ( 20cm) from Antenna whip. ELECTROMAGNETIC INTERFERENCE Most electronic devices are susceptible to electromagnetic interference (EMI). To avoid electromagnetic interference and/or compatibility conflicts, turn off the X-Ponder anywhere posted notices instruct you to do so. The Health Industry Manufacturers Association recommends that a minimum separation of 6 inches (15 centimeters) be maintained between a wireless radio and a pacemaker. Turn the unit OFF immediately if you feel that interference is taking place. Digital radios may interfere with some types of hearing aids. If such interference occurs, you may want to consult ithe aids manufacturer. EXPLOSIVE ATMOSPHERES Do not operate the X-Ponder in any area with a potentially explosive atmosphere. Areas such as fueling areas, chemical handling facilities, or areas where the air contains chemicals or particles, such as grain dust or metal powders. NEVER charge,remove or install batteries as sparks in such a potentially explosive atmosphere can cause an explosion or fire resulting in injury or death. To avoid possible interference with blasting operations, do not operate the module near electrical blasting caps, in a blasting area, or in areas posted: “Turn off two-way radio.” Always obey all signs and instructions. ELECTROMAGNETIC ENERGY (EME) The Motorola XTS3000 radios inside are designed to comply with the following international standards and guidelines regarding exposure of humans to electromagnetic energy (EME): • USA Federal Communications Commission, Regulations; 47 CFR part 2 sub-part J • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-199 Edition • USA National Council on Radiation Protection and Measurements, Report 86, 1986 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Wireless Pacific Wireless Pacific

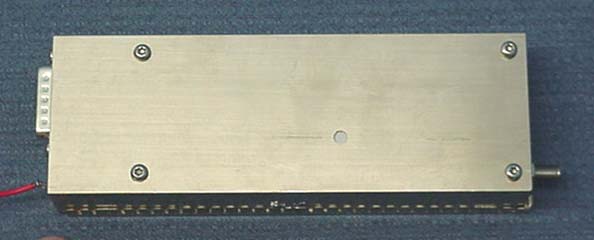

EMC Technologies (NZ) Ltd External Photos

EMC Technologies (NZ) Ltd External photo of interface unit

EMC Technologies (NZ) Ltd FCC Label location details

EMC Technologies (NZ) Ltd FCC Label location details

EMC Technologies (NZ) Ltd Internal photos of the transmitter

EMC Technologies (NZ) Ltd Internal photos of interface box

OVERVIEW OF RADIO OPERATION The RDX series RF modules are designed for integration into various radio systems products. The module has no user controls as such and is designed for use in applications such as low power control stations and mobile relay /mobile repeater stations. The modules interface connector provides standard input/output audio interfaces, logic indication of squelch conditions, and logic level selection of the pre-programmed channels/personality modes, in addition to serial bus control. All frequency, deviation, squelch and power settings are pre- programmed into the unit by use of a standard Motorola XTS3000 series Radio Service Software (RSS) run on a PC together with a Radio Interface Box (RIB) and associated programming cables.

Digital XTS 3000 Portable Radios Basic Service Manual Motorola8000 West Sunrise BoulevardFort Lauderdale, Florida 33322 68P81083C85-O TM TM *6881083C85* Foreword This manual covers all models of ASTRO™ Digital XTS 3000™ portable radios, unless otherwise specified. It includes all the information necessary to maintain peak product performance and maximum working-time using the pass/fail service approach. This basic level of service is typical of some local service centers, self-maintained customers, and some distributors. Included in this manual are: radio specifications for the 800MHz frequency band; a general description of ASTRO Digital XTS 3000 models; recommended test equipment, service aids, and tools; radio alignment procedures; fundamental disassembly/ reassembly procedures; and general maintenance recommendations. For details on the operation of the radio, or board- or component-level troubleshooting, refer to the applicable manuals available separately. To help you with your selection, a list is provided in this manual, titled “Related Publications.” Safety Information In 1991 the Institute of Electrical and Electronics Engineers (IEEE), and in 1992 the American National Standards Institute (ANSI), updated the 1982 ANSI Standard for safety levels with respect to human exposure to RF energy. Over 120 scientists, engineers, and physicians from universities, government health agencies, and industry, after reviewing the available body of research, developed this updated Standard. In March, 1993, the Federal Communications Commission (FCC) proposed the adoption of this updated Standard. Motorola subscribes to the same safety standard for the use of its products. Proper operation of this radio will result in user exposure substantially below FCC recommended limits: • DO NOT hold the radio with the antenna very close to, or touching, exposed parts of the body, especially the face, ears, or eyes, while transmitting. Hold the radio in a vertical position with the microphone two to three inches away from the lips. • DO NOT hold the transmit switch (PTT) on when not actually desiring to transmit. • DO NOT allow children to play with any radio equipment containing a transmitter. • DO NOT operate this equipment near electrical blasting caps or in an explosive atmosphere. Under certain conditions, radios can interfere with blasting operations. When you are in the vicinity of construction work, look for, and observe, signs cautioning against radio transmissions. If radio transmission is prohibited, you must not transmit until out of the area. Furthermore, you must turn off your radio to prevent any accidental transmission. • DO NOT replace or charge batteries in a hazardous atmosphere. Contact sparking may occur while installing or removing batteries and cause an explosion. • Turn the radio off when removing or installing a battery. Anyone intending to use a radio in a hazardous area is advised to become familiar with the subject of intrinsic safety and with Section 70 of the National Fire Code, which is commonly referred to as Article 500 of the National Electric Code. Use of anything but factory supplied components may affect the approval and safety of the radio. Likewise, it is advised that servicing should be performed only by qualified personnel who adhere to the following Factory Mutual (FM) required warning: Modification of FM approved intrinsically safe radios will negate Factory Mutual Research Corporation (FMRC) approval. Airbag Warning Statement VEHICLES EQUIPPED WITH AIR BAGS An air bag inflates with great force. DO NOT place objects, including communication equipment, in the area over the air bag or in the air bag deployment area. If the communication equipment is improperly installed and the air bag inflates, this could cause serious injury. • Installation of vehicle communication equipment should be performed by a professional installer/technician qualified in the requirements for such installations. An air bag’s size, shape and deployment area can vary by vehicle make, model and front compartment configuration (for example, bench seat vs. bucket seats). • Contact the vehicle manufacturer’s corporate headquarters, if necessary, for specific air bag information for the vehicle make, model and front compartment configuration involved in your communication equipment installation. Manual Revisions Changes which occur after this manual is printed are described in “FMRs.” These FMRs provide complete information on changes including pertinent parts listing data. ! W A R N I N G ! ! W A R N I N G ! i Table of Contents Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . inside front cover List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii Portable Radio Model Numbering System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii SPECIFICATIONS FOR 800MHz RADIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v 1 - Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Notations Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

™ Digital XTS 3000™ and XTS 3000 R™ Portable Radios Detailed Service Manual Foreword The information contained in this manual relates to all ASTRO Digital XTS 3000™ portable radios, unless otherwise specified. This manual provides sufficient information to enable service shop personnel to troubleshoot and repair an ASTRO Digital XTS 3000 portable radio to the component level. Safety Information Before operating an ASTRO Digital XTS 3000 radio, please read the “Safety” section in the front of this manual. Manual Revisions Changes which occur after this manual is printed are described in “FMRs.” These FMRs provide complete information on changes, including pertinent parts list data. Computer Software Copyrights The Motorola products described in this manual may include copyrighted Motorola computer programs stored in semiconductor memories or other media. Laws in the United States and other countries pre- serve for Motorola certain exclusive rights for copyrighted computer programs, including the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copy- righted Motorola computer programs contained in the Motorola products described in this manual may not be copied or reproduced in any manner without the express written permission of Motorola. Fur- thermore, the purchase of Motorola products shall not be deemed to grant either directly or by implica- tion, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive royalty free license to use that arises by operation of law in the sale of a product. i Table of Contents Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . inside front cover List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv List of Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv List of Schematics and Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi Portable Radio Model Numbering System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii ASTRO Digital XTS 3000 Model Chart (“A” Models). . . . . . . . . . . . . . . . . . . . . . . . . . . . xiv ASTRO Digital XTS 3000 Model Chart (”B” Models). . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv ASTRO Digital XTS 3000 R (Ruggedized) Model Chart. . . . . . . . . . . . . . . . . . . . . . . . . . xvi ASTRO Digital XTS 3000 R (Ruggedized) Yellow Model Chart . . . . . . . . . . . . . . . . . . xvii Model History Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi 1 - Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1 Notations Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2 2 - General Overview of an ASTRO Digital XTS 3000 Radio . . . . . . . . . . . . . . . . . . . . . 2-1 Analog Mode of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 ASTRO Mode (Digital Mode) of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 Transceiver Board Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 Controller Board Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 Vocoder Board Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6 3 - Radio Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Introduction to This Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 B+ Routing for VHF/UHF Transceiver Boards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 B+ Routing for 800MHz Transceiver Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3 B+ and +5V Routing for Controller and Vocoder Boards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4 4 - VHF/UHF Transceiver Board Detailed Theory of Operation . . . . . . . . . . . . . . . . . . 4-1 Introduction to This Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1 Frequency Generation Unit (FGU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1 Antenna Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3 ® 1997, 1998, 2001 by Motorola Inc., Radio Products Group…

Text truncated - open the document above for the full version.

6-1 Vocoder and Controller Boards Detailed Theory of Operation 6 Introduction to This Section This section of the manual provides a detailed circuit description of the ASTRO Digital XTS 3000 vocoder and controller boards. When reading the theory of operation, refer to your appropriate schematic and component location diagrams located in the back section of this manual. This detailed theory of operation will help isolate the problem to a particular component. General The controller board is the central interface among the various subsystems of the radio. It is very similar to the digital logic portion of the controllers on many existing Motorola radios. Its main task is to interpret user input, provide user feedback, and schedule events in the radio operation, and includes programming ICs, steering the activities of the DSP, and driving the display. The vocoder board performs the functions which were previously performed by analog circuitry. This includes all tone signaling, trunking signalling, conventional analog voice, etc. All analog signal processing is done digitally utilizing a DSP56001. In addition, the vocoder board provides a digital voice-plus-data capability, utilizing VSELP or IMBE voice compression algorithms. Vocoder is a general term used to refer to these DSP based systems and is short for voice encoder. The vocoder and controller boards are connected through a 50-pin compression connector; they provide interconnection among the microcontrol unit (MCU), the DSP, and (on secure-equipped radios) the encryption board. Vocoder Board Refer to Figure 6 and the appropriate schematic diagram. The vocoder board consists of a digital signal processor (DSP — U405), 32k x24 static-RAM (SRAMs — U401, U402, and U403), a 256kB FLASH ROM (U404), and an ABACUS/DSP support IC (ADSIC — U406). The FLASH ROM (U404) contains the program code executed by the DSP. As with the FLASH ROM used on the controller board, the FLASH ROM is reprogrammable, so new features and algorithms can be updated in the field as they become available. Depending on the mode and operation of the DSP, corresponding program code is moved from the FLASH ROM into the faster SRAM, where it is executed at full bus rate. 6-2 The ADSIC (U406) is basically a support IC for the DSP. It provides, among other things, the interface from the digital world of the DSP to the analog world. The ADSIC also provides interrupt control for the DSP processing algorithms and some memory management. The configuration programming of the ADSIC is performed by the MCU. However, some components of the ADSIC are controlled through a parallel memory mapped register bank by the DSP. In the receive mode, The ADSIC (U406) acts as an interface with the ABACUS IC, which can provide IF data samples directly to the DSP for processing. Or, the IF data can be filtered and discriminated by the ADSIC and data provided to the DSP as raw discriminator sample data. The latter mode, with the ADSIC performing the IF filtering and discrimination, is the typical mode of operation. SSI SERIAL EXTALMODBMODA HC11/DSP Interface D0-D23 BUS CONTROL A0-A15 U405 DSP56001 SCI SERIAL Encryption Interface To Secure Board To Controller Board Host Port System Clock Gata Array Logic ABACUS Rx Interface Tx D/A MAI SDO General Purpose I/O Speaker D/A Microphone A/D Serial Config. U406 ADSIC ABACUS Interface To/From Controller Board Modulation Out U403 32Kx8 SRAM U404 256Kx8 FLASH U402 32Kx8 SRAM U401 32Kx8 SRAM HC11 SPI Bus MAEPF-25999-O Figure 6 Vocoder Board 6-3 The DSP sends the processed signal back to the ADSIC for D/A conversion. The result is then sent to the audio PA for the speaker output. In the transmit mode, the ADSIC (U406) provides a serial digital-to- analog (D/A) converter. The data generated by the DSP is filtered and reconstructed as an analog signal, and sent to the VCO as a modulation signal. Both the transmit and receive data paths between the DSP and ADSIC are through the DSP SSI port. The amplified microphone signal is provided to the ADSIC, which incorporates an analog-to-digital (A/D) converter to translate the analog waveform to a series of data. The data is available to the DSP through the ADSIC parallel registers. In the converse way, the DSP writes speaker data samples to a D/A in the ADSIC, which provides an analog speaker audio signal to the audio PA. Controller Board Refer to Figure 7 and the appropriate schematic diagram The controller board consists almost entirely of digital logic comprising a microcontrol unit (MCU — U701), a custom support logic IC (SLIC — U702), and memory consisting of: SRAM (U705), EEPROM (U706), and FLASH memory (U727). The board also contains the audio PA (U718) and its associated circuitry. The MCU’s (U701) memory system is composed of a 32k x 8 SRAM (U705), a 32k x 8 EEPROM (U706), and 1M x 8 FLASH ROM (U727). The MCU also contains 1024 bytes of internal SRAM and 512 bytes of internal EEPROM. The EEPROM memory is used to store customer U727 1Mx8 FLASH U705 32Kx8 SRAM U706 32Kx8 EEPROM Address/Data/ Control Resets Clocks Controls Chip Selects/ Bank Control General Purpose I/O RS232 (to vocoder) U702 SLIC IV SPI SCI A/D Address/Data/ Control Clocks General Purpose I/O 512 Bytes EEPROM 1024 Bytes SRAM U701 MC68HC11F1 HC11/DSP Interface Universal Connector Keypad, PTT, Freq. Knob, Option Selects Universal Connector Transceiver/Display MAEPF-25998-O To ADSIC (vocoder) Volume Pot, Toggle and Secure Switches, and Buttons (RATT, Monitor, Emergency) Figure 7 Controller Board 6-4 specific information and radio personality features. The FLASH ROM contains the programs which the HC11F1 executes. The FLASH ROM allows the controller firmware to be reprogrammed for future software upgrades or feature enhancements. The SRAM is used for scratchpad memory during program execution. The SLIC (U702) performs many functions as a companion IC for the MCU. Among these are expanded input/output (I/O), memory decoding and management, and interrupt…

Text truncated - open the document above for the full version.

13-1 Interconnect Diagram, Schematics with Parts Lists, Circuit Board Details,Exploded Views with Parts Lists 13 13-2 Radio Interconnect Block Diagram ANTENNA SWITCH UNIVERSAL CONNECTOR EXTERNAL ANTENNA RX/TX SWITCH RX FIRST PRESELECTOR RF AMP SECOND PRESELECTOR MIXER IF AMP INJECTION FILTER VCO/ BUFFER 2-POLE CRYSTAL FILTER 2-POLE CRYSTAL FILTER DIGITAL BACKEND CIRCUIT MODULE RX 1ST IF RF POWER AMP TX TX DIRECTIONAL COUPLER/ DETECTOR TX TX CONTROL CIRCUIT MODULE SECOND LOCAL OSCILLATOR SYNTHESIZER/ PRESCALER REFERENCE OSCILLATOR 16.8MHz D/A CIRCUIT MODULE DC CONTROL 2.1MHz TRANSCEIVER BOARD VCO FEEDBACK PROGRAMMABLE BUS CONTROL DSP SUPPORT CIRCUIT MODULE DIGITAL SIGNAL PROCESSOR (DSP) RAM ROM ENCRYPTION BOARD (OPTIONAL) MICROCONTROL UNIT (MCU) AND SUPPORT LOGIC IC (SLIC) RAM ROM EEPROM AUDIO PA VOCODER BOARD CONTROLLER BOARD MAEPF-26012-O CONTROLS/UNIVERSAL FLEX ASSEMBLY LED’s, ON/OFF VOLUME, FREQUENCY KNOBS, TOGGLE SWITCH, PTT, PROGRAMMABLE SWITCHES AND BUTTONS, SPEAKER, AND MICROPHONE CONTROL 50-PIN COMPRESSION CONNECTOR DISPLAY FLEX KEYPAD FLEX UNIVERSAL CONNECTOR P107P301 J101 DISPLAY KEYPAD TX RX 16.8MHz DC CONTROL (VHF AND UHF ONLY) DC CONTROL (VHF AND UHF ONLY) VCO CONTROL 20-PIN COMPRESSION CONNECTOR P201 J601 J401 P401 J1 13-3 NLD8898B/C/D VHF RF Board Schematic Diagram, Sheet 1 of 3 0.1uF 0.1uF 0.1uF BAT_STATUS BAT_STATUS GROUNDGROUND GROUND GROUND GROUND SPI_CLOCK SPI_DATA SPI_DATA RESET LOCK_DETECT DA_CE REG_5V IF_FREQ 330pF C315 SW_B+ TX_OUT RAW_1_B+ .01uFC84 C502 330pF C501330pF R4 10K R111 ANODE1 ANODE2 C4 5.6K GND D3 INT_CAP2 C3 62U72 U101 E4 TEMP_SEN B1 TX_5V C2 B3 B+ BIAS_EN B2 BIAS_RT C5 CATH_1 D4 CATH_2 A4 C_BIAS D2 4.7K IN_CAP1 E2 PA_BIAS A3 REF_V C1 RF_DET E3 RX_5V A2 RX_I B4 100 TX_I1 D5 TX_I2 B5 V_CTRL D1 10K R102 R7 R101 Q111 D1 2 C86 6.2pF C15 .01uF 33pFC99 R10 47K 3 1 330pF C146 TP12 2 3 1 10K FMW1Q108 5 3 1 VR1 20V 4 U002 29V26 10 BBP R103 7 GND1 9 GND2 11 VCC 2 GND 4 IFN 6 IFP 8 LOIN 2 14 GND4 16 GND5 NC 5 NC1 13 1 RFN 15 RFP 12 BDIV C31.01uF J3-1 3 GND3 33.47nH L127 16 42.90nHL126 C141uF 21.95nH L11 J1-16 L128 0 R9 59.71nH R125 24pFC150 1uH 470 17 100K L122 C14924pF J1-17 47nHL30 R128 47 1uH C1610.1uF C152330pF L121 Q110 1 23 51 R126 C310 330pF BUSS_12 0.1uFC118 Q1 C154330pF 01J69 U104 FWD_PWR 1 FWD_TRM 6 7 GND GND 16 8 GND 9 GND 10 GND GND 11 GND 12 GND 13 GND 14 GND 15 5 PWR_IN 2 PWR_OUTREV_PWR 4 REV_TRM 3 CR9 330pFC503 330pFC113 CR6 R113 330pFC504 BUSS_15 10K BUSS_19 1uFC112 12 3 4 5 BUSS_18 T1 BUSS_13 C148 1pF CR109 BUSS_17 E3 5V D2 ANT_EN E2 BIAS_ENCE C3D4 CLK B3 GND D1 NC B2 REF_DA D3 RESET C1 RX_DA B1 R_T U102 62U70 C4 SC3 D5 SC4 A3 SW1 B5 SW2 A4 SW_C C2 TX_DA E4 DAT A2 GND B4 SC1 C5 SC2 CR3 L14 43.67nH BUSS_11 1.5K R106 182K R2 5.1 150 330pFC98 R115 R8 ERROR 5 7 FEEDBACK J3-3 C7 6.2pF U106 LP2951CM 5V_TAP 6 4 GND 8 INPUT 1 OUTPUT 2 SENSE 3 SHUTDOWN R1 C147 330pF 5.1 CR108 C140330pF Q107 FMC2A 10pFC6 4 .01uFC13 330pFC141 L8 5 21 3 CR103 1 3 2 C115 1uH Q101 1 3 2 C88 2.2K CR102 R110 10pF C107330pF C1043.3uF J1-13 13 L1021uH 130K R116 1uHL130 C8510uF L12 47nH L3 CR2 470nH 47K 10pFC130 1pF C129 F1 R117 8.2pFC151 C11 .01uF BUSS_16 13pF C97 R11 CR8 R3 22K 470 L1621.95nH C301 CR1 SHW5071 U105 5 B+ 2 BIAS 4 BIAS1 4.7uF RF_IN 1 RF_OUT 6 VCNTR 3 0.1uFC77 20 16pFC8 RT101 330pF 50k J1-20 100pFC164 330pF C111 C133 10uFC103 C1010.1uF C132 330pF .01uFC82 C163100pF L5 47nH C1263.3uF J1-10 330pFC108 C8716pF J1-7 7 10 C135 1uHL101 J1-19 330pF 19 1uFC109 VR3 20V 2 3 1 E101 CR7 J1-5 5 T2 1 2 3 4 5 33pFC80 10K R5 J1-6 6 43.67nHL13 330pFC4 C83.01uF CR4 C123 J3-2 TP11 330pFC505 2341 J2 10uFC106 TP10 C12330pF 330pF BUSS_14 1uHL105 R127 C102 51 0.1uFC510 C153 J1-15 15 330pFC105 C121330pF 39nH L4 R114 15K 1.2pFC116 OMIT OMIT 63B81086C67-O 13-4 NLD8898B/C/D VHF RF Board Schematic Diagram, Sheet 2 of 3 REF_OSC_EN REF_OSC_EN MOD_OUT MOD_OUT LOCK_DETECT RX_INJ TX_OUTRESET RESET MOD_IN REF_2.1MHz MOD_IN SYNTH_CE SYNTH_CE SWB+ SPI_CLOCK SPI_CLOCK SPI_DATA SPI_DATA LOCK_DETECT LOCK_DETECT VEE VEE VEE REG_5V REG_5V SW_B+ SW_B+ R222 510 V_CTRL V_CTRL SUPER_FILTER_VOLTAGE SUPER_FILTER_VOLTAGE SUPER_FILTER_VOLTAGE R210 1K C292.022uF R209 BUSS_21 BUSS_20 510 U203 EN_CE 23 C_EXT 7 DCWARP 27 F_OUT 10 NC1 1 NC10 18 NC11 19 NC12 20 NC13 14 NC16 30 NC17 31 NC18 32 NC2 2 NC3 3 NC4 4 DE 9 DET 8 NC7 15 NC8 16 NC9 17 SCK 22 SI 25 SO 21 NC14 28 NC15 29 VDD 13 V_OPT 12 V_REG 11 GND 26 NC5 5 NC6 6 .01uF SS 24 3pFC214 C274 C22662pF 22 R203 L222 20K 390nH 10uF C231 R206 10pFC219 330pF C204 CR208 R118 100K C289 L20133nH R219 22 330pF R223 47K BUSS_5 L2041uH10pFC202 CR205 A1 4 A2 5 K1 3 K2 2 K3 1 R218 100K TP7 A3 6 62U78 U201 5VI 6 B2 11 C 9 E2 12 GND 1 NC 8 PS 16 RBY 15 RX 2 S1 7 S2 14 TRB 5 TX 4 VC 10 VSF 3 GND 13 5.6pF C222 C2251.6pF 2pFC207 10pFC236 C2086.2pF R200 0 56nHL211 L2181uH .022uFC246 R212 4.7pFC287 D S 620 TP8 Q201 .022uFC303 .220uF C259 C2035.1pF 3.6K TP5 .001uFC245 R208 0.1uFC209 CR204 A1 4 A2 5 A3 6 K1 3 K2 2 K3 1 1uHL217 C270 .001uF CR206 1 3 2 C2135.6pF C316 330pFC304 22nH .220uFC238 330pFC252 .0047uF L219 C220 C206620pF 330pFC309 C233330pF 16pF .01uF 3.3uFC302 C266 330pFC221 C228330pF C2480.1uF 39K 1uHL209 330pFC242 R214 L225 .039uF C255.001uF C286330pF C251330pF 2200nH C260 C2234-5pF 330pF C211 1uHL213 18 LP2951CM U202 6 5V_TAP 5 ERROR FEEDBACK 7 GND 4 INPUT 81 OUTPUT SENSE 2 SHUTDOWN 3 J1-18 27nH 330pFC277 R207 20K 20K L210 CR202 AUX2 39 AUX3 40 AUX4 R204 VEE1 11 VCC1 25 VCC2 25U31 U204 35 ADAPTSW 37 AUX1 38 GND4 34 IADAPT 32 IOUT 4 CE 3 CLK 29 CPBIAS1 28 CPBIAS2 2 DATA 23 43 NC3 4421 PREIN 42 VCC3 10 FREFOUT 1 GND1 13 GND2 22 GND3 33 TST1 27 TST2 12 A/D BYPASS 41 LOCK 5 MODIN 30 MODOUT NC 16 NC1 31 NC2 14 XTAL1 15 XTAL2 24 PVREFSUPFBASE 18 SUPFCAP 1720 SUPFIN SUPFOUT 1926 36 VEE2 9 VMULT1 8 VMULT2 7 VMULT3 6 VMULT4 C291.022uF C2053pF C244.022uF 330pF C227 .022uF C285 15pF 10pF C237 8 C235 R220 2K J1-8 30K R215 CR203 CR207 1uF C212330pF C250.001uF J1-9 C247 9 L216 4.7uFC271 62 R211 R205 BUSS_3 39nH 30K CR201 C280100pF 30pFC243 2K R221 L20533nH J1-14 14 L208 4.7pFC230 C239330pF 1uH…

Text truncated - open the document above for the full version.

13-25 NLE4250B, NLE4250E UHF Range 2 RF Board Schematic Diagram, Sheet 2 of 3 REF_2.1MHz 0.22uF 0.47uF SW_B+ LOCK_DETECT LOCK_DETECT LOCK_DETECT SUPER_FILTER_VOLTAGE SUPER_FILTER_VOLTAGE SUPER_FILTER_VOLTAGE RESET_1 MOD_OUT MOD_OUT REG_5V REG_5V RESET REF_OSC_EN REF_OSC_EN RX_INJTX_OUT V_CTRL V_CTRL CLOCK CLOCK DATA DATA SYNTH_CE SYNTH_CE …
