QKL8500Radar Detector

DISCREETULTIMATEPERFORMANCE RADAR • LASER • SAFETY • DETECTOR Owner’s Manual Congratulations The Passport 8500 is the most advanced radar, laser and safety detector available. The Passport 8500 includes full X, K, SuperWide Ka, and Safety Warning System radar capability, front and rear laser detec- tion, digital signal processing (DSP) for superior range and reduced false alarms, our patented Mute and AutoMute, audible and visual band alerts, and all the performance you'd expect from Escort. In addition, the Passport 8500 intro- duces a new level of revolutionary perfor- mance and innovative features. • Breakthrough long-range radar and laser detection circuitry • Advanced EZ-Programming lets you customize 9 features • AutoSensitivity mode, plus Highway and City settings • Ultra-bright alphanumeric Display with 280 LEDs • ExpertMeter tracks and displays up to 8 radar signals simultaneously • New SpecDisplay provides actual numeric radar frequency • New Programmable Bands (on/off) • Detects Safety Warning System signals • Includes coiled SmartCord If you’ve used a radar detector before, a review of the Quick Reference Guide on pages 4 and 5, and the EZ-Programming information on pages 12 and 13 will briefly explain the new features. If this is your first detector, please read the manual in detail to get the most out of your Passport’s outstanding performance and innovative features. Please drive safely. Quick Reference Card 1 EZ-Programming Details
Factory Default Settings To reset Passport to its original factory settings, press and hold the “CITY,” “DIM,” and “MUTE” buttons while turning the power on. Passport’s display will provide a “Reset” message, accompanied by an audible alert, acknowledging the reset. Passport 8500Quick Reference Card Remove card along perforations   Remove card along perforations  There are 9 user-selectable options so you can customize your Passport 8500 for your own preferences. The buttons labeled CITY and DIM are also used to enter the Program Mode, REVIEW your current program settings, and to CHANGE any settings as desired. The words PROGRAM, REVIEW, and CHANGE are located on the top of the detector, and are highlighted in blue graphics. How to use EZ-Programming 1To enter Program Mode, press and hold both top buttons down for 2 seconds.(The unit will beep twice, and will display the word “Program”). 2Then press the REVIEW button to review the current settings. (You can either tap the button to change from item to item, or hold the button to scroll through the items). 3Press the CHANGE button to change any setting.(You can either tap the button to change from setting to setting, or hold the button to scroll through all the options). 4To leave Program Mode, simply wait 8 seconds without pressing any button. (The unit will display Complete, beep 4 times, and return to normal operation). An example For example, here is how you would turn Passport’s AutoMute feature off. 1Enter the Program Mode by holding both the city and dim buttons down for 2 seconds. Passport will beep twice and display Program. 2Then hold the REVIEW button down. Passport will scroll through the categories, starting with Pilot Light (Pilot), then Power-on sequence (PwrOn), then Signal strength meter (Meter), and then AutoMute (aMute). 3Release the REVIEW button when Passport shows the AutoMute item. Since the factory setting is for AutoMute to be on, Passport will display aMute ON. (If you accidentally don't release the Review button in time, and Passport goes to the next category, hold the Review button down again, and after Passport scrolls through all categories, it will begin again at the top of the list.) 4Press the CHANGE button to change from aMute ONto aMute OFF. 5To complete the Programming, simply wait 8 seconds without pressing any button. Passport will display Complete, beep 4 times, and return to normal operation. 2 Quick Reference Card Passport 8500Quick Reference Card *Factory Default Settings
Remove card along perforations

Remove card along perforations
Press the REVIEWbutton to go from one category to the next PILOT LIGHT (Power-on indication) POWER-ON SEQUENCE SIGNAL STRENGTH METER AUTOMUTE AUDIOTONES CITY MODE SENSITIVITY BRIGHTNESS DARK MODE BANDS Pilot HWY Pilot H Pilot H.> Pilot + Pilot +.> Pilot +> Pilot V PwrOn STD PwrOn FST Meter STD Meter EXP Meter SPC aMute ON aMute OFF Tone STD Tone LOUD City STD City LoX City NoX Brt LAST Brt MIN Brt MED Brt MAX Brt DARK DARK LAST DARK LAST Bands ALL Bands MOD X ON orOFF K ON orOFF Ka ON orOFF LSR ON orOFF SWS ON orOFF Press the CHANGE button to change your setting within a category *Full word: Highway or Auto or City Letter: H or A or C Letter, with scanning dot Symbol: + or • or -- Letter, with scanning dot Scanning symbol Vehicle voltage *Standard power-on sequence Fast power-on sequence *Standard signal strength meter Expert Meter SpecDisplay *AutoMute on AutoMute off *Standard tones Loud tones *Standard City mode sensitivity Low X band sensitivity in City Mode No X band sensitivity in City Mode *Last brightness used Minimum brightness when turned on Medium brightness when turned on Maximum brightness when turned on Dark Mode when Passport turned on *Standard Dark: shows HD, AD, CD All Dark, no display *All bands enabled One or more bands are disabled Turn bands “ON” or “OFF” by pressing the mute button Table of Contents Quick Reference Guide4-5 Installation6-7 • Power Connection6 • Mounting Location6 • Windshield Mount7 Controls and Features8-11 • Power and volume control8 • Power-on indication8 • AutoMute8 • Mute8 • Auto / Highway / City Switch8 • Dim / Dark Switch9 • Dark Mode9 • Audible Alerts9 • Signal Strength Meter10 • ExpertMeter10 -11 • SpecDisplay11 EZ-Programming12-16 • How to use EZ-Programming12 • Example of Programming12 • Overview of Programming13 • Details of Programming14-16 Technical Details17-23 • Specifications17 • Interpreting Alerts18 -19 • How Radar Works20 • How Laser Works21 • How Safety…

Text truncated - open the document above for the full version.

Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. Printed in Canada153003-00 11263_FCC card insert 8/28/02 5:06 PM Page 1 11263_FCC card insert 8/28/02 5:06 PM Page 2

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: 978.486.8880 Fax: 978.486.8828 Web: www.curtis-straus.com Worldwide Regulatory Approvals Experts ® Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2) pertaining to confidential material. Escort, Inc. requests that the following documents regarding this submission for FCC ID: QKL8500 be kept confidential: 1. Block Diagram 2. Circuit Description 3. Schematics The material above contains technical data, which would customarily be guarded from competitors. We at Curtis-Straus LLC are acting as an Agent on behalf of Escort, Inc. in requesting confidentiality with regards to the preceding documents. Sincerely, Michael Buchholz Senior EMC Manager Curtis-Straus LLC 527 Great Road Littleton, MA 01460

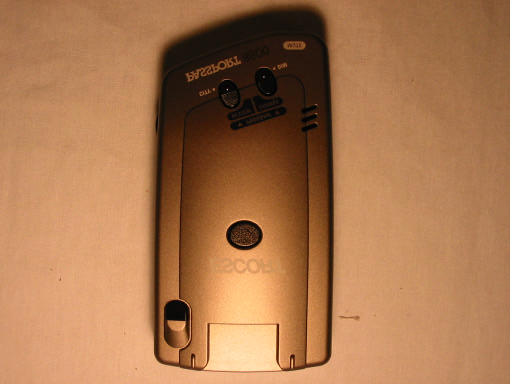

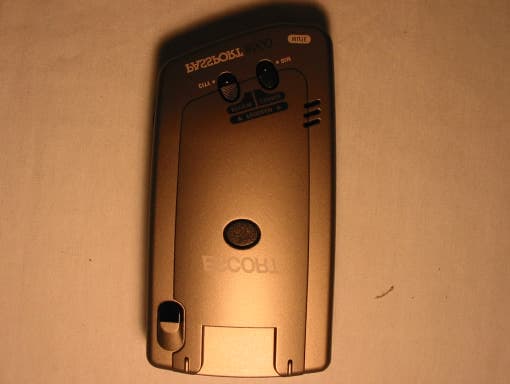

External Photos (S7V and S7B) Model: Passport 8500 FCC ID: QKL8500 Model: Passport 8500 FCC ID: QKL8500 Model: Passport 8500 FCC ID: QKL8500 Model: Passport 8500 FCC ID: QKL8500

FCC ID:QKL5110 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID:QKL7500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: QKL8500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: QKLSRX THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Internal Photos (S7V and S7B) Model: Passport 8500 FCC ID: QKL8500 Model: Passport 8500 FCC ID: QKL8500 Model: Passport 8500 FCC ID: QKL8500 Model: Passport 8500 FCC ID: QKL8500

Company: Escort, Inc. FRN: 0007508732 Model: Passport 8500 FCC ID: QKL8500 Equipment Code: CRD Report prepared for: Report prepared by: Escort, Inc. Evan D. Gould 5440 West Chester Road Curtis-Straus LLC West Chester, OH 45069 527 Great Road Phone: (513)-870-8535 Phone: (978)-486-8880 FAX: (513)-870-8523 FAX: (978)-486-8828 EMC Manager Worldwide Regulatory Approvals Experts (A2LA Certificate Number 1627-01) Technical Report REPORT:C0610-7 FCC ID:QKL8500 Page 2 of 8 Introduction This report is an application for Certification of a Radar Detector operating pursuant to 47 CFR 15.109, as amended by ET Docket No. 01-278; FCC 02-211, published in the Federal Register Vol. 67, No. 145 on Monday July 29, 2002. REPORT:C0610-7 FCC ID:QKL8500 Page 3 of 8 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The Escort Passport 8500 has been tested and found to comply with this requirement. REPORT:C0610-7 FCC ID:QKL8500 Page 4 of 8 Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2001). The testing was performed at an antenna to EUT distance of 1 meter. Performance was investigated in the range 11.7-12.2GHz. The Passport 8500 was powered by a R.O.C. SPN4025A 12VDC 400mA power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. REPORT:C0610-7 FCC ID:QKL8500 Page 5 of 8 Test Equipment SPECTRUM ANALYZERS x Analyzer Model No. Company Serial No. Calibration Due X ORANGE 9kHz-26.5GHz E4407B HP US39440975 07-JUN-2003 OPEN AREA TEST SITES (OATS) x Site FCC Code IC Code VCCI Code Calibration Due X “T” Texas 93448 IC 2762-T R-905/ C-480 04-FEB-2004 ANTENNAS x Antenna Model No. Company Serial No. Calibration Due X BLACK Horn: 1-18GHz 3115 EMCO 9703-5148 12-JUN-2003 PREAMPLIFIERS / ATTENUATORS x Preamplifier Model No. Company Serial No. Calibration Due X ORANGE-BLACK 1-20GHZ SMC-12A MITEQ 690639 06-SEP-2002 Unless otherwise noted the calibration interval is one year. All equipment is calibrated using standards traceable to NIST or other nationally recognized calibration standard. All Open Area Test Sites are located at 527 Great Road, Littleton, MA 01460. REPORT:C0610-7 FCC ID:QKL8500 Page 6 of 8 Setup Photo Model: Passport 8500 REPORT:C0610-7 FCC ID:QKL8500 Page 7 of 8 Measurement Results All measurements taken were peak detector readings of the noise floor. There were no emissions detected from the EUTs. Radiated Emissions Table Curtis-Straus LLC Date:08-Aug-02Company:EscortTable1 Engineer:Evan GouldEUT Desc:various radar detector modelsWork Order:C0610 Frequency Range:11.7-12.2GHzMeasurement Distance:1 m Notes:Emissions maximized Horizontally and Vertically. All measurements are noise floor readings. AntennaPreampAntennaCableAdjusted 47 CFR 15.209(a) PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) 8500 S7B 12040.032.120.238.94.755.563.5-8.0Pass 8500 S7V 11821.032.220.238.94.755.663.5-7.9Pass Test Sites:"T"Pre-Amp:Or-BlkCable:3m MicroflexAnalyzer:OrangeAntennas:Black Horn REPORT:C0610-7 FCC ID:QKL8500 Page 8 of 8 Sample Emission Plot
