QKL95M4Radar Dector

Designed in the USA Escort Inc. 5440 West Chester Road West Chester OH 45069 Sales: 800-433-3487 Service: 800-543-1608 www.EscortRadar.com ©2007 ESCORT Inc. ESCORT®, PASSPORT®, TrueLock™, SpeedAlert™, AutoSensitivity™, AutoVolume™, SmartMute™, MuteDisplay™, SpecDisplay™, and ExpertMeter™ are trademarks of ESCORT Inc. SWS™ is a trademark of SWS, L.C. Features, specifications and prices subject to change without notice. RADAR•LASER•SAFETY•DETECTOR Owner’s Manual GPS Powered for Speed and Location Intelligence You’ve just purchased the most intelligent radar and laser detector in the world—the PASSPORT 9500i. The PASSPORT 9500i delivers extreme long-range warning on all radar bands including X, K, Superwide Ka, Ku and instant-on POP modes. Multiple front and rear laser sensors provide 360 degree laser protection, including the widest field of view. For the ultimate in laser protection, the PASSPORT 9500i is also ZR3 ready. Ask your retailer, or call us at 1-800-543-1608 for details. The PASSPORT 9500i’s GPS-powered intelligence provides permanent relief from false alarms including automatic door openers, motion sensors and other radar-based sensors. In addition, the PASSPORT 9500i introduces the following state-of-the-art performance and features: • New TrueLock feature permanently eliminates false alerts by location and frequency. • New revolutionary AutoSensitivity mode provides real-time radar performance based on vehicle speed, plus Highway and City settings. • New SpeedAlert feature provides an instant view of your vehicle’s speed during an alert. • New Mark Location feature allows you to instantly “mark” known speed traps, cameras and other places of interest. • New easy to understand voice announcements provide instant audible feedback for controls and alerts. • New AutoVolume feature automatically increases the alert volume in noisy conditions. • Easy-to-use Preferences allows you customize up to 9 features • Ultra-bright alphanumeric display with 280 LEDs • Exclusive ExpertMeter tracks and displays up to 8 radar signals simultaneously • Exclusive SpecDisplay provides actual numeric frequency for any radar signal • Selectable radar and laser bands (on/off) allow you to customize which bands are monitored. • Includes exclusive SmartCord for easy access to Mute and TrueLock features. If you’ve used a radar detector before, a review of the Quick Reference Guide on pages 4 and 5, and the Preferences information on pages 14-18 will briefly explain the new features. If this is your first detector, please read the manual in detail to get the most out of your PASSPORT’s revolutionary performance and innovative features. Please drive safely. Quick Reference Card 1 Preferences Details  Restoring the Factory Default Settings To restore your PASSPORT to its original factory settings, press and hold the “SEN” and “BRT” buttons while turning the power on. A Reset message will be displayed, accompanied by an audible alert, acknowledging the reset. PASSPORT 9500i Quick Reference Card  Remove card along perforations   Remove card along perforations  Congratulations There are 9 user-selectable options so you can customize your 9500i for your own preferences. The buttons labeled “MRK” and “BRT” are also used to enter the Preferences Mode, REVIEW your current Preferences settings, and to CHANGE any settings as desired. The words “PREF,” “MRK” and “BRT” are located on the top of the detector. How to use EZ-Preferences 1 To enter Preferences, press and hold the “MRK” and “BRT” buttons down for 2 seconds. The unit will beep twice, and will display the word Prefs. 2 Then press the “BRT” button to review the categories. You can either tap the button to change categories, or simply hold the button down to scroll through the categories. 3 Press the “MRK” button to change any setting. You can either tap the button to change from setting to setting, or hold the button down to scroll through all the options. 4 To exit Preferences, simply wait 8 seconds without pressing any button, or press the power button. The unit will display Complete, beep 4 times, and return to normal operation. An example: Here is how you would turn PASSPORT’s AutoMute feature off: 1 Enter the Preferences Mode by holding both the “MRK” and “BRT” buttons down for 2 seconds. PASSPORT will beep twice and display Prefs. 2 Then hold the “BRT” button down. PASSPORT will scroll through the categories, starting with Pilot (Pilot), then SpeedAlert (sAlrt), then Power-on sequence (PwrOn), then Signal Strength meter (Meter), and then AutoMute (aMute). 3 Release the “BRT ” button when PASSPORT displays the AutoMute item. Since the factory setting is for AutoMute to be on, PASSPORT will display aMute ON. (If you accidentally don’t release the “MRK” button in time, and PASSPORT goes to the next category, simply hold the “MRK” button down again, PASSPORT will scroll through all of the categories. Once you’re back to your desired category, release the “MRK” button.) 4 Press the MRK ” button to change from aMute ON to aMute OFF. 5 To exit Preferences, simply wait 8 seconds without pressing any buttons, or press the power button. PASSPORT will display Complete, beep 4 times, and return to normal operation. Table of Contents Quick Reference Guide 4-5 Installation 6-7 • Power Connection 6 • Mounting Location 6 • Windshield Mount 7 Controls and Features 8-13 • Power 8 • Volume Control 8 • Power-on Indication 8 • Mute 8 • AutoMute 9 • TrueLock / GPS Filter 9 • Sensitivity (SEN) 9 • Brightness (BRT) 10 • Mark Loacation (MRK) 10 • Audible Alerts 11 • SmartCord 11 • SpeedAlert 11 • Signal Strength Meter 12 • ExpertMeter 12 • SpecDisplay 13 • GPS Signal Indicator 13 Preferences 14-18 • How to use Preferences 14 • Example of Preferences 14 • Overview of Preferences 15 • Details of Preferences 16-18 Technical Details 19-26 • Specifications 19 • Interpreting Alerts 20-21 • How Radar Works 22 • How POP Works 22 • How Laser Works 23 • How SWS Works 24-25 • How GPS …

Text truncated - open the document above for the full version.

ESCORT Inc. 5440 West Chester Road West Chester OH 45069 513-870-8500 513-870-8509 Fax www.escortinc.com Re: January 05,2007 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB 527 Great Rd Littleton, MA 01460 Confi dentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidential material. Escort, Inc. requests that the following documents regarding this submission for FCC ID QKL95M4 be kept confidential for an indefinite time period: 1. Schematics 2. Block Diagram 3. CircuitlTechnical Description 4. Operational Description The above material contains technical data and proprietary information, which would customarily be guarded from competitors. We are requesting short-term confidentiality on photos for products not yet placed on the market, this includes Exhibit Type: Users Manual, Internal Photos, all External Photos, and Test Setup Photos. Once the product is offered for sale, all confidentiality for short-term exhibits will be removed. We understand there is a 45 day limit, with one 45 day extension for short-term confidentiality. ESCORT Inc. will notifo the FCC immediately at the time the product is released to the market so that confidentiality can be removed prior to the 45 day expirafion. ide President of Engineering scort lncorporated 5440 West Chester Road West Chester, Ohio 45069

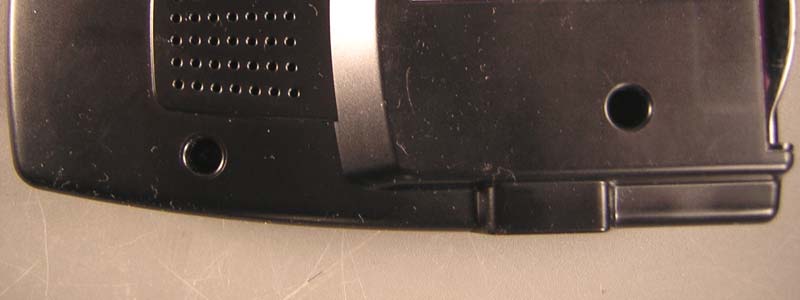

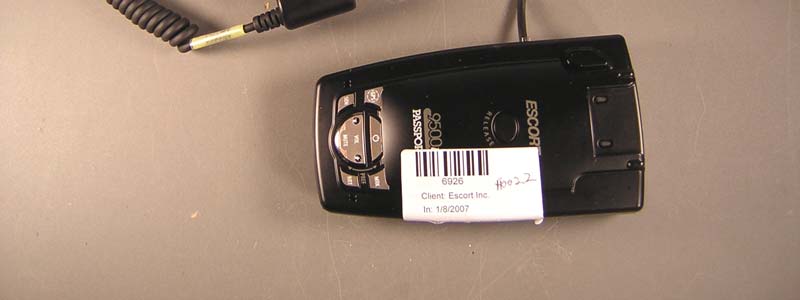

FCC ID: QKL95M4 FCC ID: QKL95M4 FCC ID: QKL95M4

FCC ID: QKL95M4 Label Location

FCC ID: QKL95M4

FCC ID: QKL95M4 FCC ID: QKL95M4

FCC ID: QKL95M4 Other side of daughter card FCC ID: QKL95M4 Under daughter card picture 1 FCC ID: QKL95M4 Under daughter card picture 2 FCC ID: QKL95M4 Under speaker Horn antenna

Test Report Report No EH0022-1 Client Escort, Inc. 5440 West Chester Road West Chester, OH 45069 Phone (513)-870-8542 Fax (513)-870-8523 FRN 0007508732 Model PASSPORT 9500i FCC ID QKL95M4 Equipment Type Radar Detector Equipment Code CRD Results As detailed within this report Prepared by __________________________ Mairaj Hussain – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date __1/16/07__________________ Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EH0022-1 FCC ID: QKL95M4 Page 2 of 14 _____________________________________________________________ Table Of Contents Summary.........................................................................................................................3 EUT Configuration...........................................................................................................3 Statement of Conformity..................................................................................................4 Test Methodology............................................................................................................4 Radiated Emissions Measurements................................................................................5 Test Equipment Used......................................................................................................8 Conditions Of Testing....................................................................................................12 A2LA Accreditation........................................................................................................14 LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EH0022-1 FCC ID: QKL95M4 Page 3 of 14 _____________________________________________________________ Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance of the PASSPORT 9500i with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. EUT Configuration EUT Configuration Work Order: H0022 Company: Escort Company Address: 5440 west Chester Road West Chester, OH 45069 Contact: John Kuhn MNSNFCC ID EUT: Passport 9500i15999999 9999QKL95M4 EUT Description: Radar detector Support Equipment: MNSN HP DC SupplyE3612A00859 EUT Cables: QtyShielded?LengthFerrites Cigrate Lighter Adapter to EUT1No1 mNone Head Phones1Yes2 mNone Unpopulated EUT Ports: QtyReason USB1Setup only Software / Operating Mode Description: EUT was scanning for radar signal. LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EH0022-1 FCC ID: QKL95M4 Page 4 of 14 _____________________________________________________________ Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The Escort PASSPORT 9500 i has been tested and found to comply with this requirement: Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2003). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The PASSPORT 9500i was powered by an HP 3612A variable power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EH0022-1 FCC ID: QKL95M4 Page 5 of 14 _____________________________________________________________ Radiated Emissions Measurements LIMIT Average: 500μV/m = 54dBμV/m @ 3m [15.109(a)] Note: If peak measurements meet the Average limit, then Average measurements are not required. MEASUREMENTS Radiated Emissions Table Per 15.109(h) Curtis-Straus LLC Date: 08-Jan-07 Company: Escort Work Order: H0022 Engineer: Mairaj Hussain EUT Desc: 9500i Frequency Range: 11.7 - 12.2GHz Measurement Distance: 1 m Notes: AntennaPreampAntennaCableAdjusted FCC Class B PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) Vpk 11983.350.540.038.75.354.563.5-9.0Pass Hpk 12150.051.039.738.85.455.563.5-8.0Pass Vpk12156.248.739.638.85.453.363.5-10.2Pass Table Result: Pass by -8.0 dB Worst Freq: 12150.0 MHz Test Site: "T" Pre-Amp: Red-Gree n Cable: EMIR-HIGH 5 Analyzer: Orange Antenna: Black Horn LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EH0022-1 FCC ID: QKL95M4 Page 6 of 14 _____________________________________________________________ PLOT Vpk LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EH0022-1 FCC ID: QKL95M4 Page 7 of 14 _____________________________________________________________ Hpk LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Curtis-Straus REPORT: EH0022-1 FCC ID: QKL95M4 Page 8 of 14 _____________________________________________________________ Test Equipment Used REV. 03-JAN-2007 SPECTRUM ANALYZERS / RECEIVERS R ANGE MN MFR SN ASSET CAT CALIBRATION DUE RED 9kHz-1.8GHz 8591E Agilent 3441A03559 00024 I Out of Cal WHITE 9kHz-22GHz 8593E Agilent 3547U01252…
