QKL9XM4Radar Detector

Quick Reference R A D A R • L A S E R • S A F E T Y C A M E R A • D E T E C T O R Contact Us 8 Settings & Preferences 76 Open ➜ Pre-loaded DEFENDER Database Designed in the USA ESCORT Inc. 5440 West Chester Road West Chester OH 45069 Sales/Service 800.433.3487 www.EscortRadar.com ©2014 ESCORT Inc. ESCORT®, PASSPORT®, TrueLock™, SpeedAlert™, AutoLearn™, AutoSensitivity™, SmartMute™, MuteDisplay™, SpecDisplay™, ExpertMeter™ and Cincinnati Microwave are trademarks of ESCORT Inc. SWS™ is a trademark of SWS, L.C. Manufactured in Canada. FCC NOTE: Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. FCC ID: QKL9XM4 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Notes for Settings & Preferences For descriptions of features and functions available when connected to SmartCord Live with ESCORT Live visit EscortRadar.com and download the SmartCord Live user manual for your iOS or Android OS smartphone. Also visit Escort.Radar.com for the complete PASSPORT 9500ix Owner’s Manual. To view serial number and software revision press MRK and MUTE while powering on detector. Restoring the Factory Default Settings: To restore your PASSPORT to its original factory settings, press and hold the “SEN” and “BRT” buttons while turning the power on. A Reset message will be displayed, accompanied by an audible alert acknowledging the reset. Software Updates PASSPORT’s red light and speed camera database is easily updated using our exclusive detector software tools found on our web site. Firmware, or the operating software for the detector, can also be updated using these tools. In order to have access to these updates, you must register your PASSPORT at www. EscortRadar.com. Once registered, you will receive email notifications that updates are now available for your database or firmware. To install your software and DEFENDER updates, connect your Max to a computer via USB/USB Mini B cable to use the software tools . If you have a laptop computer you can take it out to the vehicle to download the updates. GPS Powered for Speed and Location Intelligence Press the BRT button to go from one category to the next Pilot Light (Power-on indication) SpeedAlert AutoLearn Signal Strength Meter AutoMute AutoPower Units Voice Bands Markers Pilot HWY Pilot H Pilot H.> Pilot V Pilot SPD sAlrt ON sAlrt OFF aLrn ON aLrn OFF Meter STD Meter EXP Meter SPC aMute ON aMute OFF aPwr ON aPwr OFF Units ENG Units MET Voice ON Voice OFF Bands DFT Bands MOD X ON or OFF (default is on) K ON or OFF (default is on) Ka ON or OFF (default is on) POP ON or OFF (default is off) SWS ON or OFF (default is off) LSR ON or OFF (default is on) TSR ON or OFF (default is on) Marks DFT Marks MOD rCam ON or OFF (default is on) sCam ON or OFF (default is on) sTrap ON or OFF (default is on) Othr ON or OFF (default is on) Press the MRK button to change your setting within a category * Full word: Highway or Auto or City Letter: H or A or C Letter, with scanning dot Vehicle voltage Vehicle speed * Displays current speed during alert SpeedAlert feature off * Automatically locks out false alarms AutoLearn is off * Standard signal strength meter ExpertMeter mode SpecDisplay mode * Audio alerts increase automatically Audio alerts are controlled manually * Turns detector off after 4 hours AutoPower feature is off * Speed/distance in English units Speed/distance in Metric units * Voice announcements on Voice announcements off * Default settings Bands have been modified Turn bands on/off by pressing the Mute button *Default Setting Press and hold the MRK and BRT buttons to access Preferences. To exit Preferences, simply wait a few seconds without pressing a button. The unit will display Completed to confirm your selections . How To Use Preferences PASSPORT is ready to go, just plug it in and turn it on, but you can also easily change features for your preferences. There are 10 user-selectable Preferences so you can customize your 9500ix for your specific driving needs. The buttons labeled “MRK” and “BRT” are used to enter Preferences, REVIEW your current settings, and to CHANGE any settings as desired. The word PREF is located on the top of the detector, and is highlighted in colored graphics. How to use Preferences 1 To enter Preferences, press and hold the “MRK” and “BRT” buttons down for 2 seconds. The unit will beep twice, and will display the word Prefs. 2 Then press the “BRT” button to review the current settings. You can either tap the button to change from item to item, or hold the button to scroll through the items. 3 Press the “MRK” button to change any setting. You can either tap the button to change from setting to setting, or hold the button to scroll through all the options. 4 To exit Preferences, simply wait 8 seconds without pressing any button, or press the power button . The unit will display Complete, beep 4 times, and return to normal operation. An example Here is how you would turn PASSPORT’s AutoMute feature off. 1 Enter Preferences by holding both the MRK and BRT buttons down for 2 seconds. PASSPORT will beep twice and display Prefs. 2 Then hold the “BRT” button down. PASSPORT will scroll through the categories, starting with Pilot Light (Pilot), then SpeedAlert (sAlrt), Power-on sequence (PwrOn), then Signal strength meter (Meter), and then AutoMute (aMute). 3 Release the “BRT” button when PASSPORT shows the AutoMute item. Since the factory setting is for AutoMute to be on, PASSPORT will display aMute ON. If you accidentally don’t release the “BRT” button in time, and PASSPORT goes to the next category, simply hold the “BRT” button down again, and after PASSPORT scrolls through all categories, it will begin again at the top of the list. 4 Press the M…

Text truncated - open the document above for the full version.

February 25, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC A Bureau Veritas Company One Distribution Center Circle, Suite #1 Littleton, MA 01460 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 peltaining to confidential material. Escort, Inc. requests that the following documents regarding this submission for FCC ill QKL9XM4 be kept confidential for an indefinite time period: 1. Schematics 2. Block Diagram 3. Operational Description The above material contains technical data and proprietary information, which would customarily be guarded from competitors. ' We are requesting short-term confidentiality on photos for products not yet placed on the market, this includes Exhibit Type: Users Manual, Internal Photos, all External Photos, and Test Setup Photos. Once the product is offered for sale, all confidentiality for short-term exhibits will be removed. We are requesting 45 days of short-term confidentiality. ESCORT Inc. will notify the FCC immediately at the time the product is released to the market so that confidentiality can be removed prior to the 45 day expiration. DRIVE SMARTER ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

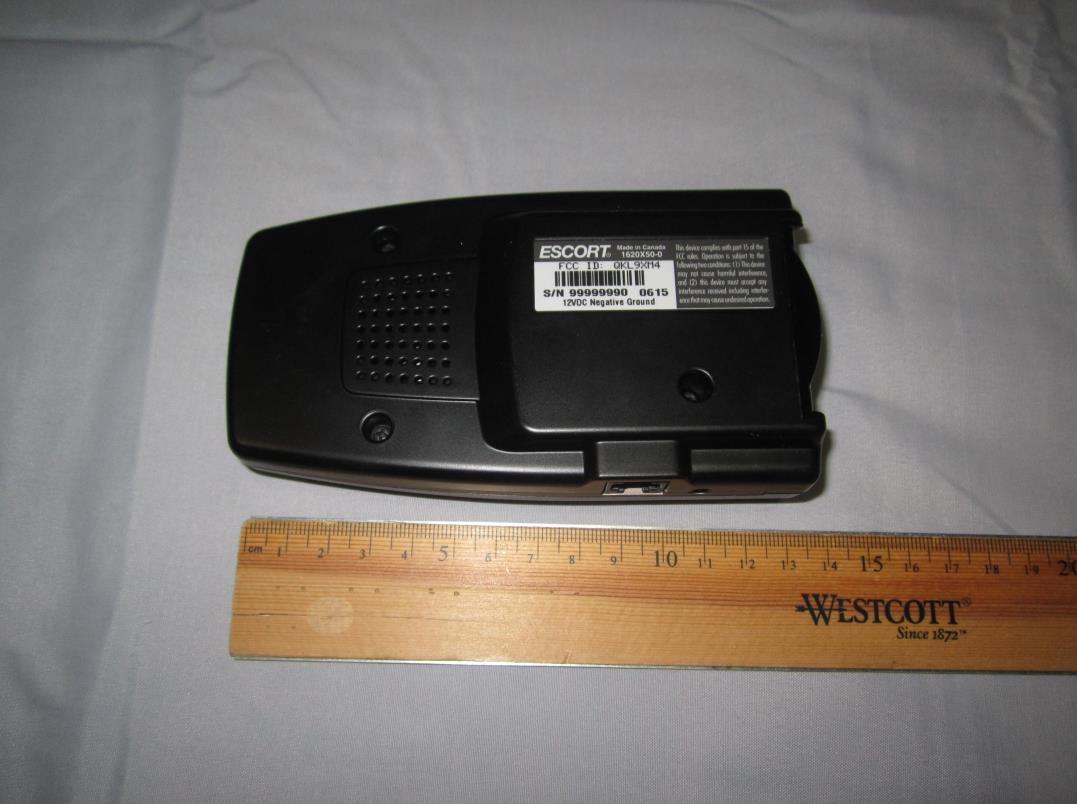

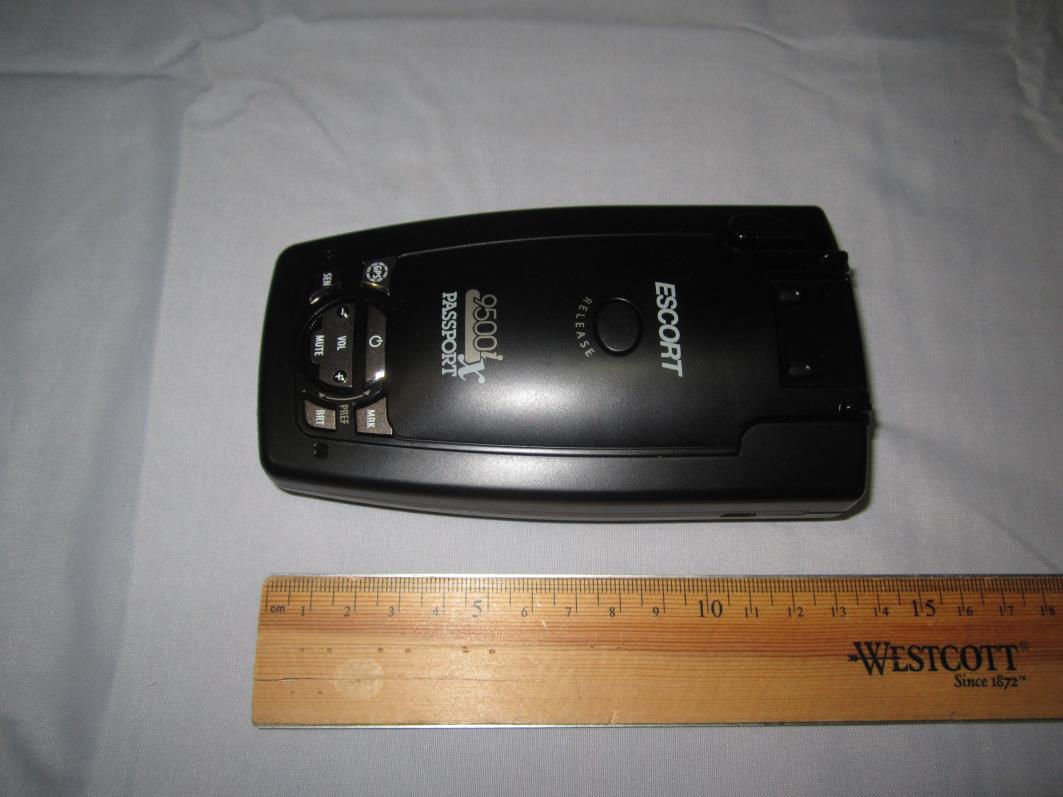

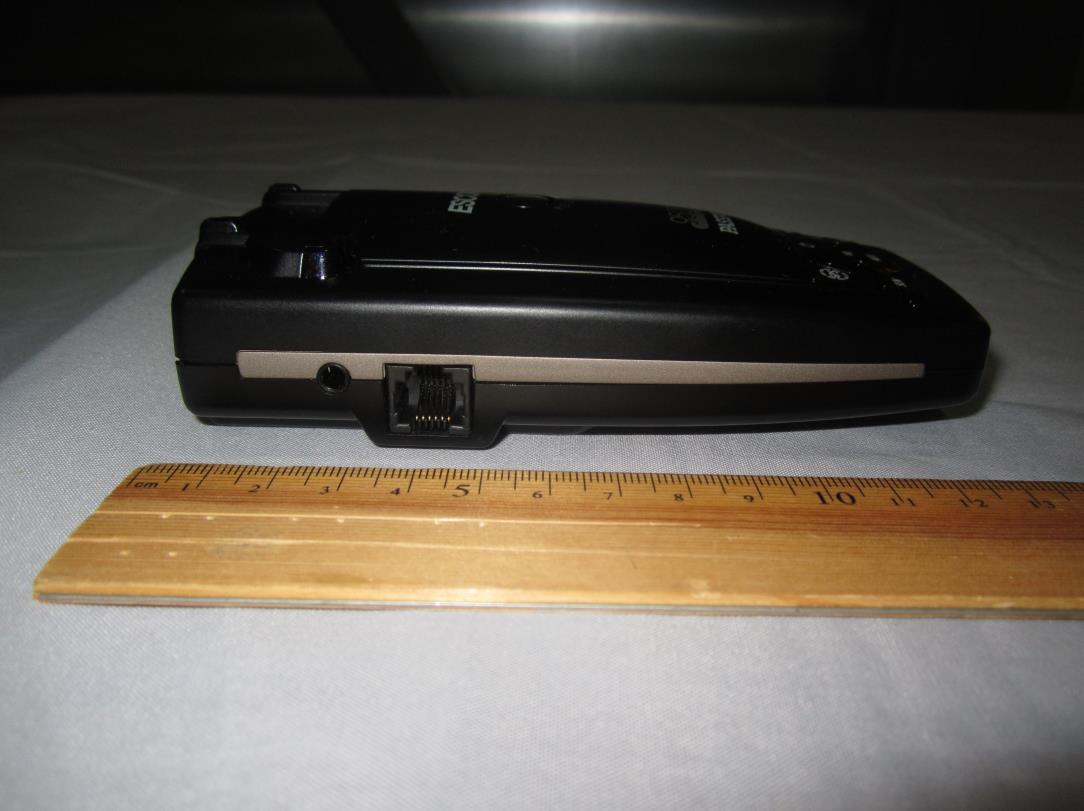

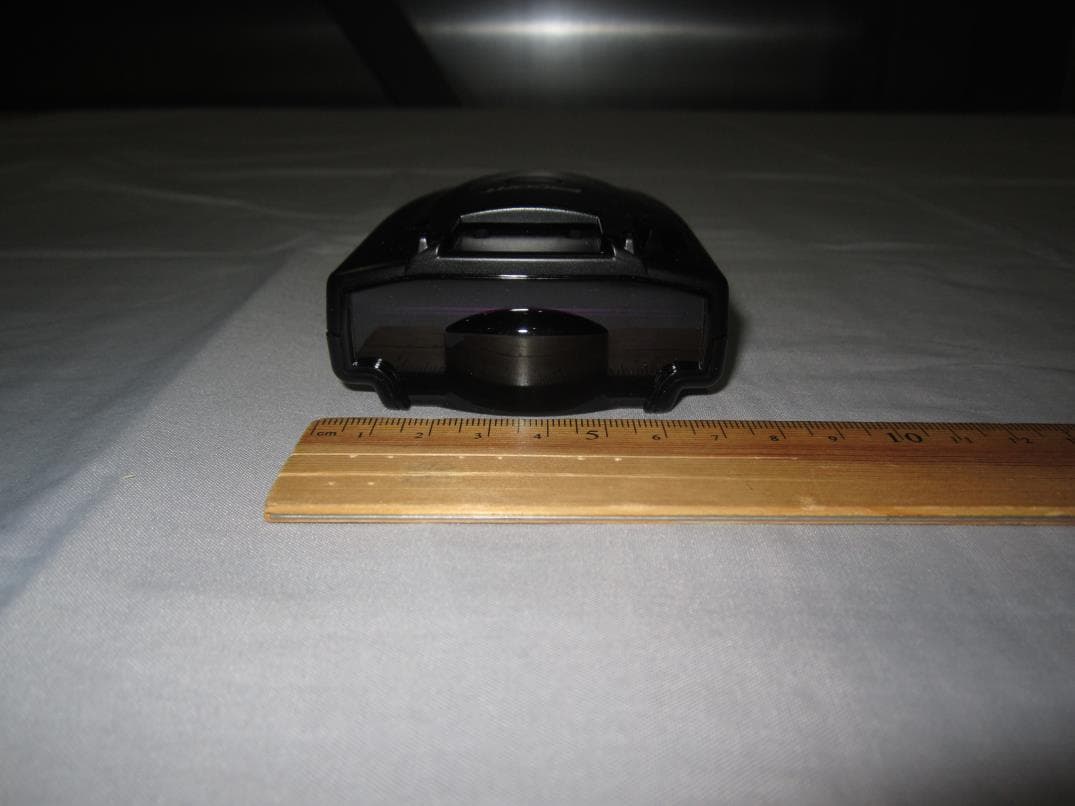

FCC ID: QKL9XM4 FCC ID: QKL9XM4 FCC ID: QKL9XM4 FCC ID: QKL9XM4 FCC ID: QKL9XM4 FCC ID: QKL9XM4 FCC ID: QKL9XM4

---- 2 3 4 P~:)PRiEr...p.y NOTE: TKE OEsI(;\'o'ANP D......A ON"THl.S DRA.WlN':; .ARE: OJUG.lNAiED e,:, AND PIN DESCRIPTION MATERI!,I ARTv'JORKII A"<I:;: l~E EXCLUSlvE :>AOPfRTY Of =$COrH,INC. AND ARE "'0 &E. l-€.l n ANtI USeD ON ACONF10EN'T1AJ. BASIS. AU. '....~lnEN",.,ATERtA.l At-:.OOTHfR p.;..TA pEf{TAINING THER~TO WU BE RETUR~E-oTO ESCQRTC»l R=OlJES"~ 162.0X50-0 StI<r. ESCORT FCC/Serial # 1740X50-o SEE NOTE 1 DATE ~E\: e.cN DESCRIPTIO"" Stkr. Bel FCC/Serial /I AW-1620XS()"lA 1620X50-' SEE NOTE 6 A FCC ID: (;lKL9XN4 UI_IIIIIIII SIN 9999.992 0615 lMe Nelilire Oround 4879 05/19/04 4110113 B 1130412 J I I A 1111111111111111111111 SERIAL NUMBER 9999.992 A c 8 Q->­ O:J::~ Uf--~ >-(./) 1111111111111111111111 ••••••92 SERIAL NUMBER 2 10 R02 TYP 1 \ . 8 1-· 1 .67 Ll !.-T- 1.34 .34 ~ t I c OVERALL AND FACE SPLIT DIMS PRINT DIRECTION & (SCALE 1.1) LABEL ON THE OUTSIDE·L1NER ON THE INSIDE NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL .003 THICK MYLAR, FLEXCAL (INCLUDING ADHESIVE). 2. LABEL TO HAVE PERMANENT PRESSURE SENSITIVE DI ADHESIVE ON REAR SURFACE. D 3. SERIAL NUMBER WITH BAR CODE AND FCC 10 TO BE PRINTED IN HOUSE PER DRAWING 98-000030 OF QrY j ITEM t Rff fSCDRT PIN OESCRIPll0N A ESCORT SERIALIZATION LOG. n'!"tc. FCC/SERIAL # STICKER 4. SAMPLES MUST BE APPROVED BY BELTRONICS BEFORE lOt.ER,:l.,N.:.:t UNLESS ESCORT~ RUNNING PRODUCTION. SCALE orliERvASE ___"~~:_~.5~~_~__.. S"EC!FtE,O DRN -~ '~f.: O....~f. C\,VG RfV 5. PRINT DIRECTION AS SHOWN ~'(x ±.Ol' yz 5119/04 .l.x.x. ±on5 ,,\~~' .._-DATE SHEE':" 1 ,.. 3f 6. ALTERNATE MATERIAL. 2 MIL CHROME CP POLYESTER 1620X50 B ANt.'. ±30 4 2 3

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ LLC  Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 9 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EP0458-1 Client Escort Inc. Address 5440 West Chester Road West Chester, OH 45069 Phone 513-870-8517 Items tested PASSPORT 9500ix FCC ID QKL9XM4 FRN 0007508732 Equipment Type CRD Equipment Code Radar Detector FCC Rule Parts 47 CRF 15.109(h) Test Dates March 2, 2015 Results As detailed within this report Prepared by Chris Bramley – Test Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date 3/9/2015 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 8 of this report. Test Report for Escort Inc.  Report No. EP0458-1 March 9, 2015 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 9 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 3 Product Tested ........................................................................................................................ 4 Configuration Documentation ............................................................................................... 4 Statement of Conformity ...................................................................................................... 5 Test Results ............................................................................................................................ 6 Radiated Emissions ............................................................................................................. 6 Measurement Uncertainty........................................................................................................ 7 Conditions Of Testing .............................................................................................................. 8 REV 06-FEB-15 (SC) Test Report for Escort Inc.  Report No. EP0458-1 March 9, 2015 ______________________________________________________________________ Issue No. Reason for change Date Issued 1 Original Release March 9, 2015 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 9 Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. We found that the product met the above requirements without modification. The test sample was received in good condition. Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2003). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The radar detector was powered by a variable power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. Test Report for Escort Inc.  Report No. EP0458-1 March 9, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 9 Product Tested Configuration Documentation EUT Configuration Work Order: P0458 Company: Escort, Inc. Company Address: 5440 West Chester Road West Chester, OH 45069 Contact: Wanda Densford MN PN FCC ID SN EUT: PASSPORT 9500ix 1620X50-0 QKL9XM4 99999990 0615 EUT Description: Windshield Mounted Radar/Laser Detector Support Equipment: MN SN DC Power Supply NFB Filtered DC Power Supply 61 EUT Ports: Port Label Port Type No. of ports No. Populated Cable Type Shielded Ferrites Length Max Length In/Out NEBS Type Unpopulated Reason DC Power/mute button RJ11 1 1 DC pair No None 4ft 4ft NA NA Headphone 1/8" jack 1 1 2-wire No None 1m >3m NA NA USB USB 1 1 USB Yes None 1m >3m NA NA Software / Operating M ode Description: EUT is scanning for radar. Test Report for Escort Inc.  Report No. EP0458-1 March 9, 2015 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 5 of 9 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7-12.2GHz”. The applicable limit being 500μV/m measured at a distance of 3m. The radar detector has been tested and found to comply with this requirement Test Report for Escort Inc.  Report No. EP0458-1 March 9, 2015 _______________________…
