QKLM3RRadar Detector

ESCORT Inc. 5440 West Chester Road West Chester OH 45069 USA 800.543.1608 EscortRadar.com ©2008 ESCORT Inc. Made in Canada Features, specifications and prices subject to change without notice. Model: PASSPORT 9500ci R A D A R A N D L A S E R D E F E N S E S Y S T E M Owner’s Manual GPS Powered for Speed and Location Intelligence Custom-Installed System Your new GPS-powered PASSPORT 9500ci is the most advanced custom-installed radar and laser defense system ever designed. The 9500ci includes full X, K, SuperWide Ka, and Safety Warning System radar capability, front and rear laser detection with optional Laser Sh ifting, digital signal processing (DSP) for superior range, our patented Mute and AutoMute and all the performance that only ESCORT can deliver. In addition, the ESCORT 9500ci contains the following revolutionary features: • Exclusive AutoLearn and Auto Unlearn automatically identifies each signal and determines if it’s a real threat or not • Exclusive True-Lock permanently locks out false alarms by exact location and frequency • Twin-antenna design with dual LNA (low noise amplifier) receivers provide the best long-range performance against all North American radar bands • Exclusi ve TotalShield™ Technology makes the 9500ci totally undetectable by any radar detector detector (RDD) • Pre-loaded safety camera locations, including red light and fixed speed camera locations • Easy-to-use Preferences lets you customize up to 10 features If you’ve used a radar detector before, a review of the Quick Reference Guide on pages 4 and 5, and the Preferences on pages 12 and 13 will briefly explain the new features. If this is your first detector, please read the manual in detail to get the most out of your PASSPORT 9500ci’s outstanding performance and innovative features. Please drive safely. Quick Reference Card 1 Preferences Details  Factory Default Settings To reset the 9500ci to its original factory settings, press and hold the VOL and SENS buttons while turning the power on. The 9500ci’s display will provide a Reset accompanied by an audible alert, acknowledging the reset. PASSPORT 9500ci Quick Reference Card  Remove card along perforations   Remove card along perforations  Congratulations There are 10 user-selectable options so you can customize your 9500ci for your own preferences. The buttons labeled VOL and BRT are also used to enter Preferences, REVIEW your current settings, and to CHANGE any settings. The abbreviations PGM, RVW, and CHG are located on the lower part of the controller. How to use EZ-Preferences 1 To enter Preferences, press and hold both VOL and BRT buttons down for 2 seconds. A voice announces “preferences,” and will display the word Pref. 2 Then press the VOL button to review the current settings. You can either tap the button to change from setting to setting, or hold the button to scroll through all the options. 3 Press the BRT button to change any setting. You can either tap the button to change from setting to setting, or hold the button down to scroll through all the options. 4 To leave Preferences, simply wait 8 seconds without pressing any button, or momentarily press the PWR button. The unit will display Complete, accompanied by a voice announcement. An example: Here is how you would turn 9500ci’s AutoMute feature off: 1 Enter Preferences by holding both the VOL and BRT buttons down for 2 seconds. The 9500ci will display Prefs, accompanied by a voice announcement. 2 T hen hold the VOL button down. The 9500ci will scroll through the categories, starting with Pilot ( Pilot), GPS (GPS), AutoLearn ( aL earn), SpeedAlert (sAlert), Meter (Meter), then AutoMute (aMute). 3 Release the VOL button when the 9500ci shows the AutoMute item. Since the factory setting is for AutoMute to be on, 9500ci will display aMute ON, accompanied by a voice announcement. (If you accidentally don’t release the button in time, and the 9500ci goes to the next category, hold the VOL button down again, and scroll through the categories again until aMute is displayed.) 4 Press the BRT button to change from aMute ON to aMute OFF. 5 To complete this change, simply wait 8 seconds without pressing any button, or press the PWR button. The 9500ci will display Complete, accompanied by a voice announcement and return to its normal operation. FCC Note: Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. Table of Contents Quick Reference Guide 4-5 Controls and Features 6-1 1 • Power 6 • Power-On Indication 6 • Volume Control 6 • Mute/AutoMute 6-7 • Sensitivity 7 • Marking Locations 8 • Safety Camera Data 9 • Auto Learn / Auto Unlearn 9 • Locking Out False Alarms 9 • Audible Alerts 9 • Voice Announcements 10 • Display Brightness 10 • Signal Strength Meter 10 • E xp ertMeter 11 Preferences 12-16 • How to use Preferences 12 • Example of Preferences 12 • Overview of Preferences 13 • Details of Preferences 14-16 Technical Details 12-25 • Specifications 17 • Interpreting Alerts 18-19 • How Radar Works 20 • How “POP” Works 21 • How Laser Works 21 • How GPS Works 22 • How TotalShield™ Works 22 • How TrueLock Works 23 • How AutoLearn Works 23 • How Safety Radar Works 24-25 Service 26-33 • Troubleshooting 26-2 7 • Service 28 • Warranty 29 • Registration 31-32 32 Quick Reference Card PASSPORT 9500ci Quick Reference Card  Remove card along perforations  Press the VOL button to go from one category to the next PILOT (Power-on indication) GPS AUTOLEARN SPEED ALERT METER AUTOMUTE UNITS VOICE BANDS MARKERS Pilot HWY Pilot H Pilot H.> Pilot V Pilot SPD GPS ON GPS OFF aLrn ON aLrn OFF sAlrt ON sAlrt OFF Meter STD Meter EXP Meter SPC aMute ON aMute OFF Units ENG Units MET Voice ON Voice OFF Bands DFT Bands MOD X ON or OFF (default is on) K ON or OFF (default is on) Ka ON or OFF (default is on) POP ON or OFF (default is off) SWS ON or OFF (default is off) LSR RECV or SHFT or OFF (default is RECV) Mark DFT Mark MOD rCam ON or OFF (default…

Text truncated - open the document above for the full version.

ESCORT Inc 513870.8500 ')440 West Chester Road 513870.8509 Fax ESCORT: West Chester OH 4')06Q www.EscortRadaLcom March 24, 2008 To: Federal CommunicatIons Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB 527 Great Rd Littleton, MA 01460 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertainIng to confidential material. Escort, Inc. requests that the following documents regardIng this submission for FCC ID QKLM3R be kept confidential for an Indefinite time penod: I. Schematics 2. Block Diagram 3. CircuIt/TechnIcal Descnption 4. Operational Descnptlon The above material contains technical data and propnetary Infonnation, which would customarily be guarded from competitors. We are requesting short-term confidentialIty on photos for products not yet placed on the market, thIS Includes Exhibit Type: Users Manual, Internal Photos, all External Photos, and Test Setup Photos. Once the product IS offered for sale, all confidentiality for short-term exhibits will be removed. We are requesting 45 days of short-term confidentiality. ESCORT Inc. will notify the FCC Immediately at the tIme the product IS released to the market so that confidentiality can be removed prior to the 45 day eXpIratIOn. (~J~: /)d2~ ~ce PceS'dent of Engmeenng Escort Incorporated 5440 West Chester Road West Chester, Ohio 45069

ESCtrT ESCORT Inc. 5440West Chester Road West Chester OH 45069 513.870.8s00 513.870.8509 Fax www.EscortRadar.com Letter of Agency Agent's Authorization Letter June 4, 2007 I, an officer of ESCORT INCORPORATED, do hereby authorize, until further notice, Curtis-Straus LLC, of 527 Great Road, Littleton, MA 01460, to act on our behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization includes, but is not limited to, the signing of Form 731. I certiff that no parfy (as defined n 47 CFR I .2002) to this application, including myselfl is subject to a denial of federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 8534. 1(L Vice President of Engineering June 417007

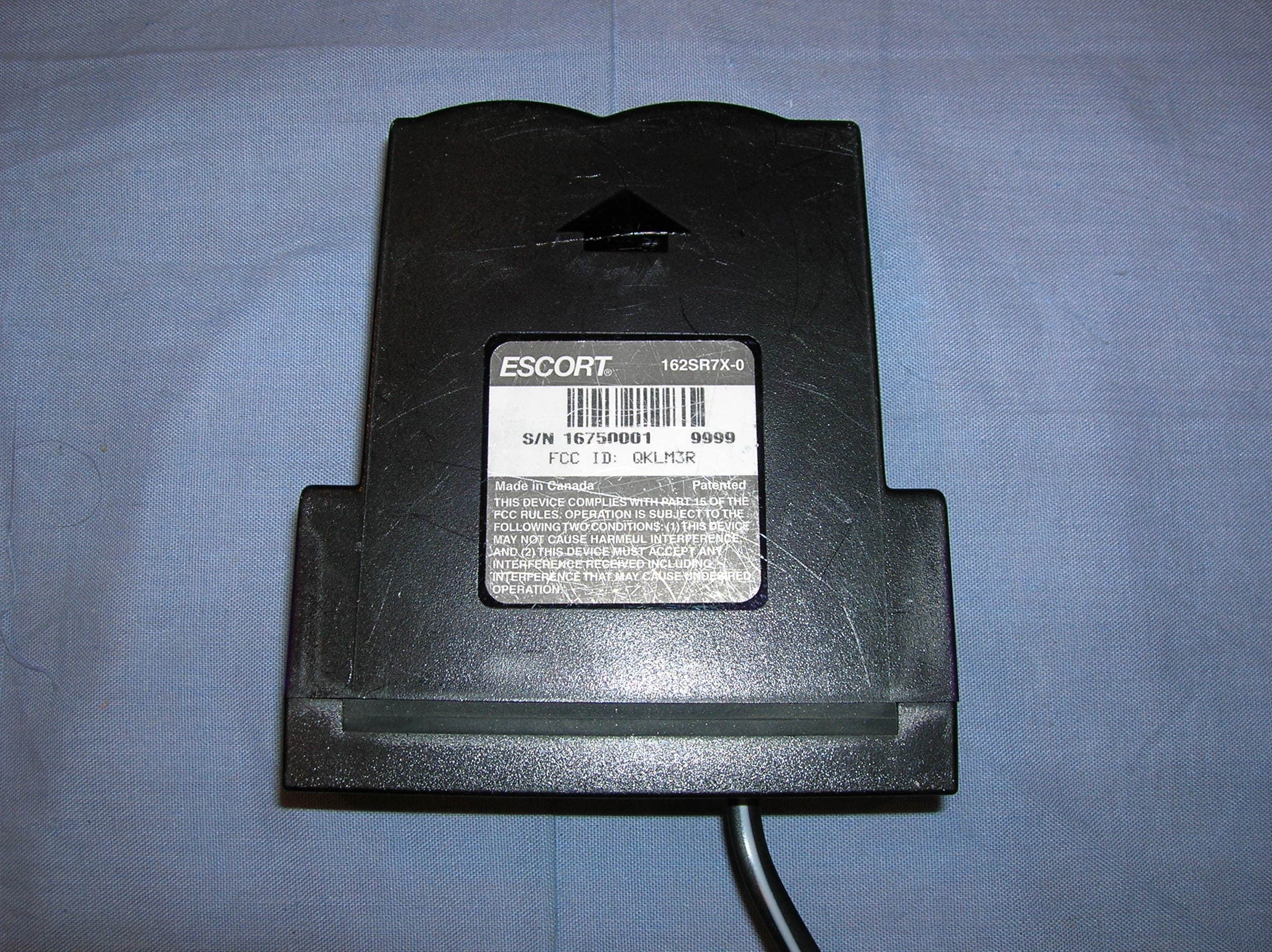

FCC ID: QKLM3R FCC ID: QKLM3R FCC ID: QKLM3R

FCC ID: QKLM3R

FCC ID: QKLM3R FCC ID: QKLM3R FCC ID: QKLM3R

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EI0052-1 Client Escort Inc. 5440 West Chester Road West Chester, OH 45069 Phone (513)-870-8542 FRN 0007508732 Model 9500ci FCC ID QKLM3R Equipment Type Radar Detector Equipment Code CRD Results As detailed within this report Prepared by ____ Kyle Neffendorf – Compliance Engineer Authorized by ____ Michael Buchholz – EMC Manager Issue Date 3/13/08 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EI0052-1 FCC ID: QKLM3R _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 9 Table Of Contents Summary......................................................................................................................... 3 EUT Configuration........................................................................................................... 3 Statement of Conformity.................................................................................................. 4 Test Methodology............................................................................................................ 4 Radiated Emissions Measurements................................................................................ 5 Test Equipment Used...................................................................................................... 6 Terms And Conditions..................................................................................................... 8 REPORT: EI0052-1 FCC ID: QKLM3R _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 9 Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance of the 9500ci with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. EUT Configuration EUT Configuration Work Order: I0052 Company: Escort Company Address: 5440 West Chester Road West Chester, OH 45069 Contact: John Kuhn MNSN EUT: 9500 ciSample 1 EUT Description: Radar Detector System EUT Max Fre quency: 16MHz Support Equipment: MNSN N/A EUT Cables: QtyShielded?LengthFerrites Comment Front receiver cable1no 2mno-- Front Shifter Cable2no 4mno-- Rear Shifter Cable1no 5mno-- GPS module1no 5mno-- Display Module1no 1no-- Control Module1no 1no-- Conceal Alert LED1no 1no-- DC cable 1no 2mno-- Speaker power Cable1no 2myesat the speaker end Speaker audio cable 1yes2myesat the speaker end Unpopulated EUT Ports: QtyReason Radio Mute1Diag Purposes only Test1Diag Purposes only Software / Operating Mode Description: Display console displays the current detector setting. When radar signal is detected, the display console will display the type of signal detected. REPORT: EI0052-1 FCC ID: QKLM3R _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 9 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The Escort 9500ci has been tested and found to comply with this requirement. Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2003). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The 6500ci was powered by an HP E3612A variable DC power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. REPORT: EI0052-1 FCC ID: QKLM3R _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 9 Radiated Emissions Measurements LIMIT Average: 500μV/m = 54dBμV/m @ 3m [15.109(a)] Note: If peak measurements meet the Average limit, then Average measurements are not required. MEASUREMENTS Radiated Emissions Table Version 1.015.020 Curtis-Straus LLC Date: 27-Feb-08 Company: Escort, Inc Work Order: I0052 Engineer: David Harris EUT Desc: 9500 ci EUT Operating Voltage/Frequency: 120V/60Hz Frequency Range: 11.7-12.2GHz Measurement Distance: 1 m Notes: AntennaPreampAntennaCableAdjusted ---FCC Class B PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResultLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail)(dBμV/m)(dB)(Pass/Fail) Noise Floor peak11906.050.738.039.92.955.5---------63.5-8.0Pass Table Result: Pass by -8.0 dB Worst Freq:11906.0 MHz Test Site: "T" Pre-Amp: Red-Blue Cable: EMIR-HIGH-21 Analyzer: White Antenna: Orange Horn ANALYZER PLOT REPORT: EI0052-1 FCC ID: QKLM3R _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 6 of 9 Test Equipment Used REV. 22-FEB-2008 SPECTRUM ANALYZERS / RECEIVERS R ANGE MN MFR SN ASSET CAT CALIBRATION DUE WHITE (REFERENCE) 9kHz-22GHz 8593E Agilent 3547U01252 00022 I 31-OCT-2008 OPEN AREA TEST SITES (OATS) FCC CODE IC CODE VCCI CODE CAT CALIBRATION DUE SITE T 93448 IC 2762A-2 R-905 II 23-JUN-2008 P REAMPS /COUPLERS ATTENUATORS / FILTERS…
