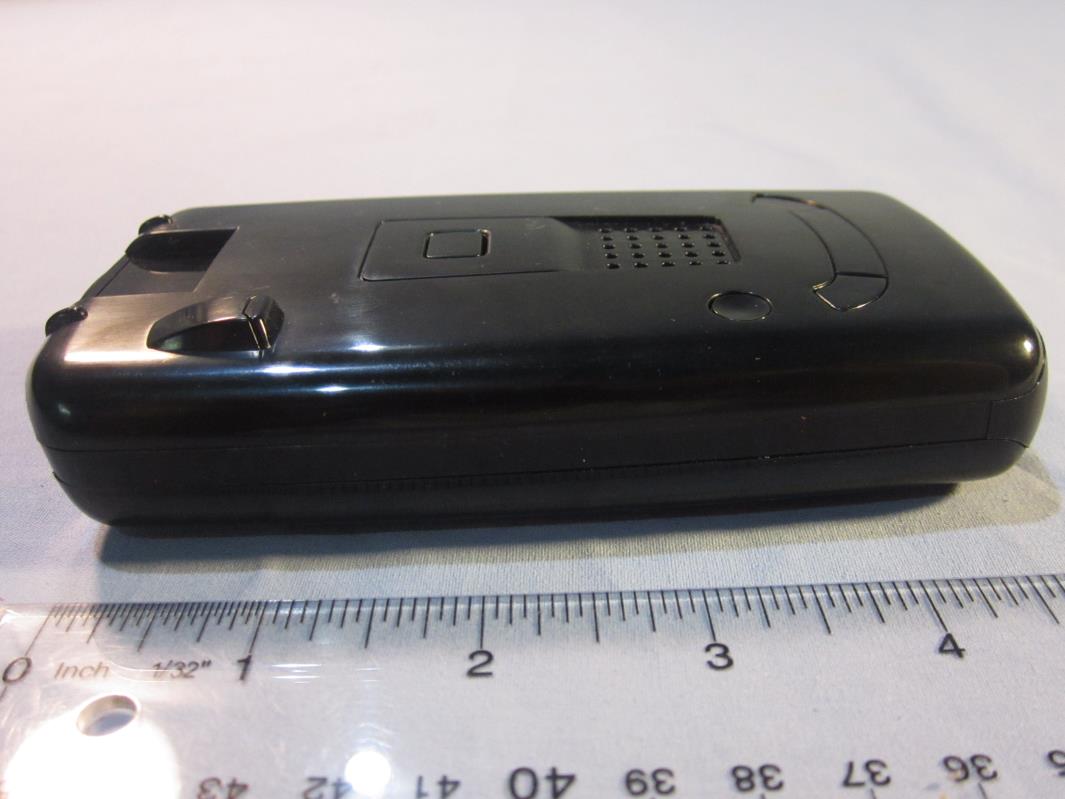

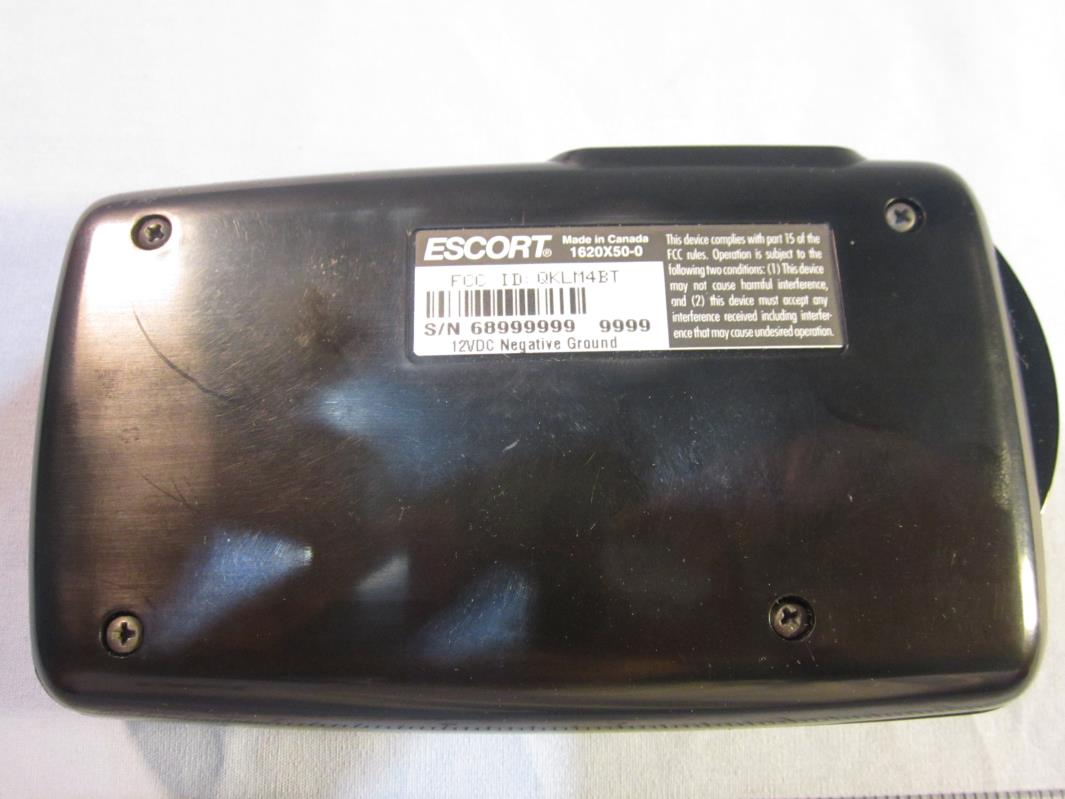

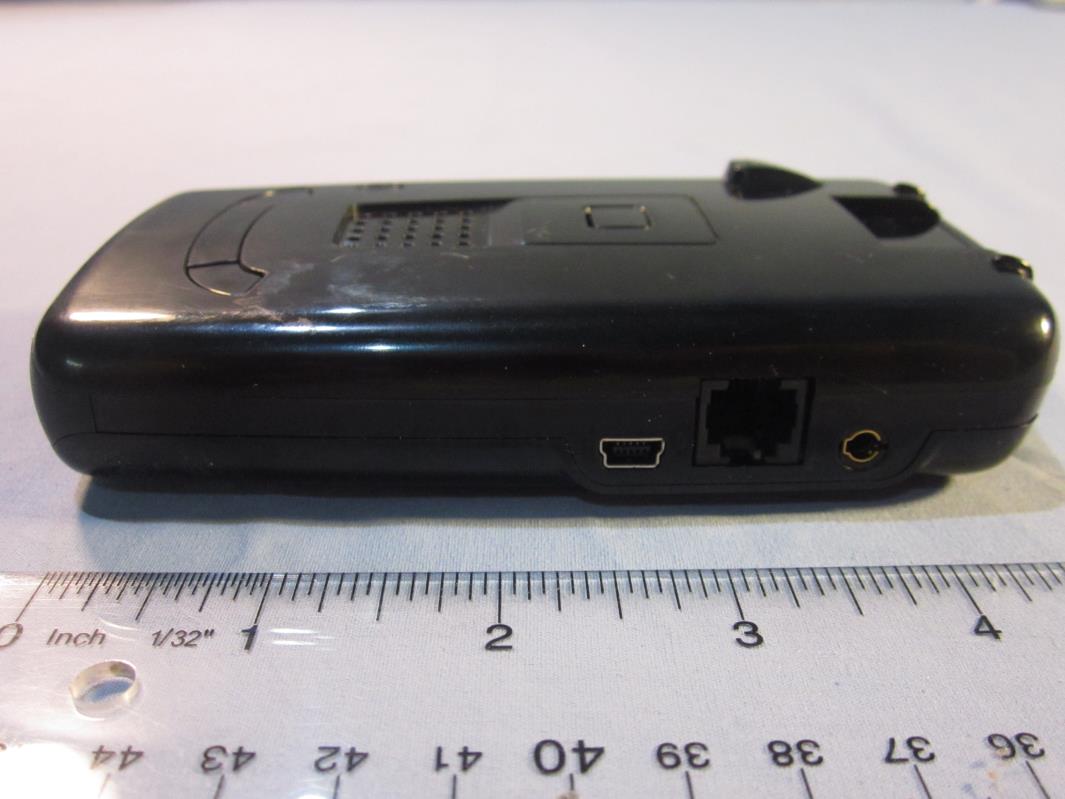

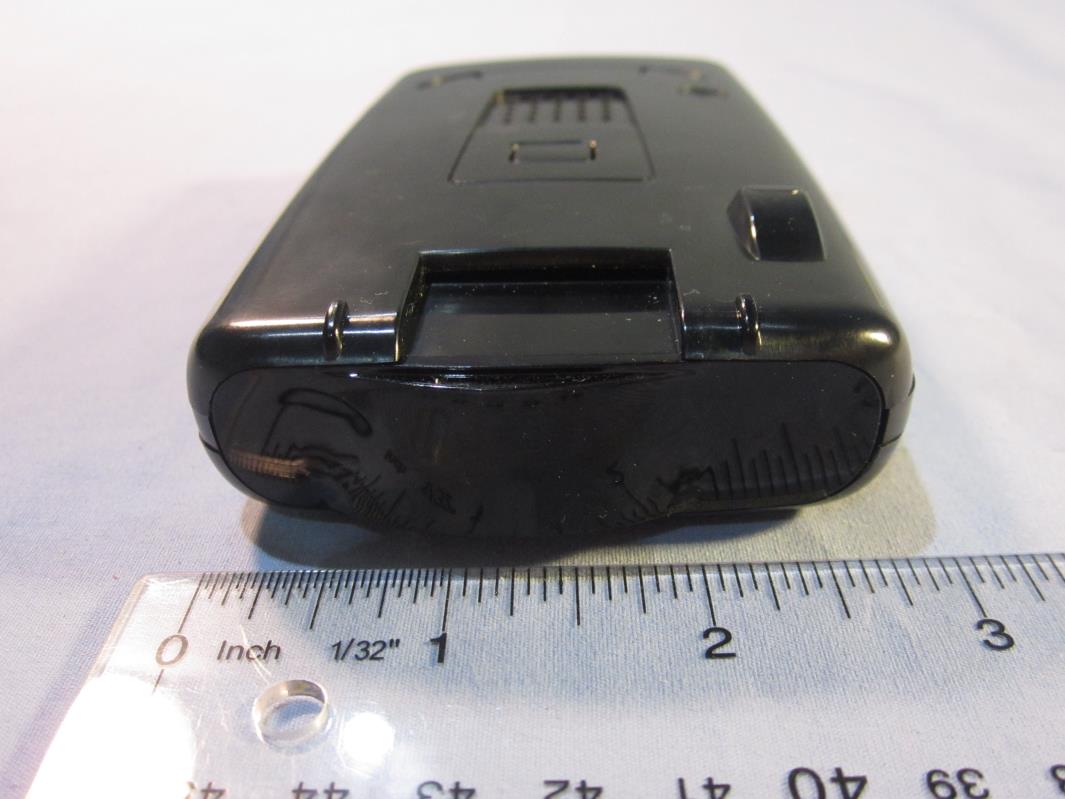

QKLM4BTRadar Detector

Quick Reference R A D A R • L A S E R • D E T E CT O R Contact Us Settings & Preferences To enter preferences Press and Hold SEN and BRT button down for 2 seconds. To exit Preferences, simply wait a few seconds without pressing a button. The unit will display Completed to confirm your selections . For Android For Android Controls & Features Power Press to turn PASSPORT on or off Brightness (BRT) Press to adjust display brightness (Min, Med, Max, Dark) Vo l•Mute Press to mute an alert; Press and hold + or − to adjust volume Mount Release Press to remove device from mounting bracket 87910 Display Alert area Notes for Settings & Preferences For descriptions of features and functions available when connected to ESCORT Live, visit EscortRadar.com and download the PASSPORT Owner’s Manual. To view serial number and software revision press SEN and VOL – while powering on detector. To restore PASSPORT to its original factory settings, press and hold BRT and VOL + while powering on detector. Restored message will display, acknowledging the reset. Software Updates PASSPORT is easily updated using our exclusive detector software tools found on our web site. Firmware, or the operating software for the detector, can be updated using these tools. In order to have access to these updates, please register your PASSPORT at www.EscortRadar. com. Once registered, you will receive email notifications that updates are now available for your firmware. To handle your software you need to connect your PASSPORT to a computer first. You can connect PASSPORT to a computer via USB A / Mini B cable (not included). Open ➜ Designed in the USA ESCORT Inc. 5440 West Chester Road West Chester OH 45069 Sales / Service 800.433.3487 www.EscortRadar.com ©2014 ESCORT Inc. Escort®, Passport®, Escort Live!™, AFR®, TrueLock™, SmartShield®, SpecDisplay™, AutoSensitivity™, ExpertMeter™ and Cincinnati Microwave are trademarks of ESCORT Inc. Manufactured in Canada. Features, specifications and prices subject to change without notice. FCC NOTE: Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. FCC ID: QKLM4BT. Contains FCC ID: QKLBT1. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Made for iPhone 4, iPhone 4s, iPhone 5, iPhone 5c, iPhone 5s. iPhone is a trademark of Apple Inc., registered in the U.S. and other countries. “Made for iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone may affect wireless performance. Android is a registered trademark of Google Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such marks by ESCORT is under license. Accessories 800. 433.3487 EscortRadar .com O u t s t a n d i n g P e r f o r m a n c e a n d V a l u e Sensitivity (SEN) Press to adjust detector sensitivity (Highway, Auto, Auto NoX) Imp ortant! GPS reception is required to get the most out of your PASSPORT. Actual speed and live alerts will not be shown on your PASSPORT if your smart phone does not have good gps reception. Display • Bluetooth icon appears in grey when not paired to phone and car battery voltage appears to the right. • When paired to phone a Bluetooth icon will appear on display screen in blue. • When connected to Escort Live, the Speed limit data and actual speed will display on screen. Press BRT to go from one Press VOL + or VOL – to change band category to the next your setting within a category X Band On* / Off Freq: 10.475 -10.575 GHz K Band On* / Off Freq: 24.050 -24.250 GHz Ka Band On* / Off Freq: 33.400-36.000 Ghz NOTE: When Ka Band is off, you can select separate segments of the band to turn on or off Ka N1 On* / Off Freq: 33.660 - 33.900 GHz Ka N2 On* / Off Freq: 34.200 - 34.400 GHz Ka N3 On* / Off Freq: 34.600 - 34.800 GHz Ka N4 On* / Off Freq: 35.400 – 35.600 GHz Ka-POP On / Off* Laser On* / Off Laser Detection TSR On* / Off Automatically rejects traffic flow sensors-monitoring false alarms RDR On* / Off Radar Detection Rejection Additional Preference options within ESCORT Live App when connected to PASSPORT Cruise Alert 20 mph* Offers double-beep alert tones below specified speed Off / 20-90 mph Speed Display On* Displays current speed Default ON when connected to app Off Displays Battery Voltage when Speed Display is turned off Units English* / Metric Units for distance and speed *Default Setting Press SEN to go from Press VOL + or VOL – to change one category to the next your setting within a category Pilot Sca n Bar* Scanning Bar with Full Word Full Word Full Word: Auto*, Auto No X, or Highway Display Color Blue*/Green/Red/Amber Set color to match your vehicle’s dash display. Adding brighter max screens and lower brightness setting during when user is in minimum bright setting Meter Mode Sta ndar d* Single band with bar graph of signal strength Spec Single band with numeric frequency Expert Multiple bands with bar graph of signal strengths Tones Standard* Standard ESCORT alert tones Mild Mild doorbell chime alert tones AutoMute On* / Off Automatically reduces audio during alert Language English* / Espanol La nguage for voice and text Voice On* / Off Voice announcements Ba nd Enables Default* Default Settings for North America Modified Customize the bands you want to monitor The PASSPORT introduces the following state-of- the-art performance and features: • Long-range K and Ka-band radar performance, including instant-on POP mode. • Exclusive AutoSensitivity intelligently…

Text truncated - open the document above for the full version.

DRIVE SMARTER- June 11,2014 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC A Bureau Veritas Company One Distribution Center Circle, Suite #1 Littleton, MA 01460 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidential material. Escort, Inc. requests that the following documents regarding this submission for FCC ill QKLM4BT be kept confidential for an indefinite time period: 1. Schematics 2. Block Diagram 3. Operational Description The above material contains technical data and proprietary information, which would customarily be guarded from competitors. We are requesting short-term confidentiality on photos for products not yet placed on the market, this includes Exhibit Type: Users Manual, Internal Photos, all External Photos, and Test Setup Photos. Once the product is offered for sale, all confidentiality for short-term exhibits will be removed. We are requesting 45 days of short-term confidentiality. ESCORT Inc. will notify the FCC immediately at the time the product is released to the market so that confidentiality can be removed prior to the 45 day expiration. ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

DRIVE SMARTER Letter ofAgency Agent's Authorization Letter May 16,2014 I, an officer of ESCORT INCORPORATED, do hereby authorize, until further notice, Bureau Veritas, Curtis-Straus LLC, of One Distribution Center Circle, #1, Littleton, MA 01460, to act on our behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization includes, but is not limited to, the signing of Form 731. I certifY that no party (as defined in 47 CFR 1.2002) to this application, including myself, is subject to a denial offederal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.c., 853A. ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

Curtis-Straus LLC is accredited to ISO/IEC 17025 by A2LA for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. See our scope of accreditation at the end of this test report. Any opinions or interpretations expressed in this report are outside the scope of our A2LA accreditation as A2LA only accredits testing. ____________________________________________________________ Curtis-Straus  1 distribution center  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 1 of 8 Testing Cert. No. 1627-01 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EO1587-1 Client Escort Inc. John Kuhn Address 5440 West Chester Rd. West Chester, OH 45069 Phone 513-870-8517 Items tested PASSPORT FCC ID QKLM4BT FRN 0007508732 Equipment Type CRD Equipment Code Radar Detector FCC Rule Parts 47 CRF 15.109(h) Test Dates June 18, 2014 Results As detailed within this report Prepared by Tuyen Truong – EMC Engineer Authorized by Christopher Reynolds – EMC Supervisor Issue Date 8/8/2014 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page Error! Bookmark not defined. of this report. Test Report for Escort Inc.  Report No. EO1587-1 August 8, 2014 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus  1 Distribution Center  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 2 of 8 Contents Contents .................................................................................................................................. 2 Summary ................................................................................................................................. 3 Test Methodology .................................................................................................................... 3 Product Tested - Configuration Documentation ....................................................................... 4 Statement of Conformity ...................................................................................................... 5 Test Results ............................................................................................................................ 6 Radiated Emissions ............................................................................................................. 6 Conditions Of Testing .............................................................................................................. 7 Form Final Report REV 7-20-07 (DW) Test Report for Escort Inc.  Report No. EO1587-1 August 8, 2014 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release August 8, 2014 _____________________________________________________________ Curtis-Straus  527 Great Road  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 3 of 8 Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. We found that the product met the above requirements without modification. The test sample was received in good condition. Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2003). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The radar detector was powered by a variable power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. Test Report for Escort Inc.  Report No. EO1587-1 August 8, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus  1 Distribution Center  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 4 of 8 Product Tested - Configuration Documentation EUT Configuration Work Order: O1587 Company: Escort, Inc. Company Address: 5440 West Chester Road West Chester, OH 45069 Contact: Wanda Densford MN PN FCC ID SN EUT: PASSPORT 1620X50-0 QKLM4BT 68999999 9999 EUT Description: Windshield Mounted Radar/Laser Detector Support Equipment: MN SN none EUT Ports: Port Label Port Type No. of ports No. Populated Cable Type Shielded Ferrites Length Max Length In/Out NEBS Type Unpopulated Reason DC Power/mute button RJ11 1 All DC pair No None 7ft 7ft NA NA Headphone 1/8" jack 1 1 2-wired No No 1m >3m NA NA USB USB 1 1 USB Yes No 1m >3m NA NA Software / Operating M ode Description: EUT is scanning for radar. Test Report for Escort Inc.  Report No. EO1587-1 August 8, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus  1 Distribution Center  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 5 of 8 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7-12.2GHz”. The applicable limit being 500μV/m measured at a distance of 3m. The radar detector has been tested and found to comply with this requirement Test Report for Escort Inc.  Report No. EO1587-1 August 8, 2014 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus  1 Distribution Center  Littleton, MA  TEL (978) 486-8880  FAX (978) 486-8828 page 6 of 8 Test Results Radiated Emissions Radiated Emissions Table Version 1.017.094 Date: 18-Jun-14 Company: Escort Inc. W…
