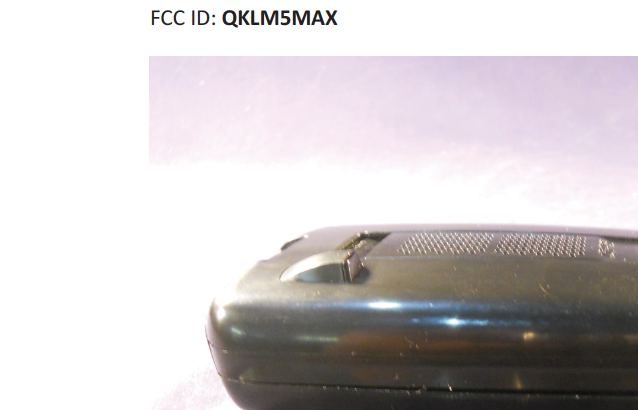

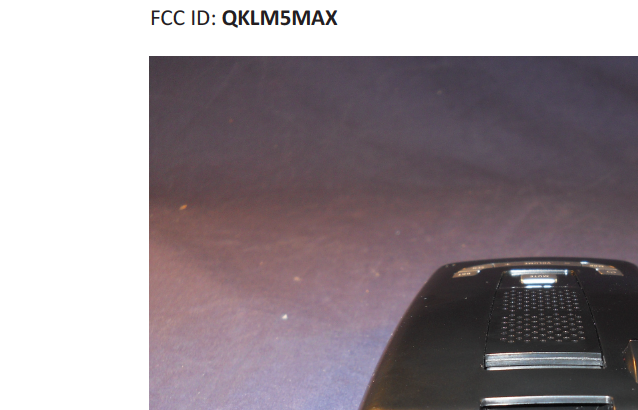

QKLM5MAXRadar Detector

PASSPORT MAX — Quick Reference Guide — Please Visit Escortinc.com for Owner’s Manual Congratulations You’ve just purchased the first and only radar/laser detector to offer high‐definition (HD) sensitivity and accuracy—the all new PASSPORT MAX. Now you can take ticket protection to the max, and protect your wallet too. • PASSPORT Max’s HD Performance accurately identifies real threats sooner than any other detector, providing more advanced warning when you need it. • PASSPORT MAX’s GPS location‐based intelligence automatically locks out false alerts and allows you to mark locations for future reference. • PASSPORT MAX gives you access to ESCORT®’s DEFENDER® Database, which warns you of verified speed traps, speed cameras, and red light cameras. • PLUS, it’s compatible with ESCORT Live!™, our exclusive real‐time ticket‐protection network, which warns you of upcoming alerts received and reported by other users in the area, and gives you access to local speed limit data for over‐speed alerts.* *Requires Optional SmartCord Live™ and app subscription Installation Mounting tips: • Center between driver and passenger. • Ensure clear view of road ahead and sky above. • Avoid windshield wipers and heavily tinted areas. To mount PASSPORT MAX in your vehicle: 1. Remove backing from sticky cup mount. 2. Firmly press sticky cup onto windshield and flip locking clamp to secure. 3. Slide PASSPORT MAX mounting slot onto mounting bracket and push back gently to lock into place. 4. To adjust view, loosen thumb wheel and adjust angle of mounting bracket. Tighten thumb wheel to secure. 5. To remove detector, press mount release button on PASSPORT MAX and slide device off mount. 6. To remove mount from windshield, release locking clamp and pull tab on top of sticky cup. Note: Cleaning Sticky Cup‐simply rinse under warm water while rubbing cup with hand to remove debris. To begin using PASSPORT MAX: 1. Plug small end of SmartCord into modular jack on PASSPORT MAX and large end of SmartCord into your car’s lighter/accessory socket. 2. PASSPORT MAX should power on automatically. If not, press the device’s power button. 3. Upon initial power‐up, PASSPORT MAX will ask you to confirm some basic settings and preferences. Press MRK button to scroll through and OK these settings (or press VOLUME + and – to edit). Note: You can easily access and customize all of your settings and preferences by pressing and holding the MRK and SEN buttons. See Settings & Preferences for details. Sticky cup Mounting bracket Locking clamp Thumb wheel Controls & Features Max connectors • Mini USB Jack: Connects to your computer via USB A/mini B cable for downloading software updates. • Modular Jack: Connects to SmartCord for powering your device. • Earphone Jack: Connects to optional 3.5 mm mono earphone. • Mounting Slot: Slides onto mounting bracket. SmartCord Controls & Features • Modular Connector: Plugs into detector jack. • Lighter Adapter: Connects to vehicle’s lighter/accessory socket. • Mute Button: Press to mute an alert; press three times to lock out a false alert; press twice while receiving a locked‐out alert to unlock. • Alert Light: Blinks orange when receiving an alert. • Power Light: Lights blue when receiving power. SEN: Press to adjust detector sensitivity (Highway, Auto, Auto No X). BRT: Press to adjust display brightness (Min, Med, Max, Auto, Dark). Mute: Press to mute an alert; press three times to lock out a false alert; press twice while receiving a locked‐out alert to unlock. MRK: To mark a location for future alerts, press MRK twice, then VOL + or – to select the type of marker, then MRK again to confirm. Press twice while receiving marker alert to unmark. Volume: Press and hold + or − to adjust volume. Power: Press to turn unit on or off. Mount Release: Press to remove device from mounting bracket. Display showing Current speed Display showing Overspeed alert Limit setting that can be adjusted in preferences. *Speed limit data viewed here when connected to Escort Live For descriptions of features and functions available when connected to SmartCord Live with ESCORT Live! visit escortinc.com and download the SmartCord Live user manual for your brand of smartphone. Settings & Preferences Press and hold the MRK and SEN buttons to access preferences. To exit preferences, simply wait a few seconds without pressing a button. The unit will display “Completed” to confirm your selections. Press MRK to go from one category to the next. Press VOLUME + or – to change your setting within a category. User Mode *Advanced Access and customize all settings and preferences Novice Access and customize units and display color, (all other settings are set to factory defaults) Note: Switch back to advance mode to view all preferences. Display Color *Blue/Green/Red/Amber Set color to match your vehicle’s dash display Speed Display *On Displays current speed Off Displays battery voltage Cruise Alert Off/20–90 mph (*20 mph) Offers double beep alerts tones below specified speeds Over Speed Off/20–90 mph (*55 mph) Alerts when you exceed the specified speed Meter Mode *Standard Single band with bar graph of signal strength Spec Single band with numeric frequency Expert Multiple bands with bar graphs of signal strengths Simple Simple messages replace bands: “Caution” (if traveling below cruise alert limit) “Slow Down” (if traveling above cruise alert limit) Tones *Standard Standard Classic ESCORT alert tones Mild Mild doorbell chime alert tones AutoMute *On/Off Automatically reduces audio during alert AutoLearn *On/Off Automatically learns and locks out false alarms Units *English/Metric Units for distance and speed Voice *On/Off Voice announcements GPS Filter *On/Off Enables PASSPORT MAX’s GPS‐powered features AutoPower‡ Off Power turns on or off depending on your vehicle’s ignition type (constant power or switched) 1 Hour Powers off automatically after 1 hour 2 Hours Powers off automatically after 2 hours *4 Hours Powers off automatically a…

Text truncated - open the document above for the full version.

April 5,2013 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Bureau Veritas Consumer Products Services Littleton Distribution Center One Distribution Center Circle, Suite #I Littleton, MA 01460 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidential material. Escort, Inc. requests that the following documents regarding this submission for FCC ill QKLM5MAX be kept confidential for an indefinite time period: 1. Schematics 2. Block Diagram 3. Operational Description The above material contains technical data and proprietary information, which would customarily be guarded from competitors. We are requesting short-term confidentiality on photos for products not yet placed on the market, this includes Exhibit Type: Users Manual, Internal Photos, all External Photos, and Test Setup Photos. Once the product is offered for sale, all confidentiality for short-term exhibits will be removed. We are requesting 45 days of short-term confidentiality. ESCORT Inc. will notify the FCC immediately at the time the product is released to the market so that confidentiality can be removed prior to the 45 day expiration. Ihn ic resident of Engineering E ort Incorporated 5440 West Chester Road West Chester, Ohio 45069 DRIVE SMARTER ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

DRIVE SMARTER Letter ofAgency Agent's Authorization Letter April 5, 2013 I, an officer of ESCORT INCORPORATED, do hereby authorize, until further notice, Bureau Veritas, Curtis-Straus LLC, of One Distribution Center Circle, #1, Littleton, MA 01460, to act on our behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization includes, but is not limited to, the signing of Form 731. I certify that no party (as defined in 47 CFR 1.2002) to this application, including myself, is subject to a denial of federal benefits, that include FCC benefits, pursuant to section 530 I of the Anti-Drug Abuse Act of 1988, 21 U.S.c., 853A. ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

DRIVE SMARTER April 30, 2013 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Bureau Veritas Consumer Products Services Littleton Distribution Center One Distribution Center Circle, Suite #1 Littleton, MA 01460 Re: Exhibit Replacement Request QKLM5MAX Gentlemen: This letter is requesting the label exhibit sent 4/5/2013 to be superseded with a revised label exhibit sent with this letter dated 4/30/2013. We are requesting confidentiality on photos for products not yet placed on the market. To us, this included original view sent 4/5/2013, which could reveal too much information regarding our new product. ESCORT Inc. • 5440 West Chester Road • West Chester OH 45069 • 513.870.8500 • Escortinc.com

REVISIONS O£SCRIPT IDH EHG 11('1\' P.lt£kS(i). 05/19104 <·(19, C·V3~1l[~·~t!~: .J [om PART NUMBER 1620XSO-O AS SHOWN I s.eFviL~iiIitOOR' ·~.RtAlNiJ",~ NOTES: UNLESS OTHERWISE SPECIFIED I. MATERIAL: .003 THICK MYLAR, FLEXCAL (INCLUDING ADHESIVE). 2. LABEL TO HAVE PERMANENT PRESSURE SENSITIVE ADHESIVE ON REAR SURFACE. 3. SERIAL NU~BER WITH BAR CODE AND FCC 10 TO BE PRINTED IN HOUSE PER DRAWING 98-000030 OF ESCORT SERIALIZATION LOG. 4. SAMPLES MUST BE APPROVED BY BELTRONICS BEFORE R[SIRIC[IOW IIOTICE: THIs' DU'II!/G/DOCUIIIENT tONUlltS H1rORWA.l10H RUNNING PRODUCTION. 'WICK IS PROPIU[Tl.RY TO1 IS PIO~ERTY 5. SCALED ARTWORK PER ARTWORK FILM. .,. ~~D!~~;T:g~'~~ USED REPRODUCED or D1$loSED ~~~m,g~~EmS\NS:~~lED BEL-TRONles TOLERAWCE'RE I'll DUW,," DR .• WISSISSAUGA 01 .• CA.AbA lSl I)' 1 PLACE DEClHAl 00.010" 1 PlA.C( O((IMAL ±.OOS" ,"vUlAR 00 lit' I .AHWt S[£ /lOIES E'1i . .l.PPU I PROG·. ,PPO I I ITtESCORT I FCC/SERIAL II STICKER I HI AN' MAlUlr~ WI THOU1 (XPRESS "lTHN I PEIUIISSION r«OM UNLESS OT.lRWlSE "OICAHO SI1E A BEl·TRONICS. REWO'i( SUUS AHO StlARP EDGES r 1I11SH S([ HOTts 00 )lOT SCJ.l[ ORk~IMG SIl([T Or

Curtis-Straus LLC is accredited to ISO/IEC 17025 by A2LA for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. See our scope of accreditation at the end of this test report. Any opinions or interpretations expressed in this report are outside the scope of our A2LA accreditation as A2LA only accredits testing. ____________________________________________________________ Curtis-Straus • •• • 1 distribution center • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 9 Testing Cert. No. 1627-01 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EN0929-1 Client Escort Inc. Address 5440 West Chester Rd. West Chester, OH 45069 Phone 513-870-8517 Items tested PASSPORTMAX FCC ID QKLM5MAX FRN 0007508732 Equipment Type CRD Equipment Code Radar Detector FCC Rule Parts 47 CRF 15.109(h) Test Dates April 08, 19, 2013 Results As detailed within this report Prepared by Tuyen Truong – Compliance Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date 4/24/2013 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 8 of this report. Test Report for Escort Inc. • •• • Report No. EN0929-1 April 24, 2013 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus • •• • 1 Distribution Center • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 2 of 9 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Statement of Conformity......................................................................................................5 Test Results ............................................................................................................................6 Conditions Of Testing ..............................................................................................................8 Form Final Report REV 7-20-07 (DW) Test Report for Escort Inc. • •• • Report No. EN0929-1 April 24, 2013 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release April 24, 2013 _____________________________________________________________ Curtis-Straus • •• • 527 Great Road • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 9 Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. We found that the product met the above requirements without modification. The test sample was received in good condition. Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2003). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The radar detector was powered by a variable power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. Test Report for Escort Inc. • •• • Report No. EN0929-1 April 24, 2013 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • •• • 1 Distribution Center • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 4 of 9 Product Tested - Configuration Documentation EUT Configuration Work Order:N0929 Company: Escort, Inc. Company Address: 5440 West Chester Road West Chester, OH 45069 Contact:Wanda Densford MNFCC IDSN EUT: PASSPORTMAXQKLM5MAX02999999 EUT Description:Windshield Mounted Radar/Laser Detector Support Equipment:MNSN none EUT Ports: Port LabelPort Type No. of ports No. PopulatedCable TypeShieldedFerritesLength Max Length In/Out NEBS TypeUnpopulated Reason DC Power/mute buttonRJ111AllDC pairNoNone7ft7ftOutNA Headphone1/8" jack112-wiredNoNo1m>3mOutNA USBUSB11USBYesNo1m>3mOutNA Software / Operating Mode Description: EUT is scanning for radar. Test Report for Escort Inc. • •• • Report No. EN0929-1 April 24, 2013 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • •• • 1 Distribution Center • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 5 of 9 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7-12.2GHz”. The applicable limit being 500V/m measured at a distance of 1m. The radar detector has been tested and found to comply with this requirement Test Report for Escort Inc. • •• • Report No. EN0929-1 April 24, 2013 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • •• • 1 Distribution Center • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 6 of 9 Test Results Radiated Emissions Table Version 1.017.081 Date:19-Apr-13Company:Escort, IncWork Order:N0929 Engineer:Nirak SoEUT Desc:Windshield Mounted Radar/Laser DetectorEUT Operating Voltage/…
