QKLS3Radar Detector

O w n e r’s M a n u a l Designed in the USA ESCORT Inc. 5440 West Chester Road West Chester OH 45069 Sales 80 0.433.3487 Service 80 0.543.1608 www. EscortInc.com ©2010 ESCORT Inc. ESCORT ® , P ASSPORT ® , S OLO ® , AFR ® , SmartShield ® , AutoSensitivity ™ , MuteDisplay ™ , and ExpertMeter ™ are trademarks of ESCORT Inc. SWS is a trademark of SWS, L.C. Features, specifications and prices subject to change without notice. R A D A R • L A S E R • S A F E T Y • D E T E C T O R Your new Solo S3 is the most advanced cordless radar, laser and safety detector available. The Solo S3 includes full X, K, SuperWide Ka, and Safety Warning System radar capability, front and rear laser detection, digital signal processing (DSP) for superior range and reduced false alarms, our patented Mute and AutoMute, audible and visual band alerts, and all the performance you’d expect from ESCORT. In addition, the Solo S3 introduces a new level of revolutionary cordless performance and innovative features: • New long-range cordless performance for both radar and laser • New AutoPower feature maximizes battery life • New brilliant high-resolution OLED display • Advanced EZ-Programming lets you customize up to 9 features • Exclusive AutoSensitivity mode virtually eliminates false alarms, plus Highway and City settings • ExpertMeter tracks and displays up to 8 radar signals simultaneously • Detects and displays up to 64 Safety Warning System messages • Compatible with Laser Shifte r ™ ZR4 If you’ve used a radar detector before, a review of the Quick Reference Guide on pages 6 and 7, and the EZ-Programming information on pages 1 4-1 9 will briefly explain the new features. If this is your first detector, please read the manual in detail to get the most out of your Solo S3’s outstanding performance and innovative features. Please drive safely. FCC Note: Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. EZ-Programming Details  Solo S3’s Factory Settings To reset Solo S3 to its original factory settings, press and hold the Mute and M (Mode) buttons while turning Solo S3 on. Solo S3’s display will provide a Reset message, accompanied by an audible alert, acknowledging the reset. Solo S3 Quick Reference Card  Remove card along perforations   Remove card along perforations  There are 9 user-selectable options so you can customize your Solo S3 for your own preferences. The buttons labeled VOL and M (Mode) are also used to enter the Program Mode, REVIEW your current program settings, and to CHANGE any settings as desired. The words PGM, RVW, and CHG are located on the front of the detector, and are highlighted in blue graphics. How to use EZ-Programming 1 To enter Program Mode, press and hold one of the VOL buttons and the M button down for 2 seconds. The unit will beep twice, and will display the word Program. 2 Then press the RVW button to review the current settings. You can either tap the button to change from item to item, or hold the button to scroll through the items . 3 Press the CHG button to change any setting. You can either tap the button to change from setting to setting, or hold the button to scroll through all the options. 4 To leave Program Mode, simply wait 8 seconds without pressing any button. The unit will display Complete, beep 4 times, and return to normal operation. An example of EZ-Programming: Here is how you would turn Solo S3’s AutoMute feature off. 1 Enter the Program Mode by holding one of the VOL buttons and the M button down for 2 seconds. Solo S3 will beep twice and display Program. 2 Then hold the RVW button down. Solo S3 will scroll through the categories, starting with Pilot Light (Pilot), then Auto Power ( aPwr), then Power-on sequence (PwrOn), then Signal Strength Meter (Meter), and then AutoMute (aMute). 3 Release the RVW button when Solo S3 shows the AutoMute item. Since the factory setting is for AutoMute to be on, Solo S3 will display aMute ON. If you accidentally don’t release the RVW button in time, simply press the other VOL button to scroll back to the desired category. 4 Press the CHG button to change from aMute ON to aMute OFF. 5 To complete the Programming, simply wait 8 seconds without pressing any button. Solo S3 will display Complete, beep 4 times, and return to normal operation. Congratulations 2 3 Quick Reference Card 3-4 Quick Reference Guide 6- 7 Installation 8-9 • Battery Installation 8 • Optional 12-volt SmartCord 8 • Mounting Location 8 • Windshield Mount 9 Controls and Features 10-13 • Power On/Off 10 • AutoPwr 10 • Volume Control 10 • Power-on indication / Alert 10 • Mute 10 • AutoMute 10 • SmartMute™ 11 • Battery Status / Voltage 11 • Low Battery Warning 11 • Mode Switch (Highway/Auto/City) 11 • Brightness 11 • Audible Alerts 12 • Signal Strength Meter 12 • ExpertMeter 12-13 EZ-Programming 14-19 • How To Use EZ-Programming 14 • Example of EZ-Programming 14 • Overview of EZ-Programming 15 • Details of EZ-Programming 16-19 Technical Details 20- 25 • Interpreting Alerts 2 0-21 • How Radar Works 22 • How Laser Works 23 • How Safety Radar Works 2 4-25 Service 26-31 • Troubleshooting 26-27 • Service 28 • Warranty 2 8-29 • Accessories 29 • Specifications 30 • Registration 31  Remove card along perforations  Table of Contents 5 4 Solo S3 Quick Reference Card Press the RVW button to go Press the CHG button to change from one category to the next your setting within a category PILOT LIGHT Pilot HWY * Full word: Highway or Auto or City (Options using Pilot H Letter: H or A or C 12-volt SmartCord) Pilot H.> Letter, with scanning dot Pilot + Symbol: + or • or -- Pilot +.> Symbol, with scanning dot Pilot +> Scanning symbol AUTO POWER aPwr Motn * Uses motion to turn Solo S3 off aPwr Time Uses time to turn Solo S3 off aPwr Off Turn Solo S3 on and off manually POWER-ON SEQUENCE PwrOn STD * Standard power-on sequence PwrOn FST Fast power-on sequence SIGNAL STRENGTH METER Meter STD * Standard signal str…

Text truncated - open the document above for the full version.

October 19, 20 I 0 DRIVE SMARTER To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Bureau Veritas Consumer Products Services Littleton Distribution Center One Distribution Center Circle, Suite #1 Littleton, MA 01460 Re: Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidential material. Escort, Inc. requests that the following documents regarding this submission for FCC 10 QKLS3 be kept confidential for an indefinite time period: 1. Schematics 2. Block Diagram 3. Circuit/Technical Description 4. Operational Description The above material contains technical data and proprietary information, which would customarily be guarded from competitors. We are requesting short-term confidentiality on photos for products not yet placed on the market, this includes Exhibit Type: Users Manual, Internal Photos, all External Photos, and Test Setup Photos. Once the product is offered for sale, all confidentiality for short-term exhibits will be removed. We are requesting 45 days of short-term confidentiality. ESCORT Inc. will notify the FCC immediately at the time the product is released to the market so that confidentiality can be removed prior to the 45 day expiration. /,--"" o rkuh Ice PreSident of Engineering EscoJl' Incorporated 5b West Chester Road West Chester, Ohio 45069 JE

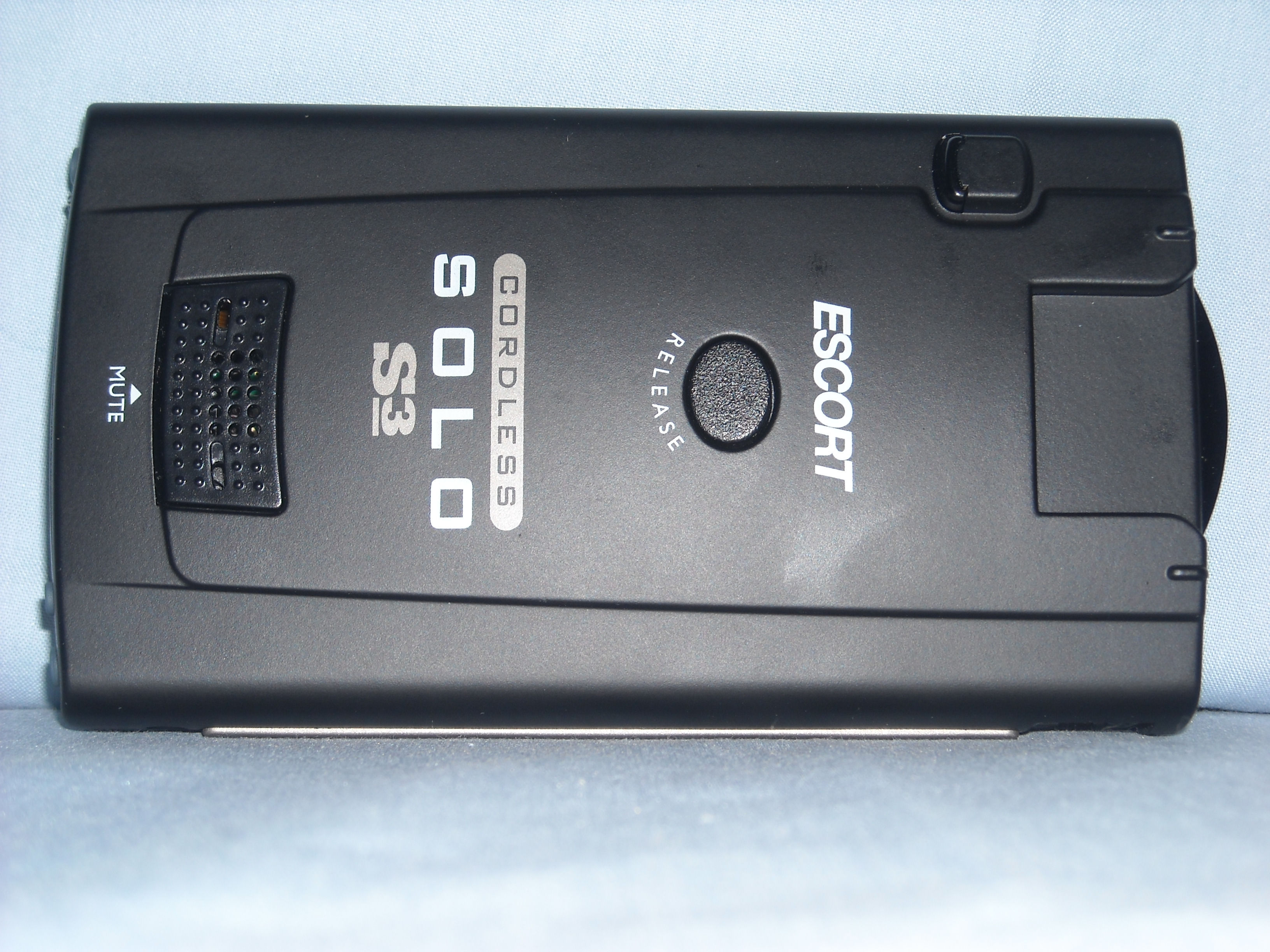

EK1409-1 Escort Inc. External Photographs EK1409-1 Escort Inc. External Photographs EK1409-1 Escort Inc. External Photographs

ESCORl; Made in Canada 1620X50-0 FCC ID: QKLS3 , 11111111111111 Hili SIN 29000001 9999 12VDC NegltiveGround This device complies with parr 15 of the FCC Jules. Operation is subject to the 101!O\'I;ng 1'::0 conditions: (1) This device may not couse harmful interference, and (2) this device must accept any interlerence receiveo including interfer­ eme tilGt mol' couse u,1desired operation.

Curtis-Straus LLC is accredited to ISO/IEC 17025 by A2LA for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. See our scope of accreditation at the end of this test report. Any opinions or interpretations expressed in this report are outside the scope of our A2LA accreditation as A2LA only accredits testing. ____________________________________________________________ • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 1 of 8 Curtis-Straus Testing Cert. No. 1627-01 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EK1409-1 Client Escort Inc. Address 5440 West Chester Rd. West Chester, OH 45069 Phone 513-870-8517 Items tested Radar Detector with Navigation FCC ID QKLS3 FRN 0007508732 Equipment Type CRD Equipment Code Radar Detector FCC Rule Parts 47 CRF 15.109(h) Test Dates October 20, 2010 Results As detailed within this report Prepared by John Cushing – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date 10/22/2010 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 7 of this report. Test Report for Escort Inc. • Report No. EK1409-1 October 22, 2010 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 8 Contents Contents .................................................................................................................................... 2 Summary ................................................................................................................................... 3 Test Methodology ...................................................................................................................... 3 Product Tested - Configuration Documentation ........................................................................ 4 Statement of Conformity........................................................................................................ 5 Test Results .............................................................................................................................. 6 Conditions Of Testing ................................................................................................................ 7 Form Final Report REV 7-20-07 (DW) Test Report for Escort Inc. • Report No. EK1409-1 October 22, 2010 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Ori ginal Release October 22, 2010 _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 3 of 8 Summary This report is an application for Certification of a radar detector operating pursuant to 47 CFR 15.109(h). This report is designed to demonstrate the compliance with the requirements outlined in Part 15 (using the methods outlined in Part 2) of 47 CFR. We found that the product met the above requirements without modification. The test sample was received in good condition. Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2009). The testing was performed at a distance of 1 meter. The device’s performance was investigated in the range 11.7-12.2GHz. The radar detector was powered by a variable power supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. Test Report for Escort Inc. • Report No. EK1409-1 October 22, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 4 of 8 Product Tested - Configuration Documentation EUT Configuration 2400-2483 Work Order: K1409 Company: Escort Inc. Company Address: 5440 West Chester Road West Chester, OH 45069 Contact: Wanda Densford MNPNSN EUT: QKLS3--29000000 9999 EUT Description: Solo S3 Radar Detector Support Equipment:MNSN none EUT Ports: Port LabelPort TypeNo. of ports No. PopulatedCable TypeShieldedFerritesLength Max Length In/Out NEBS TypeUnpopulated Reason RJ11 to 12VDC Car Lighter AdapterPower Input11RJ11 to 2-wired conductorNoNo1m2min AudioAudio11headphonesNonone1m1min Software / Operating Mode Description: EUT is detecting radar signals Test Report for Escort Inc. • Report No. EK1409-1 October 22, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 5 of 8 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7-12.2GHz”. The applicable limit being 500V/m measured at a distance of 3m. The radar detector has been tested and found to comply with this requirement Test Report for Escort Inc. • Report No. EK1409-1 October 22, 2010 ______________________________________________________________________ _____________________________________________________________ Curtis-Straus • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 page 6 of 8 Test Results Radiated Emissions Table Version 1.017.035 Date:20-Oct-10Company:EscortWork Order:K1409 Engineer: John Cushing EUT Desc: Solo S3 EUT Operating Voltage/Frequency: 12VDC Temp:20.2°CHumidity:25%Pressure:1006mBar Frequency Range:11.7-12.2GHzMeasurement Distance:1 m Notes: FCC 15.109(h) No emissions found, readings are noise floor Antenn…
