QKLSR7Radar Detector

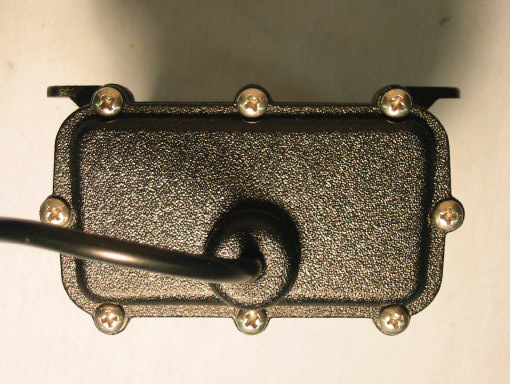

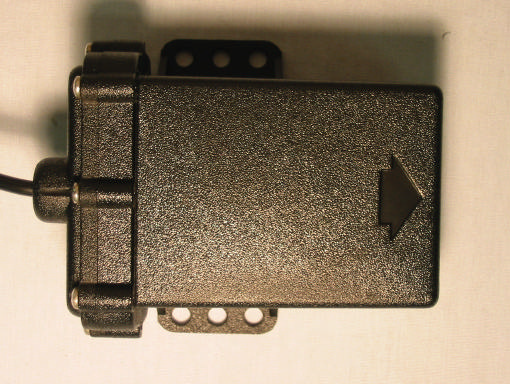

External Photos Model: Passport SR7 FCC ID: QKLSR7 Model: Passport SR7 FCC ID: QKLSR7 Model: Passport SR7 FCC ID: QKLSR7 Model: Passport SR7 FCC ID: QKLSR7

Internal Photos Model: Passport SR7 FCC ID: QKLSR7 Model: Passport SR7 FCC ID: QKLSR7 Model: Passport SR7 FCC ID: QKLSR7

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Test Report Report No EC0828-1 Client Escort, Inc. 5440 West Chester Road West Chester, OH 45069 Phone (513)-870-8535 Fax (513)-870-8523 FRN 0007508732 Model Passport SR7 FCC ID QKLSR7 Equipment Type Radar Detector Equipment Code CRD Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date _10/24/02 _ Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EC0828-1 FCC ID: QKLSR7 Page 2 of 8 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Table Of Contents Summary...........................................................................................................3 Test Methodology............................................................................................3 Statement of Conformity................................................................................4 Radiated Emission Measurement................................................................5 Test Equipment Used.....................................................................................6 Terms And Conditions....................................................................................7 REPORT: EC0828-1 FCC ID: QKLSR7 Page 3 of 8 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Summary This report is an application for Certification of a Radar Detector operating pursuant to 47 CFR 15.109, as amended by ET Docket No. 01-278; FCC 02-211, published in the Federal Register Vol. 67, No. 145 on Monday July 29, 2002. Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2001). The testing was performed at a distance of 1 meter. Performance was investigated in the range 11.7-12.2GHz. The Passport SR7 was powered by a HP E3612A DC Power Supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. REPORT: EC0828-1 FCC ID: QKLSR7 Page 4 of 8 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The Escort Passport SR7 has been tested and found to comply with this requirement. REPORT: EC0828-1 FCC ID: QKLSR7 Page 5 of 8 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Radiated Emission Measurement LIMIT Average: 500μV/m = 53.9dBμV/m @ 3m [15.109(h)] Note: If Peak measurements meet Average limits, then Average measurements are not required. MEASUREMENT Radiated Emissions Table Curtis-Straus LLC Date:21-Oct-02Company:EscortTable1 Engineer:Evan GouldEUT Desc:Passport SR7Work Order:C0828 Frequency Range:11.7-12.2GHzMeasurement Distance:1 m Notes:Maximized Horizontally and Vertically. There were no emissions detected from the EUT. AntennaPreampAntennaCableDistanceAdjusted47 CFR 15.109(a) PolarizationFrequencyReadingFactorFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) noise floor 12156.332.420.238.94.79.546.353.9-7.6Pass Test Site:"T"Pre-Amp:Or-BlkCable:3m MicroflexAnalyzer:OrangeAntenna:Black Horn ANALYZER PLOT REPORT: EC0828-1 FCC ID: QKLSR7 Page 6 of 8 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Test Equipment Used SPECTRUM ANALYZERS x Analyzer Model No. Company Serial No. Calibration Due X ORANGE 9kHz-26.5GHz E4407B HP US39440975 07-JUN-2003 OPEN AREA TEST SITES (OATS) x Site FCC Code IC Code VCCI Code Calibration Due X “T” Texas 93448 IC 2762-T R-905/ C-480 04-FEB-2004 ANTENNAS x Antenna Model No. Company Serial No. Calibration Due X BLACK Horn: 1-18GHz 3115 EMCO 9703-5148 12-JUN-2003 PREAMPLIFIERS / ATTENUATORS x Preamplifier Model No. Company Serial No. Calibration Due X ORANGE-BLACK 1-20GHZ SMC-12A MITEQ 690639 27-AUG-2003 Unless otherwise noted the calibration interval is one year. All equipment is calibrated using standards traceable to NIST or other nationally recognized calibration standard. All Open Area Test Sites are located at 527 Great Road, Littleton, MA 01460. REPORT: EC0828-1 FCC ID: QKLSR7 Page 7 of 8 _____________________________________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 Terms And Conditions Paragraph 1. SERVICES. LABORATORY will: 1.1 Use the degree of care and skill ordinarily exercised by and consistent with the standards of the profession. 1.2 Perform all technical services in substantial accordance with the generally accepted laboratory principles and practices. 1.3 Retain all pertinent records relating to the services performed for a period of three (3) years following submission of the report describing such services, during which period the records will be made available to CL…
