QKLSRXRadar Detector

PASSPORT SRX is designed and made in the USA by Escort Incorporated 5440 West Chester Road West Chester, Ohio 45069 Sales/Service 800-964-3143 Fax 513-870-8509 www.escortradar.com ©2001 Escort Inc. Escort ® , Passport ® , AutoSensitivity ™ , SpecDisplay ™ , ExpertMeter ™ , and Laser Shifter ™ are trademarks of Escort Inc. SWS ™ is a trademark of SWS LC. Features, specifications and prices subject to change without notice. SUPERCHARGED RADAR / LASER DEFENSE SYSTEM SUPERCHARGED RADAR / LASER DEFENSE SYSTEM Owner’s Manual ULTIMATEPERFORMANCE ULTIMATEPERFORMANCE Quick Reference Card 1 I EZ-Programming Details  Factory Default Settings To reset Passport to its original factory settings, press and hold the “CITY” and “MUTE” buttons while turning the power on. Passport’s display will provide a “Reset” message, accompanied by an audible alert, acknowledging the reset. Passport SRXQuick Reference Card Remove card along perforations   Remove card along perforations  Congratulations and Important Warning Congratulations Your new Passport SRX is the most advanced remote radar/laser detector available. The Passport SRX includes full X, K, and SuperWide Ka radar coverage, new front and rear Laser Shifters, improved Digital Signal Processing for superior range and reduced false alarms, our patented Mute and AutoMute, audible and visual band alerts, and all the performance you'd expect from Escort. In addition, your new Passport SRX introduces a new level of Radar/Laser defense including: • Supercharged radar performance, for superior K and Ka-band sensitivity • New programmable Laser Shifters, for maximum protection against laser targeting • Advanced EZ-Programming lets you instantly set up to 9 customized features • Exclusive AutoSensitivity ™ mode drasti- cally reduces false alarms, plus Highway and City settings • Ultra-bright alphanumeric display uses 280 LEDs for crystal clear information • Exclusive ExpertMeter ™ tracks and displays up to 8 radar signals • New SpecDisplay provides numeric frequency for any radar signal • Detects and decodes up to 64 Safety Warning Systems signals • High-Speed A/D converter dramatically improves radar detection range • Exclusive vertical display option provides unlimited installation options • Standard remote mute button provides one-touch mute and volume adjustment • Optional external speaker enables Voice alerts If you’ve used a radar detector before, a review of the Quick Reference Guide on page 4 and the EZ-Programming information on pages 9 and 10 will briefly explain the new features. If this is your first detector, please read the manual in detail to get the most out of your new Passport’s performance and features. Please drive safely. IMPORTANT INSTALLATION WARNING Your new Passport must be installed by a professional. Car Audio specialists and many car dealers can install Passport for you. Attempting to install the Passport SRX without expertise in automotive electronic installations can cause personal injury during the installation, or can damage your Passport or your vehicle. If your vehicle is damaged during installation, its safety systems may be compromised, which could cause personal injury or property damage. You can locate an authorized dealer in your area by logging on to our web site at www.escortradar.com There are 9 user-selectable options so you can customize your Passport SRX for your own preferences. The buttons labeled CITY and MUTE are also used to enter the Program Mode, REVIEW your current program settings, and to CHANGE any settings as desired. The words PROGRAM, REVIEW, and CHANGE are located on the front of the display, and are highlighted in gold graphics. How to use EZ-Programming 1To enter Program Mode, press and hold both buttons down for 2 seconds. (The unit will beep twice, and will display the word “Program”). 2Then press the REVIEW button to review the current settings. (You can either tap the button to change from item to item, or hold the button to scroll through the items). 3Press the CHANGE button to change any setting.(You can either tap the button to change from setting to setting, or hold the button to scroll through all the options). 4To leave Program Mode, simply wait 8 seconds without pressing any button. (The unit will display Complete, beep 4 times, and return to normal operation). An example For example, here is how you would turn Passport’s AutoMute feature off. 1Enter the Program Mode by holding both the CITY and MUTE buttons down for 2 seconds. Passport will beep twice and display Program. 2Press and hold the REVIEW button. Passport will scroll through the categories, starting with Pilot Light (Pilot), then Power-on sequence (PwrOn), then Signal strength meter (Meter), and then AutoMute (aMute). 3Release the REVIEW button when Passport shows the AutoMute item. Since the factory setting is for AutoMute to be on, Passport will display aMute ON. (If you accidentally don't release the Review button in time, and Passport goes to the next category, hold the Review button down again, and after Passport scrolls through all categories, it will begin again at the top of the list.) 4Press the CHANGE button to change from aMute ONto aMute OFF. 5To complete the Programming, simply wait 8 seconds without pressing any button. Passport will display Complete, beep 4 times, and return to normal operation. Table of Contents IntroductionI • Congratulations I • Important Warning I • Quick Reference Guide 1-2 Controls and Features5-8 • Power and volume control5 • Power-on indication5 • AutoMute5 • Mute5 • Remote Mute / Volume5 • Highway / Auto / City Switch6 • Display Brightness6 • Audible Alerts6 • Signal Strength Meter7 • ExpertMeter7 • SpecDisplay8 • Laser Shifters8 EZ-Programming9-13 • How to use EZ-Programming9 • Example of Programming9 • Overview of Programming10 • Details of Programming11-13 Technical Details14-19 • Interpreting Alerts14-15 • How Radar Works16 • How Laser Works17 • How Safety Radar Works18-19 Service20-…

Text truncated - open the document above for the full version.

Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. Printed in Canada153003-00 11263_FCC card insert 8/28/02 5:06 PM Page 1 11263_FCC card insert 8/28/02 5:06 PM Page 2

Circuit Description: The Series 7 block diagram is representative of Group 1 detectors. These detectors are scanning superheterodyne receivers that are electronically configurable to operate in either a dual, or triple conversion mode. When configured as a dual conversion receiver the first IF is at 904 MHz., and the second IF is at 10.7 MHz. If the system is configured as a triple conversion receiver, the second and third IF frequencies are 904, and 10.7 MHz., respectively, the first IFfrequency is selectable, and may be within two possible ranges, 4.912 to 5.1 GHz., or 3.232 to 3.276 GHz. Range selection is accomplished by an electronic switch, designated as A in the block diagram. The actual IF frequency within the selected range is determined by the second local oscillator frequency, which is controlled by a phase locked loop. The first local oscillator is voltage controlled, and is swept over predetermined frequency spans within the range of 14.276 to 15.514 GHz. The first local oscillator frequency span, the selected IF frequency, and the mixer bias, which determines the mixer operating mode, determine the range of frequencies over which the receiver will detect signals. These operating parameters are stored in nonvolatile memory within the receiver microcontroller. The first local oscillator frequency is calibrated by marker signals generated from mix products of the first and second local oscillators. The second local oscillator is phase locked to a 4MHz. crystal controlled reference oscillator, this accurate second local oscillator frequency enables precise calibration of the first local oscillator frequency. The same markers are also used to calibrate the third local oscillator. The calibration process determines the required oscillator tuning voltages, which are stored as digital values within the system microcontroller. Digital to analog converters are used to output the required tuning voltage levels to the individual oscillators. The calibration is updated on a periodic basis during receiver operation. Group 1 detectors operate only in the triple conversion mode, and receives the following RF frequencies: 10.475 to 10.575 GHz. 24.025 to 24.250 GHz. 33.4 to 36 GHz.

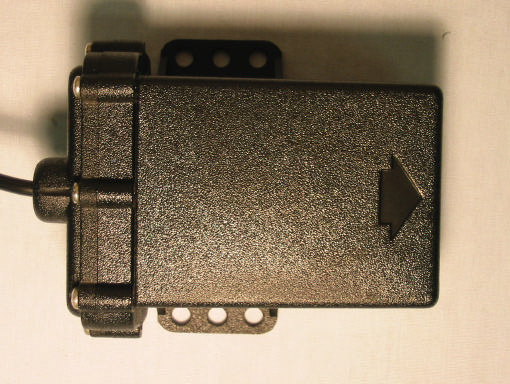

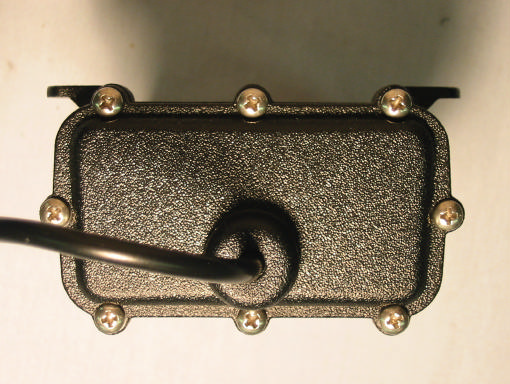

External Photos Model: Passport SRX FCC ID: QKLSRX Model: Passport SRX FCC ID: QKLSRX Model: Passport SRX FCC ID: QKLSRX Model: Passport SRX FCC ID: QKLSRX

FCC ID:QKL5110 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID:QKL7500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: QKL8500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: QKLSRX THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Internal Photos Model: Passport SRX FCC ID: QKLSRX Model: Passport SRX FCC ID: QKLSRX Model: Passport SRX FCC ID: QKLSRX

Company: Escort, Inc. FRN: 0007508732 Model: Passport SRX FCC ID: QKLSRX Equipment Code: CRD Report prepared for: Report prepared by: Escort, Inc. Evan D. Gould 5440 West Chester Road Curtis-Straus LLC West Chester, OH 45069 527 Great Road Phone: (513)-870-8535 Phone: (978)-486-8880 FAX: (513)-870-8523 FAX: (978)-486-8828 EMC Manager Worldwide Regulatory Approvals Experts (A2LA Certificate Number 1627-01) Technical Report REPORT:C0610-9 FCC ID:QKLSRX Page 2 of 8 Introduction This report is an application for Certification of a Radar Detector operating pursuant to 47 CFR 15.109, as amended by ET Docket No. 01-278; FCC 02-211, published in the Federal Register Vol. 67, No. 145 on Monday July 29, 2002. REPORT:C0610-9 FCC ID:QKLSRX Page 3 of 8 Statement of Conformity 47 CFR 15.109(h) states that “Radar detectors shall comply with the emissions limits...of [section 15.109(a)] over the frequency range of 11.7 – 12.2GHz.” The applicable limit being 500μV/m measured at a distance of 3m. The Escort Passport SRX has been tested and found to comply with this requirement. REPORT:C0610-9 FCC ID:QKLSRX Page 4 of 8 Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (2001). The testing was performed at an antenna to EUT distance of 1 meter. Performance was investigated in the range 11.7-12.2GHz. The Passport SRX was powered by a HP E3612A DC Power Supply. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. REPORT:C0610-9 FCC ID:QKLSRX Page 5 of 8 Test Equipment SPECTRUM ANALYZERS x Analyzer Model No. Company Serial No. Calibration Due X ORANGE 9kHz-26.5GHz E4407B HP US39440975 07-JUN-2003 OPEN AREA TEST SITES (OATS) x Site FCC Code IC Code VCCI Code Calibration Due X “T” Texas 93448 IC 2762-T R-905/ C-480 04-FEB-2004 ANTENNAS x Antenna Model No. Company Serial No. Calibration Due X BLACK Horn: 1-18GHz 3115 EMCO 9703-5148 12-JUN-2003 PREAMPLIFIERS / ATTENUATORS x Preamplifier Model No. Company Serial No. Calibration Due X ORANGE-BLACK 1-20GHZ SMC-12A MITEQ 690639 06-SEP-2002 Unless otherwise noted the calibration interval is one year. All equipment is calibrated using standards traceable to NIST or other nationally recognized calibration standard. All Open Area Test Sites are located at 527 Great Road, Littleton, MA 01460. REPORT:C0610-9 FCC ID:QKLSRX Page 6 of 8 Setup Photo Model: Passport SRX REPORT:C0610-9 FCC ID:QKLSRX Page 7 of 8 Measurement Results All measurements taken were peak detector readings of the noise floor. There were no emissions detected from the EUT. Radiated Emissions Table Curtis-Straus LLC Date:08-Aug-02Company:EscortTable1 Engineer:Evan GouldEUT Desc:Passport SRXWork Order:C0610 Frequency Range:11.7-12.2GHzMeasurement Distance:1 m Notes:Emissions maximized Horizontally and Vertically. All measurements are noise floor readings. AntennaPreampAntennaCableAdjusted 47 CFR 15.209(a) PolarizationFrequencyReadingFactorFactorFactorReadingLimitMarginResult (H / V)(MHz)(dBμV)(dB)(dB/m)(dB)(dBμV/m)(dBμV/m)(dB)(Pass/Fail) SRX 12150.031.720.138.94.755.263.5-8.3Pass Test Sites:"T"Pre-Amp:Or-BlkCable:3m MicroflexAnalyzer:OrangeAntennas:Black Horn REPORT:C0610-9 FCC ID:QKLSRX Page 8 of 8 Emission Plot
