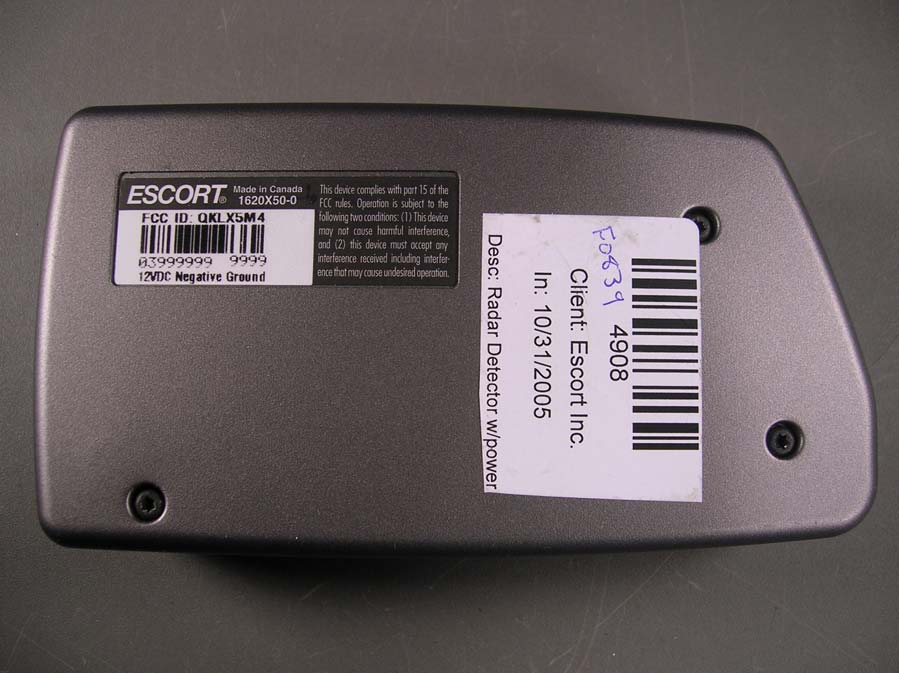

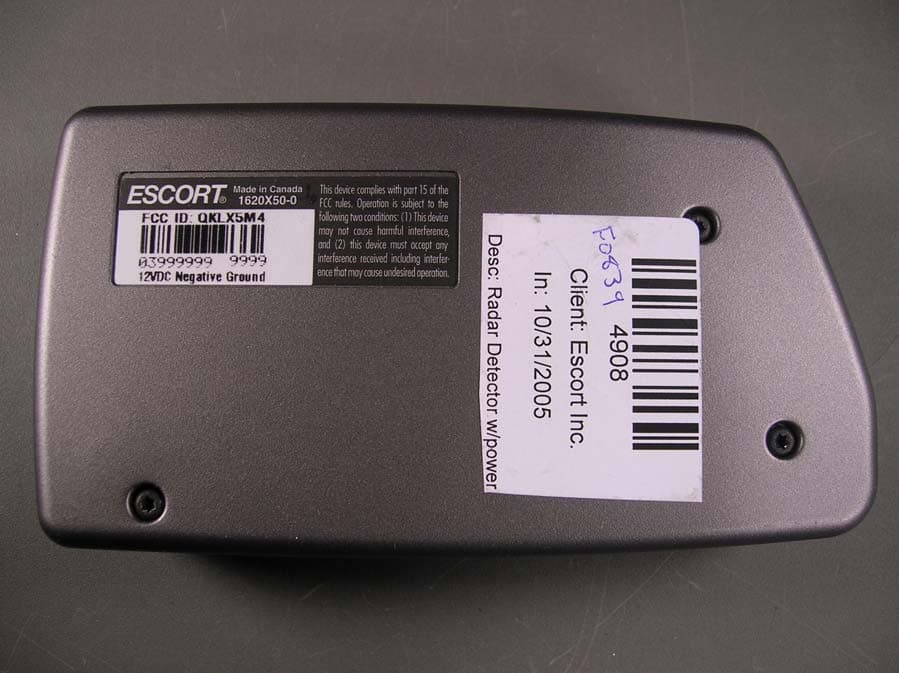

QKLX5M4Radar Detector

Owner’s Manual Designed in the USA Escort Incorporated 5440 West Chester Road West Chester OH 45069 Sales 888-8-ESCORT (888-837-2678) Service 800-543-1608 www.escortradar.com ©2004 Escort Inc. Escort ® , Passport ® , AFR ® , SmartShield ® , AutoSensitivity ™ , ExpertMeter ™ and SpecDisplay ™ are trademarks of Escort Inc. Features, specifications and prices subject to change without notice. You’ve purchased the Passport 8500 X50, which is the most advanced high- performance radar and laser detector on the market. The 8500 X50 provides extreme long- range warning on all radar bands including X, K, superwide Ka, and instant-on POP mode. Multiple front and rear laser sensors provide 360 degree laser protection, including the widest field of view. For the ultimate in laser protection, the Passport 8500 X50 is ZR3 ready. Ask your retailer, or call us at 1-800-543-1608 for details. Our patented Digital Signal Processing (DSP) provides extreme radar range with minimal false alarms. Patented Mute and AutoMute circuits keep the Passport 8500 X50 quiet in even the most populated areas. In addition, the Passport 8500 X50 introduces the following state-of-the-art performance and features: •Extreme long-range K and Ka-band radar performance, including instant- on POP mode •Advanced EZ-Programming lets you customize up to 9 features •Exclusive AutoSensitivity intelligently filters out annoying false alarms, plus Highway and City settings •Ultra-bright alphanumeric display with 280 LED’s •Exclusive ExpertMeter tracks and displays up to 8 radar signals simultaneously •Exclusive SpecDisplay provides actual numeric frequency for any radar signal •Programmable bands (on/off) allow you to customize which bands are monitored •Includes exclusive SmartCord for easy access to remote mute button If you’ve used a radar detector before, a review of the Quick Reference Guide on pages 4 and 5, and the EZ-Programming information on pages 12 and 13 will briefly explain the new features. If this is your first detector, please read the manual in detail to get the most out of your Passport’s outstanding performance and innovative features. Please drive safely. Quick Reference Card 1 EZ-Programming Details
Factory Default Settings To reset Passport to its original factory settings, press and hold the “CITY,” “DIM,” and “MUTE” buttons while turning the power on. Passport’s display will provide a “Reset” message, accompanied by an audible alert, acknowledging the reset. Passport 8500 X50Quick Reference Card Remove card along perforations   Remove card along perforations  Congratulations FCC Note: Modifications not expressly approved by the manufacturer could void the user’s FCC granted authority to operate the equipment. There are 9 user-selectable options so you can customize your 8500 X50 for your own preferences. The buttons labeled CITY and DIM are also used to enter the Program Mode, REVIEW your current program settings, and to CHANGE any settings as desired. The words PROGRAM, REVIEW, and CHANGE are located on the top of the detector, and are highlighted in blue graphics. How to use EZ-Programming 1To enter Program Mode, press and holdboth top buttons down for 2 seconds.(The unit will beep twice, and will display the word “Program”). 2Then press the REVIEW button to review the current settings. (You can either tap the button to change from item to item, or hold the button to scroll through the items). 3Press the CHANGE button to change any setting.(You can either tap the button to change from setting to setting, or hold the button to scroll through all the options). 4To leave Program Mode, simply wait 8 seconds without pressing any button. (The unit will display Complete, beep 4 times, and return to normal operation). An example For example, here is how you would turn Passport’s AutoMute feature off. 1Enter the Program Mode by holding both the city and dim buttons down for 2 seconds. Passport will beep twice and display Program. 2Then hold the REVIEW button down. Passport will scroll through the categories, starting with Pilot Light (Pilot), then Power-on sequence (PwrOn), then Signal strength meter (Meter), and then AutoMute (aMute). 3Release the REVIEW button when Passport shows the AutoMute item. Since the factory setting is for AutoMute to be on, Passport will display aMute ON. (If you accidentally don't release the Review button in time, and Passport goes to the next category, hold the Review button down again, and after Passport scrolls through all categories, it will begin again at the top of the list.) 4Press the CHANGE button to change from aMute ONto aMute OFF. 5To complete the Programming, simply wait 8 seconds without pressing any button. Passport will display Complete, beep 4 times,and return to normal operation. Table of Contents Quick Reference Guide4-5 Installation6-7 • Power Connection6 • Mounting Location6 • Windshield Mount7 Controls and Features8-11 • Power and volume control8 • Power-on indication8 • AutoMute8 • Mute8 • Auto / Highway / City Switch8 • Dim / Dark Switch9 • Dark Mode9 • Audible Alerts9 • Signal Strength Meter10 • ExpertMeter10 -11 • SpecDisplay11 EZ-Programming12-16 • How to use EZ-Programming12 • Example of Programming12 • Overview of Programming13 • Details of Programming14-16 Technical Details17-22 • Specifications17 • Interpreting Alerts18 -19 • How Radar Works20 • How POP Mode Works21 • How Laser Works22 Service23-28 • Service23 • Troubleshooting24-25 • Warranty26 • Accessories26 32 Quick Reference Card Passport 8500 X50Quick Reference Card *Factory Default Settings Remove card along perforations   Remove card along perforations  Press the REVIEWbutton to go from one category to the next PILOT LIGHT (Power-on indication) POWER-ON SEQUENCE SIGNAL STRENGTH METER AUTOMUTE AUDIOTONES CITY MODE SENSITIVITY BRIGHTNESS DARK MODE BANDS Pilot HWY Pilot H Pilot H.> Pilot + Pilot +.> Pilot +> Pilot V PwrOn STD PwrOn FST Meter STD Meter EXP Meter SPC aMute ON aMute OFF Tone STD To…
