QLHCAT0305Bluetooth USB Dongle

1 2 3 4 5 Hardware Installation Bluetooth USB Adapter USB 蓝芽转接器 USB 蓝牙适配器 Bluetooth USB Adapter Adaptador USB Bluetooth Bluetooth USB Adapter Adaptateur Bluetooth USB Bluetooth USB Adaptör Bluetooth USB Adapter CD The installation and setup procedures are based on Windows XP [SP2] platform. Do not plug the Bluetooth USB Adapter into the USB port before the installation. 以下安装及设定步骤皆是以 Windows XP [SP2]平台做示范。 软件安装前请勿将蓝牙适配器插入USB端口。 De installatie procedure zijn gebaseerd op het Windows XP [Sp2] platform.Plug de Bluetooth USB adapter NIET in de USD port voor de installatie! Los procedimientos de la instalación y del sistema se basan en plataforma de Windows.xp [ SP2 ]. No tape el adaptador del USB de Bluetooth en el puerto del USB antes de la instalación. La procedurea per l'installazione e’ basata sulla piattaforma di Windows.xp [ SP2 ]. Non insere l'adattatore USB Bluetooth nel vostro computer prima di avere installato I driverdell'installazione. Les procédures d’installation sont décrites pour Windows XP.Ne branchez pas l’Adaptateur USB Bluetooth au port USB avant l’installation. Kurulum prosedürü, Windows XP [SP2] platformuna dayalıdır. Kurulumu yapmadan Bluetooth USB Adaptörünüzü bilgisayarınızın USB portuna takmayı nız. Die Installation und das Einrichten basieren auf Windows XP und installiertem SP2. Bitte verbinden Sie den Bluetooth USB Adapter nicht mit dem USB Anschluss bevor Sie die Treiber installiert haben. 以下安装及设定步骤皆是以 Windows XP [SP2]平台做示范。 软件安装前请勿将蓝芽转接器插入USB连接埠。 Insert the CD into your CD-ROM. 放入光碟片。 放入光盘。 Plaats de CD-ROM in de CD-ROM speler Inserte el CD de la instalación en su CD-ROM Inserire il CD nell vostro CD-ROM Insérez le CD dans votre lecteur de CD-ROM Kurulum CD’nizi CD-ROM’a yerleştiriniz. Legen Sie die CD in das CD-ROM Laufwerk Click "Toshiba Driver” 点选 "Toshiba Driver” 点选 "Toshiba Driver” Klik op “Toshiba Driver” Haga clic “Toshiba Driver” Selezzionare Toshiba Driver Cliquez sur "Toshiba Driver" “Toshiba Driver” ikonunu tıklayınız. Wählen Sie “Toshiba Driver” Select your language and click "OK". 选择您的语言然后按下"确定" 选择您的语言然后按下"确定" Selecteer uw taal en klik “OK” Seleccione su idioma y haga clic "OK". Selezzionare la lingua preferita Sélectionnez votre langue et cliquez sur "OK" Dil (lisan) seçiniz ve “OK” ikonunu tı klayınız. Wählen Sie Ihre favorisierte Sprache aus und klicken Sie auf “OK” Click "Next" 点选 "下一步"。 点选 "下一步"。 Klik “Next” Haga clic “Next” Premere continua Cliquez sur "Suivant" “Next (İleri)” ikonunu tıklayınız. Klicken Sie auf “NEXT” Select "I accept the terms....", then click "Next". 选择"我接受...."，然后点选"下一步"。 选择"我接受...."，然后点选"下一步"。 Selecteer “I accept the terms....”, en klik “Next” Seleccione “I accept the terms....”, y haga clic "OK". Selezzionare “Accetto I termini per poi premere prossimo Sélectionnez "j'accepte les conditions...", ensuite cliquez sur "Suivant" “I accept the terms....(Sözleşmeyi Kabul ediyorum...)” kutucuğunu işaretleyiniz ve “Next” ikonunu tıklayınız. Wählen Sie “I accept the terms...” und dann klicken Sie auf “NEXT” Click "Install". 点选 "安装"。 点选 "安装"。 Klik “Install” Haga clic “Install” Premere installa Cliquez sur "Installer" “Install (KUR)” ikonunu tıklayınız. Kicken Sie auf “Install” Step1 Step2 Step3 Step4 Step5 Step6 ContentsBefore starting Enabled: The Bluetooth USB Adapter is on standby mode, and waiting for linking. 已驱动:蓝芽适配器处于 待机模式，可与其它蓝芽 装置连接。 Geactiveerd: De Bluetooth USB adapter is in standby modus en wacht op verbinding. Activado: El adaptador USB Bluetooth está en modo espera, y para ligarse que espera. L’apparato Buetooth e’ in attesa di connetersi con altri apparati Bluetooth Activation : l’adaptateur USB Bluetooth est en mode veille et attend la connexion. Aktif: Bluetooth USB Adaptörün bağlandığını ve bekleme modunda olduğ unu göstermektedir. 已驱动:蓝芽转接器处于 待机模式，可与其他蓝芽 装置连线。 Eingeschaltet: Der Bluetooth USB Adapter steht auf Standby und warte auf eine Signal von einem anderen Bluetooth Gerät. Disabled: The Bluetooth USB Adapter is not functioning properly or disabled, which might be caused by not properly plugging into the USB port or incompatible Bluetooth driver. 未驱动: 蓝芽适配器无法正常运作，原因可能是蓝芽适配 器未正确插入USB端口，或是电脑使用的蓝牙驱动程序与 蓝芽适配器不符。 Uitgeschakeld: De Bluetooth USB adapter werkt niet of is uitgeschakeld. Dit kan veroorzaakt zijn doordat de adapter verkeerd is ingeplugd of een verkeerde Bluetooth driver. Lisiado: El adaptador USB Bluetooth no está funcionando correctamente o se apaga. Esto se puede causar por una conexión incorrecta del adaptador en el puerto USB o un driver incompatible. L'adattatore del USB di Bluetooth non sta funzionando correttamente o inabilitato, la causa potrebbe essere una errata connessione con la porta USB oppure un inconpatibilita’ con i Bluetooth driver installati La raison peut être que l’adaptateur n’est pas bien branché sur le port USB ou que le pilote est incompatible. Kullanım dışı: Bluetooth USB Adaptörünüz, USB portunuz ile uyuşmadığı için veya takılı olmadığı için kapalı veya çalışmamaktadır. Ausgeschaltet: Der Bluetooth Adapter ist nicht funktionsfähig oder ausgeschaltet. Überprüfen Sie das USB Kabel und überprüfen Sie die Treiber. 未驱动: 蓝芽转接器无法正常运作，原因可能是蓝芽转接器 未正确插入USB插槽，或是电脑使用的蓝芽驱动程式与蓝芽 转接器不符。 Connected: The Bluetooth USB Adapter is linked to and communicating with other Bluetooth Device(s) 已连接: 蓝芽适配器正与其它蓝芽装置连接中。 Verbonden: De Bluetooth USB adapter is verbonden en communiceert met andere Bluetooth apparaten. Conectado: El adaptador USB Bluetooth se liga a y comunicándose con otros Aparatos Bluetooth. Il vostro adattatore Bluetooth e’ connesso percui pronto per comunicare con il vostro apparato Bluetooth Connexion: l’adaptateur USB Bluetooth est branché et en communication avec d’autres appareils Bluetooth. Bağlandı: Bluetooth USB adaptörünüz, diğer bluetooth cihazları ile bağlantı sağlamıştır. Verbunden: Der Bluetooth Adapter ist verbunden und kommuniziert mit dem Bluetooth Gerät. 已连线: 蓝芽转接器正与其他蓝芽装置连线中。 Step11 Step12 6 7 8 9 10 11 Click "Yes". 点选 "是"。 点选 "是"。 Klik “Yes” Haga clic “Yes” Premere S…

Text truncated - open the document above for the full version.

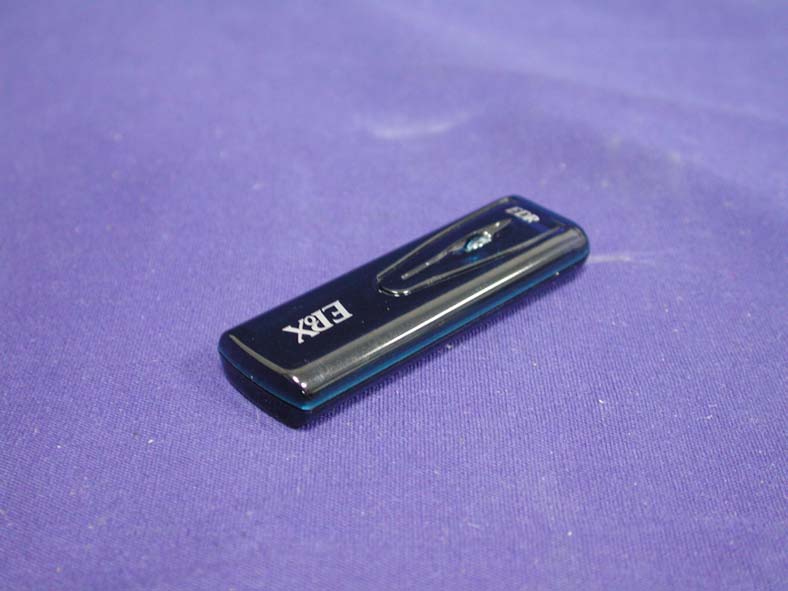

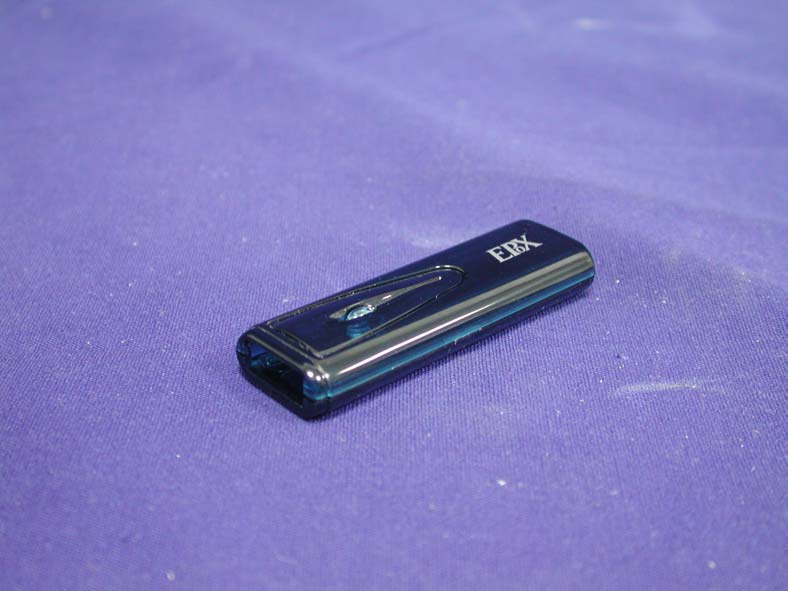

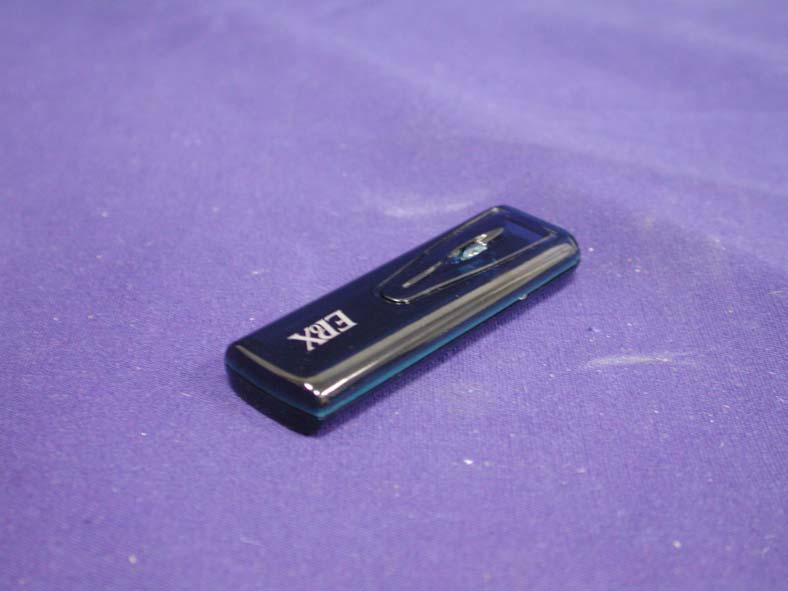

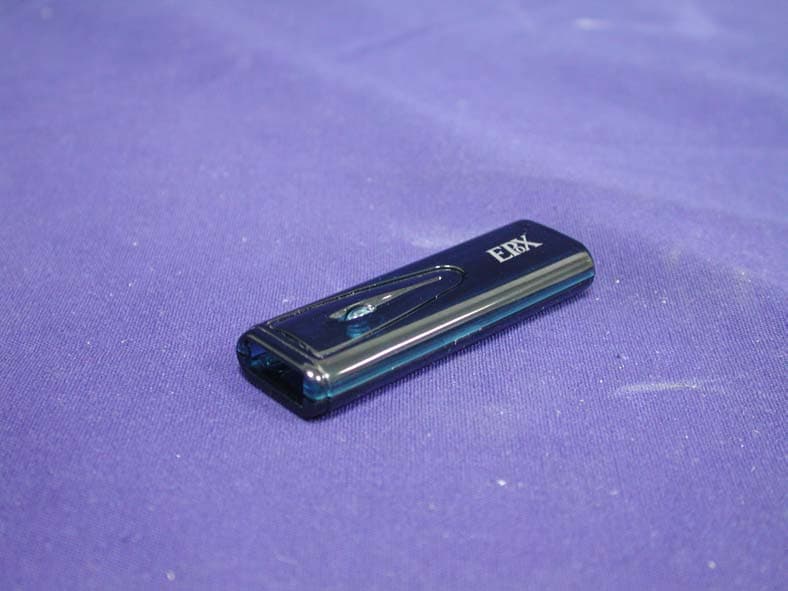

Report No.: 05CL071-RF-US-P06V01 Page : 1 of 6 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (DG-07A) (2) EUT Photo (DG-07A) Report No.: 05CL071-RF-US-P06V01 Page : 4 of 6 Version:1.0 (7) EUT Photo (DG-07A+) (8) EUT Photo (DG-07A+)

EPOX COMPUTER CO., LTD. FCC ID.: QLHCAT0305 10F,346,Chung San Rd,Sec 2 Chung Ho City,Taipei Hsien 235 Taiwan R.O.C. .Tel : 886-2-22479888#1728 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. USB Dongle Model No.: DG-07A, DG-07A+ USB Dongle Model No.: DG-07A, DG-07A+ F F C C C C I I D D : : Q Q L L H H C C A A T T 0 0 3 3 0 0 5 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

EPOX COMPUTER CO., LTD. FCC ID.: QLHCAT0305 10F,346,Chung San Rd,Sec 2 Chung Ho City,Taipei Hsien 235 Taiwan R.O.C. .Tel : 886-2-22479888#1728 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. USB Dongle Model No.: DG-07A, DG-07A+ USB Dongle Model No.: DG-07A, DG-07A+ F F C C C C I I D D : : Q Q L L H H C C A A T T 0 0 3 3 0 0 5 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 05CL071-RF-US-P06V01 Page : 2 of 6 Version:1.0 (3) EUT Photo (DG-07A) (4) EUT Photo (DG-07A) Report No.: 05CL071-RF-US-P06V01 Page : 3 of 6 Version:1.0 (5) EUT Photo (DG-07A) (6) EUT Photo (DG-07A) Report No.: 05CL071-RF-US-P06V01 Page : 5 of 6 Version:1.0 (9) EUT Photo (DG-07A+) (10) EUT Photo (DG-07A+) Report No.: 05CL071-RF-US-P06V01 Page : 6 of 6 Version:1.0 (11) EUT Photo (DG-07A+) (12) EUT Photo (DG-07A+)

Report No. 05CL071-RF-US-P06V01 Page 6 of 40 Version:1.0 1.2. Operational Description The EUT is a USB Dongle with 79 channels. This device provides wireless technology that revolutionizes personal connectivity. It is the solution for the seamless integration of Bluetooth technology into personal computer enabling short-range wireless connections between desktop/laptop computers, Bluetooth-enabled peripherals, and portable handheld devices. Test Mode: Mode 1: Transmitter

Report No. 05CL071-RF-US-P06V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : USB Dongle Model No. : DG-07A, DG-07A+ FCC ID QLHCAT0305 Applicant : EPOX COMPUTER CO., LTD. Address : 10F,346,Chung San Rd,Sec 2 Chung Ho City,Taipei Hsien 235 Taiwan R.O.C. Date of Receipt : Dec. 12, 2005 Date of Declaration: Dec. 21, 2005 Report No. : 05CL071-RF-US-P06V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 05CL071-RF-US-P06V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 05CL071-RF-US-P06V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : USB Dongle Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.5dBi in linear scale. Bluetooth Output Power Into Antenna & RF Exposure Evaluation Distance (1.5dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 2.5 cm (mW/cm 2 ) 00 2402.00 8.0168 0.1442 39 2441.00 7.2946 0.1312 78 2480.00 6.5615 0.1180 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 2.5 cm separation requirement.

Report No. 05CL071-RF-US-P06V01 Page: 1 of 40 Version:1.0 Test Report Product Name : USB Dongle Model No. : DG-07A, DG-07A+ FCC ID. : QLHCAT0305 Applicant : EPOX COMPUTER CO., LTD. Address : 10 F., 346, Chung San Rd., Sec. 2 Chung Ho City, Taipei Hsien 235 Taiwan R.O.C. Date of Receipt : Dec. 12, 2005 Issued Date : Dec. 21, 2005 Report No. : 05CL071-RF-US-P06V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 05CL071-RF-US-P06V01 Page: 2 of 40 Version:1.0 Test Report Certification Issued Date: Dec. 21, 2005 Report No.: 05CL071-RF-US-P06V01 Product Name : USB Dongle Applicant : EPOX COMPUTER CO., LTD. Address : 10 F., 346, Chung San Rd., Sec. 2 Chung Ho City, Taipei Hsien 235 Taiwan R.O.C. Manufacturer : EPOX COMPUTER CO., LTD. Model No. : DG-07A, DG-07A+ FCC ID. : QLHCAT0305 Rated Voltage : AC 120V/60Hz Trade Name : EPoX Applicable Standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2005 ANSI C63.4: 2003 Test Result : Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Gina Chen ) Tested By : ( Tim Sung ) Approved By : ( Gene Chang ) 0914 Report No. 05CL071-RF-US-P06V01 Page: 3 of 40 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................4 1.1. EUT Description......................................................................................................................................4 1.2. Operational Description...........................................................................................................................5 1.3. Tested System Details..............................................................................................................................6 1.4. Configuration of Tested System ..............................................................................................................6 1.5. EUT Exercise Software ...........................................................................................................................6 1.6. Test Facility .............................................................................................................................................7 2. CONDUCTED EMISSION ..................................................................................................................8 2.1. Test Equipment ........................................................................................................................................8 2.2. Test Setup ................................................................................................................................................8 2.3. Limits.......................................................................................................................................................8 2.4. Test Procedure .........................................................................................................................................9 2.5. Uncertainty ..............................................................................................................................................9 2.6. Test Result of Conducted Emission .......................................................................................................10 3. PEAK POWER OUTPUT ..................................................................................................................12 3.1. Test Equipment ......................................................................................................................................12 3.2. Test Setup ..............................................................................................................................................12 3.3. Limit .....................................................................................................................................................12 3.4. Uncertainty ............................................................................................................................................12 3.5. Test Result of Peak Power Output .........................................................................................................13 4. RADIATED EMISSION .....................................................................................................................14 4.1. Test Equipment ......................................................................................................................................14 4.2. Test Setup ..............................................................................................................................................14 4.3. Limits.....................................................................................................................................................15 4.4. Test Procedure .......................................................................................................................................15 4.5. Uncertainty ............................................................................................................................................15 4.6. Test Result of Radiated Emission ..........................................................................................................16 5. BAND EDGE .......................................................................................................................................22 5.1. Test Equipment ...................................................…

Text truncated - open the document above for the full version.

Report No.: 05CL071-RF-US-P06V01 Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 05CL071-RF-US-P06V01 Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 05CL071-RF-US-P06V01 Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
