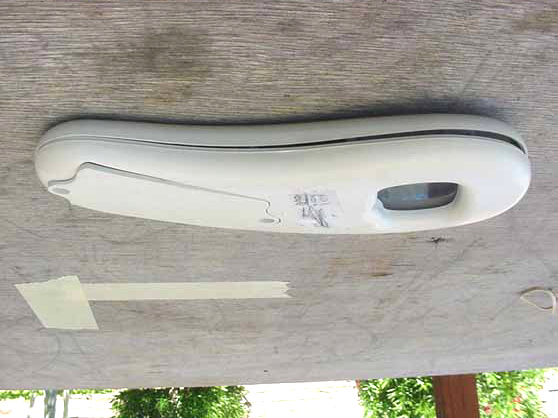

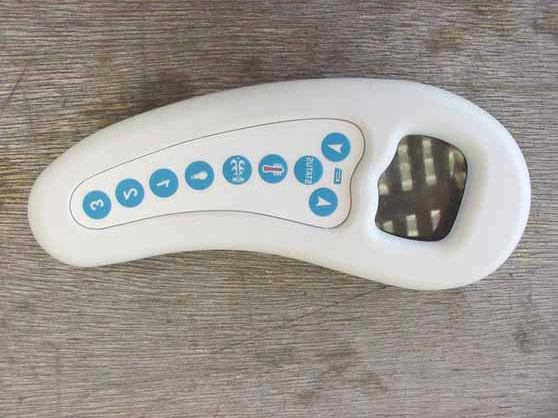

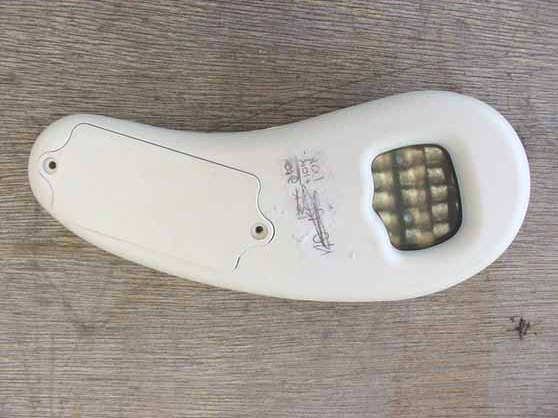

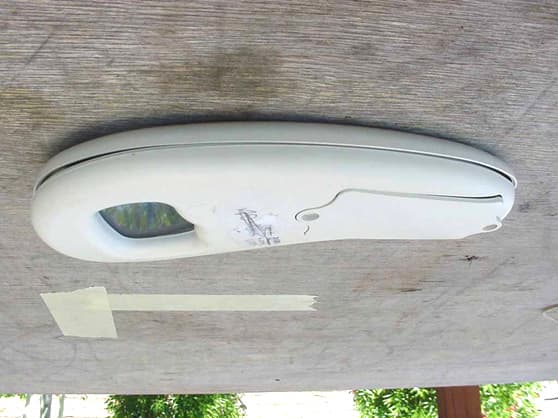

QLSLNVTRHHR102Pool Spa / Controller -- Hand Held Remote

ALLIED INNOVATIONS LENNOVATOR OSCILLATOR BLOCK DIAGRAM 16-AUG-02 In Base Unit and Handheld Wireless Remote Antenna 10.7 MHz Filter Transmit Crystal 14.31818 MHz 17 KHz Filter Microcontroller LNA Dual Timebase PLL Receive Crystal 14.152813 MHz SAW Filter Power Amp L Microcontroller Crystal 4.000000 MHz 10.7 MHz Filter Transmit Data Differential LO (905.78 MHz) IF Amp IF Limiter DEMOD Receive Data LVLADJ RX: 905.78 MHz TX: 916.48 MHz

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 1 August 20, 2002 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: Request for Certification of the Allied Innovations, LLC Pool / Spa Controller – Hand Held Remote Model: Lennovator FCC ID: QLSLNVTRHHR102 Gentlemen: We have enclosed a package for the certification of the Allied Innovations Pool / Spa Controller – Hand Held Remote Model: Lennovator. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (714) 579-0500. Sincerely, Kyle Fujimoto Test Engineer

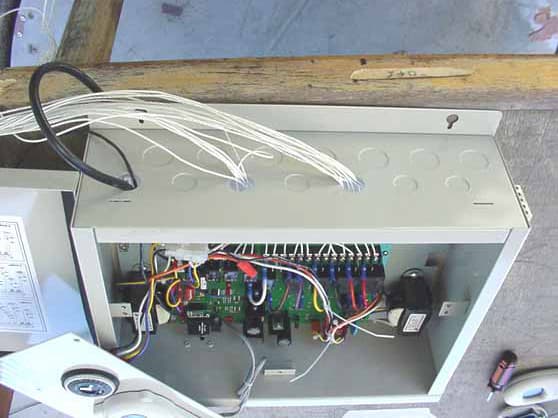

Allied Innovations, LLC 20-May-02 PAGE 1 of 1 GENERAL LENNOVATOR SYSTEM OPERATION The Lennovator product is a system designed to control all the equipment in a single pool/spa combination. Its enclosure is designed for all weather outdoor use. Power to the Lennovator unit, as well as connection to the external pool and spa equipment is made by running wires through conduit and connecting them to terminal blocks inside the enclosure. All of the control and switching components (including the microprocessor and relays) are mounted on printed circuit boards also inside the enclosure. The system can be configured to operate from a 120VAC source or a two-phase 240VAC source. The functions of the Lennovator are controlled by both a handheld wireless remote control, and by the hard-wired deckside remote control. The Lennovator system is designed to control an external heater that has its own hi limit function, but the normal thermostat function is controlled by the Lennovator’s microprocessor. The jets, light, and several auxiliary functions, all of which are on timers, may be turned on and off by pressing buttons on either remote control. Controlling the operation of the pool and the spa, and setting/changing the temperature of the spa can be accomplished with the remotes. The current temperatures of the pool and spa, as well as the status of all the functions can be view on both remote controls. A regular and automatic filtration cycle can be established inside the base units’ panel, and cannot be accidentally altered by either remote control. This product is capable of automatically operating the electronic valves in a typical pool/spa combination system. The wireless remote control operates over an omnidirectional radio-frequency link and has an eight-position dipswitch that accommodates the selection of a unique address so that crosstalk between nearby units is eliminated. The operation of the deckside control is identical to the wireless remote control. However, the connection to the base unit is made with an insulated wire.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA 0.1" HEADER 0.1" HEADER USE APPROPRIATE SMD CAPACITORS AND RESISTORS *DO NOT INSTALL (3.05" WIRE) + STRAIGHT MALE STRAIGHT MALE{Doc}C PWBA, TRANSCEIVER, 916.48MHz A 11Wednesday, August 14, 2002 Title SizeDocument NumberRev Date:Sheetof DATA TO TRANSMIT TX/RX' SELECT RECEIVED DATA +5V +5V +5V +5V ANT1 ANTENNA J1 1 2 3 4 5 J2 1 2 3 4 R1 10K U2 LINX P/N: TR-916-SC-S 14 12 2 10 1 9 8 7 6 3 4 11 5 13151617181920 LVLADJ ANT RXDATA Vin GND TXDATA TXEN RXEN NC AUDIO RSSI GND PDN GNDGNDGNDGNDGNDGNDGND C3* Q1 MMBT3904DICT R3 910 Ohm C1 33 uF/10V C2 0.1 uF R2 10K A A B B C C D D E E 44 33 22 11 TX DATA (DATA IN) RX DATA (DATA OUT) RF PWR MICRO SLEEP /RX PWR EN Friday, March 02, 2001 4501962.0 RF REMOTE, LENNOVATOR 11 Title SizeDocument NumberRev Date:Sheetof S6 S26 S6 S5 S2 S21 S16 S11 S18 S1 S17 S12 S17 S24 S18 S8 S21 S20 S9 S16 S13 S11 S3 S13 S14 S20 S22 S0 S5 S4 S26 S22 S19 S25 S23 S14 S8 S9 S10S10 S24 S12 S23 S25 S0 S1 S2 S3 S4 S19 VCC VCC VBB VBB C2 30 pF C3 30 pF SWX1 Custom keyboard 1 2 3 4 5 6 7 8 9 10 11 12 STATUS COM STATUS DOWN UP AUX3 AUX2 AUX1 LIGHTS JETS HEAT COM COM Y1 4.0 MHz X1 Custom LCD 2 1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 BP BP NC NC NC AUX2 LIGHT HEATING 1BC 2A 2F 2G 2E 2D 2C 2B 3A 3F 3G 3E 3D JETS AUX1 AUX3 3C 3B DEG F C READY BP BP SWX2 Address 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 J2 POWER IN 1 2 + C1 10UF J1 RF GROUND CONN 1 2 3 4 D3 D2 D4 D5 Q2 2N3906 Q1 2N3904 VR1 5 K R4 10 K R10 100 R1 560 R3 2.2K R11 2.2K R9 1K R6 1K R2 4.7K U1 16C923 63 26 29 5 19 27 20 5317 28 18 13 30 14 24 6 25 15 44 16 8 37 31 9 12 54 11 45 4 38 55 3 3968 46 67 56 65 32 66 57 47 40 48 58 49 61 50 59 51 41 62 52 33 42 43 34 36 35 60 10 2 642221 723 COM0 RC0/T1OSO/T1CKI VLCD1 RA0 VLCD2 RC1/T1OSI VLCD3 RG0/SEG20C1 RC2/CCP1 C2 RB0/INT VLCDADJ RC3/SCK/SCL OSC1/CLKIN RA1 OSC2/CLKOUT RC4/SDI/SDA RF0/SEG12 RC5/SDO RA2 RE0/SEG05 RD0/SEG00 RA3 RB1 RG1/SEG21 RA5/SS RF1/SEG13 RB2 RE1/SEG06 RG2/SEG22 RB3 RE2/SEG07RB4 RF2/SEG14 RB5 RG3/SEG23 RB6 RD1/SEG01 RB7 RG4/SEG24 RF3/SEG15 RE3/SEG08 RF4/SEG16 RG5/SEG25 RF5/SEG17 RD6/SEG30/COM2 RF6/SEG18 RG6/SEG26 RF7/SEG19 RE4/SEG09 RD7/SEG31/COM1 RG7/SEG28 RD2/SEG02 RE5/SEG10 RE6/SEG11 RD3/SEG03 RE7/SEG27 RD4/SEG04 RD5/SEG29/COM3 RA4/T0CKI MCLR/VPP VCCVCCVCC GNDGND Q3 2N3906 R7 10K R8 56K R5 10K + C7 2.2uF VR2 TK11250BMC 1 2 3 64 5 Control Gnd NoiByp VinVout Gnd VR3 TK11250BMC 1 2 3 64 5 Control Gnd NoiByp VinVout Gnd + C6 2.2uF +C4 1.0uF + C5 1.0uF C8 0.1uF C9 0.1uF J3 RF SIGNAL CONN 1 2 3 4 5 RA1 10K 1 2 3 4 5 6 7 8 9 10 . . . . . . . . . .

Report Number: B20807D2 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Pool / Spa Controller – Hand Held Remote Model: Lennovator 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for POOL / SPA CONTROLLER – HAND HELD REMOTE MODEL: LENNOVATOR Prepared for ALLIED INNOVATIONS, LLC 7215 BERMUDA ROAD LAS VEGAS, NEVADA 89119-4303 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: AUGUST 08, 2002 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 10 9 40 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B20807D2 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Pool / Spa Controller – Hand Held Remote Model: Lennovator 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 8. CONCLUSIONS 15 Report Number: B20807D2 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Pool / Spa Controller – Hand Held Remote Model: Lennovator 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Report Number: B20807D2 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Pool / Spa Controller – Hand Held Remote Model: Lennovator 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Pool / Spa Controller – Hand Held Remote Model: Lennovator S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was modified during the testing. Please see the list located in Appendix B. Manufacturer: Allied Innovations, LLC 7215 Bermuda Road Las Vegas, Nevada 89119-4304 Test Dates: August 6 and 7, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged in to the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4300 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249 Report Number: B20807D2 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Pool / Spa Controller – Hand Held Remote Model: Lennovator 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Pool / Spa Controller – Hand Held Remote Model: Lennovator. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B20807D2 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Pool / Spa Controller – Hand Held Remote Model: Lennovator 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 15 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Allied Innovations, LLC Brooks Bishofberger Engineer Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on August 06, 2002. 2.5…
