QLWSM700SCar Alarm Transceiver

Brain - block Diagram Antenna(Helical Type) RX/TX Common use (Receiving frequency : 413. 3RX/TX (Transmitting frequency : 434 Switching Block A (RF receiving)Block B (RF transmitting) A1 B1 RF amplify Low pass filter A2 B2 High pass filter 2st amplify A3 B3 1st mixxer and AB1 Low pass filter middle frequncy Low pass B4 amplify filter 1st amplify A4 AB2 1st middle RF buffer A5frequncy filterAB3 2st LocalA6Band pass oscillation 2st mixxer filter A7 AB4 FM detection and Local audio frequncy filter oscillation B5 Block C (Logic)Modulation C1RX data Input RF Power C4 TX data output Micro-Controller switching switching (PIC16C74B) Real time clo C5 C2Regulator(5V)CPU Siren out,C6 LED out, Trunk release out, Starter kill ou C3Battery(12V) Door sesing in, Shock sensing in C7 Hood sesing in, Ign(Key) sesing in

To: Mike Kuo Subject: Re: Ace Security Inc., FCC ID:QLWSM700S, AN02T2307 Dear Mike, I attached the revised test report and description of transmission event. Thank you so much. Best Regards, Jeongmin Kim ----- Original Message ----- From: "Mike Kuo" <[email protected]> Sent: Friday, October 11, 2002 6:23 AM Subject: FW: Ace Security Inc., FCC ID:QLWSM700S, AN02T2307 > > > -----Original Message----- > From: CERTADM > Sent: Thursday, October 10, 2002 2:20 PM > To: '[email protected]' > Subject: Ace Security Inc., FCC ID:QLWSM700S, AN02T2307 > > > Notice_content > ------------- > Question #1: Only average reading was provided for emission above 1GHz, per > section 15.231(b)(2) of FCC rules, the peak reading (15.25) is required. > Please provide such data. > > Question #2: Please provide technical information to explain the device is > in compliance with Periodical transmission requirements. > > Best Regards > > Mike Kuo/ TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

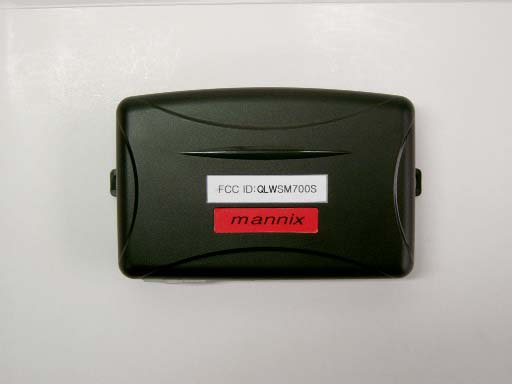

(External Photos)

(Internal Photos)

Circuit operation explanation ---- BRAIN rf block diagram ---- a1 a2 a3 a4 (Tx data)Modulation Local RF buffer RF amplify a5 oscillation (434.79 MHz) Antenna CPU (PIC16C74B)) b3 b6 RX /TX 2ST oscilationswitching (20.945MHz) b1 b2 b4 b5 RX Fsk FM data 2ST mixer 1ST mixer RF amplif y detection <Picture 1> Input s/w(door pin s/w, hood pin s/w, trunk pin s/w) - A basic carrier frequency consists of a1, a2, a3 (on picture 1). - Receiver : super heterodyne recever - Modulation type : FM FSK(frequncy shift keying) - Brain transmitting frequncy : 434.79MHz - Brain receive local oscillation frequncy : 413.39MHz 1. Brain controller 1.1 Transmission Transmission is executed when input s/w is sensed or received from the remote. Modulation signal is occurred at CPU(location u2) pin no 35. Modulation is formed at a1 (D2), a2 (Q3). a3 (Q4) creates frequency 434.79MHz. The frequency of 434.79MHZ is amplified through the components of a4(Q5,Q6) and b6(rx/tx switching) and transferred to antenna. 1.2 Receiver A carrier frequency (413.39MHz) amplifies at b5 (Q7, Q8) pass through a5 (antenna b5 (Q7,Q8) receives signals of a3 (Q4), b4(Q9) and makes 1st IF (21.4MHz) to send b2 (IC1) mixes with 2nd local oscillation frequency (20.945MHz) of b3 (X102) and 455Khz demodulates FM at b1 (X103) and quadrature detects Sends Fsk out to CPU(location U2) pin no 36.

This product is composed of Brain and Remote. The purpose of signal transmitted from Brain is informing the status of vehicle to user by Remote. After confirmed the status of the vehicle through LCD display and sound of the Remote, the user can do appropriate actions. The Brain is operating to transmit the signal in case of two ways. First, when receiving the signal to operate Door Lock, Door unlock, Panic, Trunk open, Find and Engine start from Remote, the Brain transmits the signal with results of its conduction to Remote as follows. 1) Brain operates Door motor, which is built in the door, to lock the door when receiving the order of Door lock. 2) After operating, Brain transmits the pulse code signal, which is frequency modulated from the pre-arranged pulse, to remote. Second, When the condition of vehicle is changed, the Brain transmits the signal with status of vehicle to Remote as follows. 1) Door open CPU of Brain senses the change of the voltage, 12V to 0V on Door pin switch if Door opens 2) Trunk open CPU of Brain senses the change of the voltage, 12V to 0V on Trunk pin switch if Trunk opens 3) Hoop open CPU of Brain senses the change of the voltage, 12V to 0V on Hood pin switch if Hood opens 4) Shock sensor CPU of Brain senses the change of the voltage, 5V to 0V if the impact to vehicle is transmitted to Shock sensor. 5) Engine start CPU of Brain senses the change of the voltage, 0V to 12V if engine is started. The above described cases, No. 1) ~ 5) are called as the events For example, If Door open while vehicle is in arm, the Brain transmits the signal, which is frequency modulated from its pre-arranged pulse, to Remote after CPU of Brain senses the change of the voltage on Door pin switch, 12V to 0V. As a result, the transmission signal is not data but the pulse code signal, which is frequency modulated from the pre-arranged pulse. Actually, the Remote is controlled to turn on LCD and sound when the Brain transmits the signal. The information of code pulse and transmission time are following; z 1 Bit = 430us z 1 Frame = 120Bit(120x430us = 51.6ms) z Total transmission time for one transmission = 4074.8 ms 51.6ms Total transmission Time at event(118.2ms x 35 - 62.2 = 4074.8ms) 4074.8ms 118.2ms

KTL Korea Testing Laboratory Page 1 of 11 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Hee-Soo Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 02-341-024-01 Name and address of the applicant Ace Security Inc. 4FL, Soo-il B/D, 793, Jung-dong, Wonmi-gu, Buchon-shi, Kyungki-do, Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : August 26, 2002 Test item(s) ; Remote Control/ Security Device Transceiver (Transmitter Portion) (Car Alarm System / Brain) Model/type ref. ; MANNIX Manufacturer ; Ace Security Inc. Additional information ; -Required Authorization : Certification -FCC ID. : QLWSM700S -Note : Test report(Verification) of Receiver portion of this unit is issued on Ref. Report No. 02-341-024-02. Test date : September 16, 2002 Issue date : October 7, 2002 Ref. Report No. 02 - 341 – 024 - 01 Page 2 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) . RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data . OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 10 . TEST EQUIPMENTS USED FOR MEASUREMENT 11 Ref. Report No. 02 - 341 – 024 - 01 Page 3 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL INFORMATION 1. Grantee’s Name and : Ace Security Inc. Mailing Address 4FL, Soo-il B/D, 793, Jung-dong, Wonmi-gu, Buchon-shi, Kyungki-do, Korea 2. Manufacturer's Name and : Ace Security Inc. Mailing Address 4FL, Soo-il B/D, 793, Jung-dong, Wonmi-gu, Buchon-shi, Kyungki-do, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 434.79 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Power Supply : DC 12 V(Car Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-1992 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : September 16, 2002 Ref. Report No. 02 - 341 – 024 - 01 Page 4 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 2 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 02 - 341 – 024 - 01 Page 5 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 02 - 341 – 024 - 01 Page 6 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Fin…

Text truncated - open the document above for the full version.

Ref. Report No. 02 - 341 – 024 - 01 Page 8 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph of the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB) was converted into microvolt per meter (/m) as shown in following sample calculation. For example : Measured Value at 434.79 MHz 56.0 dB + Antenna Factor 16.1 dB/m + Cable Loss 4.0 dB Preamplifier 0.0 dB Distance Correction Factor * 0.0 dB ------------------------------------------------------------------------------------------- = Radiated Emission 76.1 dB/m ( = 6382.6 /m ) * Extrapolated from the measured distance to the specified distance by an inverse linear distance extrapolation.
