QMCM2910Universal Data Transceiver

BlueJay ™ Wireless Data Transceiver M-2910 CONTROLS •Provides direct sequence spread spectrum peer-to-peer, point-to- point, point-to-multipoint and master/slave high speed (1 Mbps) data transmission rates at ranges up to 1500 feet •Interfaces using high-speed Synchronous Peripheral Interface (SPI). Baud rates up to 500 kbps •Substation hardened to withstand temperatures from -40 to +80 degrees C and humidity up to 95% •No user license required, interfaces with SPI-interface equipped IEDs M-2910 BlueJay Universal Data Transceiver –2– WARNING This equipment has been tested and found to comply with the limit requirements, pursuant to Part 15.247 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Only the antenna provided is authorized for use with the M-2910. If the antenna is lost or damaged, please contact Beckwith Electric Co., Inc. to secure a replacement antenna. This product generates, uses, and can radiate radio frequency (RF). If it is not installed and used in accordance with the operating instructions, it can cause harmful interference to communications. If this equipment causes harmful interference to radio or television reception, the user should try and correct the interference by: • Reorienting or relocating the receiving/transmitting antenna • Increasing the separation between the equipment and the M-2910 • Connecting the equipment into an outlet on a different circuit from the M-2910. If these do not correct the interference, consult an experienced radio/television technician for assistance. Correcting such interference is the responsibility of the user, not the manufacturer. Changes or modifications not expressly approved by Beckwith Electric Co., Inc. may void the user's authority to operate the equipment. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment. This equipment should be installed and operated with a minimum distance of at least 20 cm between the radiator and person's body (excluding extremities) and must not be located or operated with any other antenna or transmitter. –3– M-2910 BlueJay Universal Data Transceiver The M-2910 BlueJay ™ Wireless Data Transceiver is a self-contained short-range wireless communication device (SRD) that is used for transferring serial communication data between Intelligent Electrical Device's (IED’s) and computers hosting control software in an industrial environment. The M-2910 is based on an Intersil direct sequence spread spectrum chip set that operates in the 2.4 GHz ISM band. The M-2910 design meets the category for low power devices (LPDs) standard requirement for license-free operation. Interface The M-2910 is equipped with a dual-row, ten-pin (2 x 5) header connector utilizing a Serial Peripheral Interface (SPI) link capable of up to 500 Kbps communication speed. Data Transmission: • Error Detection – 16 bit CRC (10 -5 BER at –70dBm) • Maximum throughput – 1 Mbps RF, 2400 to 115.2 Kbps interface baud rate Communication The M-2910 conditions the data and transmits it over a half-duplex direct sequence spread spectrum radio operating in the 2.4 GHz ISM band. The over-the-air data rate is 1 Mbps. Transmit: • Frequency Range – 2400 MHz to 2483.5 MHz • Output Power – 30 mW • Modulation – DBPSK • Occupied Bandwidth – 20 MHz • Spurious Emissions – 50 mV/meter • Harmonic Emissions – 500 uV/meter • Spreading Method – Direct Sequence 11 bit code • Center Band – Carrier 2.450 GHz Receive: • Sensitivity – -93 dBm • Selectivity – 25 MHz The M-2910 BlueJay Wireless Data Transceiver must be used with a cable extension when the M-2910 is mounted inside a metal enclosure. Antennas must be oriented in the same plane and located in view of the corresponding BlueJay transceiver. Beckwith Electric cable extensions are available in 18", 6' and 13' lengths (See Accessories). ■NOTE: For maximum range, all antennae must be oriented in the same plane. Accessories 18" Cable Extension – Beckwith Electric Part No. 420-00395 6' Cable Extension – Beckwith Electric Part No. 420-00391 13' Cable Extension – Beckwith Electric Part No. 420-00392 M-2910 BlueJay Universal Data Transceiver –4– Power The M-2910 is powered by 5 V dc, supplied by the SPI interface connector. Maximum power draw is 1.75 W (350 mA). Power Requirements: • Operating Voltage – +5 V dc &10% • Transmit Current – 350 mA (1.75 W) • Receive Current – 350 mA (1.75 W) • Idle Current – 200 mA (1.00 W) • Sleep Current – 30 mA (0.15 W) Configuration The M-2910 is configurable using parameters set into the M-2600A/M-2667A, using SlimCom ® : The following parameters can be set: • Wireless Source (unit) Address (1–250) • Wireless Destination (Transmit) Address (1–255) • Wireless Multicast (Receive) Address (251–254) • Peer-to-Peer Unit Addresses (1–250) Configuring the M-2910 To configure the M-2910, the unit must be installed on an M-2600A/M-2667A control, and the control connected to a PC running SlimCom, using a RS-232 cable. The unit may be configured through the SlimCom menus –5– M-2910 BlueJay Universal Data Transceiver Figure 7 M-2910 Outline Dimensions

   ! "#$ %
& #' %$# ("#%) M-2910 BlueJay Universal Data Transceiver –6– Environmental Temperature: Proper operation maintained from –40°C to +80°C. Humidity: Proper operation is maintained up to 95% relative humidity (non-condensing). Environmental Protection: The power supply printed circuit …

Text truncated - open the document above for the full version.

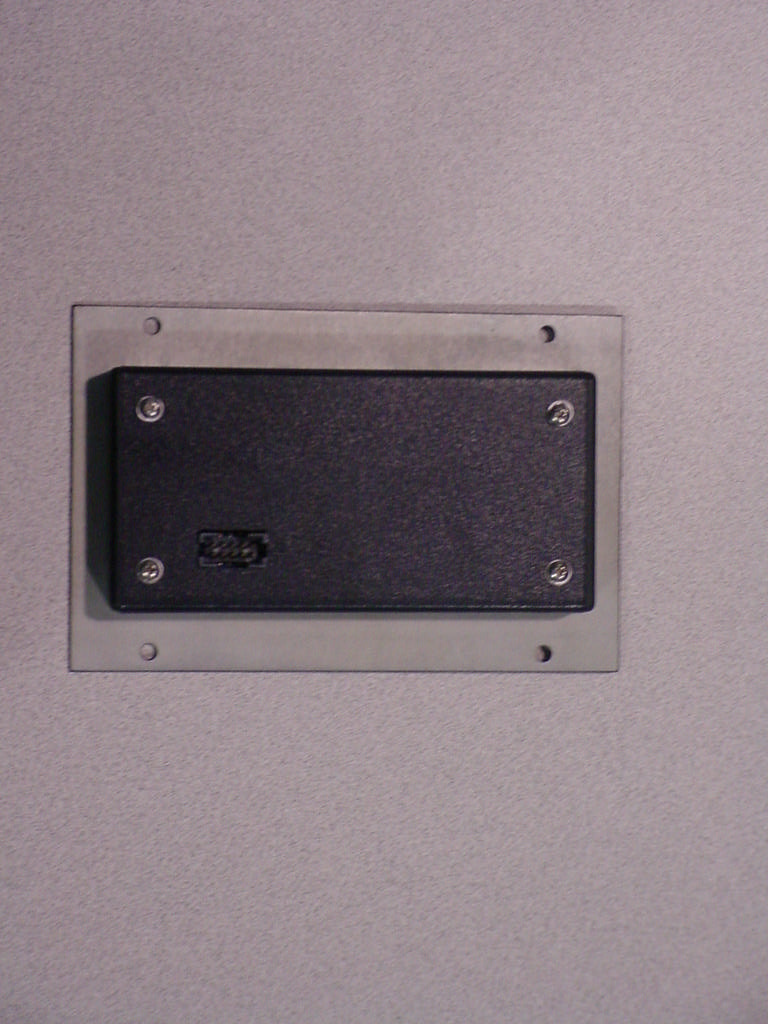

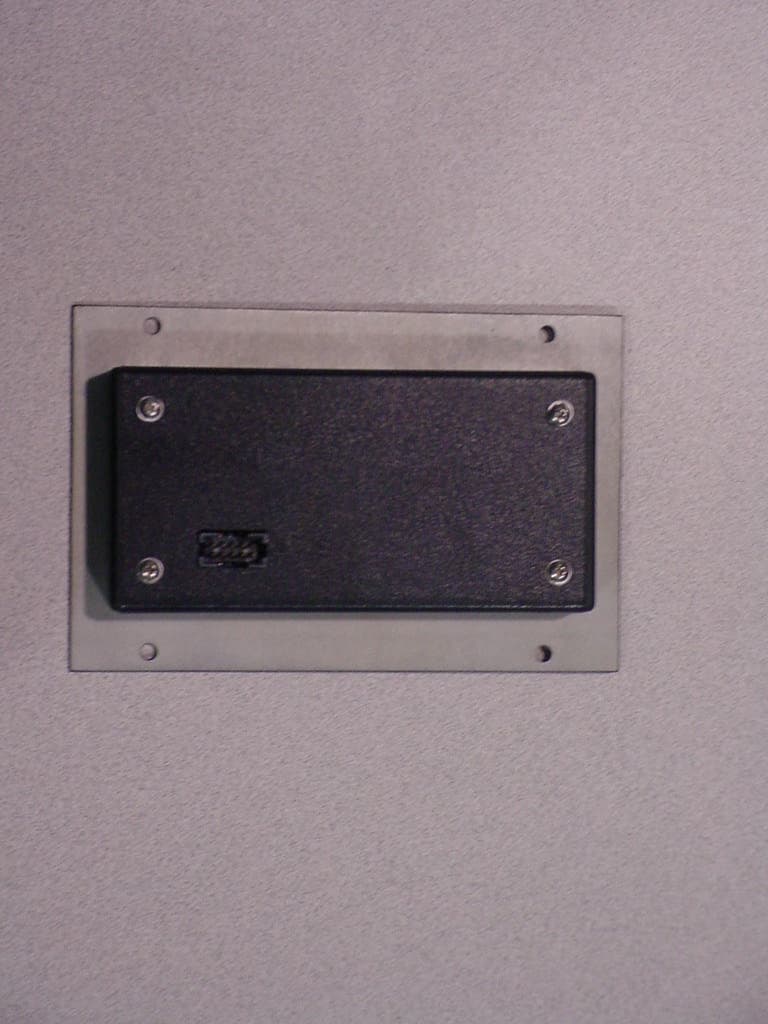

–3– M-2910 BlueJay Universal Data Transceiver The M-2910 BlueJay ™ Wireless Data Transceiver is a self-contained short-range wireless communication device (SRD) that is used for transferring serial communication data between Intelligent Electrical Device's (IED’s) and computers hosting control software in an industrial environment. The M-2910 is based on an Intersil direct sequence spread spectrum chip set that operates in the 2.4 GHz ISM band. The M-2910 design meets the category for low power devices (LPDs) standard requirement for license-free operation. Interface The M-2910 is equipped with a dual-row, ten-pin (2 x 5) header connector utilizing a Serial Peripheral Interface (SPI) link capable of up to 500 Kbps communication speed. Data Transmission: • Error Detection – 16 bit CRC (10 -5 BER at –70dBm) • Maximum throughput – 1 Mbps RF, 2400 to 115.2 Kbps interface baud rate Communication The M-2910 conditions the data and transmits it over a half-duplex direct sequence spread spectrum radio operating in the 2.4 GHz ISM band. The over-the-air data rate is 1 Mbps. Transmit: • Frequency Range – 2400 MHz to 2483.5 MHz • Output Power – 30 mW • Modulation – DBPSK • Occupied Bandwidth – 20 MHz • Spurious Emissions – 50 mV/meter • Harmonic Emissions – 500 uV/meter • Spreading Method – Direct Sequence 11 bit code • Center Band – Carrier 2.450 GHz Receive: • Sensitivity – -93 dBm • Selectivity – 25 MHz The M-2910 BlueJay Wireless Data Transceiver must be used with a cable extension when the M-2910 is mounted inside a metal enclosure. Antennas must be oriented in the same plane and located in view of the corresponding BlueJay transceiver. Beckwith Electric cable extensions are available in 18", 6' and 13' lengths (See Accessories). ■NOTE: For maximum range, all antennae must be oriented in the same plane. Accessories 18" Cable Extension – Beckwith Electric Part No. 420-00395 6' Cable Extension – Beckwith Electric Part No. 420-00391 13' Cable Extension – Beckwith Electric Part No. 420-00392 M-2910 BlueJay Universal Data Transceiver –4– Power The M-2910 is powered by 5 V dc, supplied by the SPI interface connector. Maximum power draw is 1.75 W (350 mA). Power Requirements: • Operating Voltage – +5 V dc &10% • Transmit Current – 350 mA (1.75 W) • Receive Current – 350 mA (1.75 W) • Idle Current – 200 mA (1.00 W) • Sleep Current – 30 mA (0.15 W) Configuration The M-2910 is configurable using parameters set into the M-2600A/M-2667A, using SlimCom ® : The following parameters can be set: • Wireless Source (unit) Address (1–250) • Wireless Destination (Transmit) Address (1–255) • Wireless Multicast (Receive) Address (251–254) • Peer-to-Peer Unit Addresses (1–250) Configuring the M-2910 To configure the M-2910, the unit must be installed on an M-2600A/M-2667A control, and the control connected to a PC running SlimCom, using a RS-232 cable. The unit may be configured through the SlimCom menus

APPLICANT: BECKWITH ELECTRIC CO., INC. FCC ID: QMCM2911 REPORT #: B/BeckwithElec_\893BUT22\893BUT22TestReport.doc TABLE OF CONTENTS LIST APPLICANT: BECKWITH ELECTRIC CO., INC. FCC ID: QMCM2911 TABLE OF CONTENTS FOR A DIRECT SEQUENCE SPREAD SPECTRUM TEST REPORT CONTAINING: PAGE 1.............LETTER OF EXPLANATION PAGE 2-4...........LIST OF TEST EQUIPMENT PAGE 5.............TEST PROCEDURES PAGE 6.............PRODUCT DESCRIPTION PAGE 7.............POWERLINE CONDUCTED INTERFERENCE PAGE 8.............LINE 1 PLOT PAGE 9.............LINE 2 PLOT PAGE 10............OCCUPIED BANDWIDTH AND POWER OUTPUT PAGE 11............6 dB BANDWIDTH PLOT PAGE 12............METHOD OF MEASURING RF CONDUCTED AND SPURIOUS EMISSIONS AT ANTENNA TERMINALS DATA PAGE 13............RADIATION INTERFERENCE TEST DATA PAGE 14............METHOD OF MEASURING RADIATED SPURIOUS EMISS. PAGE 15-16.........DUTY CYCLE PLOT PAGE 17............RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BANDS PAGE 18-21.........BANDEDGE PLOTS PAGE 22............POWER SPECTRAL DENSITY PAGE 23............POWER SPECTRAL DENSITY PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1...........FCC ID LABEL SAMPLE & LABEL LOCATION EXHIBIT 2...........EXTERNAL PHOTOGRAPHS EXHIBIT 3...........INTERNAL PHOTOGRAPHS EXHIBIT 4...........BLOCK DIAGRAM EXHIBIT 5...........SCHEAMTIC EXHIBIT 6...........USERS MANUAL EXHIBIT 7...........OPERATIONAL DESCRIPTION EXHIBIT 8...........TEST SETUP PHOTOGRAPH APPLICANT: BECKWITH ELECTRIC CO., INC. FCC ID: QMCM2911 REPORT #: B/BeckwithElec_\893BUT22\893BUT22TestReport.doc Page 1 of 23 NOVEMBER 4, 2002 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: BECKWITH ELECTRIC CO., INC.’ FCC ID: QMCM2911 To Whom It May Concern: The attached application is for a direct sequence spread spectrum assembly with antenna. This system has only one type of antenna, half wave dipole that has a gain of 2.15 dBi. BECKWITH ELECTRIC CO., INC. purchases standard antennas from the manufacturer. The antenna is intended to be used for inside use. The QMCM2911 radio uses unique connector (reverse SMA). Should you have any questions or require any further information with regards to this, please feel free to contact me. Sincerely, Mario R. de Aranzeta C.E.T. MRD/sh Encl. APPLICANT: BECKWITH ELECTRIC CO., INC. FCC ID: QMCM2911 REPORT #: B/BeckwithElec_\893BUT22\893BUT22TestReport.doc Page 2 of 23 EMC Equipment List DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS X 3-Meter OATS TEI N/A N/A Listed 12/22/99 12/22/02 3/10-Meter OATS TEI N/A N/A Listed 3/26/01 3/26/04 Receiver, Beige Tower Spectrum Analyzer (Tan) HP 8566B Opt 462 3138A07786 3144A20661 CAL 8/31/01 8/31/03 RF Preselector (Tan) HP 85685A 3221A01400 CAL 8/31/01 8/31/03 Quasi-Peak Adapter (Tan) HP 85650A 3303A01690 CAL 8/31/01 8/31/03 X Receiver, Blue Tower X Spectrum Analyzer (Blue) HP 8568B 2928A04729 2848A18049 CHAR 10/22/01 10/22/03 X RF Preselector (Blue) HP 85685A 2926A00983 CHAR 10/22/01 10/22/03 X Quasi-Peak Adapter (Blue) HP 85650A 2811A01279 CHAR 10/22/01 10/22/03 X Biconnical Antenna Electro-Metrics BIA-25 1171 CAL 4/26/01 4/26/03 Biconnical Antenna Eaton 94455-1 1096 CAL 10/1/01 10/1/03 Biconnical Antenna Eaton 94455-1 1057 CHAR 3/15/00 3/15/02 BiconiLog Antenna EMCO 3143 9409-1043 X Log-Periodic Antenna Electro-Metrics LPA-25 1122 CAL 10/2/01 10/2/03 Log-Periodic Antenna Electro-Metrics EM-6950 632 CHAR 10/15/01 10/15/03 Log-Periodic Antenna Electro-Metrics LPA-30 409 CHAR 10/16/01 10/16/03 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 152 CAL 3/21/01 3/21/04 Dipole Antenna Kit Electro-Metrics TDA-30/1-4 153 CHAR 11/24/00 11/24/03 Double-Ridged Horn Antenna Electro-Metrics RGA-180 2319 CAL 12/19/01 12/19/03 Horn Antenna Electro-Metrics EM-6961 6246 CAL 3/21/01 3/21/03 Horn Antenna ATM 19-443-6R None No Cal Required Passive Loop Antenna EMC Test Systems EMCO 6512 9706-1211 CHAR 7/10/01 7/10/03 APPLICANT: BECKWITH ELECTRIC CO., INC. FCC ID: QMCM2911 REPORT #: B/BeckwithElec_\893BUT22\893BUT22TestReport.doc Page 3 of 23 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Line Impedance Stabilization . . . Electro-Metrics ANS-25/2 2604 CAL 10/9/01 10/9/03 Line Impedance Stabilization . . . Electro-Metrics EM-7820 2682 CAL 3/16/01 3/16/03 Termaline Wattmeter Bird Electronic Corporation 611 16405 CAL 5/25/99 5/25/01 Termaline Wattmeter Bird Electronic Corporation 6104 1926 CAL 12/12/01 12/12/03 Oscilloscope Tektronix 2230 300572 CHAR 2/1/01 2/1/03 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 1/22/02 1/22/04 AC Voltmeter HP 400FL 2213A14499 CAL 10/9/01 10/9/03 AC Voltmeter HP 400FL 2213A14261 CHAR 10/15/01 10/15/03 AC Voltmeter HP 400FL 2213A14728 CHAR 10/15/01 10/15/03 X Digital Multimeter Fluke 77 35053830 CHAR 1/8/02 1/8/04 Digital Multimeter Fluke 77 43850817 CHAR 1/8/02 1/8/04 Digital Multimeter HP E2377A 2927J05849 CHAR 1/8/02 1/8/04 Multimeter Fluke FLUKE-77-3 79510405 CAL 9/26/01 9/26/03 Peak Power Meter HP 8900C 2131A00545 CHAR 1/26/01 1/26/03 Digital Thermometer Fluke 2166A 42032 CAL 1/16/02 1/16/04 Thermometer Traulsen SK-128 CHAR 1/22/02 1/22/04 X Temp/Humidity gauge EXTech 44577F E000901 CHAR 1/22/02 1/22/04 Frequency Counter HP 5352B 2632A00165 CAL 11/28/01 11/28/03 Power Sensor Agilent Technologies 84811A 2551A02705 CAL 1/26/01 1/26/03 Service Monitor IFR FM/AM 500A 5182 CAL 11/22/00 11/22/02 Comm. Serv. Monitor IFR FM/AM 1200S 6593 CAL 5/12/02 5/12/04 Signal Generator HP 8640B 2308A21464 CAL 11/15/01 11/15/03 Modulation Analyzer HP 8901A 3435A06868 CAL 9/5/01 9/5/03 APPLICANT: BECKWITH ELECTRIC CO., INC. FCC ID: QMCM2911 REPORT #: B/BeckwithElec_\893BUT22\893BUT22TestReport.doc Page 4 of 23 DEVICE MFGR MODEL SERNO CAL/CHAR DATE DUE DATE or STATUS Near Field Probe HP HP11940A 2650A02748 CHAR 2/1/01 2/1/03 BandReject Filter Lorch Microwave 5BR4-2400/ 60-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 6BR6-2442/ 300-N Z1 CHAR 3/2/01 3/2/03 BandReject Filter Lorch Microwave 5BR4-10525…
