QP3LASERNODE-01Laser Node

LASERnode LN1 user manual. Overview State-of-the-art wireless transmitter for laser diffusers. The Cheetah LASERnode makes other manufacturers’ products ActiveStealth compatible allowing their warnings to be integrated with GPS on a single in-car device. Simply connect to any compatible laser diffuser and it transmits the alerts wirelessly to ActiveStealth GPS enabled PDAs, smartphones or satellite navigation systems. It also enables diffusers to work with any Cheetah warning unit, making their alerts useable on a motorcycle. Essential Accessories: 1. A corresponding LASERnode connector cable is required for each diffuser. This is supplied free of charge with the original purchase of a LASERnode unit. 2. A Cheetah power supply is also required (not included). Choose from one of the following to complement the installation: • POWERSENSEnode for simple, easy, automatic power control. Switches power ON when the engine is running and OFF when the engine stops. • STEALTHnode for total ActiveStealth GPS control of external equipment. • Hard wire cable to connect to a fused, switched power supply. Works with: The LASERnode wirelessly connects the world’s top laser diffusers to any Cheetah display unit, including ActiveStealth enabled GPS devices. See www.speedcheetah.com for full details of compatible laser diffusers and display units. Installation All Cheetah cables and accessories are fitted with Cheetah’s 2-pin mini connector plugs to ensure easy installation. These plugs simply push together and lock securely. They can be easily unclipped at any time by pressing the small lever downwards and gently pulling apart. Location The LASERnode is weatherproof. We recommend the use of a protective casing to enclose the diffuser’s interface box, which might not be weatherproof. Mount the equipment high up and to the side of the engine bay, ensuring it is far away from the engine. This will further protect the electronics from excessive heat, dust and moisture. Run the cables in such a way as they are securely fastened and do not come in to contact with any engine part that generates high heat, such as the radiator, exhaust system or the engine block. Fitting Step 1. Mount the diffuser head according to the manufacturer’s instructions. Step 2. Connect the diffuser to the Cheetah LASERnode. See the simple diagram supplied with the appropriate LASERnode connector cable for further details. The POWER OUT cable supplies power to the laser diffuser. The BUZZER IN cable receives buzzer alerts from the laser diffuser. Step 3. For stress free power control, clip the LASERnode’s POWER IN cable to a POWERSENSEnode or STEALTHnode attached directly to the vehicle’s 12V battery. Alternatively, use the hard wire cable to connect to a switched, fused supply. Technical Details Power Requirements: 11.0-15.0 Volts DC 3A max Dimensions and Weight: Temperature Range: Operating: -20°C to +70°C (-4°F to +158°F) Storage: -30°C to +85°C (-22°F to +185°F) How to interpret alerts The Cheetah LASERnode will transmit diffuser alerts wirelessly to any Cheetah warning unit for as long as the original diffuser’s buzzer was programmed to alert. The actual display will depend on which other Cheetah warning unit is installed. Support Troubleshooting If for any reason the LASERnode develops a fault, please check our support page on www.speedcheetah.com/support , contact us at [email protected] or telephone us on + 44 (0) 870 243 3824. If any problems persist, please email www.speedcheetah.com/support Product registration Register online at www.speedcheetah.com/support You do not need to register your product with us if you bought directly from www.speedcheetah.com Accessories Full details of accessory products are available on our website at www.speedcheetah.com Service If any Cheetah product needs repair: Before sending any products back to us for service, please check our support page on www.speedcheetah.com/support , contact us at [email protected] or telephone us on + 44 (0) 870 243 3824. Ensure that the diffuser product is functioning correctly as a stand alone unit. If the LASERnode still fails to function, follow these instructions to obtain factory service. Where to ship: Return the unit and any automatic power control unit (don’t send the external fuse), to: Cheetah Advanced Technologies Ltd Birchbrook House Doune Road Dunblane FK15 9ND. How to ship: Ship the unit prepaid and insured, in its original packaging or other strong protective packaging. We cannot be held responsible for any returned product until it has been delivered to our premises. Insist on a proof-of-delivery receipt. Please include the following information with your return: a) your name and return shipping address b) description of the problem c) your daytime telephone number d) proof of purchase if you did not buy the unit directly from us Out of warranty repairs: If your unit is out of warranty (older than one year), we will contact you with an estimated repair cost. If the unit has been damaged, abused or modified, the repair cost will be calculated on a parts and labor basis. Features, specifications and prices subject to change without notice Limited Warranty Cheetah Advanced Technologies Ltd. Warrant our products against all defects in materials and workmanship for a period of one year from the date of the original purchase, subject to the following terms and conditions. This warranty is limited to the original owner, and is Non-Transferable. This warranty does not apply if the serial number has been removed or is unreadable or if the product has been subjected to physical abuse, improper installation, modification or internal examination. To obtain warranty service, the product must be returned, insured and shipping prepaid, to Cheetah Advanced Technologies Ltd., at the address shown, in its original packaging or a suitable alternative, together with a written description of the problem, proof of purchase and a return shipping address. Th…

Text truncated - open the document above for the full version.

940701 2 Date: May , 22, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; 940701 3 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, _______________________ (Signature) Danney Sun / Manager RND Hi-Tech Co., Ltd.

940701 4 Federal Communications Commission FCC ID: QP3LASERNODE-01 Product Name: LN1 Model Name: LaserNode Trade Name: R’ND HI-TECH Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. By: By: Danney Sun (Signature) (Printed) Title : Manager Applicant : RND Hi-Tech Co., Ltd. Address : 21F-9, No.91, Jhongshan 2 nd Rd., Kaohsiung City, Taiwan Tel : 886-7-3303860 Fax: 886-7-3342113 Date : May 22, 2006

1 Helen Zhao Subject: FW: Fw: FW: R'ND HI-TECH CO., LTD., FCC ID: QP3LASERNODE-01, Assessment NO.: AN06T5978, Notice#1 Exhibit-D-ID Label_rev.pdf From: ssliou Sent: Thursday, July 20, 2006 2:08 AM To: Helen Zhao Subject: Fw: Fw: FW: R'ND HI-TECH CO., LTD., FCC ID: QP3LASERNODE-01, Assessment NO.: AN06T5978, Notice#1 Dear Helen, #1 For the convenience of performing the radiated emission test the EUT was connected to a switch box which will control the EUT to transmit continuously. The box you see on the setup photos is a switch, not a laserdiffuser. #2 Please find the revised FCC ID label format. The FCC DoC logo is removed. Best regards, S. S. Liou > -----Original Message----- > Sent: Wednesday, July 19, 2006 2:05 PM > Subject: R'ND HI-TECH CO., LTD., FCC ID: QP3LASERNODE-01, Assessment > NO.: AN06T5978, Notice#1 > > > Question #1: From setup photos, it seems the EUT was connected with laser diffuser during the test. Please confirm. Please update the test report if laser diffuser was used. > > Question #2: The FCC ID label format shows FCC DoC logo, please explain > why this device can be qualified as PC peripheral. Please show the connection > port. > > Question #3: This is for your information. The correct equipment class for > a 15.231 or 15.231(e) device is "DSC" for transmitter, or "DSR" for > transceiver. > > Best Regards, > Helen Zhao > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested 2 > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

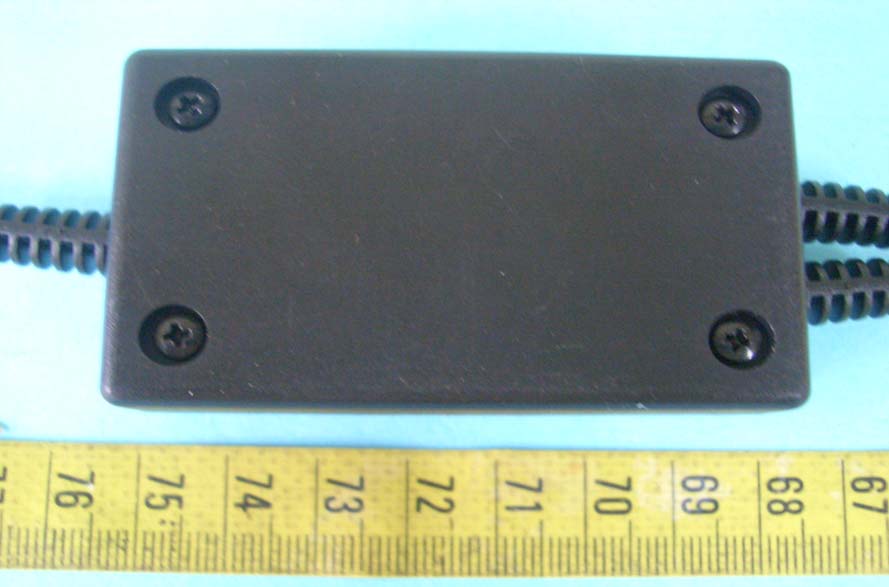

ETC Report No.:06-05-RBF-075 Sheet 1 of 3 Sheets FCC ID.: QP3LASERNODE-01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT

40mm(L) 20mm(W)

ETC Report No.:06-05-RBF-075 Sheet 2 of 3 Sheets FCC ID.: QP3LASERNODE-01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Internal View of EUT ETC Report No.:06-05-RBF-075 Sheet 3 of 3 Sheets FCC ID.: QP3LASERNODE-01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 4. Component View of Main PCB 5. Solder View of Main PCB

Make your laser device wireless! Display alerts on any of our display units, or link with ActiveStealth GPS enabled PDAs, smartphones or Sat Nav units. This easy to fit LASERnode unit connects to your choice of the following laser units, using the supplied connector cable*: • LE 30 • Blinder M20 • Blinder M40 • LaserPro Park • LT 400 The LASERnode intelligently recognises which laser device it is connected to and automatically selects the correct mode. You don't have to select anything! It's that easy - it just works! The LASERnode transmitter makes all these laser devices wireless and ActiveStealth Compatible. The LASERnode sends wireless diffuser alerts to the SMARTnode GPS receiver via a high speed wireless datalink and the SMARTnode instantly relays it as a Bluetooth warning to your PDA, Smartphone or sat nav device running ActiveStealth software. The LASERnode also makes all these laser devices compatible with Cheetah’s other products, allowing diffuser warnings to be given through the following warning units: • AUDIOnode • LIGHTnode • GPS Mirror • Cheetah Sentinel

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Laser Node Model : LN1 FCC ID : QP3LASERNODE-01 Working Frequency : 433.92MHz for APPLICANT : RND Hi-Tech Co., Ltd. ADDRESS : 21F-9, No.91, Jhongshan 2 nd Rd., Kaohsiung City, Taiwan Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 06-05-RBF-075 ETC Report No.:06-01-RBF-106-01 FCC ID.: QP3LASERNODE-01 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : RND Hi-Tech Co., Ltd. 21F-9, No.91, Jhongshan 2nd Rd., Kaohsiung City, Taiwan Manufacturer : RND Hi-Tech Co., Ltd. 21F-9, No.91, Jhongshan 2nd Rd., Kaohsiung City, Taiwan Description of EUT : a) Type of EUT : Laser Node b) Trade Name : RND HI-TECH c) Model No. : LN1 d) FCC ID : QP3LASERNODE-01 e) Working Frequency : 433.920 MHz f) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2005) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Date Test Item Received : MAY 23, 2006 Date Test Campaign Completed: Jun. 14, 2006 Date Test Item Received : Jun. 14, 2006 T EST E NGINEER : : ( Kevin Lee ) Approve & Authorized : : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:06-01-RBF-106-01 FCC ID.: QP3LASERNODE-01 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE: ...............................................................................................................................1 1.3 TEST METHODOLOGY............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION....................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................ 2 2.4 LABELING REQUIREMENT....................................................................................................................................... 4 2.5 USER INFORMATION............................................................................................................................................... 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION.......................................................................................................................... 10 4.5 ACTIVATE TIME.................................................................................................................................................... 10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 10 4.7 RADIATED TEST EQUIPMENT................................................................................................................................15 4.8 MEASURING INSTRUMENT SETUP......................................................................................................................... 15 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 16 5. BANDWIDTH OF EMISSION........................................................................................................................... 17 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH..................................................................................... 17 5.2 BANDWIDTH TEST EQUIPMENT..............…
