QP3RND123BOX3rd Brake Light For Motorcycles

RND HI-TECH CO.LTD. 3rd Brake light for Motorcycles ModelRND-123-BOX Taiwan Patent No147885 Product Function Description 1.This produt is a type of “box” series Transmitter. 2.This product frequency is 433.92 MHz, and this is qualify for international commercial standard frequency. 3.This Transmitter is well sealed and passed environment testing, e.g. humility, shock and vibration. 4.This product Transmit distance is available for 2M. 5.Fixed and hide Transmitter on the bike proper position, and connect Two wires with the wires of the tail light. 6.This product is suitable for all type of motorcycles. NoticeThe changes or modifications not expressly approved by the party responsible for compliance could void the user ’ s authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION

Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN to act on our behalf in all matters relating to application for “ 3 rd Brake Light For Motorcycles (Model: RND-123-BOX, ID No.: QP3RND123BOX)” authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant (e.g., corporation), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-Drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes see 47 C.F.R. 1.2002(b). By: By: Richard Hsu (Signature) (Printed) Title : General Manage Applicant : R’ND HI-TECH CO., LTD. Address : 9F-2, No.284, Chung Ching 1 st Road, Ling Nga District, Kaohsiung, Taiwan, R.O.C. Tel : 886-7-7111631 Fax: 886-7-7231503 Date : Jun.04,2003 Federal Communications Commission FCC ID: QP3RND123BOX Dear Sir, This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematics. Best regards, By: By: Richard Hsu (Signature) (Printed) Title : General Manage Applicant : R’ND HI-TECH CO., LTD. Address : 9F-2, No.284, Chung Ching 1 st Road, Ling Nga District, Kaohsiung, Taiwan, R.O.C. Tel : 886-7-7111631 Fax: 886-7-7231503 Date : Jun.042003

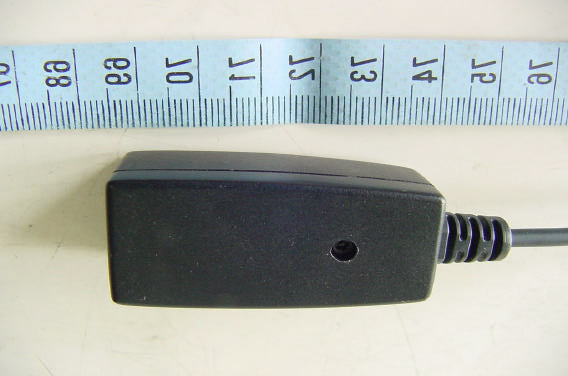

ETC Report No.:ET92R-06-029-04 FCC ID.: QP3RND123BOX Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

3rd Brake Light For Motorcycles RND-123-BOX REAR VIEW 20mm 5mm Tx FCC ID: QP3RND123BOX The following description will be shown on the user manual THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE UNDESRIED OPERATION

ETC Report No.:ET92R-06-029-04 FCC ID.: QP3RND123BOX Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of PCB ETC Report No.:ET92R-06-029-04 FCC ID.: QP3RND123BOX Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Solder View of PCB

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : 3rd Brake Light For Motorcycles FCC ID. : QP3RND123BOX MODEL : RND-123-BOX Working Frequency : 433.89 MHz for APPLICANT : R’ND HI-TECH CO., LTD. ADDRESS : 9/F-2, No.284, Chung Ching 1 st Road, Ling Nga District, Kaohsiung City, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 Report Number : ET92R-06-029-04 ETC Report No.:ET92R-06-029-04 FCC ID.: QP3RND123BOX Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : R’ND HI-TECH CO., LTD. 9/F-2, No.284, Chung Ching 1st Road, Ling Nga District, Kaohsiung, Taiwan City, R.O.C. Manufacturer : R’ND HI-TECH CO., LTD. 9/F-2, No.284, Chung Ching 1st Road, Ling Nga District, Kaohsiung City, Taiwan, R.O.C. Description of EUT : a) Type of EUT : 3rd Brake Light For Motorcycles b) Trade Name : R’ND HI-TECH c) Model No. : RND-123-BOX d) FCC ID : QP3RND123BOX e) Working Frequency : 433.89 MHz f) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2002) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Jun. 13, 2003 Test Engineer : ( Eric Chen ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET92R-06-029-04 FCC ID.: QP3RND123BOX Rev. No 2.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.3.1 Tx Protion..........................................................................................................................................................................8 4.3.2 Other Emissions...............................................................................................................................................................9 4.4 FIELD STRENGTH CALCULATION..........................................................................................................................................9 4.5 ACTIVATE TIME........................................................................................................................................................................9 4.6 CALCULATION OF DUTY FACTOR.........................................................................................................................................9 4.7 RADIATED TEST EQUIPMENT.........................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET92R-06-029-04 FCC ID.: QP3RND123BOX Rev. No 2.0 Radiated Measurement Photos
