QPB-TR8000506850MHz 1900MHz, GSM, GPRS

CONFIDENTIAL TR-800 MODULE EVALUATION KIT USER GUIDE Date of Release : 20 April 2005 Document Version : 1.0 Our Reference : 02000C01 TR-800 EVALUATION KIT USER GUIDE V1.0 CONFIDENTIAL All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd. iWOW Connections Pte Ltd reserves the right to, at any time modify the document content without prior notice. © 2005 iWOW Connections Pte Ltd 2 Document Information Revision Date Document History 0.0 23 Aug 2004
Initial release version 0.0 1.0 20 Apr 2005
Evaluation Board was modified according to the final phase (P3) of TR- 800 module hardware. For enquiries, please contact: iWOW Connections Pte Ltd 13 Serangoon North Ave 5 #03-00 Singapore 554787 Office: (65) 6748 8123 Fax : (65) 6748 2668 http://www.iwow.com.sg TR-800 EVALUATION KIT USER GUIDE V1.0 CONFIDENTIAL All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd. iWOW Connections Pte Ltd reserves the right to, at any time modify the document content without prior notice. © 2005 iWOW Connections Pte Ltd 3 CONTENT 1. MODULE EVALUATION KIT........................................................................................... 4 2. MEB FEATURES............................................................................................................. 4 3. INSTALLATION............................................................................................................... 4 4. QUICK SETUPS .............................................................................................................. 5 4.1 H YPERTERMINAL CONFIGURATION...................................................................... 5 4.2 TESTING ON SHORT MESSAGE........................................................................... 7 4.2.1 Send SMS..................................................................................................... 7 4.2.2 Receive SMS ................................................................................................ 8 4.3 S ET UP TR-800 AS A SERIAL MODEM.................................................................. 9 4.4 E STABLISH A GSM DIAL-UP CONNECTION......................................................... 11 4.5 ESTABLISH A GPRS DIAL-UP CONNECTION....................................................... 14 5. COMPONENT PLACEMENT INFORMATION................................................................17 5.1 TOP COMPONENT PLACEMENT DIAGRAM ................................................. 17 5.2 COMPONENT LIST.......................................................................................... 18 5.3 TEST POINT LIST ............................................................................................ 18 APPENDIX: MEB SCHEMATIC TR-800 EVALUATION KIT USER GUIDE V1.0 CONFIDENTIAL All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd. iWOW Connections Pte Ltd reserves the right to, at any time modify the document content without prior notice. © 2005 iWOW Connections Pte Ltd 4 1. MODULE EVALUATION KIT The Evaluation Kit includes:
A Module Evaluation Board (MEB), including all the interface electronics

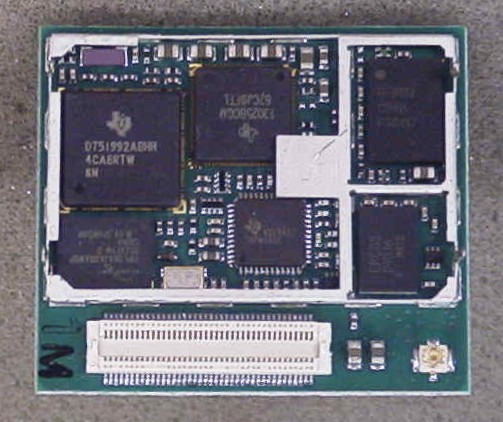

A TR-800 GSM/GPRS module, which is mounted on the MEB
Universal power supply: Input: 100~240VAC 50/60Hz Output: 5.0VDC @ 1.0A
An external tri-band GSM antenna with magnetic base (SMA-ended)
A RF cable connector for module to MEB RF connection
4-pole audio headset
User Guide CD 2. MEB FEATURES
Antenna interface: SMA jack for GSM antenna
RF receptacle for MEB to module RF connection (Hirose Part No. U.FL-R-SMT)
80-pin general-purpose module connector (Harwin Part No. M402M1-8005)
Power supply interface with 2 input source possibility: - Hosiden’s HEC3350 dc power jack, 3.5~6.5VDC @ 500mA input - Twin headers for connection to external power supply/battery, 3.3~5.5VDC @ 500mA input
2 serial interfaces using D-SUB9 female connectors
Standard RS-232 cable, can be used for connecting to - Modem Port: Main AT command interface - Debug Port: Debugging interface or utility communication port
SIM card holder
Power ON/OFF push button
RESET signal push button
“CALL” and “1” push buttons
LED indicators, to show: - Status of supply to MEB - Status of the module that is mounted on the MEB
Phone Audio jack
Auxiliary Audio jack
Test points to the rest of the pins of the 80-pin connector. They are used for connecting to external peripherals and general troubleshooting purposes 3. INSTALLATION Procedure: 1. Connect the serial cable from host PC to Port 1 (for AT commands interface) and to Port 2 (for programming or debugging purposes). 2. Connect the magnetic GSM antenna to the SMA antenna connector of the MEB. 3. Ensure that the RF receptacle of module is connected to the RF receptacle of MEB using the mating cable provided. 4. Ensure that the module is properly mounted and the legs properly soldered. 5. Connect the power supply to the MEB. 6. The power supply LED should be light-on when the MEB supply is turned on. 7. Follow the instructions in the next section and do module connection setups. TR-800 EVALUATION KIT USER GUIDE V1.0 CONFIDENTIAL All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd. iWOW Connections Pte Ltd reserves the right to, at…

Text truncated - open the document above for the full version.

FCC ID: QPB-TR8000506 APPLICANT: IWOW

FCC ID Label: Proposed FCC ID Label Location FCC ID: QPB-TR8000506

FCC ID: QPB-TR8000506 APPLICANT: IWOW

CONFIDENTIAL TR-800 GSM/GPRS MODULE PRODUCT TECHNICAL SPECIFICATIONS Date : 08 June 2006 Document Version : 2.4 Our Reference : 02000B06 TR-800 PRODUCT TECHNICAL SPECIFICATIONS V 2.4 CONFIDENTIAL All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd. iWOW Connections Pte Ltd reserves the right to, at any time modify the document content without notification. © 2005 iWOW Connections Pte Ltd 2 Document Information Revision Date Document History Author 0.0 24 Jun 04
Initial release version 000 BYKhoo 0.1 26 July 04
Module dimension specification & drawing were amended. BYKhoo 0.2 03 Sept 04
UART port naming was changed to standard DCE format.
NiBOOT was replaced with GND on the pin connectors.
DSR was replaced with DTR on the pin connectors.
Mechanical drawing was updated with pin number location. BYKhoo 1.0 15 Sept 04
Module mechanical drawing was updated. BYKhoo 20 Sept 04
Detailed audio description was updated with example circuits
Current consumption data was updated. BYKhoo 1.1 23 Sept 04
UART naming convention was amended at Chapter 3: Pins Description section. BYKhoo 1.2 30 Nov 04
Description of RF antenna connection was amended. BYKhoo 09 Dec 04
Module mechanical drawing was updated. BYKhoo 2.0 19 Jan 05
Pin out configuration was updated with DAI pins.
GPIO information was modified.
Updated RF interface connector details. BYKhoo 2.1 23 Aug 05
Included references to new quad-band operation.
Included references to the extended -40°C to +85°C operating temperature range (reduced specification).
Included references to the Parallel Bus.
RF connection methods update.
Updated mechanical drawing for P4 hardware. BYKhoo 2.2 08 Sept 05
Updated mechanical drawing for P5 hardware (RF pad changes).
Updated pin description
Updated GPIO info BYKhoo 2.3 15 Nov 05
Updated the supply input voltage VBAT specification BYKhoo 2.4 08 Jun 06
Added safety precaution section.
Added comments for CE application
Updated GPIO Info BYKhoo / Vince For enquiries, please contact: iWOW Connections Pte Ltd 1 Lorong 2 Toa Payoh #04-01 Yellow Pages Building Singapore 319637 Office: (65) 6748 8123 Fax : (65) 6748 2668 HTUhttp://www.iwow.com.sgUTH TR-800 PRODUCT TECHNICAL SPECIFICATIONS V 2.4 CONFIDENTIAL All specifications are correct at the time of release. iWOW Connections owns the proprietary rights to the information contained herein this document. It may not be edited, copied or circulated without prior written agreement by iWOW Connections Pte Ltd. iWOW Connections Pte Ltd reserves the right to, at any time modify the document content without notification. © 2005 iWOW Connections Pte Ltd 3 TABLE OF CONTENTS 1. GENERAL INFORMATION...............................................................................4 2. INTERFACES..................................................................................................5 2.1. General-Purpose Connector (GPC)............................................................5 2.2. Power Supply and Ground........................................................................5 2.2.1. Power Consumption........................................................................5 2.3. Backup Power Supply ..............................................................................5 2.4. Battery-Charging Interface (BCI)..............................................................6 2.5. Analog to Digital Converter (ADC) ............................................................6 2.6. ON/OFF Control.......................................................................................7 2.6.1. State definitions .............................................................................7 2.6.2. State transitions .............................................................................7 2.6.3. Switch-ON condition .......................................................................7 2.6.4. Switch-OFF condition......................................................................8 2.7. Reset Signal............................................................................................8 2.8. VIO Digital Supply Output........................................................................8 2.9. Subscriber Identity Module (SIM) Interface...............................................8 2.10. UART Interfaces....................................................................................9 2.10.1. UART Port 1 – Modem port ...........................................................9 2.10.2. UART Port 2 – Debug port.............................................................9 2.11. Audio Interfaces.................................................................................. 10 2.11.1. Microphone input........................................................................ 10 2.11.2. Speaker output........................................................................... 11 2.12. Light Pulse Generator (LPG)................................................................. 12 2.13. General Purpose Input Output (GPIO) .................................................. 12 2.14. Keyboard Interface..............................................................................13 2.14.1. Implementation of a 5x5 keyboard .............................................. 13 2.15. I2C Master Serial Interface................................................................... 14 2.16. Parallel Bus......................................................................................... 14 3. PINS DESCRIPTION..................................................................................... 15 4. ELECTRICAL CHARACTERISTICS................................................................ 17 5. TECHNICAL SPECIFICATIONS.........................…

Text truncated - open the document above for the full version.

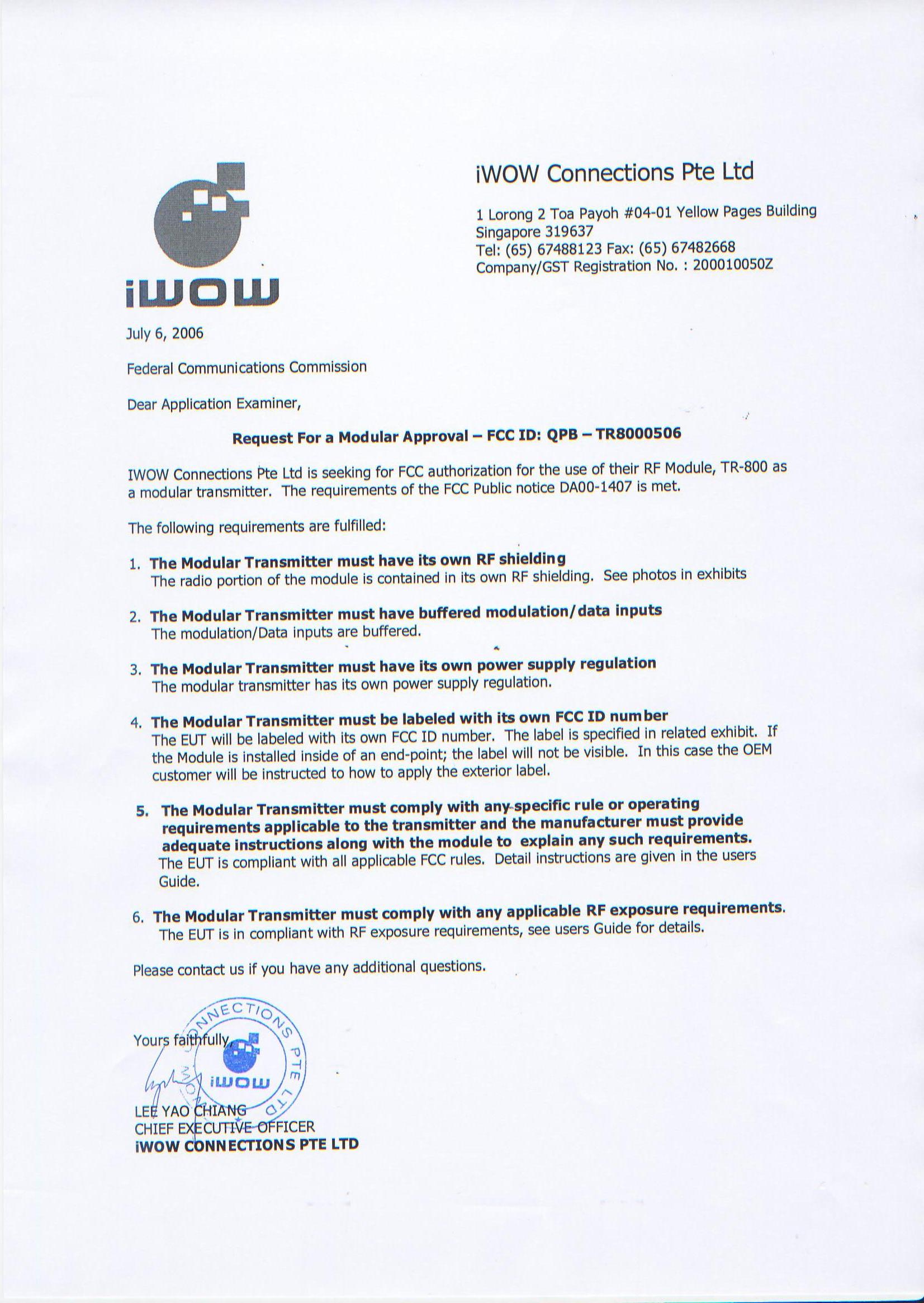

July 12, 2006 Federal Communication Commissions To Whom It May Concern: This device does not have a tune-up procedure due to the characteristics of the product. Please contact us if you have questions. Yours truly, Lee Yao Chiang Chief Executive Officer IWOW Connections Pte. Ltd.

FCC PART 22 AND 24 TEST REPORT Applicant Iwow Connections Pte Ltd. 13 Serangoon North Ave 5, #03-00 Singapore 554787 FCC ID QPB-TR8000506 Product Description GSM/GPRS Module Date Sample Received May 16, 2006 Date Tested June 7, 2006 Tested By Nam Nguyen Approved By Mario de Aranzeta Timco Report No. 1036AUT6 Test Results Pass Fail THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Certificate # 0955-01 Document version: 1.00 mdea APPLICANT: IWOW CONNECTIONS PTE LTD. FCC ID: QPB-TR8000506 REPORT: I\IWOW_QPB\1036AUT6\1036AUT6TestReport.doc Page 2 of 24 TABLE OF CONTENTS STATEMENT OF COMPLIANCE.................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 DESCRIPTION OF PRODUCT AND MODULAR APPROVAL INFORMATION .................. 5 EMC EQUIPMENT LIST ............................................................................................. 6 TEST PROCEDURE ................................................................................................... 7 RF POWER OUTPUT .................................................................................................. 8 VOICE MODULATION CHARACTERISTICS................................................................. 9 AUDIO LOW PASS FILTER ......................................................................................... 9 OCCUPIED BANDWIDTH ......................................................................................... 10 SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................................................. 17 FIELD STRENGTH OF SPURIOUS EMISSIONS......................................................... 18 FREQUENCY STABILITY.......................................................................................... 20 POWER LINE CONDUCTED INTERFERENCE........................................................... 21 RF EXPOSURE ........................................................................................................ 23 Certificate # 0955-01 Document version: 1.00 mdea APPLICANT: IWOW CONNECTIONS PTE LTD. FCC ID: QPB-TR8000506 REPORT: I\IWOW_QPB\1036AUT6\1036AUT6TestReport.doc Page 3 of 24 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: Function: Engineer Date: June 20 th 2006 Tested by: Nam Nguyen Signature: on file Date: June 20th 2006 Certificate # 0955-01 Document version: 1.00 mdea APPLICANT: IWOW CONNECTIONS PTE LTD. FCC ID: QPB-TR8000506 REPORT: I\IWOW_QPB\1036AUT6\1036AUT6TestReport.doc Page 4 of 24 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. FCC Rule Part(s) § 22H, § 24E DUT Description GSM/GPRS Module EGSM900 / DCS 1800 / PCS 1900 FCC ID QPB-TR8000506 Model Name TR-800 Tx Frequency 824.2 - 848.8 MHz (GSM 850) / 1850.2 - 1909.8 MHz (PCS 1900) Max. Power Rating 850 MHz 1.2 Watts 1900 MHz 0.66Watts Emission Designators 300KGXW (GSM850), 300KGXW (GSM 1900) Modulation(s) GSM User Power Control Yes No 110–120Vac/50– 60Hz DC Power DUT Power Source Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna monopole Antenna Connector SMA Antenna Gain Test Facility: The test sites used by Timco Engineering Inc. for radiated and conducted emission data is located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: The DUT was tested in the laboratory in an environment with normal temperature and humidity. The temperature was 26ºC with a relative humidity of 50%. Modification to the DUT: No modification was made to the DUT during testing. Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Certificate # 0955-01 Document version: 1.00 mdea APPLICANT: IWOW CONNECTIONS PTE LTD. FCC ID: QPB-TR8000506 REPORT: I\IWOW_QPB\1036AUT6\1036AUT6TestReport.doc Page 5 of 24 DESCRIPTION OF PRODUCT AND MODULAR APPROVAL INFORMATION This device is a drop in module and is intended as an OEM drop in device for cellular service handset, portable, and mobile devices. 1: The module has it’s own shielding. 2. The module has buffered I/O inputs. 3. The module has it’s own VCO built in. Regulators are outboard. 4. The RF connector is unique (hirose). 5. The antenna is custom for every application. 6. The module was tested essentially standalone. 7. Power Line conducted was done on the module. 8. No external ferrites are used. Certificate # 0955-01 Document version: 1.00 mdea APPLICANT: IWOW CONNECTIONS PTE LTD. FCC ID: QPB-TR8000506 REPORT: I\IWOW_QPB\1036AUT6\1036AUT6TestReport.doc Page 6 of 24 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date or Status 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 3-Meter OATS TEI N/A N/A Listed 1/11/06 1/10/09 Analyzer Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Analyzer Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Analyzer Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 12/8/04 12/8/06 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 12/8/06 Analyzer Silver Tower …

Text truncated - open the document above for the full version.
