QPBWM1080DUSB GSM/ GPRS Modem

USER MANUAL SYSTEM REQUIREMENT SUPPORTED OS SUPPORTED SOFTWARE SUPPORTED NETWORK AND SERVICES EMERGENCY CALLS CONTACTS Add a Contact Edit a Contact Delete a Contact Create a SMS Group Edit Group Delete Group Add Contact to Group Remove Contact from Group MESSAGES Read a Message Send a Message Forward a Message Reply a Message Print a Message Copy, Cut, Paste a Text PHONE Make and End Phone Call Receive a Phone Call Call Waiting Call Waiting Send a Business Card SETTINGS Headset Volume Data Speed Network Provider Melody for Call Melody for SMS Language Missed Call Received Call Call List Modem Settings INTERNET EMAIL FAX SYSTEM REQUIREMENTS (a) An Intel compatible PC or Notebook (b) Minimum of 15 MB free hard disk space (c) USB port SUPPORTED OS (a) Windows 98 (b) Windows 98 SE (c) Windows ME (d) Windows 2000 (e) Windows XP Professional SUPPORTED SOFTWARE (a) Browser - Internet Explorer and Netscape Communicator (b) Email - Microsoft Outlook and Outlook Express (c) Fax Software - Fax for Windows 2000, Fax Wizard for Windows XP and Symantec Win Fax SUPPORTED NETWORK AND SERVICES (a) Dual Band GSM 900/1800 (b) General Radio Packet Service (GPRS) (c) Short Message Services (SMS) (d) Data Office (e) Fax Services You may contact your local network service provider for details and activation of the above value-added services. EMERGENCY CALLS The iTegno WM1080A GPRS Modem is a wireless communication device that operates using RF signals which may not be available in all environment. Users should not solely depend on the modem to make emergency calls. In order to make or receive calls, the modem must be connected and must operate in an area with adequate signal strength. Emergency calls may not be possible on all wireless device networks or when certain network services and/or device features are in use. Check with your local network service provider for further details. CONTACTS This function allows users to access, edit or delete contacts stored in the SIM card or Computer. It also allows users to customize, manage and group their SMS recipients. Add a Contact Step 1: Click on the New icon located at the left corner of the Contacts list. Step 2: Select SIM or PC as your preferred storage location. Step 3: Enter Name and Phone Number of your contact if you are storing it in your SIM card. Step 4: You can enter additional information like Company Name, Office Telephone, Office Fax, Home Telephone, Email and URL if you are storing it in your PC. Step 5: Click on the Save icon to save entries in your preferred storage location. Step 6: Click OK to end the Add Contacts session. Edit a Contact Step1: Select the contact from the list. Step 2: Click on the Edit icon . Step 3: Edit details of the selected contact. Step 4: Select SIM or PC as your preferred storage location. Step 5: Click on the Save icon to save entries in your preferred storage location. Step 6: Click OK to end Edit a Contacts session. Delete a Contact Step 1: Select the Contacts from the list. Step 2: Click on the Delete icon . Step 3: Click Yes to confirm delete or No to abort. Create a SMS Group Step 1: Click on the New icon located at the left corner of the Group Window. Step 2: Assign a name to the group. Step 3: Click on the Save icon to save the group name. Step 4: Click OK to end Create a SMS Group session. Edit Group Step 1: Select the group from the list. Step 2: Click on the Edit icon . Step 3: Edit the group name. Step 4: Click on the Save icon to save the edited group name. Step 5: Click OK to end Edit Group session. Delete Group Step 1: Select the group from the list. Step 2: Click on Delete icon . Step 3: Click Yes to confirm delete or No to abort. Add Contact to Group Step 1: Select the group from the list. Step 2: Select the contact from either the SIM Phonebook or PC Phonebook. Step 3: Click on the Add icon . Step 4: Click OK to end session. Step 5: To add multiple contacts to the group, hold the Shift or Ctrl key and select the contacts. Step 6: Click on the Add icon . Step 7: Click OK to end Add Contacts to Group session. Remove Contact from Group Step 1: Select the group from the list. Step 2: Select a contact in the group Step 3: Click on the Remove icon . Step 4: Click OK on the pop-up window to end session. Step 5: To remove multiple contacts from group, hold the Shift or Ctrl key and select the contacts. Step 6: Click on the Remove icon . Step 7: Click OK to end Remove Contacts from Group session. Removing a contact from the group will NOT delete the details from the SIM or PC PhoneBook. MESSAGES This function allows users to read, send, delete and print short messages. Read a Message Step 1: Click on the message with status NEW in your Inbox. The message will be shown in the text box together with the date, time and sender’s mobile number. Send a Message Step 1: Click on the New Message icon . Step 2: Type your message in the text box provided. Step 3: Click on the To icon to insert the recipient’s mobile number from the Contacts list or manually type in the recipient’s mobile number. Step 4: Click on the Send Message icon to send the message. Step 5: Click on the OK icon on the pop-up window to end the Send a Message session. Forward a Message Step 1: Double click on the message, either in the Inbox, Outbox or Draft, to be forwarded. Step 2: Click on the To icon to insert the recipient’s mobile number from the Contacts list or manually type in the recipient’s mobile number. Step 3: Click on the Send Message icon to send the message. Step 4: Click on the OK icon on the pop-up window to end the Forward a Message session. Reply a Message Step 1: Double click on the message to be replied. Step 2: Click on the Reply Message icon to reply to the sender. The original message will be automatically included in the textbox. Edit and type in your message that is to be sent. Step 3: Click on the Send Message icon to send the message. Step 4: Click on the OK icon on the pop-up window to end the Reply a Message session. Pr…

Text truncated - open the document above for the full version.

USER MANUAL SYSTEM REQUIREMENT SUPPORTED OS SUPPORTED SOFTWARE SUPPORTED NETWORK AND SERVICES EMERGENCY CALLS CONTACTS Add a Contact Edit a Contact Delete a Contact Create a SMS Group Edit Group Delete Group Add Contact to Group Remove Contact from Group MESSAGES Read a Message Send a Message Forward a Message Reply a Message Print a Message Copy, Cut, Paste a Text PHONE Make and End Phone Call Receive a Phone Call Call Waiting Call Waiting Send a Business Card SETTINGS Headset Volume Data Speed Network Provider Melody for Call Melody for SMS Language Missed Call Received Call Call List Modem Settings INTERNET EMAIL FAX SYSTEM REQUIREMENTS (a) An Intel compatible PC or Notebook (b) Minimum of 15 MB free hard disk space (c) USB port SUPPORTED OS (a) Windows 98 (b) Windows 98 SE (c) Windows ME (d) Windows 2000 (e) Windows XP Professional SUPPORTED SOFTWARE (a) Browser - Internet Explorer and Netscape Communicator (b) Email - Microsoft Outlook and Outlook Express (c) Fax Software - Fax for Windows 2000, Fax Wizard for Windows XP and Symantec Win Fax SUPPORTED NETWORK AND SERVICES (a) Dual Band GSM 900/1800 (b) General Radio Packet Service (GPRS) (c) Short Message Services (SMS) (d) Data Office (e) Fax Services You may contact your local network service provider for details and activation of the above value-added services. EMERGENCY CALLS The iTegno WM1080A GPRS Modem is a wireless communication device that operates using RF signals which may not be available in all environment. Users should not solely depend on the modem to make emergency calls. In order to make or receive calls, the modem must be connected and must operate in an area with adequate signal strength. Emergency calls may not be possible on all wireless device networks or when certain network services and/or device features are in use. Check with your local network service provider for further details. CONTACTS This function allows users to access, edit or delete contacts stored in the SIM card or Computer. It also allows users to customize, manage and group their SMS recipients. Add a Contact Step 1: Click on the New icon located at the left corner of the Contacts list. Step 2: Select SIM or PC as your preferred storage location. Step 3: Enter Name and Phone Number of your contact if you are storing it in your SIM card. Step 4: You can enter additional information like Company Name, Office Telephone, Office Fax, Home Telephone, Email and URL if you are storing it in your PC. Step 5: Click on the Save icon to save entries in your preferred storage location. Step 6: Click OK to end the Add Contacts session. Edit a Contact Step1: Select the contact from the list. Step 2: Click on the Edit icon . Step 3: Edit details of the selected contact. Step 4: Select SIM or PC as your preferred storage location. Step 5: Click on the Save icon to save entries in your preferred storage location. Step 6: Click OK to end Edit a Contacts session. Delete a Contact Step 1: Select the Contacts from the list. Step 2: Click on the Delete icon . Step 3: Click Yes to confirm delete or No to abort. Create a SMS Group Step 1: Click on the New icon located at the left corner of the Group Window. Step 2: Assign a name to the group. Step 3: Click on the Save icon to save the group name. Step 4: Click OK to end Create a SMS Group session. Edit Group Step 1: Select the group from the list. Step 2: Click on the Edit icon . Step 3: Edit the group name. Step 4: Click on the Save icon to save the edited group name. Step 5: Click OK to end Edit Group session. Delete Group Step 1: Select the group from the list. Step 2: Click on Delete icon . Step 3: Click Yes to confirm delete or No to abort. Add Contact to Group Step 1: Select the group from the list. Step 2: Select the contact from either the SIM Phonebook or PC Phonebook. Step 3: Click on the Add icon . Step 4: Click OK to end session. Step 5: To add multiple contacts to the group, hold the Shift or Ctrl key and select the contacts. Step 6: Click on the Add icon . Step 7: Click OK to end Add Contacts to Group session. Remove Contact from Group Step 1: Select the group from the list. Step 2: Select a contact in the group Step 3: Click on the Remove icon . Step 4: Click OK on the pop-up window to end session. Step 5: To remove multiple contacts from group, hold the Shift or Ctrl key and select the contacts. Step 6: Click on the Remove icon . Step 7: Click OK to end Remove Contacts from Group session. Removing a contact from the group will NOT delete the details from the SIM or PC PhoneBook. MESSAGES This function allows users to read, send, delete and print short messages. Read a Message Step 1: Click on the message with status NEW in your Inbox. The message will be shown in the text box together with the date, time and sender’s mobile number. Send a Message Step 1: Click on the New Message icon . Step 2: Type your message in the text box provided. Step 3: Click on the To icon to insert the recipient’s mobile number from the Contacts list or manually type in the recipient’s mobile number. Step 4: Click on the Send Message icon to send the message. Step 5: Click on the OK icon on the pop-up window to end the Send a Message session. Forward a Message Step 1: Double click on the message, either in the Inbox, Outbox or Draft, to be forwarded. Step 2: Click on the To icon to insert the recipient’s mobile number from the Contacts list or manually type in the recipient’s mobile number. Step 3: Click on the Send Message icon to send the message. Step 4: Click on the OK icon on the pop-up window to end the Forward a Message session. Reply a Message Step 1: Double click on the message to be replied. Step 2: Click on the Reply Message icon to reply to the sender. The original message will be automatically included in the textbox. Edit and type in your message that is to be sent. Step 3: Click on the Send Message icon to send the message. Step 4: Click on the OK icon on the pop-up window to end the Reply a Message session. Pr…

Text truncated - open the document above for the full version.

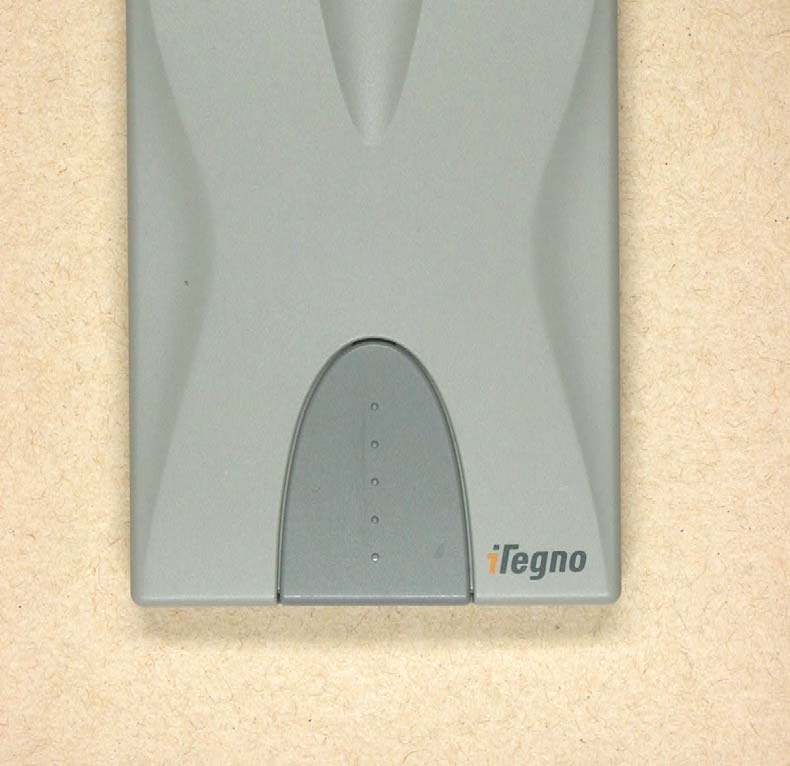

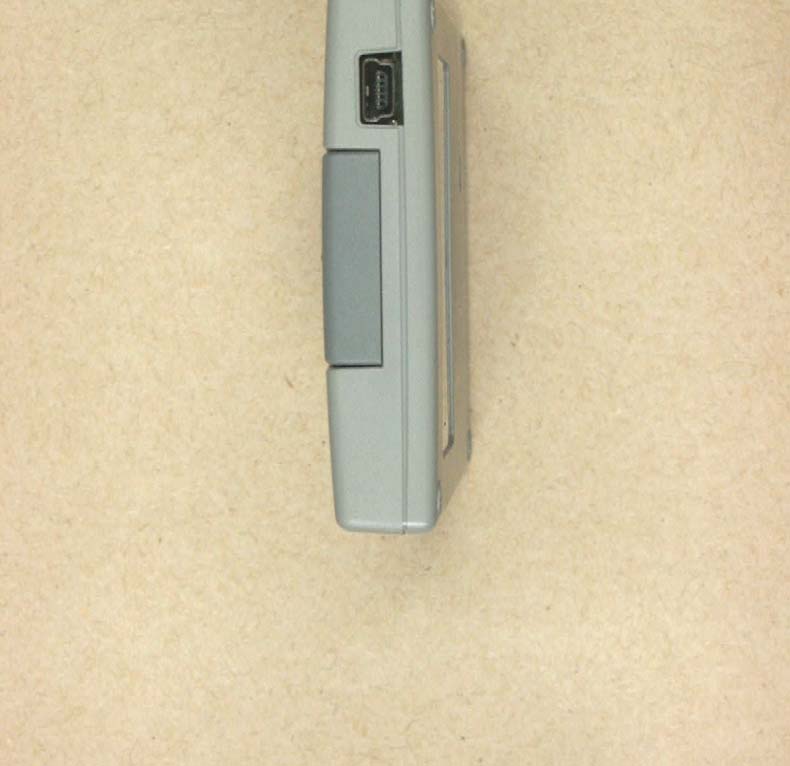

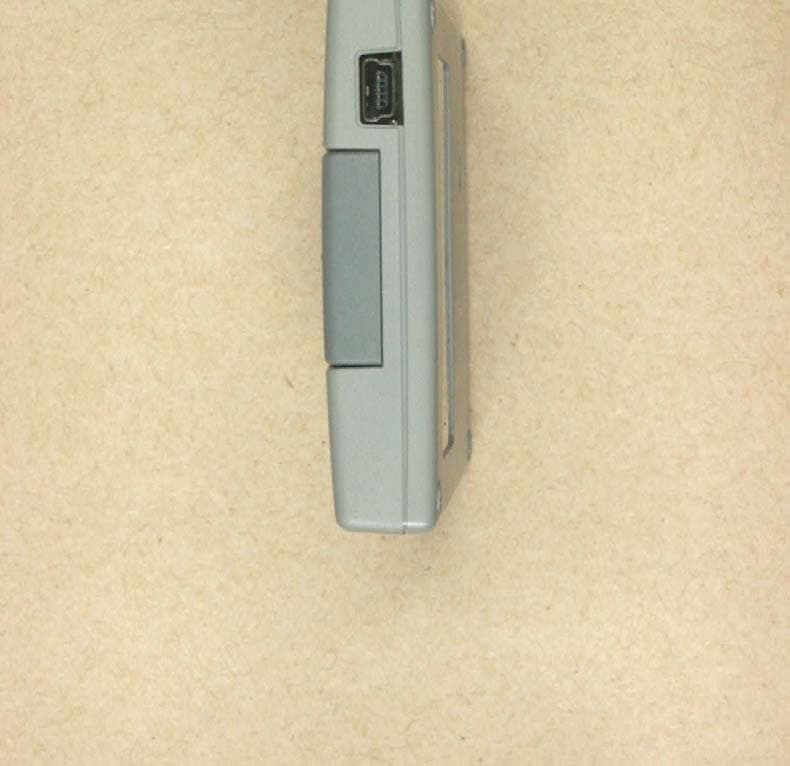

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 1 of 3 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 2 of 3 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 3 of 3

Back cover

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 1 of 3 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 2 of 3 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 3 of 3

Operational Description i Table of contents 1. RF PART.............................................................................................................................................3 1.1. SUMMARIZED DESCRIPTION................................................................................................................3 1.2. EXPLANATION....................................................................................................................................3 1.2.1. General........................................................................................................................................3 1.2.2. Frequency generator....................................................................................................................3 2. BASE BAND PART............................................................................................................................4 2.1. BASE BAND BLOCK DIAGRAM.............................................................................................................4 2.2. GENERAL DESCRIPTION......................................................................................................................5 2.2.1. General information....................................................................................................................5 2.2.2. Baseband functionalities..............................................................................................................5 2.2.3. RX timing .....................................................................................................................................6 2.2.4. TX timing.....................................................................................................................................7 2.2.5. Antenna interface.................................................................................................................7 ii 1. RF PART 1.1. Summarized description • The IWOW USB modem is designed to emit within the 900 and 1900 Bands of the GSM standards. The Frequencies are the following : E900 Band: TX : 880.2 Mhz upto 814.8Mhz RX : 925.2Mhz upto 959.8 Mhz Maximum RF ouput power : 2W 1900 Band : TX : 1850.2 Mhz upto 1909.8 Mhz RX : 1930.2 Mhz upto 1989.8 Mhz Maximum RF ouput power : 0.887W 1.2. Explanation 1.2.1. General The concept of this radio is both original and conventional. It is conventional because it does not use any direct modulation or demodulation scheme and is based on a superhet architecture, and it is original because it is an improvement compared with older GSM mobiles concepts. 1.2.2. Frequency generator The 13 MHz reference clock (VCXO) drives the logic and the radio. 3 2. BASE BAND PART 2.1. Base band block diagram 4 2.2. General description 2.2.1. General information The IWOW USB modem is a self contained E-GSM 900/1900 dual Band modem including the following features : -1 Watt GSM 1900 radio section running under 3.6 Volts -Digital section under 2.8 Volts -3 Volt Sim interface -Real time clock with calendar -Battery charger -Echocancellation + noise reduction -Full GSM software stack -Complete shielding -complete interfacing : Power supply, serial link, Audio, Sim card, Keyboard 2.2.2. Baseband functionalities The digital part of the Modem is composed of a PHILIPS-VLSI chip (ONE C, GSM/GPRS Kernel). This chipset is using a 0.25 um mixed technology CMOS, which allows massive integration as well as low current consumption 5 2.2.3. RX timing 6 7 2.2.4. TX timing (Tx power) 2.2.5. Antenna interface The Antenna used in the WM1080D is an internal antenna. There is no external access to this antenna. There is no external antenna. The RF Connector on the bottom side of the antenna is for production test purpose only.

SENT BY: IWOW COMMUNICATIONS; +6567482668; 13-DEC-O2 3:55PM; PAGE 2 wow Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 A safety statement concerning minimum separation distance is intcgrated in the user's manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The maximum allowed output power is 0.887 Wand the maximum gain of the antenna'to ~e used is OdBi ~ . Maximum EIRP = 29.48 dBm + 0 dBi = 29.48 dEm Power Density at 20 cm is: S=P/4pir%= 0.176mW/cm2 S = Power density (m W/cm2) P = Transmitted power in m W r = Distance in cm Limit for General Population/Uncontrolled Exposure according to Supplement C (01-01) to OET Bulletin 65 (97-01) in frequency range 1500 -100,000 MHz is: 1.0 mW/cm2, in mobile and fixed applications. The ~ Mr Lee t 30 CI1 IWOW Connec!ions Pte Ltd 12 Dec 2002

Substitution RF power measurement at ETS Dr Genz GmbH General: The applied substitution method follows ANSI/TIA/EIA-603, ANSI/TIA/EIA-102.CAAA or the appropriate ETSI rules respectively. The actual signal generated by the EUT can be determined by means of a substitution measurement in which a known signal source replaces the device to be measured. The substitution antenna replaces the transmitter antenna at the same position and in vertical polarization. The frequency of the signal generator shall be adjusted to the measurement frequency. The test antenna shall be raised or lowered, if necessary, to ensure that the maximum signal is still received. The input signal to the substitution antenna shall be adjusted in level until an equal or a known related level to that detected from the transmitter is obtained in the measurement receiver. If a fully anechoic chamber is used as test site in order to provide free space conditions there is no need to change the height of the antenna. The measurement will be repeated in horizontal position. Calibration: In order to make this kind of measurement more effective and to avoid subjective measurement faults, ETS has installed automatic computer controlled measurement procedures. With the above described substitution method a test site is calibrated over the full frequency range which is used in suitable frequency steps. For a certain power level on the substitution antenna the received power over the whole frequency range is documented. All necessary antenna gains, cable losses, filter losses and amplifications of preamplifiers are taken in consideration. The summary of this calibration measurement performs a transducer factor that is related to the considered test site and a certain measurement distance. Differences of the radiated power levels of different test samples are determined by internal attenuation of the measurement receiver. The proper function of such test site will be maintained by short term plausibility checks and periodical re-calibration. Testing: Now the test sample will be put on the table at the defined position and the radiated power will be received and documented by the measurement receiver. On test sites with ground plane the measurement antenna will be lowered and raised to maximum values at significant frequencies. For peak power measurements the sample is turned by the turntable over 360 degree in order to find the direction with the maximum radiation or to document the max. reading with the MAXHOLD function during the rotation. For average power measurement according standards as ANSI/TIA/EIA-603 the sample is measured in every 45- degree position of the turntable and the average value over this 8 single results will come to the final result. ___________________________________________________________________________ For JOB 1222GC2; QPBWM1080D peak power measurements were done. In order to control the procedure above the test software ESK-1 of the test equipment manufacturer Rohde & Schwarz is used. Please find enclosed diagram samples of real site transducers and pictures of used equipment. __________________________________________________________________________________________________ -ETS- DR. GENZ GMBH STORKOWER STRASSE 38c,D-15526 REICHENWALDE B. BERLIN TELEPHONE +49-33631-888 00 TELEFAX +49-33631-888 660 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH __________________________________________________________________________________________________ -ETS- DR. GENZ GMBH STORKOWER STRASSE 38c,D-15526 REICHENWALDE B. BERLIN TELEPHONE +49-33631-888 00 TELEFAX +49-33631-888 660 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH __________________________________________________________________________________________________ -ETS- DR. GENZ GMBH STORKOWER STRASSE 38c,D-15526 REICHENWALDE B. BERLIN TELEPHONE +49-33631-888 00 TELEFAX +49-33631-888 660 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH __________________________________________________________________________________________________ -ETS- DR. GENZ GMBH STORKOWER STRASSE 38c,D-15526 REICHENWALDE B. BERLIN TELEPHONE +49-33631-888 00 TELEFAX +49-33631-888 660 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 24 Test report no.: G0M20210-7211-T-47_rev_3 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20210-7211-T-47_rev_3Page 1 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Occupied Bandwidth, FCC 2.1049 6.1 Test Procedure 6.2 Test Results 7 Field Strength of Spurious Radiations, FCC 2.1053, 24.238 7.1 Test Procedure 7.2 Test Results 8 Line Conducted Emissions, FCC 15.107 8.1 Test Procedure 8.2 Test Results 9 Frequency Stability vs Temperature, FCC 2.1055, 24.235 9.1 Test Procedure 9.2 Test Results 10 Frequency Stability vs Voltage, FCC 2.1055, 24.235 10.1 Test Procedure 10.2 Test Equipment ETS Dr. Genz GmbH, GermanyRegistration number: G0M20210-7211-T-47_rev_3Page 2 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 03.12.2002Mr. Schulz DateETS-Lab.NameSignature Technical responsibility for area of testing: 03.12.2002Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20210-7211-T-47_rev_3Page 3 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: iWOW Connections Pte Ltd Street: 13 Serangoon North Ave 5, 3rd Floor Town: 554787 Singapore Country: Singapore Telephone: 65 748 8123 Fax: 65 748 2668 Contact: Mr. Lee Yao Chiang Email: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20210-7211-T-47_rev_3Page 4 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 15.10.2002 Date of receipt of test item: 15.10.2002 Date of test: 15.10.2002 – 21.10.2002 1.5Test item Description of test item:Wireless GSM/GPRS Modem Type identification: WM1080D Serial number: Test model without serial number. Photos: See annex A Technical data Frequency range Tx: 1850-1910 MHz Frequency range Rx: 1930-1990 MHz Antenna transmitter: integral (internal antenna) Antenna Gain: 0 dBi Power supply : 5.0 V DC, powered by USB interface Operating mode: duplex Type of modulation: GMSK (GSM modulation) Emission: GXW Manufacturer: (if applicable) Name: iWOW Connections Pte Ltd Street: 13 Serangoon North Ave 5, 3rd Floor Town: 554787 Singapore Country: Singapore Additional information: none ETS Dr. Genz GmbH, GermanyRegistration number: G0M20210-7211-T-47_rev_3Page 5 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC Parts 24 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Extreme temperature: -30 / 60 °C ETS Dr. Genz GmbH, GermanyRegistration number: G0M20210-7211-T-47_rev_3Page 6 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvcom ETS 0008AntennaLoop antennaSiemens ETS 0009AntennaLoop antennaMEB ETS 0010AntennaLoop antennaMEB ETS 0011Antennavan Veen/ FrameETS ETS 0012AntennaHK 116Rohde&Schwarz ETS 0013AntennaHL 223Rohde&Schwarz ETS 0014AntennaHL 025Rohde&Schwarz ETS 0015AntennaHL 025Rohde&Schwarz ETS 0016AntennaVHAPSchwarzbeck ETS 0017AntennaVHAPSchwarzbeck ETS 0018AntennaUHAPSchwarzbeck ETS 0019AntennaUHAPSchwarzbeck ETS 0020AntennaDP 21MEB ETS 0021AntennaDP 3MEB ETS 0022AntennaSAS-200/ 521A.H. Systeme / USA ETS 0023AntennaDP 1MEB ETS 0024Ant…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 1 of 4 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 2 of 4 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 3 of 4 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATION NUMBER: G0M20210-7211-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLIN Appendix Page 4 of 4
