QPH-ISMHome Security System ( Main )

1. Basis composition 6 5 4 3 2 1 Appliance that control all functions of Time24 Main External Product explanation Item Appliance that supply entire in Time24 main frame Adaptor Appliance that inform situation by sound and light Siren Appliance that sense that get closed with inquiry ten rims and notify wireless to main frame Door Sensor Appliance that sense object that move shooting permanent domicile outer line and notify wireless to main frame PIR Sensor Appliance that input all functions of Time24 by wireless Keypad 1 2 3 4 5 6 -1 - 1.Install together main frame and telephone line, power and do not hide main frame front top portion Mike. 2.Install keypad according to user's use position on main entrance inside. 3.Is room that increase at PIR sensor. Establish in position that can sense invader's anticipation transfer path. ¢¡Caution(PIR sensor & Door sensor) (1) To see glass window outside for malfunction prevention at PIR Sensor, do not establish.Window establishes as do not look (2) If stove and air conditioner are operated or are windward from outside because window is unclosed, there is malfunction worry. Put out stove and air conditioner and close window and prevent malfunction at TIME24's operation (3) User who breed pet establishes as pet does not enter in perception sphere at PIR sensor. Example •As is not sensed about 50 Cm in the floor, control PIR sensor. •When go out, move pet to place that there is no PIR sensor. 4.Establish, and do to face department of liberal arts do leader switch in fixed place and magnetic switch that visit on window, entrance at door sensor and establish by 20mm within. 5.Siren establishes to conquer invader at the same time information on emergency outside so that outsider may look well from outside by purpose, establish in place that do not take rain. 6.Because Time24 uses radio, area that electromagnetic waves are serious with computer, cordless, under high-tension wire keeps schedule distance 2. Point to observe when establish -2 - 3. 3. Product description Product description 1. T_MAIN 433gWeightSound power 110dB Internal Siren W146 X H210 X D30External (mm)0 ~ 60 degree Operating Temperature 12 hours Power failure stand by -20 ~ 80 degree Storage Temperature NO or NC Point of contact input Wire inputTEL.LINE 2MߟOVER Isolation Resistor D/C 12V 50mA BELOW Wire outputDC6V 700mA Backup Battery -120dBmSensitivity Siren OFF 100mA Siren ON 250mA Operating Current 447.3MHzFrequency40mA Stand by Current Tone / PulseFormDC12V Power Source DescriptionItemDescriptionItem RESET switch Input switch Tel line Telephone Adaptor Power Source dipswitch Arm Lamp Disarm Lamp input Lamp -3 - 433gWeight-20 ~ 80 degree Storage Temperature W160 X H110 X D33External (mm)100mA Operating Current 447.3MHzFrequency 30ßÀ Stand by Current 0 ~ 60 degree Operating Temperature DC6V AA Battery 4ea Power Source DescriptionItemDescriptionItem -4 - 2. T_KEYPAD 3. T_PIR 7 –10 m Sensing Estimated Range 120 gWeight25 ~ 45 degree motion Sensing Detection W65 X H110 X D40External (mm) Up and down 45 degree Left and right 110 degree Sensing Range 0 ~ 60 degree Operating Temperature 35mA Operating Current -20 ~ 80 degree Storage Temperature 40ßÀ Stand by Current 447.3MHzFrequencyDC 4.5V AA Battery 3ea Power Source DescriptionItemDescriptionItem -5 - (1) User mode (2) OFF (3) Test mode 4. T_DOOR DescriptionItemDescriptionItem 180gWeight20mm below Sensing Range W64 X H98 X D20External (mm)magnetic / lead switch Sensing Method 0 ~ 60 degree Operating Temperature 35mA Operating Current -20 ~ 80 degree Storage Temperature 15 ßÀ Stand by Current 447.3MHzFrequencyDC4.5VAA battery 3ea Power Source (3) (2)(1) -6 - (1) Magnetic (2) lead switch (3) Door main 5. Siren Establish in position that can inform emergency situation on outside. 108gWeightPiezo Sound Power W73 X H122 X D40External (mm)Pilot lamp 2eaLamp -10 ~ 60 degree Operating temperature 250mA Operating Current -40 ~ 80 degreeStorage temperature- Stand by Current 120dBSound powerDC12V Power Source DescriptionItemDescriptionItem -7 - -10 ~ 70 degree Operating Temperature 10mA Input Current -40 ~ 80 degree Storage Temperature 12V Power Supply 500mA Maximum Current AC 120V Power Source DescriptionItemDescriptionItem Connect in household (AC120V) power and insert on main frame backside. 6. Adaptor 7. 7. Emergency Button Emergency Button Emergency button is function that inform situation by emergency contact when crisis situation happens with emergency patient occurrence and outsider invasion in Time24 establishment place. W33 X H45 X D12External 21.5gWeight 0~60degreeOperating temperature 447.3MHz Frequency 35mAOperating current -Stand by current DC12V A23 Power source DescriptionItem Push Button -8 - Operation confirmation lamp 4. INPUT METHOD INPUT METHOD inputed MOD + # + 2 + SET +password input + set button push1 Password (keypad) Register inputed MOD + * + 2 + SET +password input + setbutton push2 Password (main) Register inputed MOD + * + 4 + setbutton push1Voice record inputed MOD + * + 5 + setbutton push1Voice playback Arm / Disarm inputed MOD + * + 3 + 8 + SET + 01-99 + SET1Delay time appointment inputed MOD + * + 0 + 0 + Press input button of main frame + set button push 1Main register inputed MOD + * + 0 + 3 + SET 3 Emergency push3 inputed MOD + * + 0 + 2 + SET 2 Emergency push2 inputed MOD + * + 0 + 1 + SET 1 Emergency push1 Emergency button input method inputed MOD + * + 1 + 8 + SET + 8 sensor on8 inputed MOD + * + 1 + 7 + SET + 7 sensor on7 inputed MOD + * + 1 + 6 + SET + 6 sensor on6 inputed MOD + * + 1 + 5 + SET + 5 sensor on5 inputed MOD + * + 1 + 4 + SET + 4 sensor on4 inputed MOD + * + 1 + 3 + SET + 3 sensor on3 inputed MOD + * + 1 + 2 + SET + 2 sensor on2 inputed MOD + * + 1 + 1 + SET + 1 sensor on1 Sensor input (PIR sensor or Door sensor) inputed MOD + * + 3 + 7 + SET + 2 telephone number input + SET button push 2 inputed MOD + * + 3 + 6 + SET + 1 telephone number input + SET button push 1 input method at emergency situat…

Text truncated - open the document above for the full version.

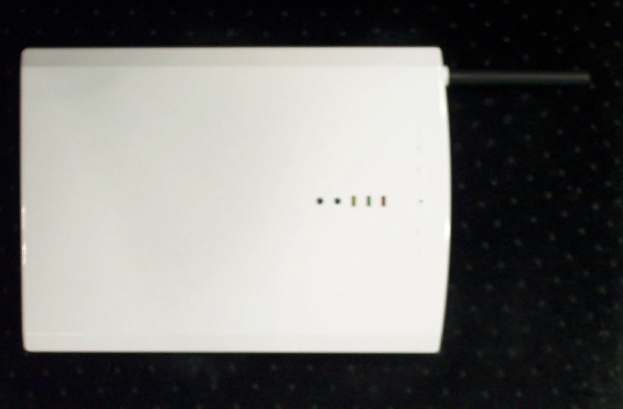

FRONT BOTTOM FCC ID:QPH - ISM MODEL:T - MAIN ILSUNG Korea co.,Ltd

<Bottom View> FCC ID:QPH-ISM MODEL:T-MAIN ILSUNG Korea co.,Ltd <Label format>

<Internal photo> <Internal photo> <Internal photo>

KTL Korea Testing Laboratory Page 1 of 12 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Hee-Soo Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 02-341-043 Name and address of the applicant ILSUNG KOREA Co., Ltd. 932 Onekok-dong, Ansan-City Kyong ki do, 425-850 Korea Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : November 22, 2002 Test item(s) ; Superheterodyne Receiver (Home Security System – Main) Model/type ref. ; T-MAIN Manufacturer ; ILSUNG KOREA Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : QPH-ISM -Note : Test report(Certification) of Transmitter of this unit is issued on Ref. Report No. 02-341-044, 045, 046, 047 Test date : March 8, 2003 Issue date : March 10, 2003 Ref. Report No. 02 - 341 – 043 Page 2 of 12 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) . CONDUCTED EMISSION MEASUREMENT (Section 15.107) 5 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data . RADIATED EMISSION MEASUREMENT (Section 15.109) 9 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data . TEST EQUIPMENTS USED FOR MEASUREMENT 12 Ref. Report No. 02 - 341 – 043 Page 3 of 12 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL INFORMATION 1. Grantee’s Name and : ILSUNG KOREA Co., ltd. . Mailing Address 932 Onekok-dong Ansan-City Kyong Ki Do, 425-850, Korea 2. Manufacturer's Name and : ILSUNG KOREA Co., ltd. . Mailing Address 932 Onekok-dong Ansan-City Kyong Ki Do, 425-850, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 447.3 MHz 3.2 Detect Method : Superheterodyne Detector 3.3 Local Oscillator : Local Osc. Frequency = (Operating Frequency – 10.7 MHz (1st IF)) 3.4 Power Supply : AC 120 V (AC Adaptor) 4. Rules and Regulations : FCC Part 15, Subpart B 5. Measuring Procedure : ANSI C63.4-1992 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : March 8, 2003 7.2 Radiated Emission : March 8, 2003 Ref. Report No. 02 - 341 – 043 Page 4 of 12 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 10 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 02 - 341 – 043 Page 5 of 12 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848  . CONDUCTED EMISSION MEASUREMENT (Section 15.107) 1. Test Procedure Conducted emission measurements on the EUT were performed by "AC Power Line Conducted Emissions Testing" procedure as per ANSI C63.4. The EUT was set up on a wooden table 0.8 meters height, 1.0 by 1.5 meters in size, placed in the shielded enclosed with a side of wall of which constituted a vertical conducting surface of 2.2 m x 3.1 m in size to maintain 40 cm from the rear of EUT LISN(Line Impedance Stabilization Network, EMCO, 3825/2, 50 ohm / 50 μH) was installed and electrically boned to the conducting ground plane. The EUT was connected to the LISN using a typical power adapter. One of two 50 ohm output terminals of the LISN was connected to the EMI Receiver(ROHDE & SCHWARZ, ESI7, 20 Hz to 7 GHz) and the other was terminated in 50 ohms. Measurements were again performed after interchanging such a connection oppositely. The frequency range from 150 kHz to 30 MHz was examined and the remarkable frequencies were measured with Quasi-peak and Average values using the EMI receiver instrument (ROHDE & SCHWARZ, ESI7, 20 Hz to 7 GHz ; Detector Function ; CISPR Quasi-Peak & Average). The 6 dB bandwidth of the Receiver was set to 9 kHz The position of connecting cables of the EUT was changed to find the worst case configuration during measurements. The maximum emission level from the EUT occurred in such configuration as shown in the following photograph. Ref. Report No. 02 - 341 – 043 Page 6 of 12 Korea Testing Laboratory Te…

Text truncated - open the document above for the full version.

Ref. Report No. 02 - 341 – 043 Page 7 of 12 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph for the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB) was converted into microvolt () as shown in following sample calculation. For example : Measured Value at 0.16 MHz 47.6 dB @ average mode + Cable Losses * 0.0 dB = Conducted Emission 47.6 dB * In case of RG214/RF cable 15 Ft, the loss is about 0.17 dB at the frequency of 30 MHz which is negligible. Ref. Report No. 02 - 341 – 043 Page 11 of 12 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph for the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB) was converted into microvolt per meter (/m) as shown in following sample calculation. For example : Measured Value at 436.6MHz 20.9dB/m + Antenna Factor 16.1 dB + Cable Loss 4.0 dB  Preamplifier 0.0 dB  Distance Correction Factor * 0.0 dB = Radiated Emission 41.0 dB/m ( = 112.2/m) * Extrapolated from the measured distance to the specified distance by an inverse linear distance extrapolation.
