QPH-ISRHome Security System ( Emergency Button)

1. Basis composition 6 5 4 3 2 1 Appliance that control all functions of Time24 Main External Product explanation Item Appliance that supply entire in Time24 main frame Adaptor Appliance that inform situation by sound and light Siren Appliance that sense that get closed with inquiry ten rims and notify wireless to main frame Door Sensor Appliance that sense object that move shooting permanent domicile outer line and notify wireless to main frame PIR Sensor Appliance that input all functions of Time24 by wireless Keypad 1 2 3 4 5 6 -1 - 1.Install together main frame and telephone line, power and do not hide main frame front top portion Mike. 2.Install keypad according to user's use position on main entrance inside. 3.Is room that increase at PIR sensor. Establish in position that can sense invader's anticipation transfer path. ¢¡Caution(PIR sensor & Door sensor) (1) To see glass window outside for malfunction prevention at PIR Sensor, do not establish.Window establishes as do not look (2) If stove and air conditioner are operated or are windward from outside because window is unclosed, there is malfunction worry. Put out stove and air conditioner and close window and prevent malfunction at TIME24's operation (3) User who breed pet establishes as pet does not enter in perception sphere at PIR sensor. Example •As is not sensed about 50 Cm in the floor, control PIR sensor. •When go out, move pet to place that there is no PIR sensor. 4.Establish, and do to face department of liberal arts do leader switch in fixed place and magnetic switch that visit on window, entrance at door sensor and establish by 20mm within. 5.Siren establishes to conquer invader at the same time information on emergency outside so that outsider may look well from outside by purpose, establish in place that do not take rain. 6.Because Time24 uses radio, area that electromagnetic waves are serious with computer, cordless, under high-tension wire keeps schedule distance 2. Point to observe when establish -2 - 3. 3. Product description Product description 1. T_MAIN 433gWeightSound power 110dB Internal Siren W146 X H210 X D30External (mm)0 ~ 60 degree Operating Temperature 12 hours Power failure stand by -20 ~ 80 degree Storage Temperature NO or NC Point of contact input Wire inputTEL.LINE 2MߟOVER Isolation Resistor D/C 12V 50mA BELOW Wire outputDC6V 700mA Backup Battery -120dBmSensitivity Siren OFF 100mA Siren ON 250mA Operating Current 447.3MHzFrequency40mA Stand by Current Tone / PulseFormDC12V Power Source DescriptionItemDescriptionItem RESET switch Input switch Tel line Telephone Adaptor Power Source dipswitch Arm Lamp Disarm Lamp input Lamp -3 - 433gWeight-20 ~ 80 degree Storage Temperature W160 X H110 X D33External (mm)100mA Operating Current 447.3MHzFrequency 30ßÀ Stand by Current 0 ~ 60 degree Operating Temperature DC6V AA Battery 4ea Power Source DescriptionItemDescriptionItem -4 - 2. T_KEYPAD 3. T_PIR 7 –10 m Sensing Estimated Range 120 gWeight25 ~ 45 degree motion Sensing Detection W65 X H110 X D40External (mm) Up and down 45 degree Left and right 110 degree Sensing Range 0 ~ 60 degree Operating Temperature 35mA Operating Current -20 ~ 80 degree Storage Temperature 40ßÀ Stand by Current 447.3MHzFrequencyDC 4.5V AA Battery 3ea Power Source DescriptionItemDescriptionItem -5 - (1) User mode (2) OFF (3) Test mode 4. T_DOOR DescriptionItemDescriptionItem 180gWeight20mm below Sensing Range W64 X H98 X D20External (mm)magnetic / lead switch Sensing Method 0 ~ 60 degree Operating Temperature 35mA Operating Current -20 ~ 80 degree Storage Temperature 15 ßÀ Stand by Current 447.3MHzFrequencyDC4.5VAA battery 3ea Power Source (3) (2)(1) -6 - (1) Magnetic (2) lead switch (3) Door main 5. Siren Establish in position that can inform emergency situation on outside. 108gWeightPiezo Sound Power W73 X H122 X D40External (mm)Pilot lamp 2eaLamp -10 ~ 60 degree Operating temperature 250mA Operating Current -40 ~ 80 degreeStorage temperature- Stand by Current 120dBSound powerDC12V Power Source DescriptionItemDescriptionItem -7 - -10 ~ 70 degree Operating Temperature 10mA Input Current -40 ~ 80 degree Storage Temperature 12V Power Supply 500mA Maximum Current AC 120V Power Source DescriptionItemDescriptionItem Connect in household (AC120V) power and insert on main frame backside. 6. Adaptor 7. 7. Emergency Button Emergency Button Emergency button is function that inform situation by emergency contact when crisis situation happens with emergency patient occurrence and outsider invasion in Time24 establishment place. W33 X H45 X D12External 21.5gWeight 0~60degreeOperating temperature 447.3MHz Frequency 35mAOperating current -Stand by current DC12V A23 Power source DescriptionItem Push Button -8 - Operation confirmation lamp 4. INPUT METHOD INPUT METHOD inputed MOD + # + 2 + SET +password input + set button push1 Password (keypad) Register inputed MOD + * + 2 + SET +password input + setbutton push2 Password (main) Register inputed MOD + * + 4 + setbutton push1Voice record inputed MOD + * + 5 + setbutton push1Voice playback Arm / Disarm inputed MOD + * + 3 + 8 + SET + 01-99 + SET1Delay time appointment inputed MOD + * + 0 + 0 + Press input button of main frame + set button push 1Main register inputed MOD + * + 0 + 3 + SET 3 Emergency push3 inputed MOD + * + 0 + 2 + SET 2 Emergency push2 inputed MOD + * + 0 + 1 + SET 1 Emergency push1 Emergency button input method inputed MOD + * + 1 + 8 + SET + 8 sensor on8 inputed MOD + * + 1 + 7 + SET + 7 sensor on7 inputed MOD + * + 1 + 6 + SET + 6 sensor on6 inputed MOD + * + 1 + 5 + SET + 5 sensor on5 inputed MOD + * + 1 + 4 + SET + 4 sensor on4 inputed MOD + * + 1 + 3 + SET + 3 sensor on3 inputed MOD + * + 1 + 2 + SET + 2 sensor on2 inputed MOD + * + 1 + 1 + SET + 1 sensor on1 Sensor input (PIR sensor or Door sensor) inputed MOD + * + 3 + 7 + SET + 2 telephone number input + SET button push 2 inputed MOD + * + 3 + 6 + SET + 1 telephone number input + SET button push 1 input method at emergency situat…

Text truncated - open the document above for the full version.

From: Jeong-Min Kim [[email protected]] Sent: Thursday, April 17, 2003 9:41 PM To: Mike Kuo Subject: Re: ILSUNG KOREA Co., Ltd., FCC ID:QPH-ISR, AN03T2727 Dear Mr. Mike: 1. I renewed label format. Please see the attached files for your reference. 2. The data signal mentioned in operational description means the control signal coded in pulse. This device transmit a encoded pulse signal not a data signal, so please check the renewed operational description file. Thank you for your cooperation. Best Regards, Jeongmin Kim ************************************************ Jeong-Min Kim Tel. 82-2-860-1464 Fax. 82-2-860-1468 Mobile 82-19-226-8336 Senior Engineer Telecommunication Team, Korea Testing Laboratory 222-13, Guro-dong, Guro-ku, Seoul, 152-848, Korea e-mail: [email protected] ************************************************ ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]> Sent: Friday, April 18, 2003 6:19 AM Subject: FW: ILSUNG KOREA Co., Ltd., FCC ID:QPH-ISR, AN03T2727 > > > -----Original Message----- > From: CERTADM > Sent: Thursday, April 17, 2003 2:18 PM > To: '[email protected]' > Subject: ILSUNG KOREA Co., Ltd., FCC ID:QPH-ISR, AN03T2727 > > > Notice_content > ------------- > Question #1: Please provide FCC ID label format and location. > > Question #2: In accordance with theory of operation file submitted, this > device is transmitting high and low data rate. Per section > 15.231(a)equirement, data transmission is prohibit under section 15.231(a) > of FCC rules. Please address this non-compliance issue. > > FYI: I will use revised manual provided in the previous related application. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the > sender. > > >

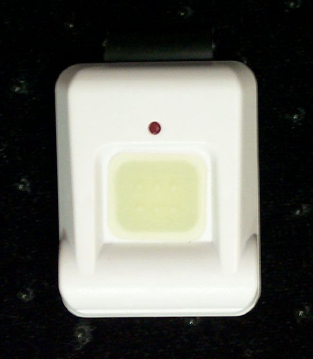

FRONT BOTTOM FCC ID:QPH-ISR MODEL:T-REMOTE ILSUNG Korea co.,Ltd

FCC ID : QPH-ISR MODEL : T-REMOTE ILSUNG Korea co.,Ltd <Label format> <Bottom View>

PCB-FRONT PCB-BOTTOM

Description of Circuit operation - Product : Home Security System(Emergency Button) - Model : T-REMOTE If the user is pushed button on EUT during emergency state, the encoded modulated signal is transmitted through antenna. The coding format of encoded IC for modulation is as follows. Pulse train time : - Sync Bit : 256ms - All pulses are high (Maximum 24 Bit) : 144ms - All pulses are low (Minimum 24 Bit) : 76.8ms - Pulse train Time (Maximum) : 400ms - Pulse train Time (Minimum) : 332.8ms The maximum 6 times pulse train will be transmitted for receiver ; - Total pulse time (Maximum) = 400 X 6 = 2400ms - Total pulse time (Minimum) = 332.8 X 6 = 1996.8ms

55 44 33 22 11 B B A A 1 1 AUQK1 B 11 Friday, March 07, 2003 TitleSize Document Number Rev Date: Sheet of VCC VCC VCC VCC CT220P C2020p C72P Q2 BFP183TW C95P R170 L1 12NH R533K R210 R910K C1710p ANT1ANTENNA CT310P SW1 TACT BT1 12V 12A 12 L468NH C4103P C22 104P C23 not mount R11470 C184P C14. C190.5P R131K R31K Q1 BFQ67W D1 KDV154 USC TYPE CT110P L6 12NH C100.5P Q3 BFP183TW C115P C58P L3 12NH C6100P R1220 R733K C21150P R41K R647K C2 103P C131p C87p C16102P R10100k R810K Y1 T447.3MHz L5 1uH U1 8PIN .... .... 12345 678 L8 100nH C1520P D25.1V L282nH C313p C133p D3 LED C120.5P L7 82nH

KTL Korea Testing Laboratory Page 1 of 14 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim, Senior Engineer Hee-Soo Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 02-341-047 Name and address of the applicant ILSUNG KOREA Co., Ltd. 932 Onekok-dong, Ansan-City Kyong ki do, 425-850 Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : November 22, 2002 Test item(s) ; Remote Control/ Security Device Transmitter (Home Security System – Emergency Button) Model/type ref. ; T-REMOTE Manufacturer ; ILSUNG KOREA Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : QPH-ISR -Note : Test report of receiver on this transmitter is issued on Ref. Report No. 02-341-043. Test date : January 24 2003 Issue date : January 27, 2003 Ref. Report No. 02 - 341 – 047 Page 2 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) . RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data . OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 13 . TEST EQUIPMENTS USED FOR MEASUREMENT 14 Ref. Report No. 02 - 341 – 047 Page 3 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL INFORMATION 1. Grantee’s Name and : ILSUNG KOREA Co., ltd. . Mailing Address 932 Onekok-dong Ansan-City Kyong Ki Do, 425-850, Korea 2. Manufacturer's Name and : ILSUNG KOREA Co., ltd. . Mailing Address 932 Onekok-dong Ansan-City Kyong Ki Do, 425-850, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 447.3 MHz 3.2 Type of Emission : Pulse Code Signal (FSK) 3.3 Power Supply : DC 12 V(Alkaline Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-1992 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : January 24, 2003 Ref. Report No. 02 - 341 – 047 Page 4 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 10 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 02 - 341 – 047 Page 5 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 02 - 341 – 047 Page 6 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The f…

Text truncated - open the document above for the full version.

Ref. Report No. 02 - 341 – 047 Page 8 of 14 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph of the test configuration 3. Sample Calculation With the resolution bandwidth set at 100 kHz, the EUT produces a pulse spectrum on the spectrum analyzer because the bandwidth of the analyzer is greater than or equal to the PRF (= 167 Hz ). Therefore, as mentioned in HP Application Note 150-2 (page 11), the pulse desensitization( p ) equals zero and the display amplitude is essentially a peak level. The measured field strength was determined from the averaging absolute voltage during 0.1second interval because the pulse repetition time of the EUT(=427ms) exceeded 0.1 seconds (15.35(c)). See graphs of page 12 and Description of Circuit Operation..
