EDGE‐VS Series Mini PC - 1 - EN User Manual Sapphire EDGE-VS Series Mini PC 1. Product Specifications Important information for your safety and comfort Please read these instructions carefully before using the product and save for future reference. y Ensure that the Mini-PC is turned off and disconnected from the mains supply before cleaning y Do not use liquid or aerosol cleaners, a damp cloth should suffice y Insert the power connector into the Mini PC before plugging the mains cable into the AC power outlet. y When you need to disconnect power to the equipment, unplug the power cord from the AC power outlet before removing the power connector from the Mini PC. Item Description CPU AMD APU Trinity A4 AMD APU Trinity A8 Chipset AMD Radeon TM HD7400G AMD Radeon TM HD7600G Chipset AMD ® Hudson-M3 (A70M) Chip RAM 4GB – DDR3 Storage 2.5'' SATA 320GB / 500GB / 750GB HDD LAN Built-in Ethernet supporting 10/100/1000 Mbps WIFI / BT Built-in WIFI supporting IEEE 802.11 b/g/n ; BT 3.0 I/O 1x Mini Display, 1x HDMI, 1x RJ45, 2x USB 3.0 Ports, 4x USB 2.0 Ports, 1x Audio-out, 1x MIC-in, 1x SPDIF-out Power AC 100~240V 50/60Hz,19v~3.42A 65W Monitor Supplied separately Keyboard/Mouse Supplied separately Dimensions ?? (L) X ??(W) X ??(H) cm Weight ??g Operating System Pre-installed with FREE DOS; Supports Win8/Win7/Vista EDGE‐VS Series Mini PC - 2 - EN 2. Product Overview Features No. Item Description 1 Power Switch To switch the Mini PC ON or OFF. 2 Front USB3.0 Ports (remove cover)To connect USB devices. 3 SD Card Reader To insert SD memory cards 4 Power Indicator light and HDD / Wifi Activity Indicator light The light will glow (white) when the power is on and will flash when the hard disk(orange) / Wifi (green) is in use 5 Mini Display port To connect to display devices 6 HDMI port To connect to display devices 7 Rear USB 2.0 Ports To connect USB devices 8 LAN Port To connect to an Ethernet LAN 9 DC Input To connect the power supply 10 Audio out jack To connect to headphones or speakers 11 Microphone in jack To connect to a microphone or other audio source 12 Optical S/PDIF To connect to an audio device EDGE‐VS Series Mini PC - 3 - EN 3. Sapphire Mini PC Setup and Connections To attach the Desktop Stand Align stand with the base of the Mini PC and fix with inus screw. To connect to a mini display Connect the display device to the mini display connector located on the rear of the unit. To connect to an HDMI display / TV Connect the display device to the HDMI connector located on the rear of the unit. To connect to a DVI display (1). Connect the HDMI to DVI adapter included with the Mini PC to the HDMI port located at the rear of the unit. (2). Connect the DVI monitor to the female DVI port on the adapter. To connect USB devices Connect USB devices to the USB ports located both at the rear of the unit and under the cover at the front of the unit. EDGE‐VS Series Mini PC - 4 - EN To connect to the network Connect the Ethernet cable from your network switch / router to the RJ45 LAN connector located at the back of the unit. To connect the power adapter Connect the power connector from the supplied power supply to the DC – In connector located on the rear of the unit BEFORE attaching the mains power cable to an AC outlet. To connect speakers or headphones Connect the 3.5mm audio cable to the Audio Out jack located at the rear of the unit. To connect a microphone or other audio source Connect the 3.5mm audio cable to the Line In jack located at the rear of the unit. To connect to digital speakers or other digital sources Connect the S/PDIF cable to the S/PDIF jack located at the rear of the unit. EDGE‐VS Series Mini PC - 5 - EN To read media files from an SD memory card Insert the SD card into the SD card reader. Note: This Mini PC provides one standard RJ-45 jack for connecting to a Local Area Network (LAN). Two LEDs are built into the RJ-45 LAN connector. These LEDs indicate the status of the LAN. LED LED ColorLED stateIndicates Off LAN link is not established On LAN link is established A Green Blinking LAN activity is occurring N/A Off 10 Mb/s data rate Green On 100 Mb/s data rate B Yellow On 1000 Mb/s data rate EDGE‐VS Series Mini PC - 6 - EN Warnings y Do not use this product near water or a heat source such as a radiator. y Do not place this product on an unstable stand or surface. If the product falls, it could be seriously damaged. y The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator y Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. y Never spill liquid of any kind onto or into the product. y To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface. y Keep this equipment away from humidity and high temperature y Do not leave the equipment in an unconditioned environment with a storage temperature above 60 O C (140 O F) or below 0 O C (32 O F), which may damage the equipment. y Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. y Route the power cord in a way that people are unlikely to step on it. Do not place anything on top of the power cord. y Keep any strong magnetic or electrical objects away from the equipment. y Your device and its accessories may contain small parts. Keep them out of the reach of small children. REACH Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework Lithium-Ion Battery Warning Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. CE Mark Warning This is a Class B product, in a domestic environment, this…

Text truncated - open the document above for the full version.

A A B B C C D D E E AA BB CC DD ALC662 EDGE-FP2M3 BLOCK DIAGRAM P2,3,4 SATA Port Conn. DP0 DP1 DP P8 GPP x1 x1 x1 x1 P16 UMI LINK Gen1 x4 GPP GIGA LAN x1 x1 x1 x1 LPC F71080E P20 FCH Hudson-M3 USB2.0 Conn. SD SO-DIMM USB2.0 Mini-DP Conn. HDA Fusion APU FP2 SATA DDR 1600BGA Ball 25.6x29.4mm BGA 24.5x24.5 FCBGA Ball RTL8111F GIGA LAN Conn. 25MHz Super IO USB3.0 Conn. x4 x2 Line out Conn. Mic in Conn. 25MHz For Master 32.768kHz For RTC DP2 x8 GFX SO-DIMMDDR 1600 A B DP VGA x6 x14 USB3.0 x4 HDMI Conn. Confidential SD Socket Title SizeDocument NumberRev Date:Sheet of 1.0 B 226Friday, August 31, 2012 Block Diagram Edge-FP2M3 Title SizeDocument NumberRev Date:Sheetof 1.0 B 226Friday, August 31, 2012 Block Diagram Edge-FP2M3 Title SizeDocument NumberRev Date:Sheetof 1.0 B 226Friday, August 31, 2012 Block Diagram Edge-FP2M3 SAPPHIRE Confidential

深圳市华标检测技术服务有限公司 Bontek Compliance Testing Laboratory Co., Ltd DATE: October 15, 2012 Dear TCB Section of Timco Engineering, Inc., Thank you for cooperation. I would like to submit a FCC new application of SAPPHIRE TECHNOLOGY LIMITED./FCC ID: QPK-EDGE by your TCB Approval today. Best Regards, Bontek Compliance Testing Laboratory Co., Ltd. Tony Wu/General Manager

SAPPHIRE TECHNOLOGY LIMITED FCC ID: QPK-EDGE POWER OF ATTORNEY February 9, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Ltd.(Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act.We, SAPPHIRE TECHNOLOGY LIMITED are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuantto that section. Sincerely, SAPPHIRE TECHNOLOGY LIMITED Sam Lee, Project Manager

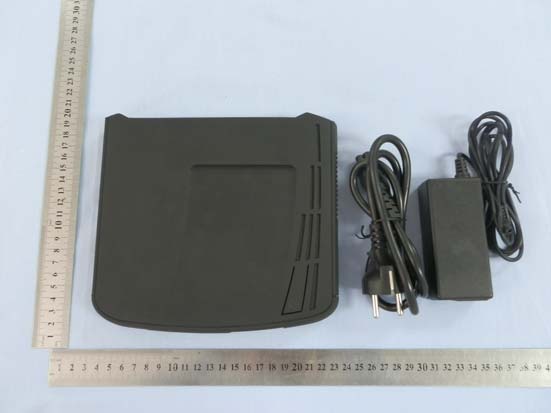

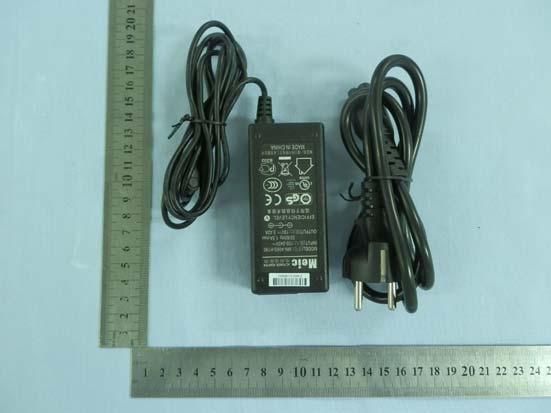

EUT EXTERNAL PHOTOGRAPHS EUT –View EUT –Front View EUT –Side View EUT –Side View EUT –Adapter View

FCC ID Label Sample for FCC ID: QPK-EDGE SAPPHIRE TECHNOLOGY LIMITED product: NETTOP FCC ID: QPK-EDGE Model: EDGE VS4 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user’ authority to operate the equipment. SAPPHIRE TECHNOLOGY LIMITED product: NETTOP FCC ID: QPK-EDGE Model: EDGE VS6 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user’ authority to operate the equipment. SAPPHIRE TECHNOLOGY LIMITED product: NETTOP FCC ID: QPK-EDGE Model: EDGE VS10 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user’ authority to operate the equipment. SAPPHIRE TECHNOLOGY LIMITED product: NETTOP FCC ID: QPK-EDGE Model: EDGE VS8 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user’ authority to operate the equipment.

FCC ID Label Location FCC ID Label Location

Internal Photographs EUT –Uncovered View EUT –Mainboard View EUT –RAM View EUT –HDD View EUT –Fan View EUT –Wifi Module View

Operation description This device uses the AMD E450 for the central processor, IO the adopted E71080E IC ，ALC662 is audio IC which connect the line out connector and mic in. connector. 88e8059 is Gigabit Ethernet IC which onboard RJ45 connector. The Part of the USB interface, four 2.0 and two 3.0,3.0 use AMS1042 drive. Machine using the 19V DC adapter powered by 78d12 get 12v, +5 by RT82D6B, +3.3 to each part of the work.

9/5/2006- 1 - AW-NU103 IEEE 802.11b/g/n USB Wireless Module Datasheet Version draft 0.5 Document release Date Modification initials Approved Version 0.1 2009/02/19 Initial release Benson Eric Lee Version 0.2 2009 /03/11 Update Pin define / certification Country Benson Eric Lee Version 0.3 2009/09/09 Update RF label Mandy Ray Lee Version 0.4 2009/09/10 Update,mechanical drawing pin 1 Location Steve Chang Ray Lee Version 0.5 2009/11/26 Update RF label Stephanie Ray Lee 9/5/2006- 2 - 1. Introduction AzureWave Technologies, Inc. introduces the pioneer of the IEEE 802.11b/g/n USB wireless module ---AW-NU103. The AW-NU103 USB wireless module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. It enables a high performance, cost effective, low power, compact solution that easily fits onto one side of a USB. Compliant with the IEEE 802.11b/g/n standard, the AW-NU103 uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize system power requirements by using AW-NU103. Longer Range and Faster Speed Comparing to 802.11g technology, 802.11n draft 3.0 standard make big improvement on speed and range. It Increases wireless range by up to 2 times and reduces dead spots in coverage area. The data rate can up to 150Mbps data rate. 2. Features USB. Compliant with IEEE802.11n standard 1 antennas to support 1(Transmit) × ×× × 1(Receive) technology High speed wireless connection up to 150Mbps Low power consumption and high performance Enhanced wireless security 9/5/2006- 3 - 3. Block diagram 9/5/2006- 4 - 4. General Specifications Model Name AW-NU103 Product Description USB wireless module WLAN Standard IEEE 802.11 b/g/n, Wi-Fi compliant Host Interface USB Major Chipset Realtek RTL8191SU (MAC/Baseband/Radio) Dimension 27.29x19.69 X 2.7 mm Weight 3.8 g Antenna Connector Hirose U.FL-R-SMT 1: TX / RX 2: N/A Operating Conditions Voltage 3.3V +/- 5% Temperature Operating: 0~80 o C Storage: -10~85 o C; Electrical Specifications Frequency Range 2.4 GHz ISM Bands 2.412-2.472 GHz, 2.484 GHz Modulation 802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) Output Power 802.11b: 12 dBm +/-1 dBm (11Mbps) 802.11g: 12 dBm +/- 1dBm (54Mbps) 802.11n: 10 dBm +/- 1dBm (HT20 MCS7) 10 dBm +/- 1dBm (HT40 MCS7) Receive Sensitivity 802.11b: less than -76 dBm (11Mbps) 802.11g: less than -68 dBm (54Mbps) 802.11n: less than -61 dBm at HT40 MCS7 less than -64 dBm at HT20 MCS7 Data Rates 802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802.11n: up to 300Mbps Operating Range Open Space: 300 M Indoor: 100 M (The transmission speed may vary according to the environment) Security
WEP 64-bit and 128-bit encryption
WPA(Wi-Fi Protected Access)
WPA2(Wi-Fi Protected Access) Operating System Compatibility Windows XP/Vista/win 7 9/5/2006- 5 - Regulatory FCC / CE / NCC , please refer regulatory list 4-1. Power Consumption @3.3V Continue TX Power: (11b= 12 dBm, 11g= 12dBm, 11n HT20= 10dBm HT40= 10ddBm)+/-1dBm In Idle mode: typically 252 mA / In WLAN Disable: typically 0 mA In 802.11B mode MCS index Data rate Power Consumption Unit TX 1 Mbps (LP) 348 mA TX 11Mbps (LP) 326 mA TX 1Mbps (SP) 346 mA TX 11Mbps (SP) 324 mA In 802.11G mode MCS index Data rate Power Consumption Unit TX 6 Mbps 343 mA TX 54Mbps 302 mA In 802.11N mode (HT20) MCS index Data rate Power Consumption Unit 1 6.5Mbps 336 mA 7 65Mbps 298 mA In 802.11N mode (HT40) MCS index Data rate Power Consumption Unit 1 13Mbps 333 mA 7 135Mbps 293 mA 9/5/2006- 6 - 5. Electrical Characteristics 5-1. Absolute Maximum Ratings Symbol Parameter Max. Rating Unit V dd33 Maximum I/O supply voltage 3.135 to 3.465 V RF in Maximum RF input (reference to 50 Ω) +10 dBm T store Storage temperature TBD °C 5-2. Connector Pin-out Definitions Pin number Name Type Description 1 GND Power Ground 2 USB_D+ I/O USB Differential signal 3 USB_D- I/O USB Differential signal 4 LED Output LED indicator for radio activity; Low Active. 5 HW_DIS Input WLAN disable control – Low Active 6 +3.3V Power 3.3V Power input 7 +3.3V Power 3.3V Power input 8 GND Power Ground 9 NC Not use 10 NC Not use 9/5/2006- 7 - 6. Mechanical Dimensions 7. RF label

TABLE OF CONTENTS Edge-FP2M3 P01: TABLE OF CONTENTS V1.0 RT9025 +19V +1.1VDUAL +3.3VDUAL 19V Adapter Input DC_19V APU_VDDA_PG & DRAMPWOK RT8877 APU_VDD_RUN APU_VDDNB_RUN 17W/19W RT8206B EUP_CTRL +5VDUAL +3.3VDUAL 5V_PWM/+19V +5VDUAL/+3.3VDUAL +5V +3.3V PS_ON SC431 REF2_5 RT9008 +5V +1.2V (VDDR/VDDP) VRMPWRGD APU_VDDIO_SUS LM321M +19V +1.1V REF2_5/VRMPWGD APU_VDDIO_SUS NCP1589A S5- APU_VDDIO_SUS +5VDUAL RT9045GSP MEM_VTT +5V Confidential RT9025 +2.5V (APU_VDDA) +5V +3.3V +3.3V APU_VDDA_PG 22A 22A APU VDDIO : 2.3A VDDR: 3.2A VDDP: 3.5A VDDA: 0.75A +1.1V: 4A Title SizeDocument NumberRev Date:Sheet of Edge-FP2M31.0 TABLE B 126Friday, September 14, 2012 Title SizeDocument NumberRev Date:Sheetof Edge-FP2M31.0 TABLE B 126Friday, September 14, 2012 Title SizeDocument NumberRev Date:Sheetof Edge-FP2M31.0 TABLE B 126Friday, September 14, 2012 SAPPHIRE Confidential Confidential M_TEST CONNECTION TBD TEST35 PD FOR CUSTOMER TEST35 PU FOR INTERNAL WARM RESET DP1_HPD DP1_AUXN DP1_AUXP DP_AUX_ZVSS DP0_AUXN_C DP0_AUXP_C DP0_HPD_C DP4_HPD_C DP5_HPD_C DP2_HPD_C DP3_HPD_C APU_THERMDA_R APU_THERMDC_R APU_TEST9_ANALOGIN APU_TEST18_PLLTEST1 APU_TEST19_PLLTEST0 APU_TEST20_SCANCLK2 APU_TEST24_SCANCLK1 APU_TEST25_H_BYPASSCLK_H APU_TEST25_L_BYPASSCLK_L APU_M_TEST APU_TEST35 FCH_DMA_ACTIVE- DISP_CLKN DISP_CLKP APU_CLKN APU_CLKP APU_SVT APU_SVC APU_SVD APU_SID APU_SIC APU_THERMTRIP-_VDDIO APU_VDDIO_PG FCH_APU_RST- APU_SIC APU_SID APU_SVT APU_SVD APU_SVC APU_VDDIO_PG FCH_APU_RST- APU_ALERT-_VDDIO APU_DBRDY APU_DBREQ- APU_TCK APU_TDI APU_TDO APU_THERMTRIP-_VDDIO APU_TMS APU_TRST- APU_ALERT-_VDDIO APU_THERMTRIP-_VDDIOAPU_VDDIO_PG FCH_APU_RST- GND GND GND APU_VDDIO_SUS APU_VDDIO_SUS APU_VDDIO_SUS +3.3VDUAL APU_VDDIO_SUS APU_VDDIO_SUS +3.3VDUAL +3.3V+3.3V APU_VDDIO_SUS APU_VDDIO_SUS VDDP DP0_TX3N_C22 DP0_TX3P_C22 DP0_TX2N_C22 DP0_TX2P_C22 DP0_TX1N_C22 DP0_TX1P_C22 DP0_TX0N_C22 DP0_TX0P_C22 DP1_TXN022 DP1_TXP022 DP1_TXP122 DP1_TXN122 DP1_TXP222 DP1_TXN222 DP1_TXP322 DP1_TXN322 DP1_HPD22 DP1_AUXP22 DP1_AUXN22 DP0_AUXP_C22 DP0_AUXN_C22 DP0_HPD_C22 APU_THERMDA21 APU_THERMDC21 FCH_DMA_ACTIVE-8 APU_CLKN8 DISP_CLKP8 DISP_CLKN8 APU_CLKP8 APU_SVC13 APU_SVD13 APU_SVT13 FCH_APU_SIC9 SIO_APU_SIC21 FCH_APU_SID9 SIO_APU_SID21 APU_VDDIO_PG8 FCH_APU_RST-8 APU_PROCHOT-21,8 TALERT-10 APU_THERMTRIP-9APU_PWRGD_SVID_REG13 SB_KBRST-21,9 APU_VDDNB_FB_L13 APU_VDD_FB_L13 APU_VDDR_FB_H16 APU_VDD_FB_H13 APU_VDDIO_FB_H15 APU_VDDNB_FB_H13 APU_VDDP_FB_H16 Title SizeDocument NumberRev Date:Sheetof Edge-FP2M31.0 APU DISPLAY/CLK/MISC Custom 326Friday, August 31, 2012 Title SizeDocument NumberRev Date:Sheetof Edge-FP2M31.0 APU DISPLAY/CLK/MISC Custom 326Friday, August 31, 2012 Title SizeDocument NumberRev Date:Sheetof Edge-FP2M31.0 APU DISPLAY/CLK/MISC Custom 326Friday, August 31, 2012 Q27 2N3904 SOT23-123 Q27 2N3904 SOT23-123 1 23 TP27TP27 R2600R R0402 R2600R R0402 R2871K R0402 R2871K R0402 R133 1K R0402 R133 1K R0402 0.1uC313 C0402 0.1uC313 C0402 R600R R0402 R600R R0402 R290 4.7K R0402 R290 4.7K R0402 R2620R R0402 R2620R R0402 R32139.2,1%/XR32139.2,1%/X TP28TP28 R2761K R0402 R2761K R0402 R114300R/X R0402 R114300R/X R0402 R126100K R0402 R126100K R0402 R1090R R0402 R1090R R0402 R1360R R0402 R1360R R0402 0.022uC295 C0402 0.022uC295 C0402 2200p C76 C0402 2200p C76 C0402 R3090R/X R0402 R3090R/X R0402 R241 1K/X R0402 R241 1K/X R0402 R127100K R0402 R127100K R0402 R277 10K R0402 R277 10K R0402 R2700R R0402 R2700R R0402 MISC DISPLAY PORT 2 DISPLAY PORT 1 ANALOG/DISPLAY/MISC SENSE RSVD JTAG CTRL SER. CLK TEST DISPLAY PORT MISC. DISPLAY PORT 0 U4D FP2_ASIC FP2_FUSION_MOBILE_CPU MISC DISPLAY PORT 2 DISPLAY PORT 1 ANALOG/DISPLAY/MISC SENSE RSVD JTAG CTRL SER. CLK TEST DISPLAY PORT MISC. DISPLAY PORT 0 U4D FP2_ASIC FP2_FUSION_MOBILE_CPU G6 VSS_SENSE H7 VDDR_SENSE G5 VDD_SENSE G7 VDDIO_SENSE H5 VDDNB_SENSE H6 VDDP_SENSE E7 DBREQ_L E8 DBRDY H11 TRST_L F11 TMS H12 TCK G11 TDO E11 TDI AR10 ALERT_L AK5 THERMTRIP_L AL12 PROCHOT_L AH9 PWROK AK11 RESET_L AH11 SID AJ11 SIC D6 SVT E6 SVD E5 SVC AK7 DISP_CLKIN_L AL7 DISP_CLKIN_H AK9 CLKIN_L AL9 CLKIN_H A5 DP2_TXN3 B5 DP2_TXP3 A4 DP2_TXN2 B4 DP2_TXP2 A3 DP2_TXN1 B3 DP2_TXP1 A2 DP2_TXN0 B2 DP2_TXP0 C2 DP1_TXN3 C1 DP1_TXP3 D2 DP1_TXN2 D1 DP1_TXP2 D3 DP1_TXN1 D4 DP1_TXP1 E1 DP1_TXN0 E2 DP1_TXP0 F2 DP0_TXN3 F1 DP0_TXP3 F3 DP0_TXN2 F4 DP0_TXP2 H4 DP0_TXN1 H3 DP0_TXP1 H1 DP0_TXN0 H2 DP0_TXP0 AH12 RSVD3 AJ12 RSVD2 AK12 RSVD1 P8 FREE_2 L8 FREE_1 AP10 DMAACTIVE_L AL5 HDMI_EN T25 ANATSTOUT_L R25 ANATSTOUT_H AH32 M_TEST Y25 ANATSTIN_L V25 ANATSTIN_H H14 PLLCHRZ_L G14 PLLCHRZ_H AH8 BYPASSCLK_L AJ8 BYPASSCLK_H G12 SCANCLK1 F14 SCANCLK2 E12 PLLTEST0 F12 PLLTEST1 G8 BP3 E9 BP2 F9 BP1 G9 BP0 V23 ANALOGOUT Y23 ANALOGIN AL6 DIECRACKMON R23 THERMDC T23 THERMDA U7 DP5_HPD R7 DP4_HPD P7 DP3_HPD J7 DP2_HPD L7 DP1_HPD M7 DP0_HPD U6 DP5_AUXN U5 DP5_AUXP R6 DP4_AUXN R5 DP4_AUXP P6 DP3_AUXN P5 DP3_AUXP J6 DP2_AUXN J5 DP2_AUXP L6 DP1_AUXN L5 DP1_AUXP M6 DP0_AUXN M5 DP0_AUXP A6 DP_VARY_BL D7 DP_DIGON C6 DP_BLON B6 DP_AUX_ZVSS R142 220R/X R0402 R142 220R/X R0402 R107150,1%R107150,1% R881K R0402 R881K R0402 R100510RR100510R R291 1K R0402 R291 1K R0402 R125 1K R0402 R125 1K R0402 U10 74LVC1G07 SOT353 U10 74LVC1G07 SOT353 24 5 3 1 R141 220R/X R0402 R141 220R/X R0402 R1350R R0402 R1350R R0402 R105510RR105510R R26922R R0402 R26922R R0402 R1100R/X R0402 R1100R/X R0402 R240 1K/X R0402 R240 1K/X R0402 R143 220R/X R0402 R143 220R/X R0402 R1340R R0402 R1340R R0402 R1041K R0402 R1041K R0402 R275 10K/X R0402 R275 10K/X R0402 R2890R R0402 R2890R R0402 R239 1K/X R0402 R239 1K/X R0402 R1170R R0402 R1170R R0402 R831K R0402 R831K R0402 R911K R0402 R911K R0402 R1180R R0402 R1180R R0402 R128100K R0402 R128100K R0402 R265 300R R0402 R265 300R R0402 Q26 2N3904 SOT23-123 Q26 2N3904 SOT23-123 1 23 R951K R0402 R951K R0402 R1110R/X R0402 R1110R/X R0402 R129100K R0402 R129100K R0402 R119300R R0402 R119300R R0402 R113 300R R0402 R113 300R R0402 R268 10K/X R0402 R268 10K/X R0402 R1021K R0402 R1021K R0402 R2711K R0402 R2711K R0402 R132 1K R0402 R132 1K R0402 R32039.2,1%R32039.2,1% R26…

Text truncated - open the document above for the full version.

Test Report of FCC CFR 47 Part 15 Subpart C On Behalf of SAPPHIRE TECHNOLOGY LIMITED FCC ID: QPK-EDGE Product Description: NETTOP Model No.: EDGE VS4 Supplementary Model: EDGE VS6, EDGE VS8, EDGE VS10 Brand Name: N/A Prepared for: SAPPHIRE TECHNOLOGY LIMITED Unit 1909–1919, 19/F., Tower 2, Grand Central Plaza, 138 Shatin Rural Committee Road, Shatin, N.T., Hong Kong Prepared by: Bontek Compliance Testing Laboratory Co., Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT12IR-1743E-2 Issue Date: October 19, 2012 Test Date: September 28~ October 19, 2012 Test by: Reviewed By: Vincent Jiang Kevin Chi Report No.: BCT12IR-1743E-2 Page 2 of 72 FCC ID:QPK-EDGE TABLE OF CONTENTS 1. GENERAL INFORMATION................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................... 3 1.2 RELATED SUBMITTAL(S) / GRANT (S) AND TEST METHODOLOGY....................................................................... 4 1.3 TEST FACILITY...................................................................................................................................................... 4 2. SYSTEM TEST CONFIGURATION...................................................................................................................... 5 2.1 EUT CONFIGURATION.......................................................................................................................................... 5 2.2 EUT EXERCISE.................................................................................................................................................... 5 2.3 GENERAL TEST PROCEDURES............................................................................................................................. 5 2.4 MEASUREMENT UNCERTAINTY............................................................................................................................ 5 2.5 LIST OF MEASURING EQUIPMENTS USED............................................................................................................ 6 3. SUMMARY OF TEST RESULTS.......................................................................................................................... 8 4. TEST OF AC POWER LINE CONDUCTED EMISSION................................................................................... 9 4.1 APPLICABLE STANDARD....................................................................................................................................... 9 4.2 TEST SETUP DIAGRAM......................................................................................................................................... 9 4.3 TEST RESULT....................................................................................................................................................... 9 5. TEST OF MAXIMUM PEAK OUTPUT POWER............................................................................................... 12 5.1 APPLICABLE STANDARD..................................................................................................................................... 12 5.2 EUT SETUP........................................................................................................................................................ 12 5.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 12 5.4 TEST PROCEDURE............................................................................................................................................. 12 5.5 TEST RESULT..................................................................................................................................................... 12 6. TEST OF PEAK POWER SPECTRAL DENSITY............................................................................................ 22 6.1 APPLICABLE STANDARD..................................................................................................................................... 22 6.2 EUT SETUP........................................................................................................................................................ 22 6.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 22 6.4 TEST PROCEDURE............................................................................................................................................. 22 6.5 TEST RESULT..................................................................................................................................................... 22 7. TEST OF 6DB BANDWIDTH...............................................................................................................................32 7.1 APPLICABLE STANDARD..................................................................................................................................... 32 7.2 EUT SETUP........................................................................................................................................................ 32 7.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 32 7.4 TEST PROCEDURE............................................................................................................................................. 32 7.5 TEST RESULT..................................................................................................................................................... 32 8. TEST OF CONDUCTED SPURIOUS EMISSION................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission Radiated Emission Radiated Emission
